Transmission
| Transmission Type | Hydrostatic |
| No. of Travel Speeds – Forward / Reverse | 3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed | 0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed | 18.5 mph (29.7 km/h) |
Power Take-Off (PTO)
| PTO Type Transmission | Independent |
| PTO Power | 44.9 hp (33.5 kW) |
| Rear PTO Speed | 540 rpm |
Brakes and Clutch
| Brakes | Wet Disc Type |
| Clutch | None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch | 125.5 in. (3,189 mm) |
| Width | 62.8 in. (1,596 mm) |
| Height from Top of Cab | 93 in. (2,363 mm) |
| Wheelbase | 71.3 in. (1,810 mm) |
| Ground Clearance | 14.5 in. (368 mm) |
| Front Tread Ag Tires – Min | 49.2 in. (1,252 mm) |
| Rear Tread Ag Tires – Min | 49.2 in. (1,251 mm) |
| Min. Turning Radius w/ Brake | 8.63 ft. (2.6 m) |
Hydraulics
| Total Pump Flow | 16.49 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category | Category 2 |
| Lift Capacity, 24″ aft of hitch | 2,716 lbs. (1,232 kg) |
| Control Type | Position |
Weight
| Weight w/ Ag Tires w/ Cab | 4,043.3 lbs. (1,834 kg) |

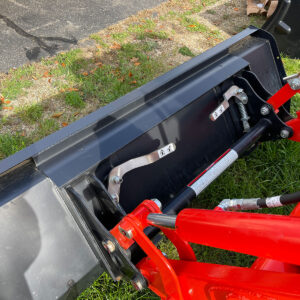

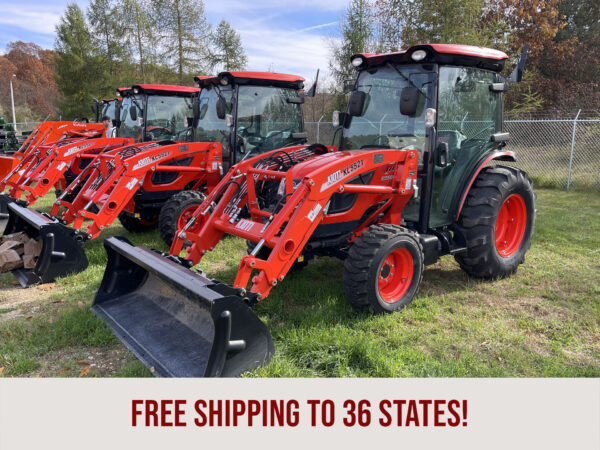

KL5521C Loader
| Maximum Lift Height to Pivot Pin | 107.7 in. (2,735 mm) |
| Clearance w/ Bucket Level | 96.3 in. (2,446 mm) |
| Clearance w/ Bucket Dumped | 78.8 in. (2,001 mm) |
| Reach at Maximum Height (45º) | 22.7 in. (576 mm) |
| Maximum Dump Angle | 46º |
| Reach w/ Bucket on Ground | 71.1 in. (1806 mm) |
| Maximum Rollback Angle | 41º |
| Digging Depth Below Grade | 8.6 in. (218 mm) |
| Overall Height in Carry Position | 54 in. (1371 mm) |
| Bucket Depth (Inner Shell) | 18.5 in. (470 mm) |
| Bucket Height | 22 in. (560 mm) |
| Bucket Length (Pivot Pin) | 26 in. (660 mm) |
| Lift Capacity to Full Height at Pivot Pins | 2,474 lbs. (1,122 kg) |
| Breakout Force at Pivot Pins | 3,895 lbs. (1,767 kg) |
| Bucket Rollback Force at Ground Line | 3,148 lbs. (1,428 kg) |
| Relief Valve Setting (Loader Control Valve) | 2,774 psi (195 kg/cm²) |
| Rated Flow (Tractor System) | 9.62 gpm (36.4 L/min) |
| Bucket Size(s) Available | 66″ QA / 72″ QA |
| Bucket Capacity (Heaped) | 66 in.: 14.5 cu. ft. / 72 in.: 16.0 cu. ft. |
| Approximate Weight (With Bucket) | 66 in.: 1,361 lbs. (617 kg) / 72 in.: 1,389 lbs. (630 kg) |
