TRACTOR SPECS:
Transmission
| Transmission Type |
Hydrostatic |
| No. of Travel Speeds – Forward / Reverse |
3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed |
0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed |
18.5 mph (29.7 km/h) |
Power Take-Off (PTO)
| PTO Type Transmission |
Independent |
| PTO Power |
33.4 hp (24.9 kW) |
| Rear PTO Speed |
540 rpm |
| Mid PTO Speed |
2,000 rpm (Optional) |
Brakes and Clutch
| Brakes |
Wet Disc Type |
| Clutch |
None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch |
125.5 in. (3,189 mm) |
| Width |
62.8 in. (1,596 mm) |
| Height from Top of Cab |
93 in. (2,363 mm) |
| Wheelbase |
71.3 in. (1,810 mm) |
| Ground Clearance |
14.5 in. (368 mm) |
| Front Tread Ag Tires – Min |
49.2 in. (1,252 mm) |
| Rear Tread Ag Tires – Min |
49.2 in. (1,251 mm) |
| Min. Turning Radius w/ Brake |
8.63 ft. (2.6 m) |
Hydraulics
| Total Pump Flow |
16.49 gpm (62.4 L/min) |
3-Point Hitch
| Standard Category |
Category 1 |
| Lift Capacity, 24″ aft of hitch |
2,716 lbs. (1,232 kg) |
| Control Type |
Position |
Weight
| Weight w/ Ag Tires w/ Cab |
4,043.3 lbs. (1,834 kg) |

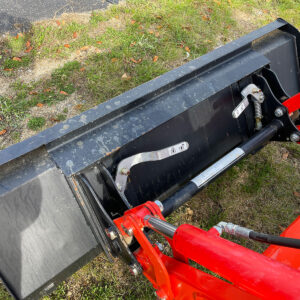

LOADER SPECS:
Specifications
| Maximum Lift Height to Pivot Pin |
107.7 in. (2,735 mm) |
| Clearance w/ Bucket Level |
96.3 in. (2,446 mm) |
| Clearance w/ Bucket Dumped |
78.8 in. (2,001 mm) |
| Reach at Maximum Height (45º) |
22.7 in. (576 mm) |
| Maximum Dump Angle |
46º |
| Reach w/ Bucket on Ground |
71.1 in. (1806 mm) |
| Maximum Rollback Angle |
41º |
| Digging Depth Below Grade |
8.6 in. (218 mm) |
| Overall Height in Carry Position |
54 in. (1371 mm) |
| Bucket Depth (Inner Shell) |
18.5 in. (470 mm) |
| Bucket Height |
22 in. (560 mm) |
| Bucket Length (Pivot Pin) |
26 in. (660 mm) |
| Lift Capacity to Full Height at Pivot Pins |
2,474 lbs. (1,122 kg) |
| Breakout Force at Pivot Pins |
3,895 lbs. (1,767 kg) |
| Bucket Rollback Force at Ground Line |
3,148 lbs. (1,428 kg) |
| Relief Valve Setting (Loader Control Valve) |
2,774 psi (195 kg/cm²) |
| Rated Flow (Tractor System) |
9.62 gpm (36.4 L/min) |
| Bucket Size(s) Available |
66″ QA / 72″ QA |
| Bucket Capacity (Heaped) |
66 in.: 14.5 cu. ft. / 72 in.: 16.0 cu. ft. |
| Approximate Weight (With Bucket) |
66 in.: 1,361 lbs. (617 kg) / 72 in.: 1,389 lbs. (630 kg) |
