TRACTOR SPECS
Transmission
| Transmission Type |
Hydrostatic |
| Shuttle |
None |
| No. of Travel Speeds – Forward / Reverse |
3 Range |
| Min. Travel Speed of Forward w/ Ag @ Engine rated speed |
0 mph (0 km/h) |
| Max. Travel Speed of Forward w/ Ag @ Engine rated speed |
18.26 mph (29.38 km/h) |
Power Take-Off (PTO)
| PTO Type Trans |
Independent |
| PTO Power |
48.3 hp (36 kW) |
| Rear PTO Speeds (1st) |
540 rpm |
| Mid PTO Speeds |
2,000 rpm (Optional) |
Brakes and Clutch
| Brakes |
Wet Multi Disc |
| Clutch |
None |
Dimensions w/ AG Tire
| Length w/ 3-point hitch |
139.6 in. (3,547 mm) |
| Width |
65.7 in. (1,669 mm) |
| Height from Top of Cab |
94.1 in. (2,390 mm) |
| Wheelbase |
75.6 in. (1,920 mm) |
| Ground Clearance |
15.7 in. (400 mm) |
| Front Tread Ag Tires – Min |
53.3 in. (1,355 mm) |
| Rear Tread Ag Tires – Min |
52.5 in. (1,324 mm) |
| Turning Radius w/ Brake |
9.97 ft. (3.04 m) |
Hydraulics
| Pump |
Gear |
| Pump Capacity (Max. Flow Rate) |
17.9 gpm (67.6 L/min) |
3-Point Hitch
| Standard Category |
Category I & II |
| Lift Capacity, 24″ aft of hitch |
3,177 lbs. (1,441 kg) |
| Control Type |
Position with Draft Control |
Weight
| Weight with Ag Tires |
4,529 lbs. (2,054.3 kg) |

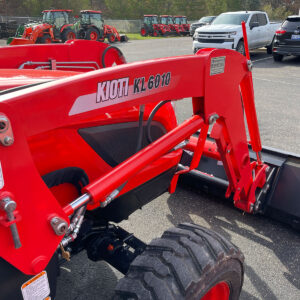

LOADER SPECS
Specifications
| Maximum Lift Height to pivot pin |
108.3 in. (2,750 mm) |
| Clearance w/ Attachment Level |
103.9 in. (2,639 mm) |
| Clearance w/ Bucket Dumped |
82.7 in. (2,101 mm) |
| Reach at Maximum Height |
19.7 in. (500 mm) |
| Maximum Dump Angle |
66˚ |
| Reach w/ Attachment on Ground |
70.9 in. (1,801 mm) |
| Maximum Rollback Angle |
31˚ |
| Digging Depth Below Grade |
8.5 in. (216 mm) |
| Overall Height in Carry Position |
49 in. (1,245 mm) |
| Lift Capacity to Full Height at Pivot Pins |
2,761 lbs. (1,252 kg) |
| Breakout Force at Ground Line |
3,727 lbs. (1,691 kg) |
| Breakout Force at Pivot Pin |
2,990 lbs. @ 19.7 in. Pivot-pin forward |
| Relief Valve Setting (Loader Control Valve) |
2,556 psi |
| Rated Flow (Tractor system) |
10 gpm (37.9 L/min) |
| Bucket Size |
72 in. (1,829 mm) |
| Depth of Attachment (to back of inner shell) |
19.9 in. (505 mm) |
| Height of Attachment |
22.8 in. (579 mm) |
| Depth of Attachment (to pivot pin) |
25.9 in. (658 mm) |
| Heaped Bucket Capacity |
13.06 ft3 |
| Raise Boom (seconds) |
7.8 (1,500 rpm) / 6.1 (2,000 rpm) / 4.5 (2,600 rpm) |
| Lower Boom (seconds) |
4.8 (1,500 rpm) / 3.8 (2,000 rpm) / 2.8 (2,600 rpm) |
| Dump Bucket (seconds) |
7.6 (1,500 rpm) / 5.5 (2,000 rpm) / 4.1 (2,600 rpm) |
| Retract Bucket (seconds) |
5.4 (1,500 rpm) / 4.2 (2,000 rpm) / 3.0 (2,600 rpm) |
