Ag Spray 55 Gal Sprayer



Sprayers are an essential part of lift at a home or a farm, or even out on your hunting lease. A well thought out tank sprayer with up to 30′ of broadcast coverage or a 140″ spring-arm boom for finer control over your spray. And for spot control (whether for weed control or fertilizer) a 22″ spray gun with 25′ of hose is included.

*Free Shipping

Select delivery location

Before you buy, read our shipping FAQ

SKU: N/A Categories: , Tag:


Ag Spray 3-Pt Sprayer Overview

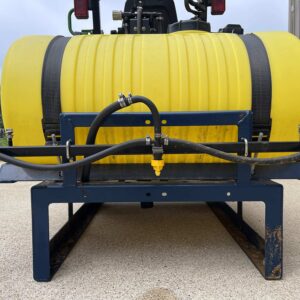

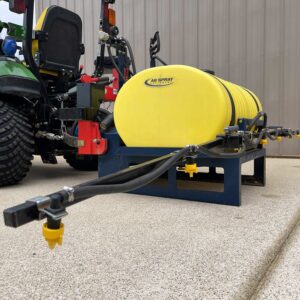

55 gal Quick-Tach 3-Pt Sprayer, w/ 22″ Pro Series Spray Gun

The Ag Spray 55 gal Quick-Tach Cat 1 3-Pt Sprayer is a high quality sprayer equipped with a three nozzle combination fan & boomless nozzles that can deliver up to 30′ of coverage (center broadcast nozzle, and two directional end nozzles). The sprayer is equipped with shutoff valves built into the nozzle bodies which allow the operator the flexibility to target the spray and use one, two or all three nozzles as conditions dictate.

You can buy the optional 140″ Coverage Folding Boom w/ 7 nozzles for greater control, with spring loaded breakaway for those times when we get a little too close to objects.


55 Gal Sprayer FEATURES:

  • 55 gal Horizontal Corrosion Resistant Polyethylene Tank
  • Cast iron 6 roller pump provides up to 9 GPM with quick PTO coupler
  • Stainless steel 3 nozzle wetboom with combination broadcast center tip and Boomless side tips deliver 30 feet of total spray coverage that can be turned on and off independently
  • 14 Feet coverage boomless nozzles to spray fencelines and field borders that experience extra weed and pest pressure
  • Optional 7 Nozzle, 140″ Spring-Arm Coverage Boom
  • Heavy Duty Steel Frame
  • Nylon Tank Straps
  • Tank Braces For Added Tank Stability
  • Strainer Assembly
  • Pressure Regulator For Bypass & Agitation
  • Manual Valves For Boom Or Nozzle Control
  • Category 1 3-Pt Hitch
  • 100 P.S.I. Dry Pressure Gauge
  • 22” Pro Series Handgun With 25’ of 3/8” Rubber Hose, Gun Holder & Hose Wrap
  • Powder Coat Paint
  • Controls conveniently placed making access easy from the tractor seat

    Additional information


    No, Yes
