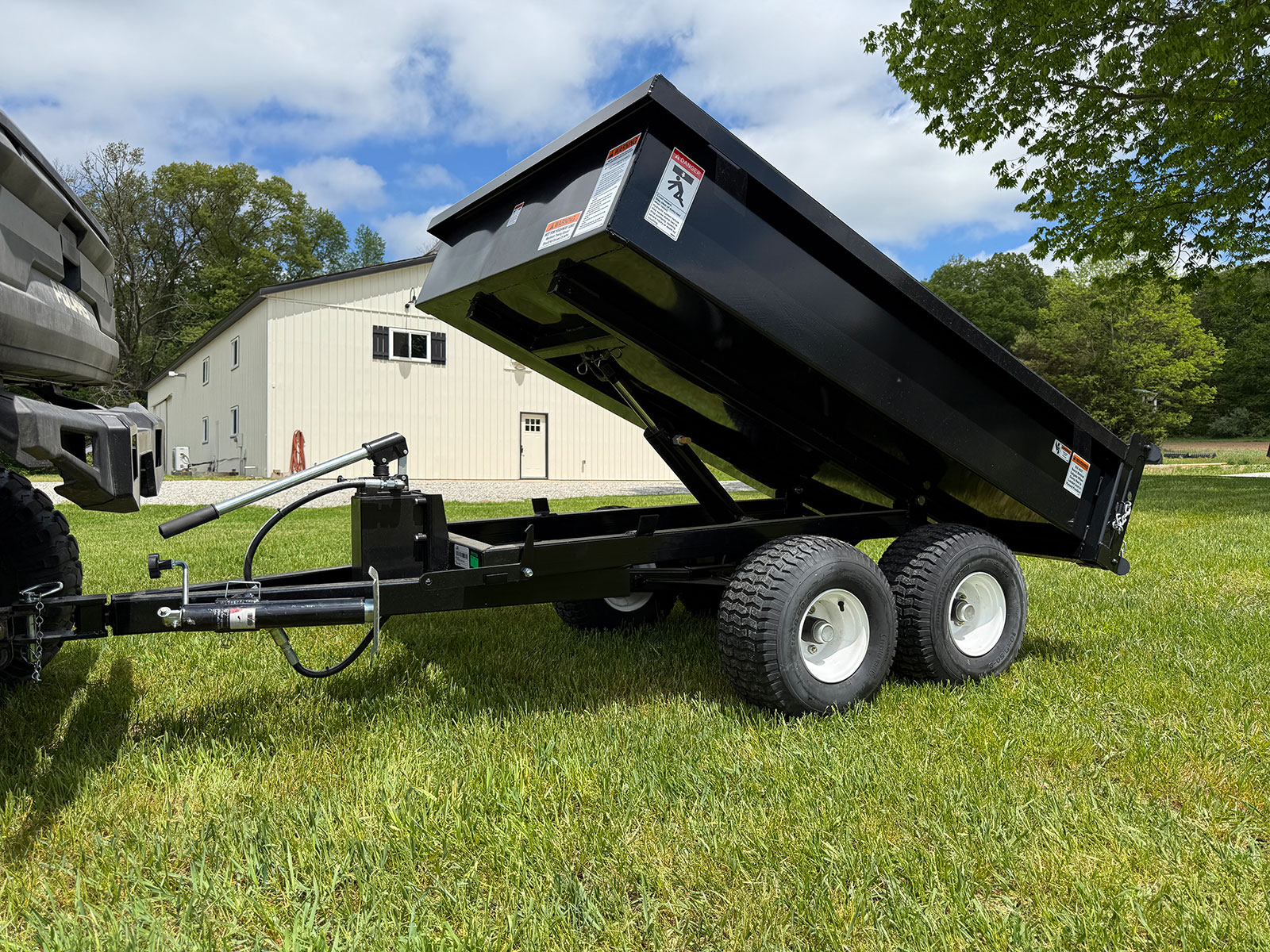

Our Hydraulic Dump Trailer is handy for the homestead to move sand, gravel, dirt, brush, logs, clippings, or whatever you need—delivering a 3,000 lb load capacity with a 24 cu ft bed and 45° dump angle.
Powered by a dual-action pump handle or your tractor’s rear remote, at 54 inches wide this trailer tows well down trails behind your tractor, UTV, or ATV. Built in the USA on a sturdy 2 x 3 inch steel frame, with a walking beam tandem axle to keep loads flat over uneven terrain.
Hydraulic Dump Trailer 3,000 lb Load | 24 cu ft
Our Price: $3,699 – $3,782
Purchase this item and get In Stock, Ready to Ship
Picking the right attachment to fit your tractor isn’t always easy. That’s why we exist.
Contact us prior to purchase to get our recommendation for your tractor model, and if it doesn’t work, you can exchange for the right size at no cost to you.
- Free Shipping to 36 States: Valid on both Ground & Freight orders delivered within our 36-state Free Shipping Zone.
- Outside the Zone? Shipping rates for the rest of the continental U.S. are calculated instantly at checkout.
- Freight Delivery: Standard freight requires the customer to offload the item. A Lift-Gate delivery upgrade is available at checkout for $150.
- View Full Shipping Policy & State List Here
Every product comes with its own factory warranty specified by the manufacturer.
We offer extended warranties to protect your purchase even longer.
Extended Confidence Coverage
Extends the manufacturer’s warranty one year beyond the factory warranty.
Lifetime Priority Protection (Most Popular)
Extends the manufacturer’s warranty for the lifetime of the product and includes priority handling, no-hassle claims, and lifetime support.
What’s Covered
Our extended warranties cover defects in workmanship such as broken welds, torn steel, or improper fit. If a covered issue occurs, we will repair or replace the product at our discretion.
What’s Not Covered
Damage caused by improper use or use outside the product’s intended purpose voids the warranty.
Cosmetic wear such as paint loss, scratches, dents, or bent teeth, as well as normal wear to common attachment components and consumables including cutting edges, shanks, tines, skid runners, skid shoes, blades, belts, bushings, bearings, oils, grease, and similar wear items is not covered under warranty.
Shipping or transportation costs, downtime, and labor are not covered.
Transferability
This warranty is non-transferable and applies only to the original owner/operator.
Dump Trailer Highlights

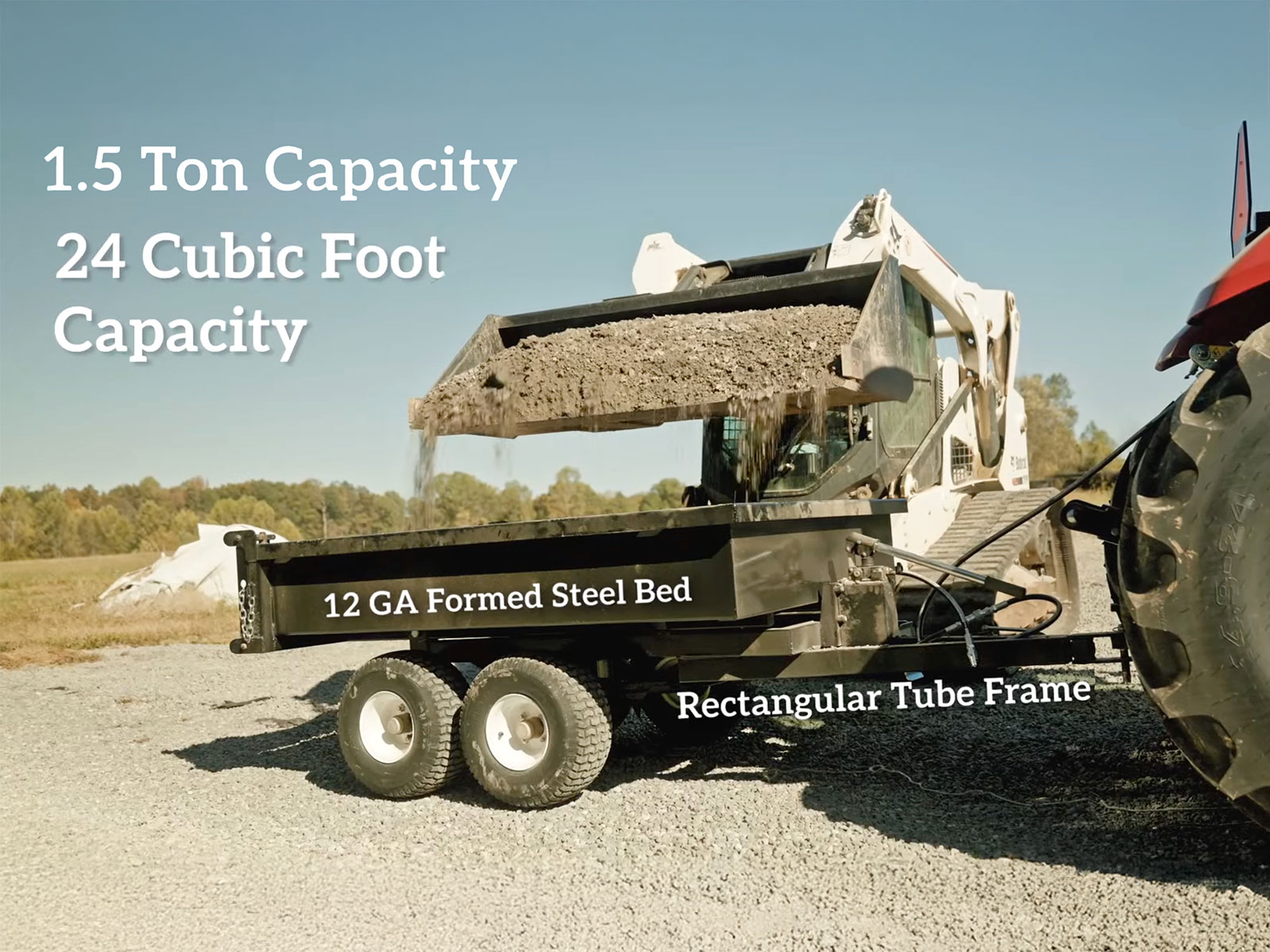

3,000 lb & 24 cu ft
The combination of the 2×3 tube steel frame paired with 12 gauge steel bed provides serious carrying capacity on this compact trailer.

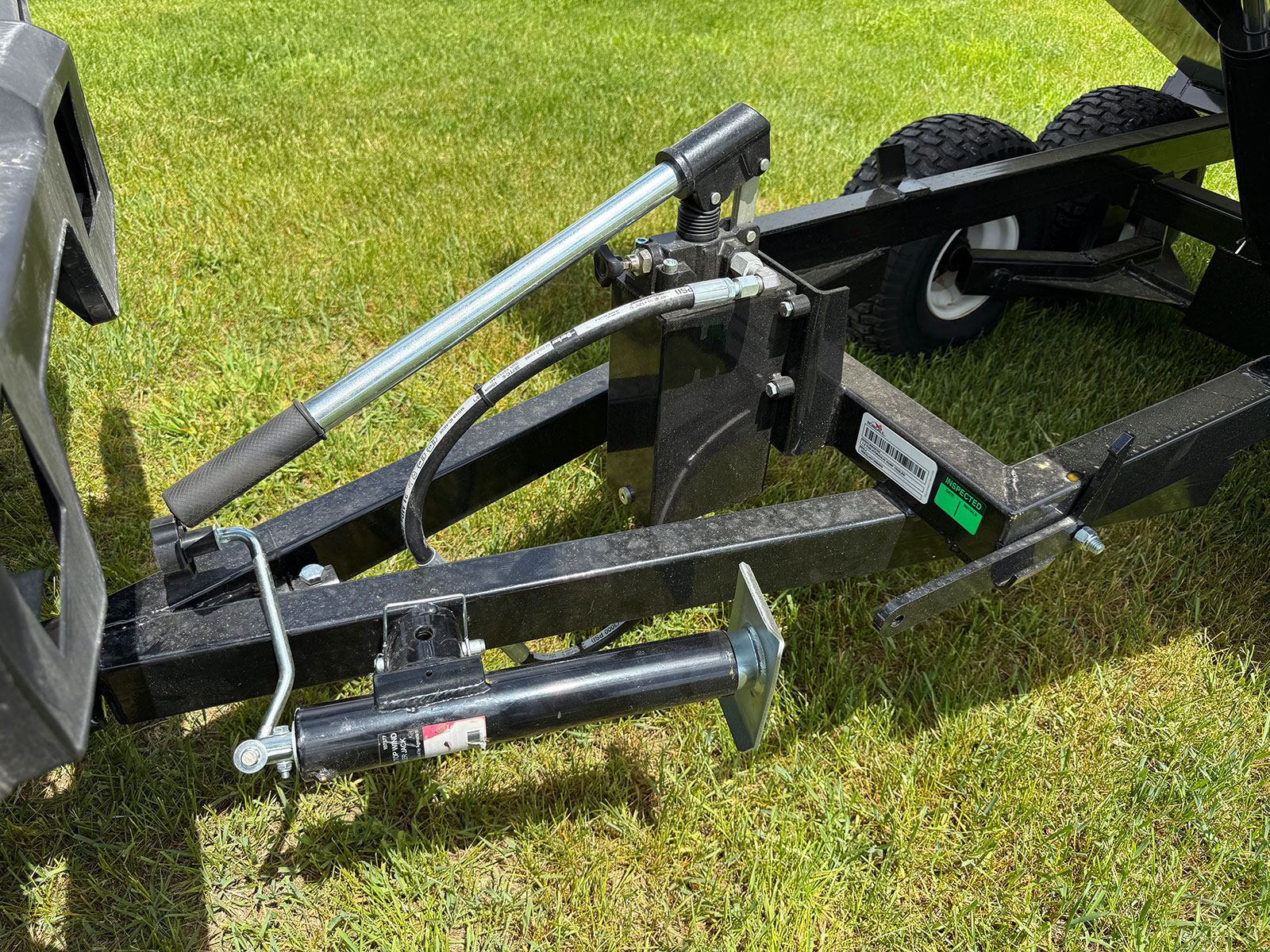

Manual dump with no effort

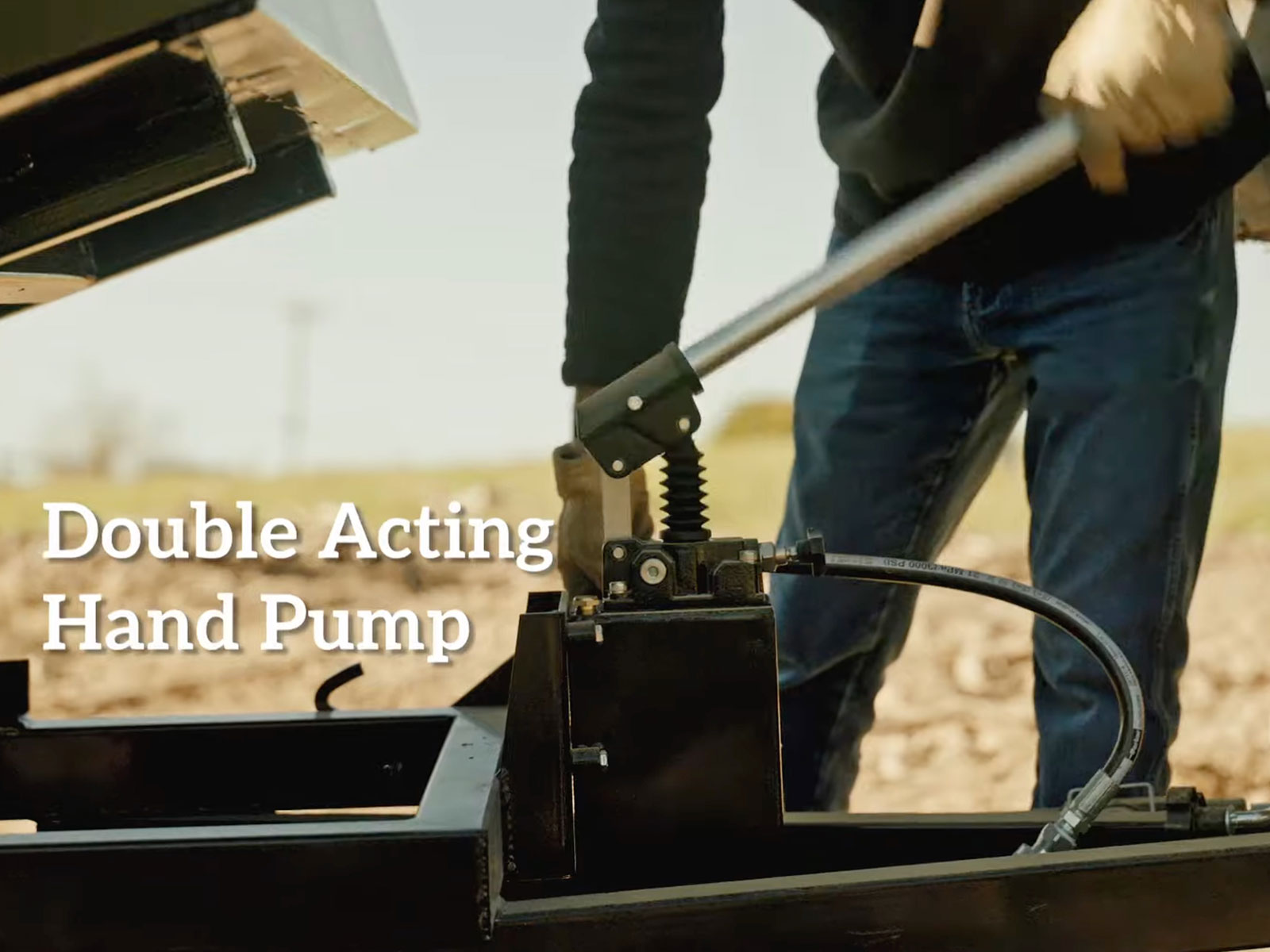

A dual-action pump handle makes raising the bed easy and quick, as both up and down motions raise the bed.
Or dump from your seat

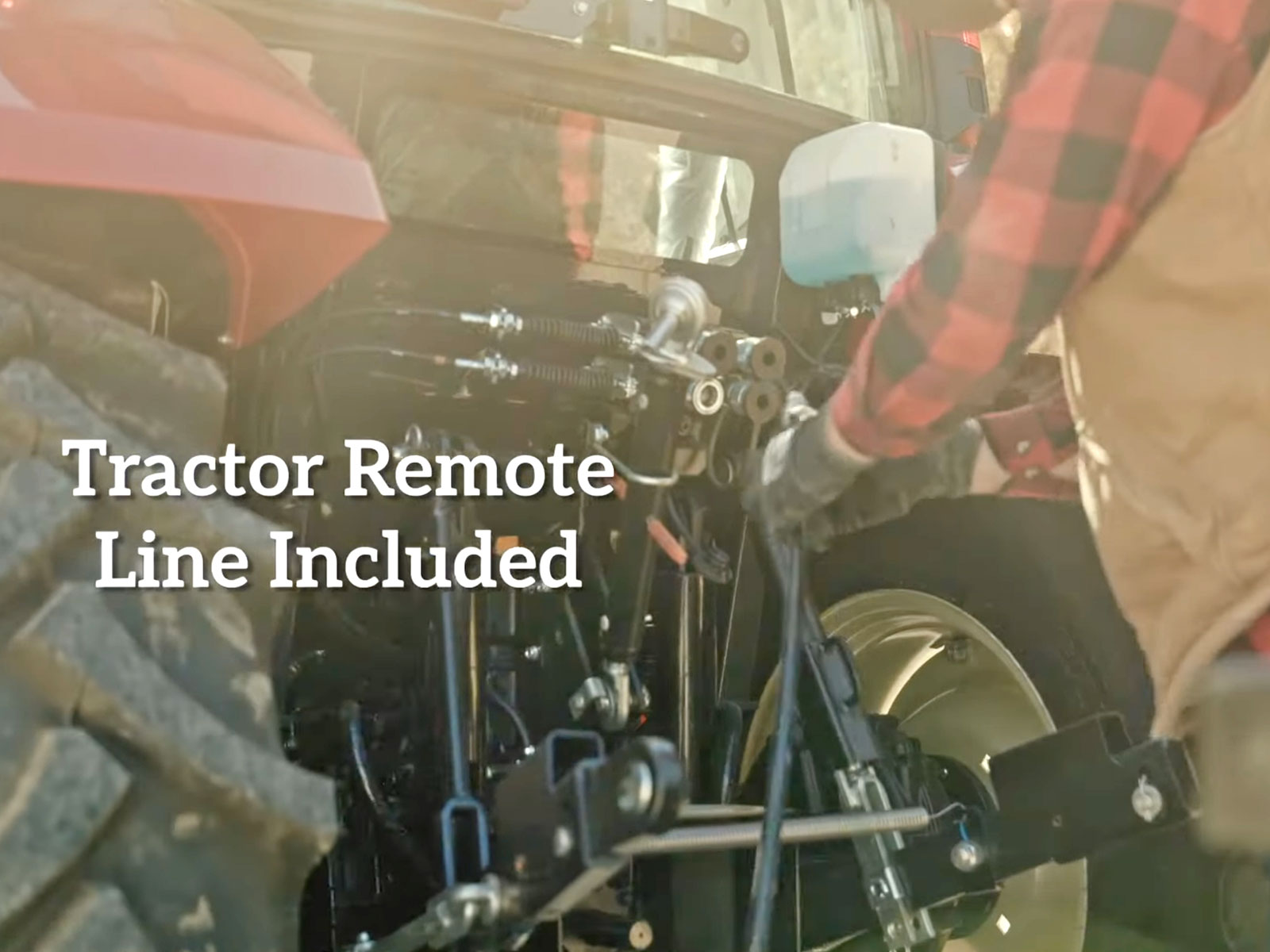

Connect the included hydraulic hose to your tractor’s rear remote. Then raise and lower the trailer bed from your tractor.
Spread. Haul. Dump.
The GWT Hydraulic Dump trailer is sized for compact tractors, UTV’s and ATV’s. At 54 inches wide, it tows well down trails and fits through your gates.

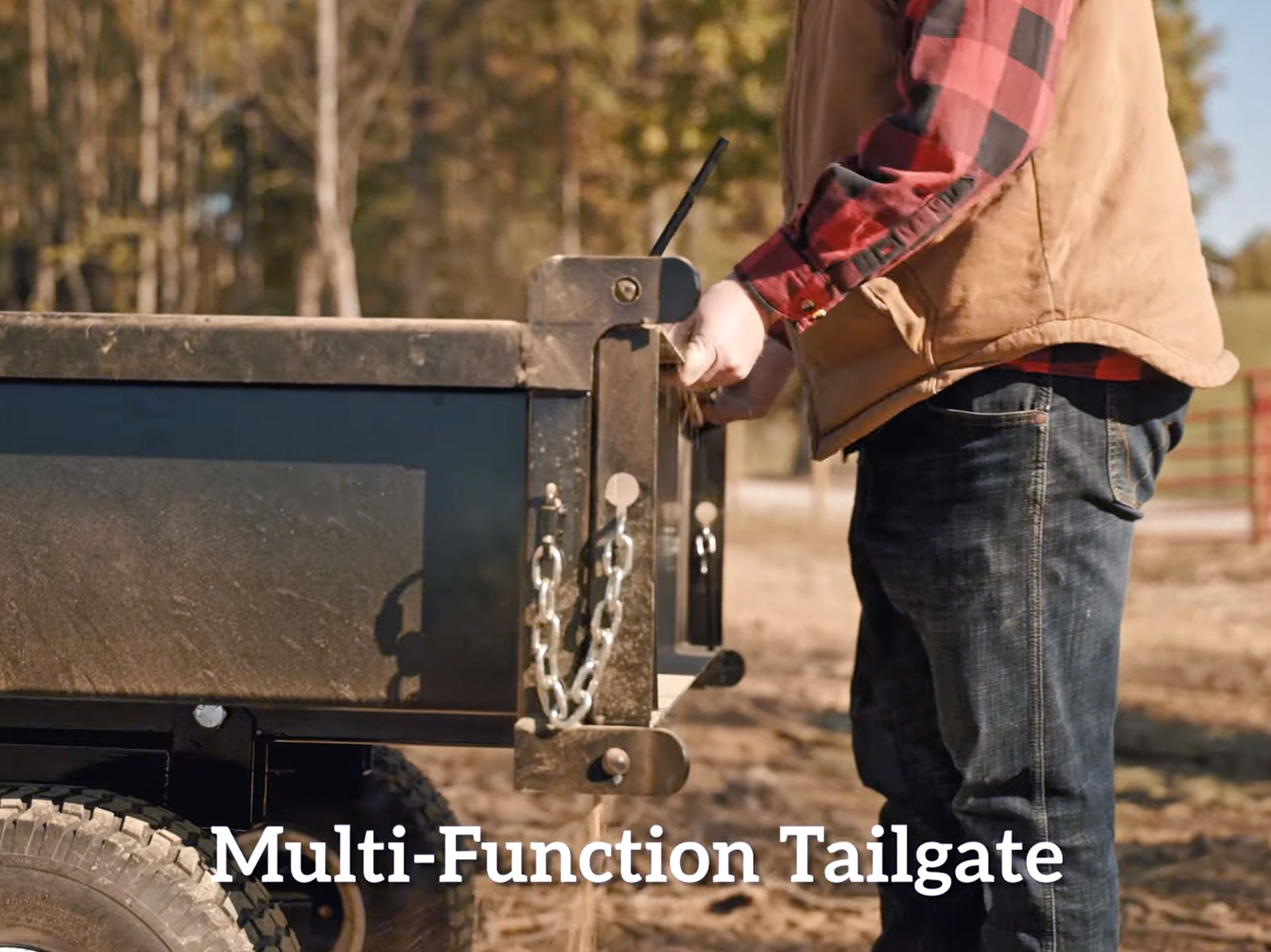

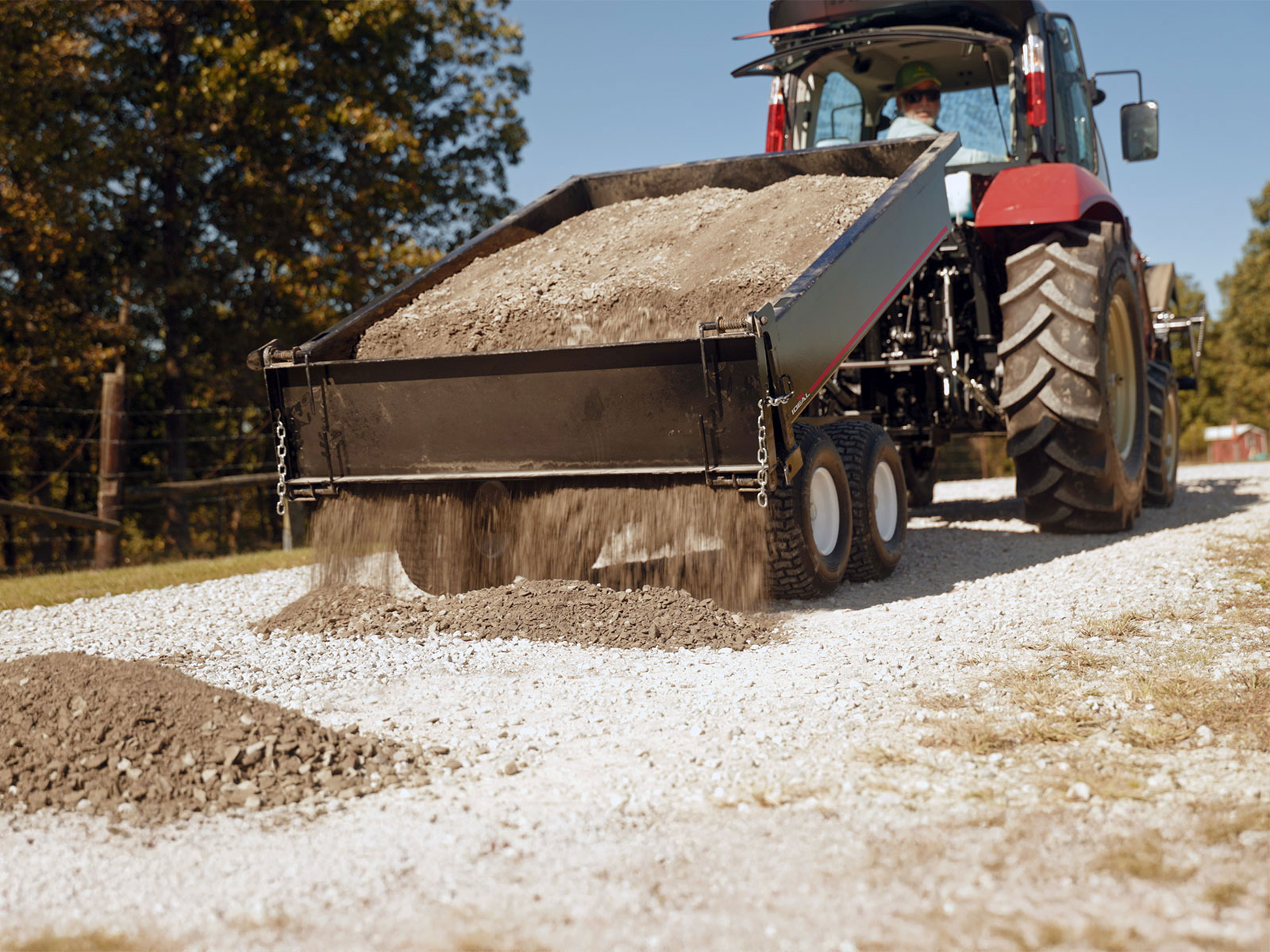

The tailgate opens from the top or bottom to allow for easy dumping or sifting of material. And of course it locks shut for transport, too.

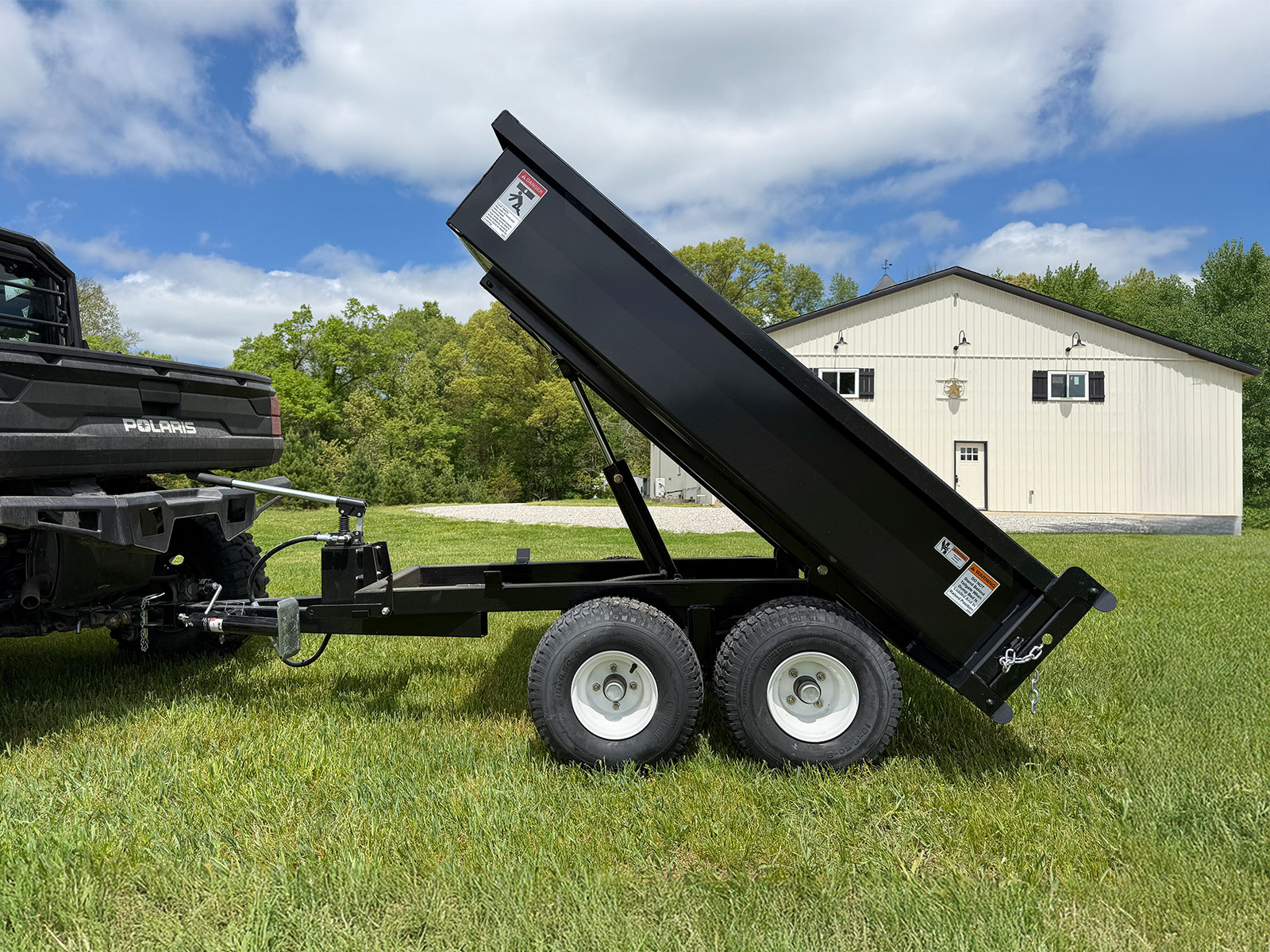

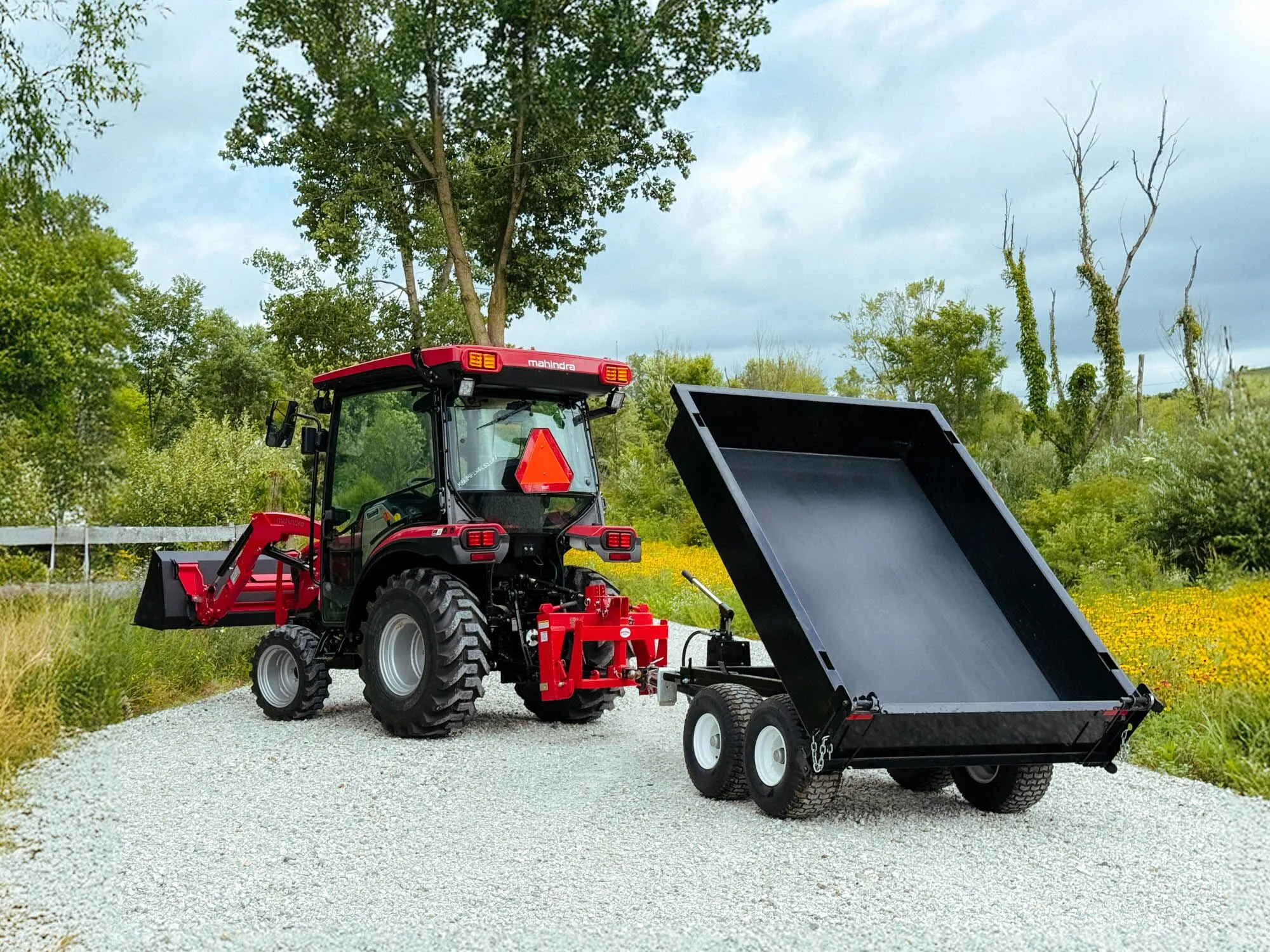

45° dump angle

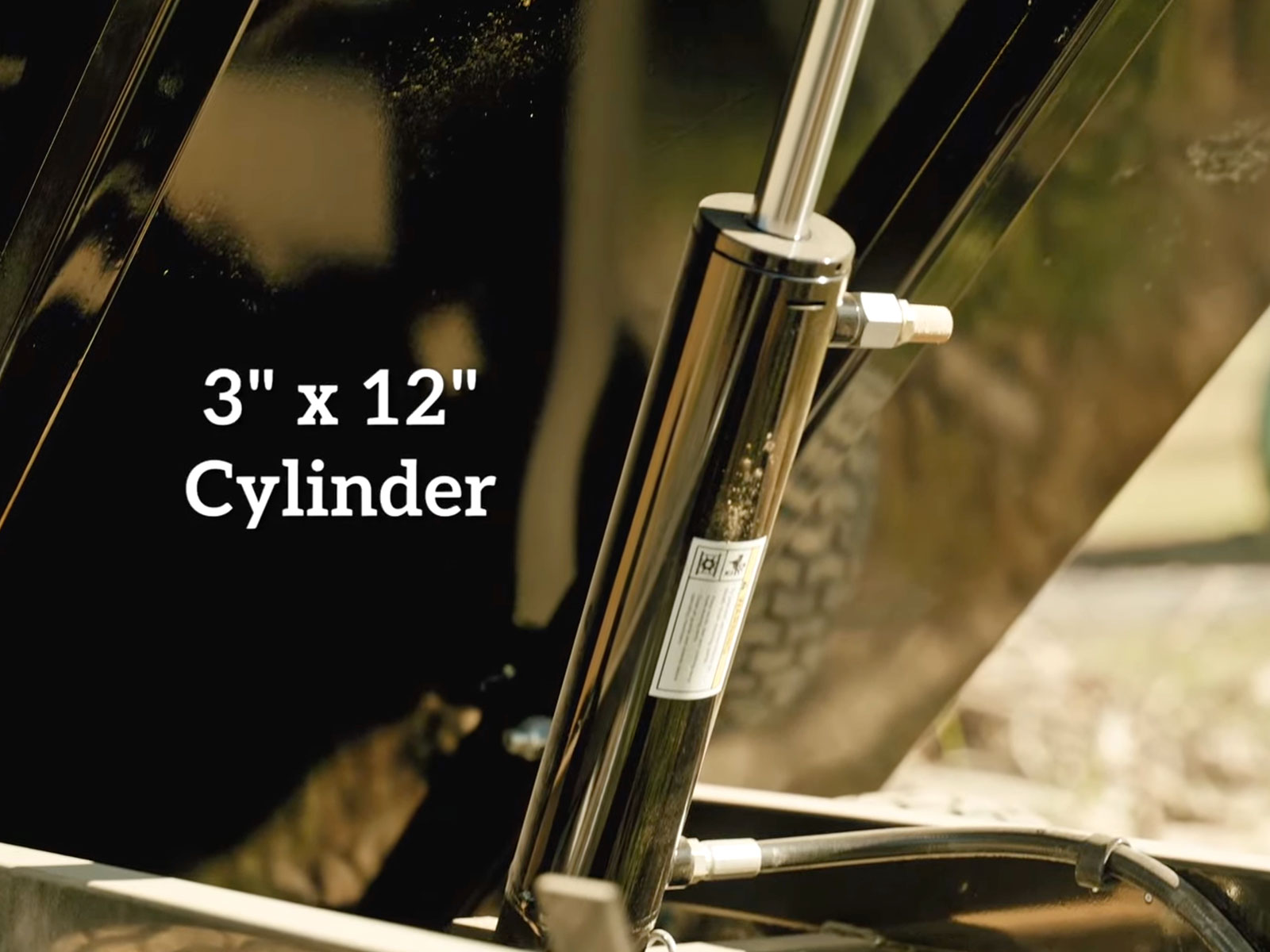

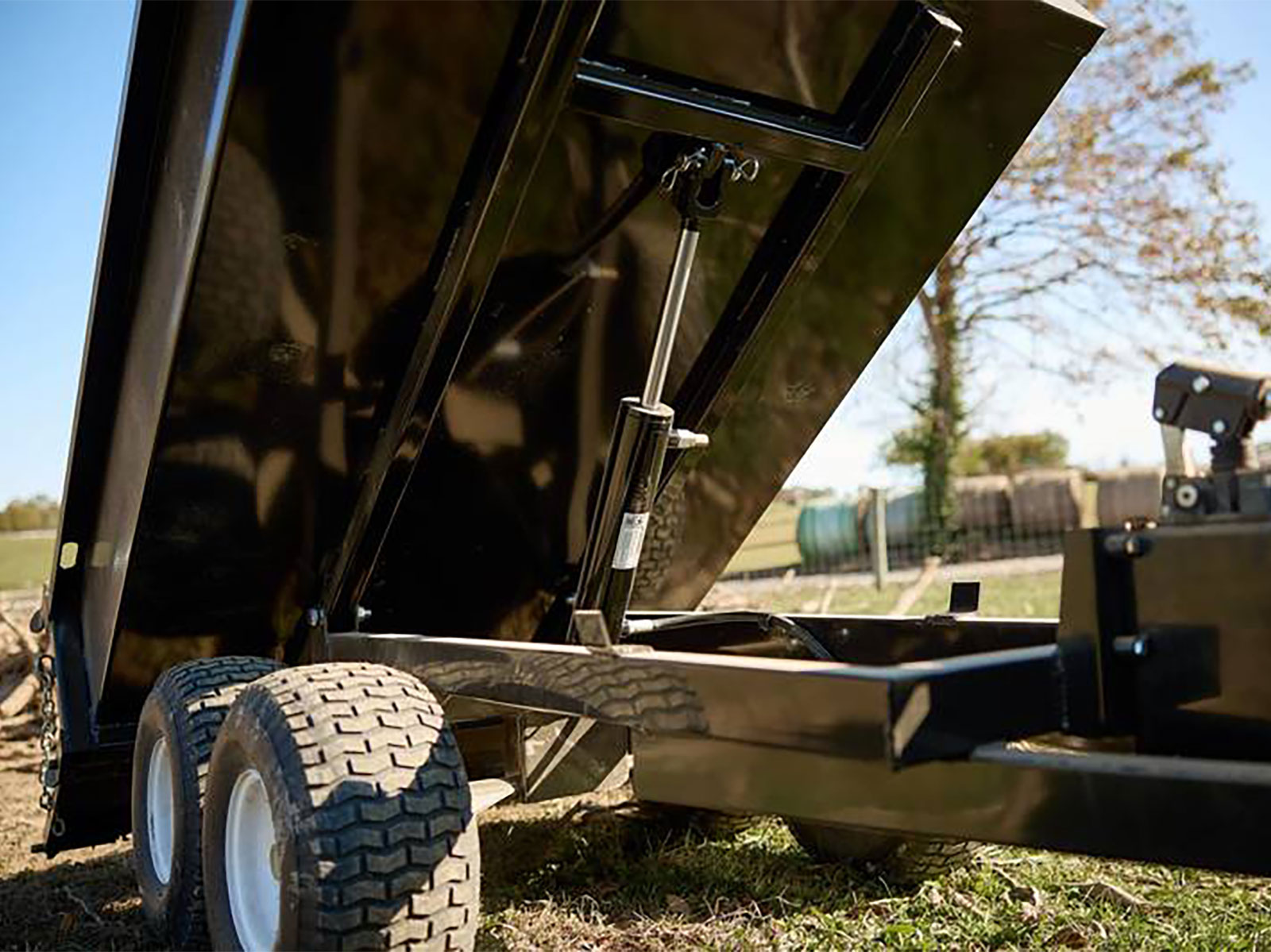

The 3×12 hydraulic cylinder lifts the bed to a full 45°—so material slides out cleanly.

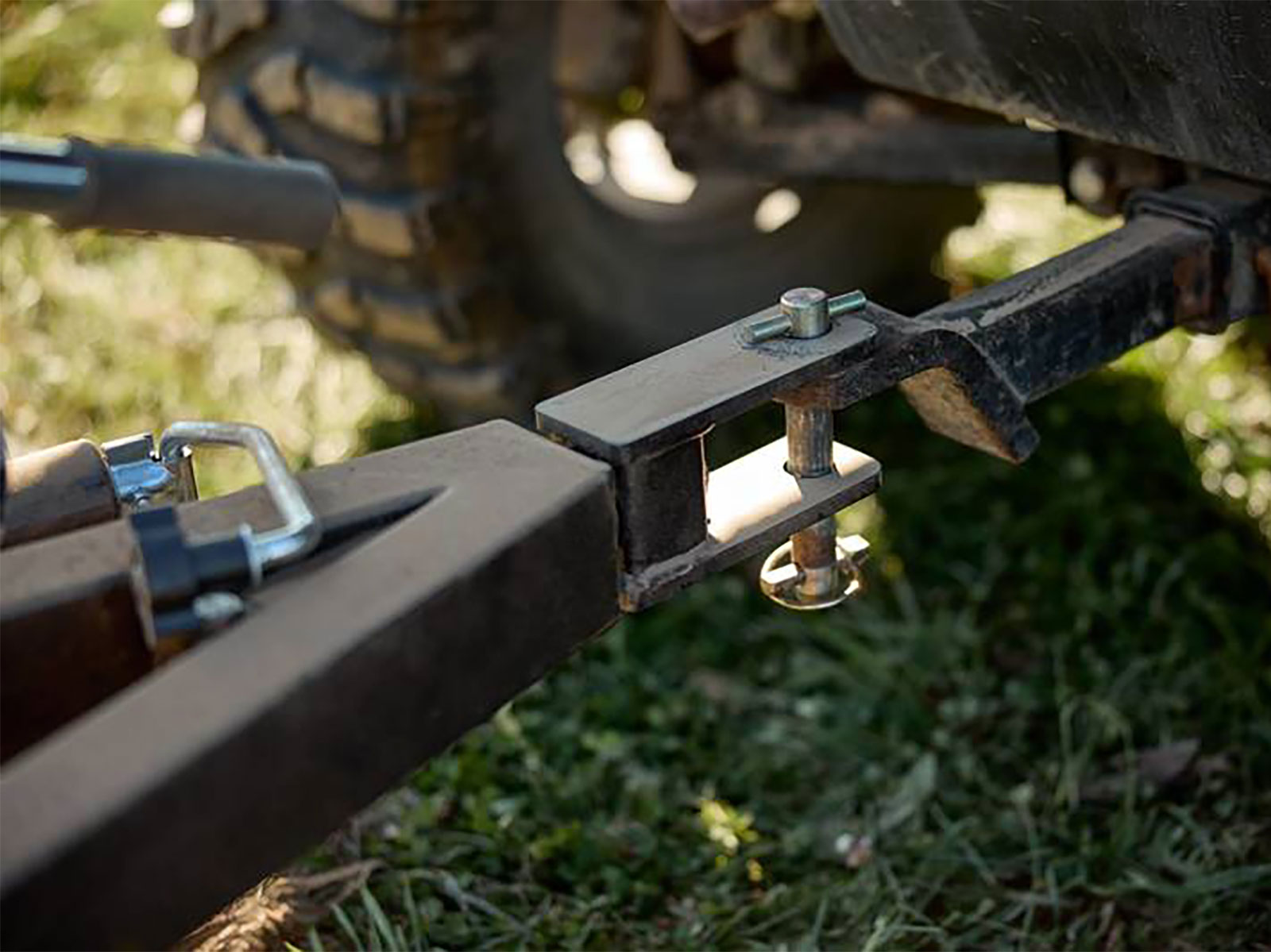

Two connection styles

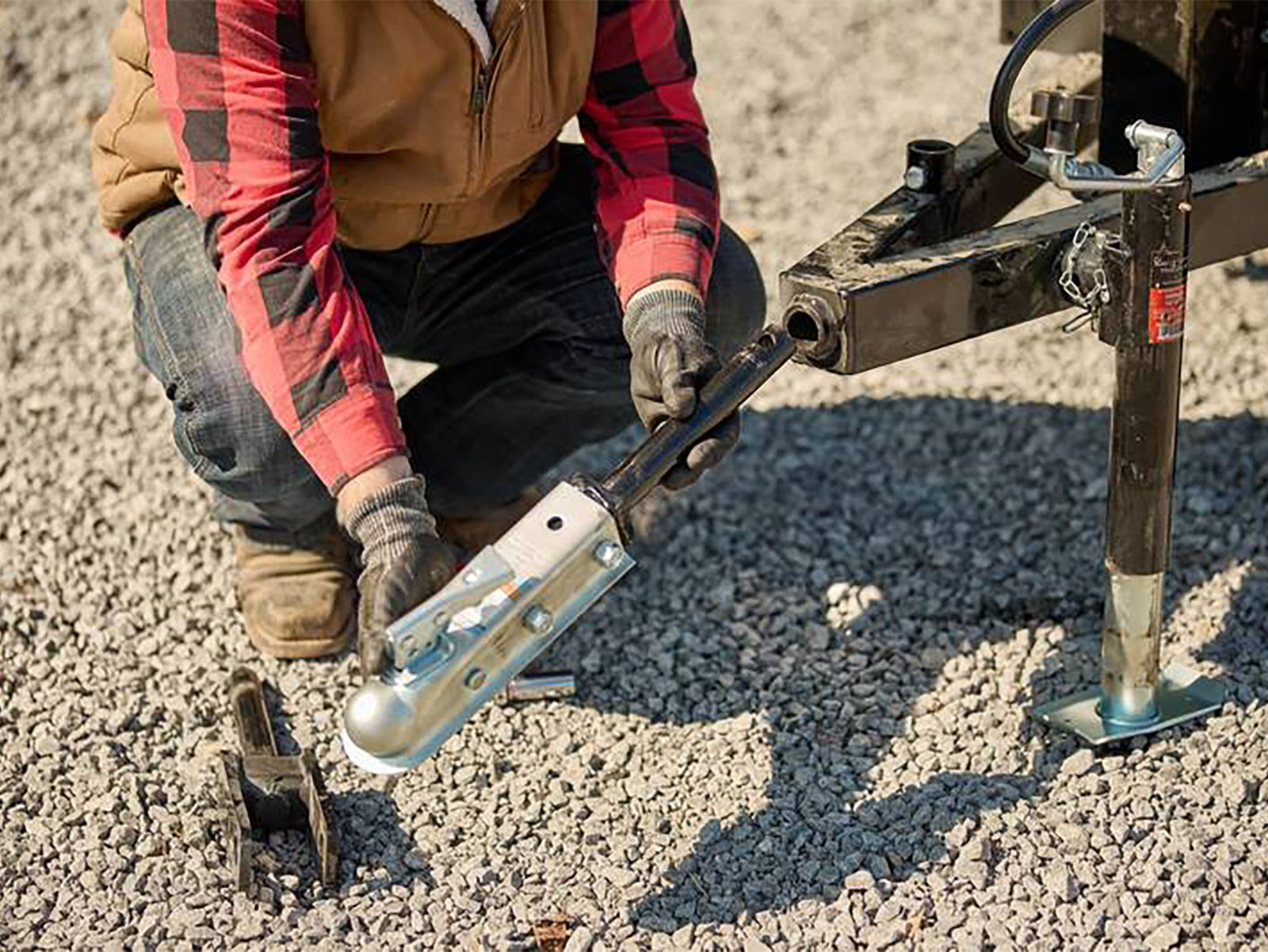

Connect to your trailer with either a swinging clevis hitch or swinging ball coupler.
Dump Trailer Details
General Details
- 3,000 lb load capacity
- 24 cu ft carrying capacity
- 30–33 cu ft heaped
- 45° dump angle
- Manual or hydraulic dump
- Hydraulic hose included for rear remote hook up on tractor
- 12 gauge steel bed
- 1/8 inch, 2×3 tube steel frame

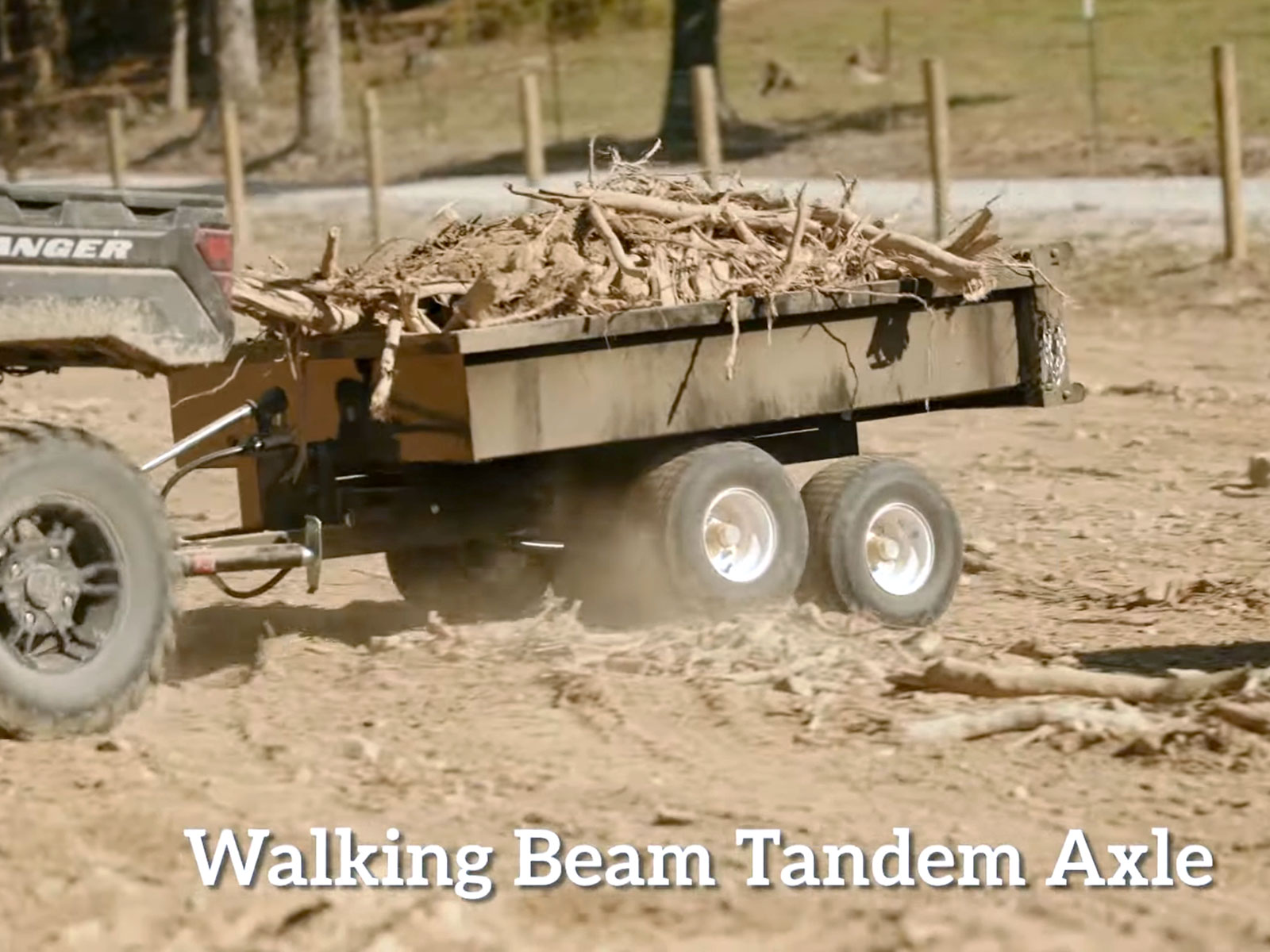

- Walking beam & tandem axle
- Keeps bed level across uneven terrain
- Clevis hitch standard
- Ball hitch coupler optional (2 inch)
- Multi-function tailgate
- Fully closed
- Opens at bottom for spreading
- Opens from top for dumping
- Fold-away tongue jack
- 1-year warranty
- Built in the USA
*Note this trailer is for off-road use only
Overall Dimensions
- Length: 100.5 inches
- Width: 54.5 inches
- Height: 33.5 inches
- Weight: 650 lb
Bed Dimensions
- Length: 70 inches
- Width: 50 inches
- Height: 12 inches
Tires
- 18 x 8.5 x 8
- 4-ply
- Turf style tread
Hydraulics
- Double action hydraulic hand pump
- Both up and down handle movements raise bed
- Cut hose included
- 1/2″ Pioneer Ag coupler (male)
- Single Action 3×12 Cylinder
