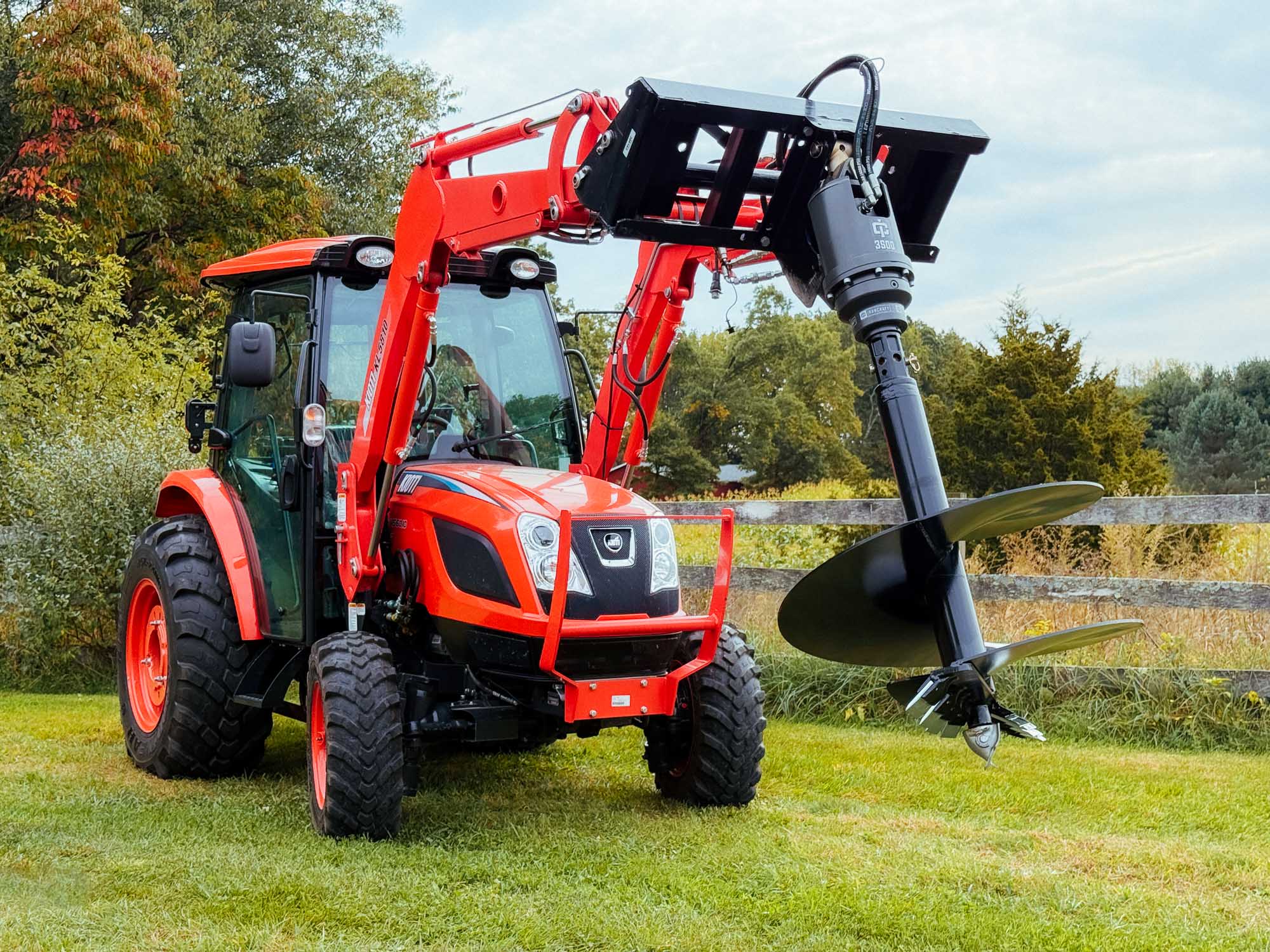

IronCraft Hydraulic Auger Drive Details
The IronCraft Auger Drive is available in three different models for small, medium, and large digging needs. Each series features a 2″ hex drive shaft that will hold bits from 4″ in diameter up to 36″ depending on the model (see specs below).
The most common uses of an auger drive are to dig holes for fence posts or concrete piers.
These are high-torque bits designed for tough conditions, and a heavy-duty planetary drive eliminates the common issue of shaft pullout. Available for skid steers and tractors with an SSQA mount.
Two SSQA frames are available in center or side-shift mounting options.
Auger Drive Specs
| Model | 1500 (X1100) | 2500 (X2100) | 3500 (X2700) |
|---|---|---|---|
| Weight (lb) | 101 | 135 | 140 |
| Flow Range (gpm) | 5–13 | 7–17 | 10–25 |
| Max Pressure (psi) | 2,973 | 3,600 | 3,600 |
| Max Torque @ 3500 psi (ft / lb) | 1,103 | 2,100 | 2,700 |
| Speed @ Max Torque (rpm) | 98 | 87 | 97 |
| Output Shaft | 2″ Hex | 2″ Hex | 2″ Hex |
| Recommended Bit Size (in) | 4 to 16 | 4 to 24 | 4 to 36 |
