Wallenstein Hydraulic-Feed, PTO Wood Chippers
Wallenstein makes two series of hydraulically-fed, PTO wood chippers. One has electric controls, the other manual, with three models in each series. The 10″ electric control model has an optional winch, too.
BX52R / BX52RI
- For Tractors with 30–55 hp
- 5″ Diameter Chipping Capacity
- 25″ Rotor Diameter
- PTO Height 22–27″
- Requires 3–6 gpm hydraulics
- 35 x 30″ Hopper Opening
- Cat I 3-Point and Quick Hitch Compatible
BX72R / BX72RI
- For Tractors with 45–85 hp
- 7″ Diameter Chipping Capacity
- 28″ Rotor Diameter
- PTO Height 26″
- Requires 3–6 gpm hydraulics
- 26 x 35″ Hopper Opening
- Cat I 3-Point and Quick Hitch Compatible
- Cat I 3-Point and Quick Hitch Compatible

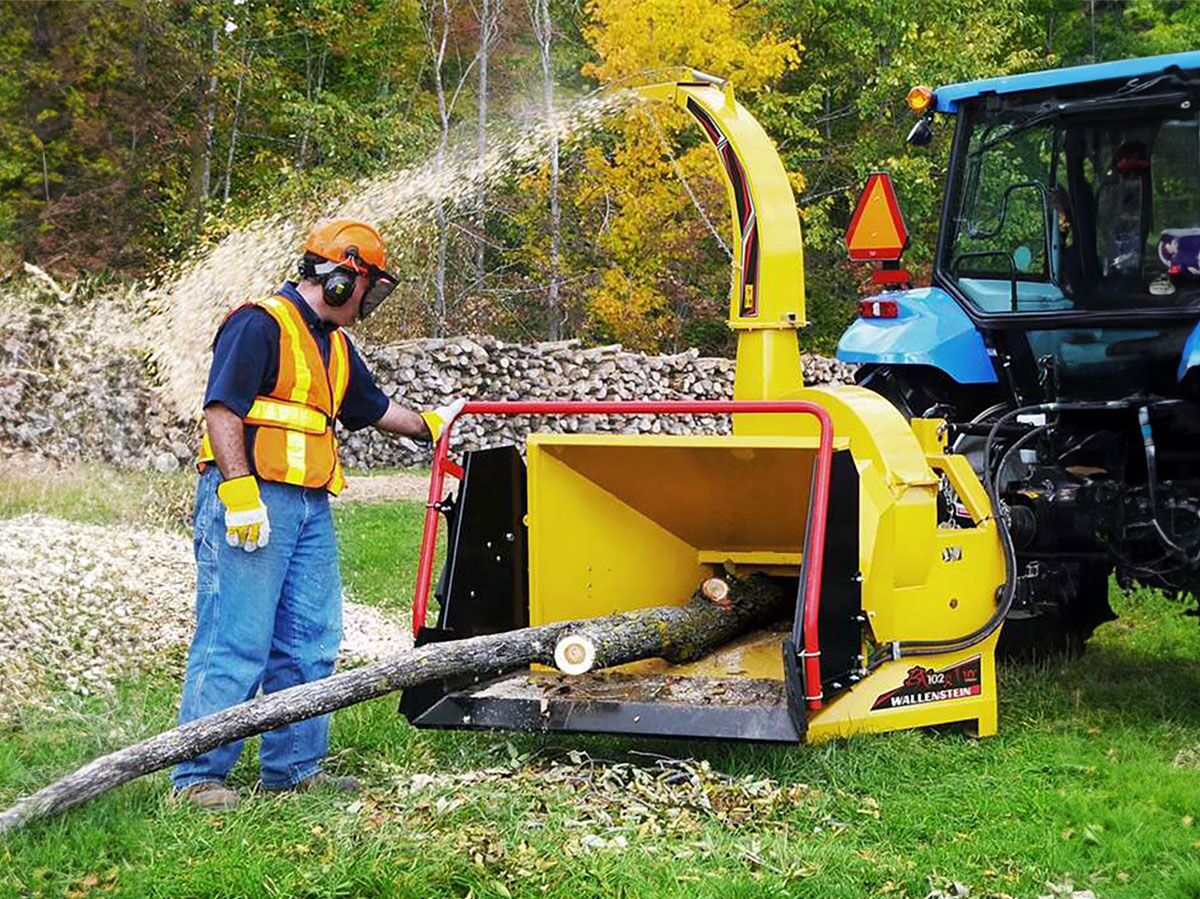

BX102R / BX102RI / BX102RPI
- For Tractors with 75–120 hp
- 10″ Diameter Chipping Capacity
- 28″ Rotor Diameter
- PTO Height 34″
- Requires 4–8 gpm hydraulics
- 30 x 42″ Hopper Opening
- Cat II 3-Point and Quick Hitch Compatible
All Wood Chippers in these series share the same common features, unless noted:
Fold Up Hopper
For easy transport. No tools required.
Angled Rotor
Angling the log against the rotor requires less horsepower to chip, saving fuel.
Bearing Plate Protection
Keeps wood chips from getting into the bearing and causing damage.
Dual Active Rollers
Hydraulically powered top and bottom feed rollers grip and pull brush directly into the chipper.
Oversized, Heavy Duty Rotor
Extra large chipper intake backed up by extra large rotor spinning with high momentum.
Oversized Opening
Extra large chipper intake easily receives crooked branches, reducing the amount of prior trimming required.
P3 Pulse Technology
The P3 Pulse controller is designed to enhance the machines power, performance, and productivity.
Adjustable Discharge Deflector
The discharge chute is equipped with a positional discharge deflector on the end of the chute to direct the chips exactly where desired.
Adjustable Ski Base (52R Only)
Adjust the chipper height to match the PTO height on your tractor.
Reversible Rotor Knives
Standard reversible rotor knives double the longevity of your knives.
Safety Control Bar
Forward/reverse control with two stop positions.
Twig Breaker
The discharge paddle passes around the twig breaker and helps to break the material into smaller pieces and turn it into mulch.
Shear Bolt Protected
Move on from a power spike by simply replacing a single shear bolt.
Top Roller Hydraulic Lift (BX102RPI Only)
Hydraulic cylinder lifts the top roller then applies 2600 lbs of crush force to start the log through the chipping cycle.
1200 lb Winch (BX102RPI Only)
1200 lbs pulling force along with a 50’ synthetic rope makes it very easy to winch in your heavy log.
Hydraulic-Feed PTO Wood Chipper Specs
| Model | BX52R / BX52RI | BX72R / BX72RI | BX102R / BX102RI / BX102RPI |
| Chipping Capacity: | 5″ (13 cm) | 7″ (18 cm) | 10″ (25 cm) |
| On-Board Intelligence: | P3 Pulse™ (optional) | P3 Pulse™ (optional) | P3 Pulse™ (optional) |
| Chipper Type: | Disc | Disc | Disc |
| Feed System: | Dual Hydraulic Roller Feed | Dual Hydraulic Roller Feed | Dual Hydraulic Roller Feed |
| Engine HP Range: | 30 – 55 | 45 – 85 | 80 – 120 |
| Required Hydraulic Flow: | 3 – 6 gpm (12 – 23 lpm) | 3 – 6 gpm (12 – 23 lpm) | 4 – 8 gpm (15 – 30 lpm) |
| Chipper Hopper Opening: | 35″ x 30″ (89 cm x 76 cm) | 26” x 35” (66 cm x 89 cm) | 30″ x 42″ (76 cm x 107 cm) |
| Chipper Rotor Opening: | 5″ x 10″ (13 cm x 26 cm) | 7″ x 12″ (18 cm x 31 cm) | 10″ x 17″ (25 cm x 43 cm) |
| Number Of Chipper Knives: | 4 | 4 | 4 |
| Rotor Diameter: | 25″ (63 cm) | 28” (71 cm) | 36” (92 cm) |
| Rotor Weight : | 125 lbs (57 kg) | 185 lbs (84 kg) | 425 lbs (193 kg) |
| Discharge Chute Height: | 74″ (188 cm) | 90” (228 cm) | 100″ (253 cm) |
| Discharge Chute Rotation: | 360° | 360° | 360° |
| Drive System: | PTO Direct Drive | PTO Direct Drive | PTO Direct Drive |
| Rated RPM: | 540 – 1000 | 540 – 1000 | 540 – 1000 |
| PTO Height: | 22″ – 27″ (55 cm – 69 cm) | 26″ (66 cm) | 34″ (86 cm) |
| Total Weight: | 845 lb (384 kg) | 1300 lb (590 kg) | 1950 lb (885 kg) |
| Dimensions Open (LxWxH): | 80″ x 67″ x 74″ (204 cm x 171 cm x 188 cm) | 108″ x 64″ x 90″ (275 cm x 163 cm x 228 cm) | 108″ x 85″ x 100″ (273 cm x 215 cm x 253 cm) |
| Dimensions Folded (LxWxH): | 62″ x 61″ x 74″ (158 cm x 155 cm x 188 cm) | 83″ x 56″ x 90″ (211 cm x 143 cm x 228 cm) | 85″ x 71″ x 100″ (215 cm x 180 cm x 253 cm) |
| Mounting System: | Cat I Quick Hitch Compatible | Cat I Quick Hitch Compatible, Cat II 3-Point | Cat II, iMatch™ & Quick Hitch Compatible |
| Winch Pulling Capacity: | N/A | N/A | 1200 lbs (545 kg) (BX102RPI Only) |
| Winch Rope Length: | N/A | N/A | 50′ (15 m) (BX102RPI Only) |
| Winch Rope Diameter: | N/A | N/A | 1/4″ (6 mm) (BX102RPI Only) |
