Precision Manufacturing Big Mouth Mini Grapple Rake 320
Precision Manufacturing Big Mouth Mini Grapple Rake 320
<span>Precision Manufacturing</span> Mini Grapple Rake
Precision Manufacturing Big Mouth Mini 327 Grapple Rake

Precision Manufacturing Mini Grapple Rake

$3,649.00$4,499.00

-

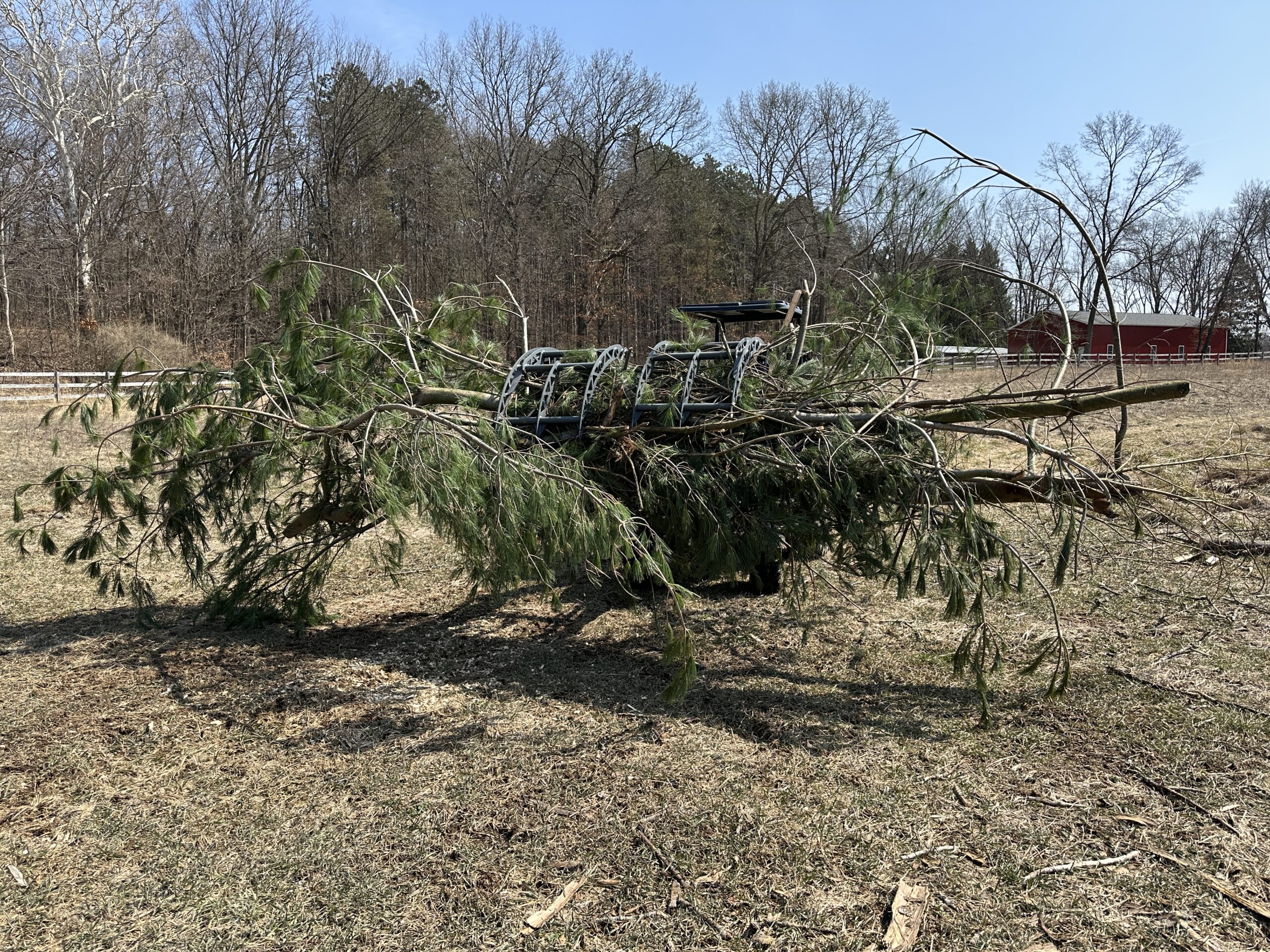

If you need a grapple and you run a tractor with less than 40HP, check out the Big Mouth Mini Grapple Rakes from Precision Manufacturing. They’re built super tough, but leave you with plenty of lift capacity on your front-end loader. The rake style bottom tines allow you to comb through and collect large debris, and the enormous opening allows you to approach and grapple huge, awkward loads. So whether you’re grappling brush, logs, pipe, or rocks this grapple will clamp and carry it.

Made to order with approximate 16 week lead time.

*Free Shipping

Purchase this item and get 912-1124 Points worth $91.20-$112.40 to save on future orders!  You must register an account to track receive and track points.
Purchase this item and get 912-1124 Points worth $91.20-$112.40 to save on future orders!  You must register an account to track receive and track points.

Before you buy, read our shipping FAQ

SKU: N/A Category: Tag:

Description

big mouth mini 320 Grapple Rake details

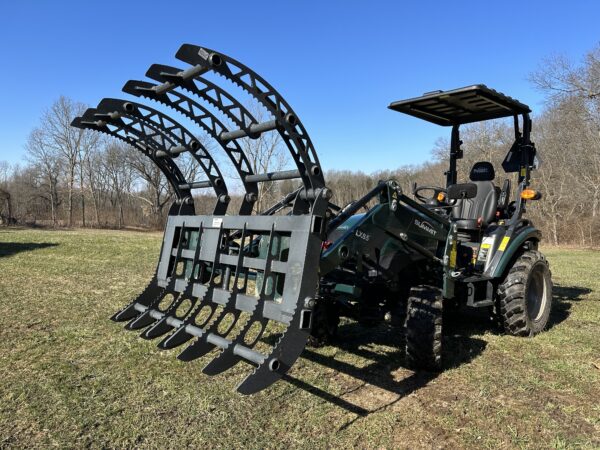

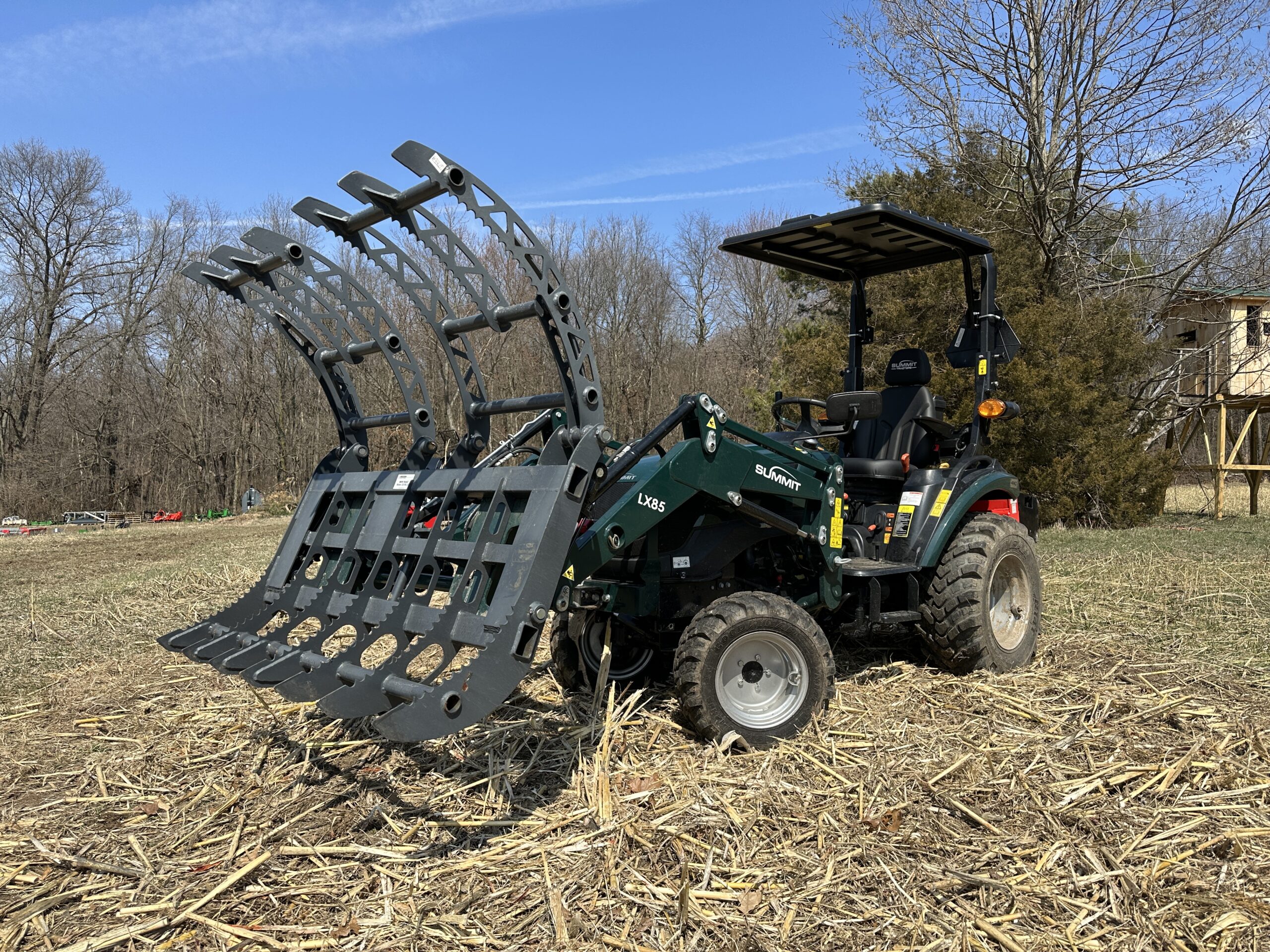

The “BIG MOUTH” MINI 320 is the perfect grapple rake for compact John Deere tractors with less than 40 horsepower. The large 48” opening also closes tight to securely hold small or large loads. The concealed cylinders and hydraulics are protected and will not snag on limbs and brush. Each 320 Grapple Rake includes 47″ supply lines with your choice of Coupler, Double Grapples & John Deere Quick Attach Brackets.

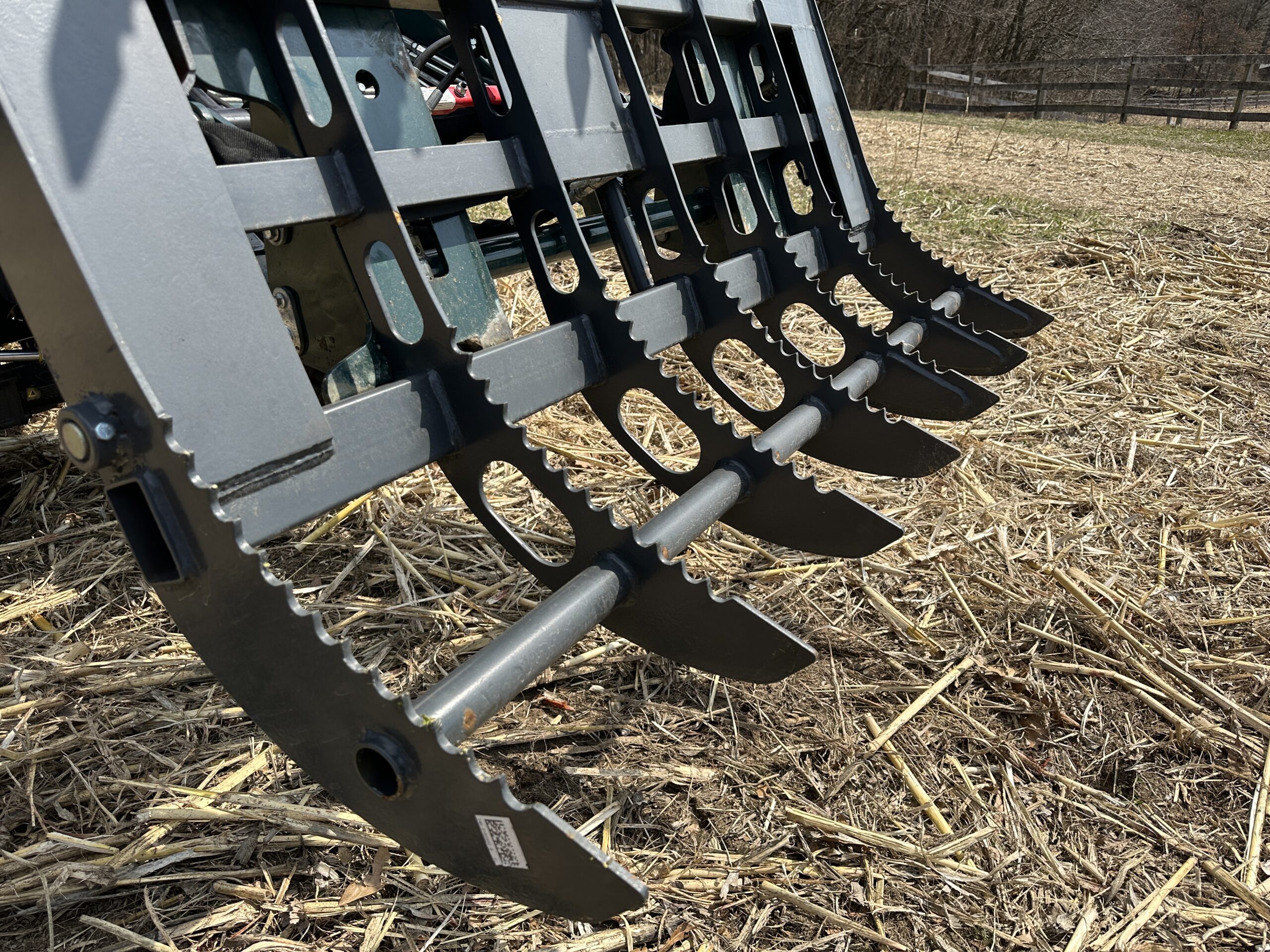

All pivot points are greased for long lasting wear. The spacing of rake tines is between 9” and 10” which allows the operator to rake small or large material and at the same time sift the dirt. Each tine is reinforced for extra strength. The end tines on the rake are double reinforced.

  • 48” Opening, 50” Wide
  • Weighs 241 lbs
  • Fully Plumbed with JDQA Brackets
  • Reinforced Rake Tines (End Tines are Double Reinforced)
  • Double Grapples
  • Double Cylinder
  • All plate steel is 1/4” AR400 steel
  • Recommended for up to 40hp tractors
  • 47″ Supply Lines & Couplers Included



big mouth mini 322 Grapple Rake details

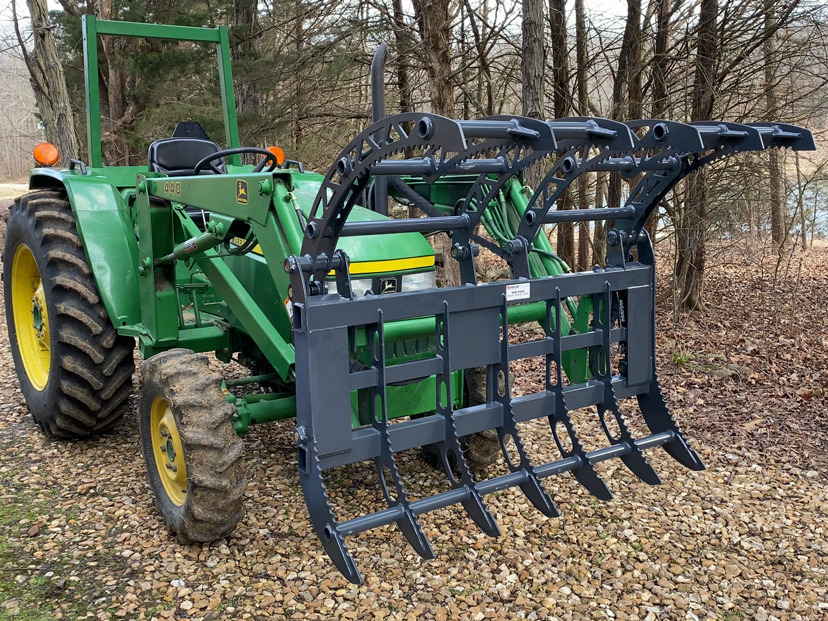

The “BIG MOUTH” MINI Grapple Rake 322 is the perfect grapple rake for tractors with 40 horsepower or less. The “rake” feature allows the operator to gather (rake) loose material into a pile. The large 48” opening also closes tight to securely hold small or large loads. The concealed cylinders and hydraulics are fully protected and will not snag on limbs and brush.

Each Mini Grapple Rake includes supply lines and couplers. The hose length is available in two lengths—the 100” will normally reach the middle of the loader arm where many of the selector valves (Xtra Valve Kits) are mounted. The 60” length will reach the front of the tractor.

All pivot points are greased for long lasting wear. The spacing of rake tines is between 9” and 10” which allows the operator to rake small or large material and at the same time sift the dirt. Each tine is reinforced for extra strength. The end tines on the rake are double reinforced.



  • 48” Opening, 59” Wide
  • Weighs 264 and 276 pounds
  • Fully Plumbed with JDQA or SSQA Brackets
  • Reinforced Rake Tines (End Tines are Double Reinforced)
  • Double Grapples
  • Double Cylinder
  • All plate steel is 1/4” AR400 steel
  • Recommended for up to 40hp tractors

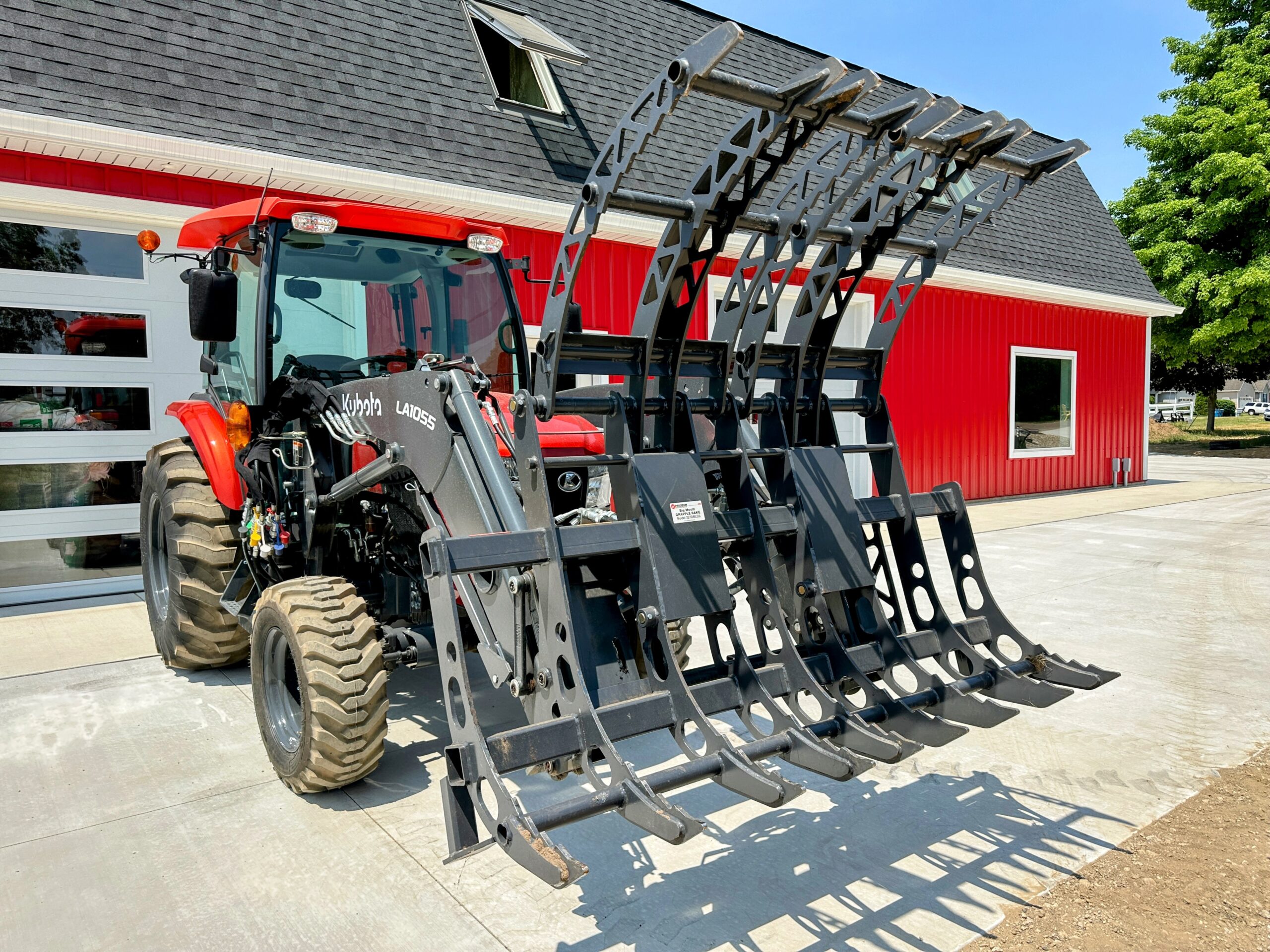

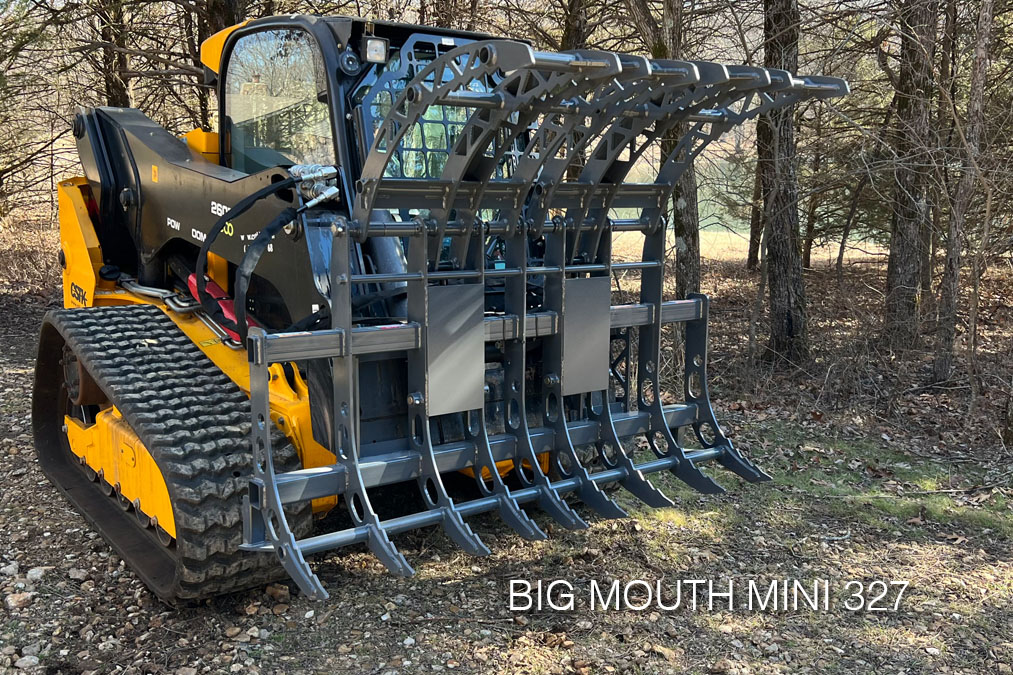

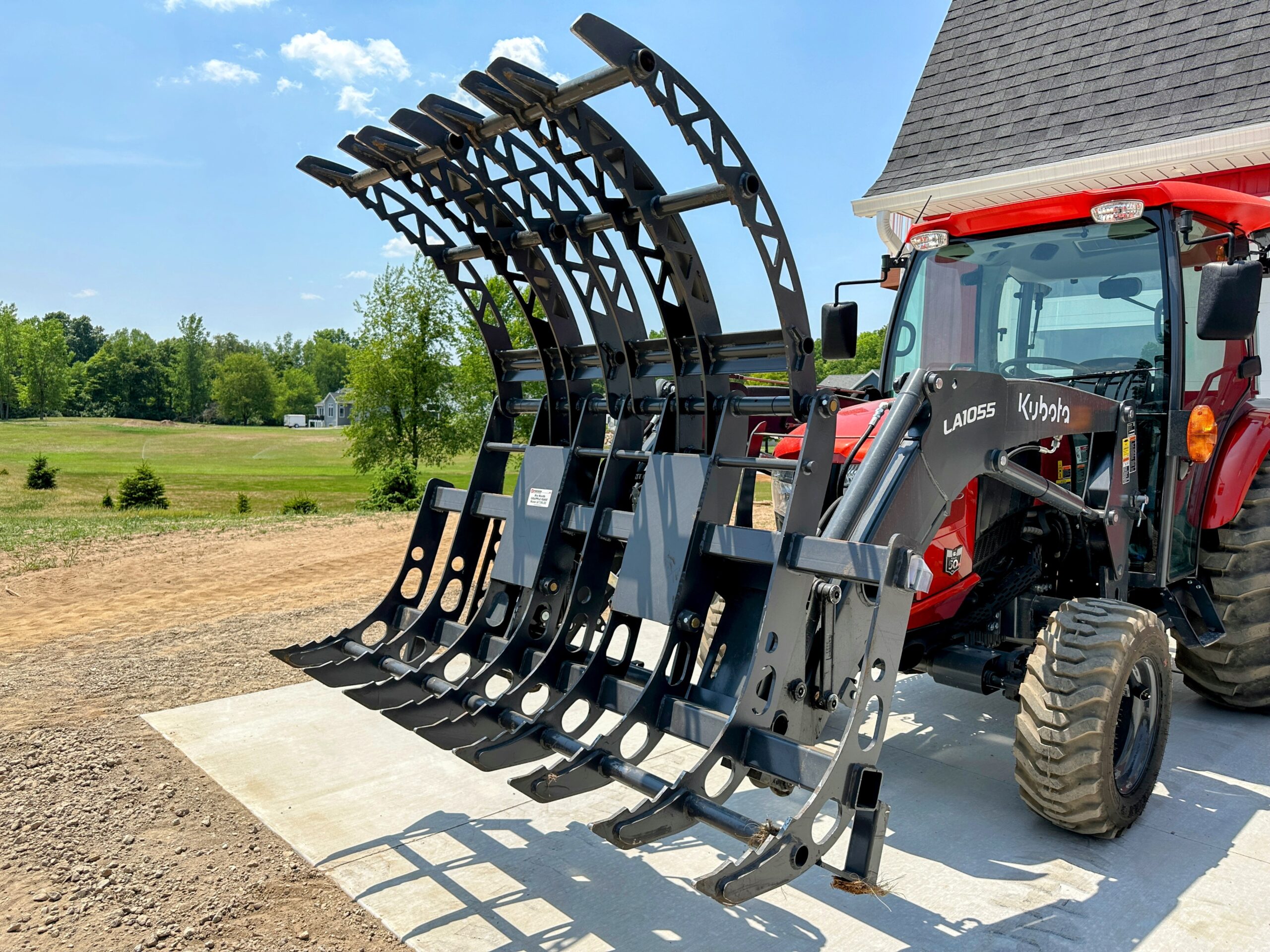

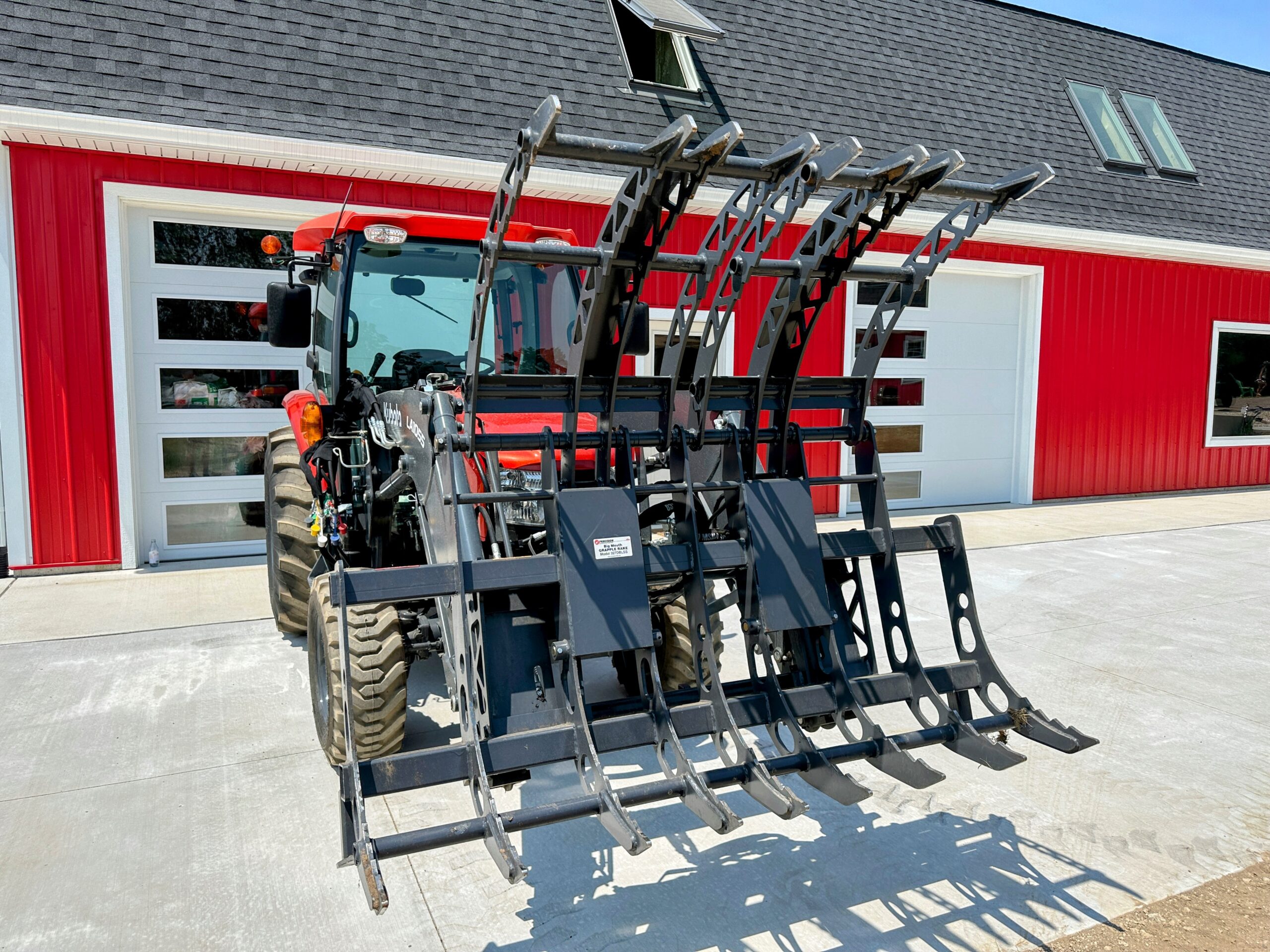

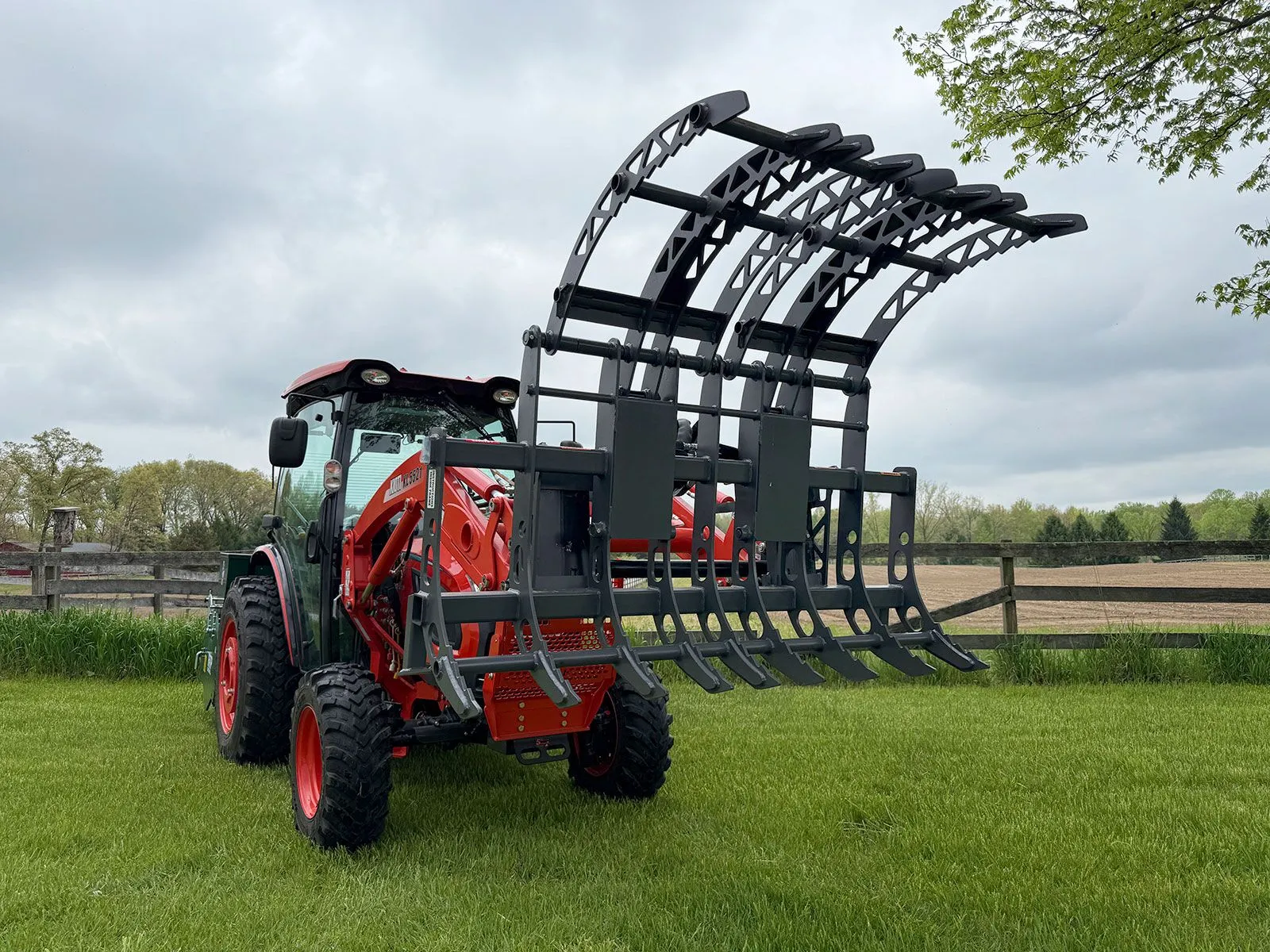

BIG MOUTH 327 GRAPPLE RAKE DETAILS

The largest opening double grapple in its class at 54″!

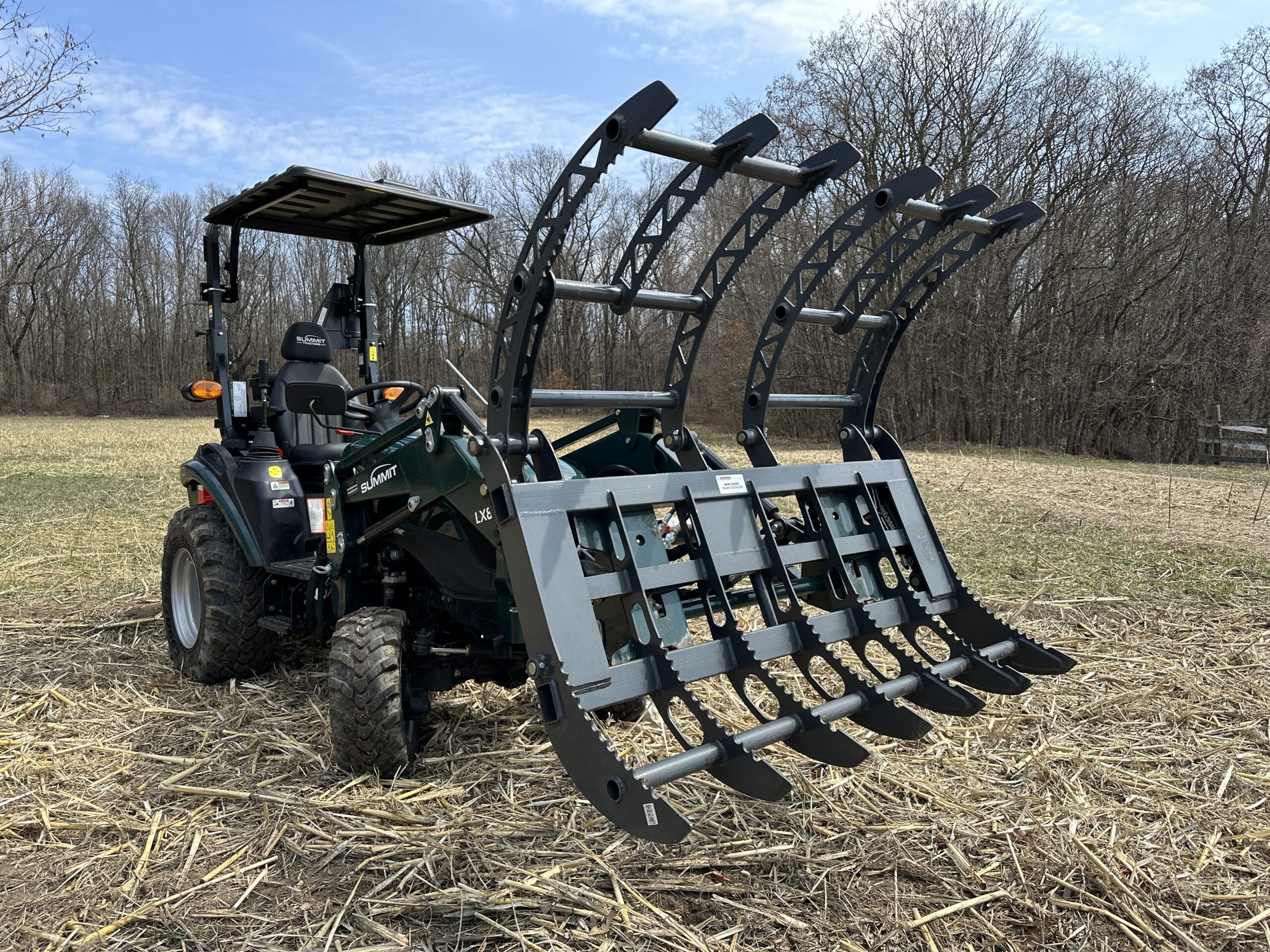

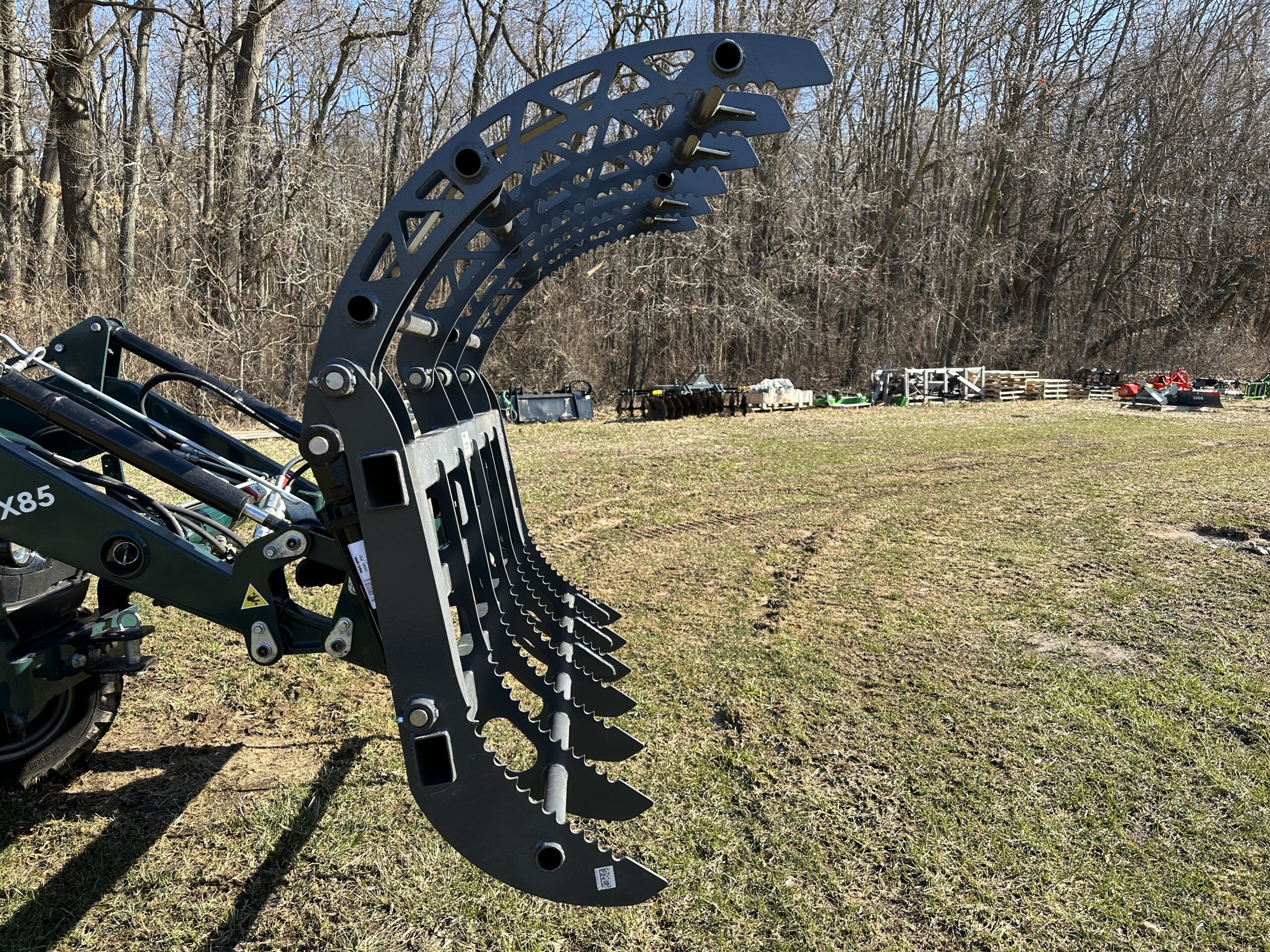

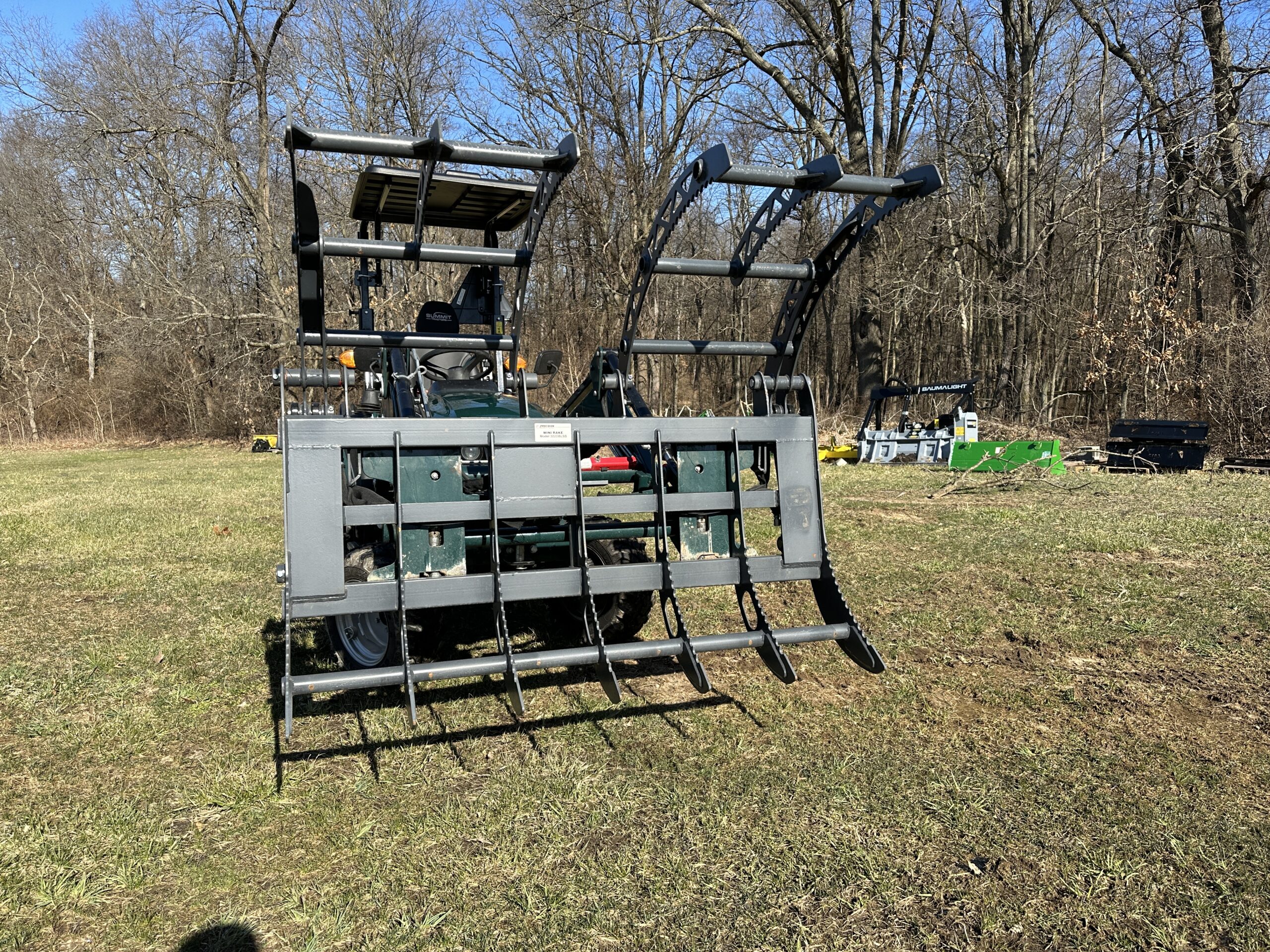

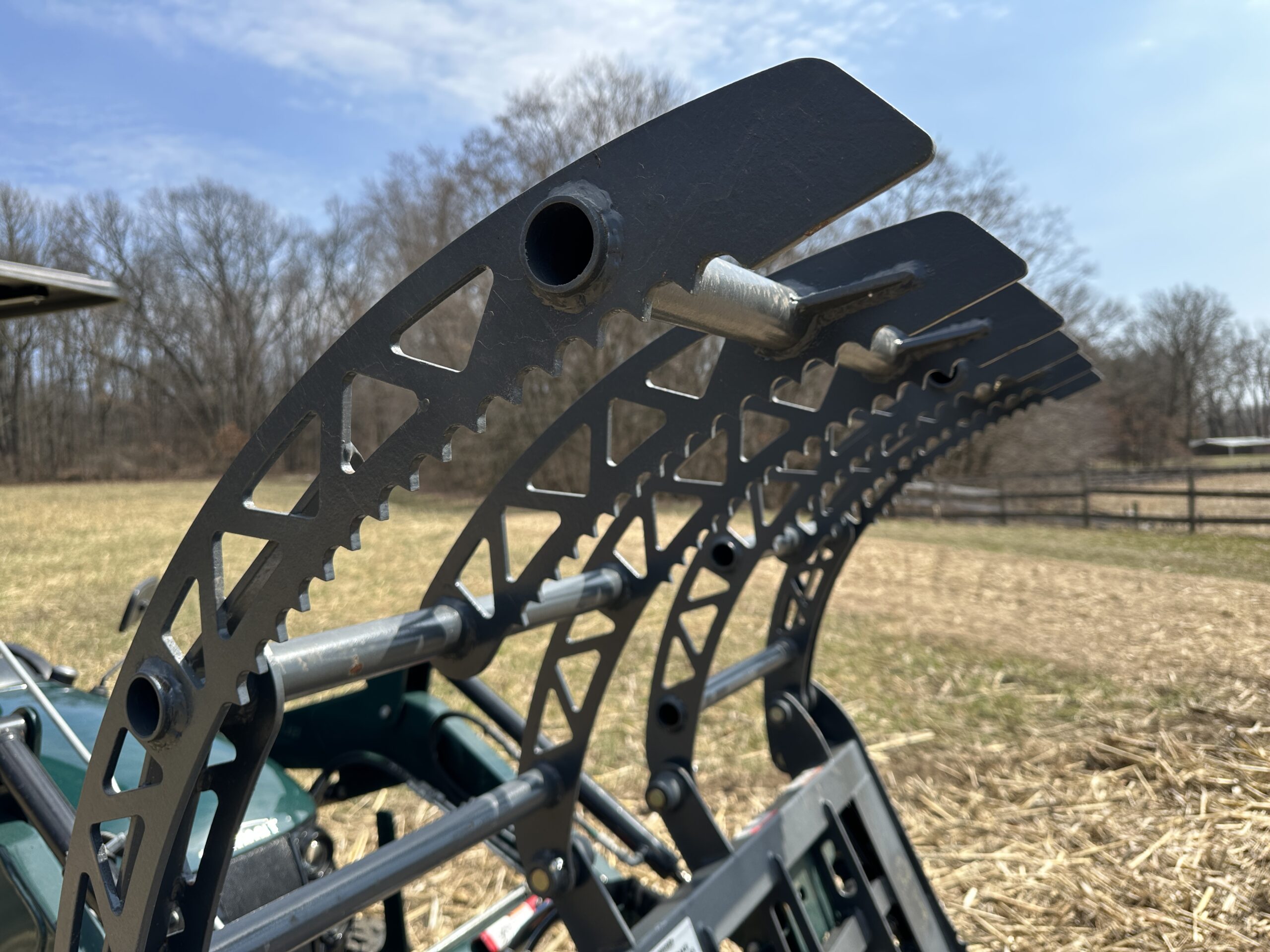

The 327 Series Big Mouth Grapple Rake isade for the small utility tractor and larger compact tractor 40–70hp. Available in two widths 60” and 72” and in JDQA or SSQA. Each 327 Grapple Rake is fully plumbed and includes two supply lines and couplers. The 91.5” hose length option will generally reach the middle of the loader arm, where many of the selector valves are mounted on the tractor. If you have a valve mounted on the front of the tractor (commonly, this is where John Deere mounts their valves), you will need the 60” supply line hoses.

All pivot points are greased for long lasting wear. The rake tine spacing is 7” to 10″. The 60″ model has 9 rake tines and the 72″ model has 11 rake tines which allow the operator to rake small or large material and at the same time sift the dirt. Each tine is reinforced and the end tines are reinforced on both sides for extra strength.



  • 54” Opening
  • Available in 60” & 72″ Widths

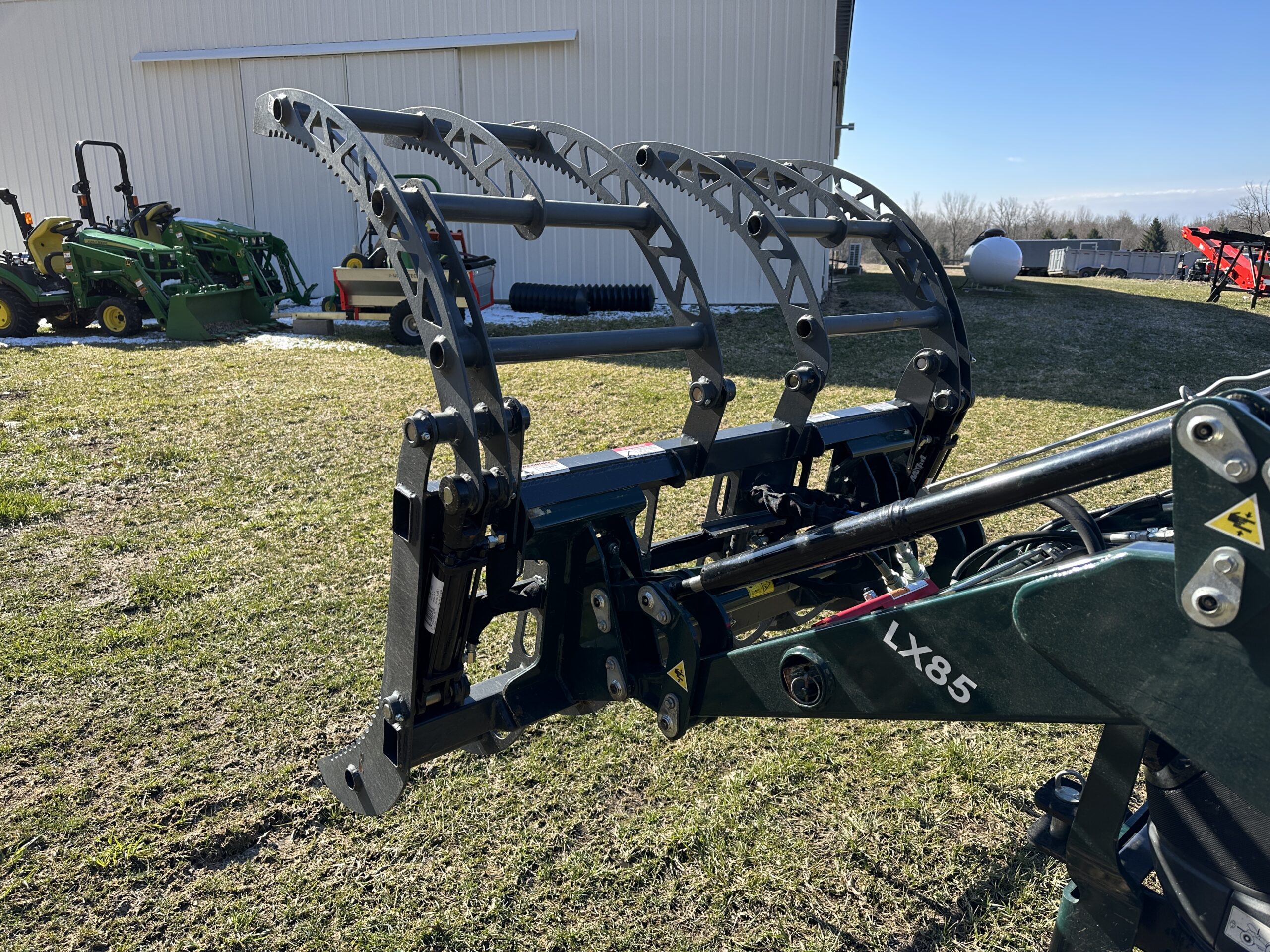

  • Fully Plumbed with Quick Attach Brackets
  • Reinforced Rake Tines (End Tines are Double Reinforced)
  • Double Grapple Design

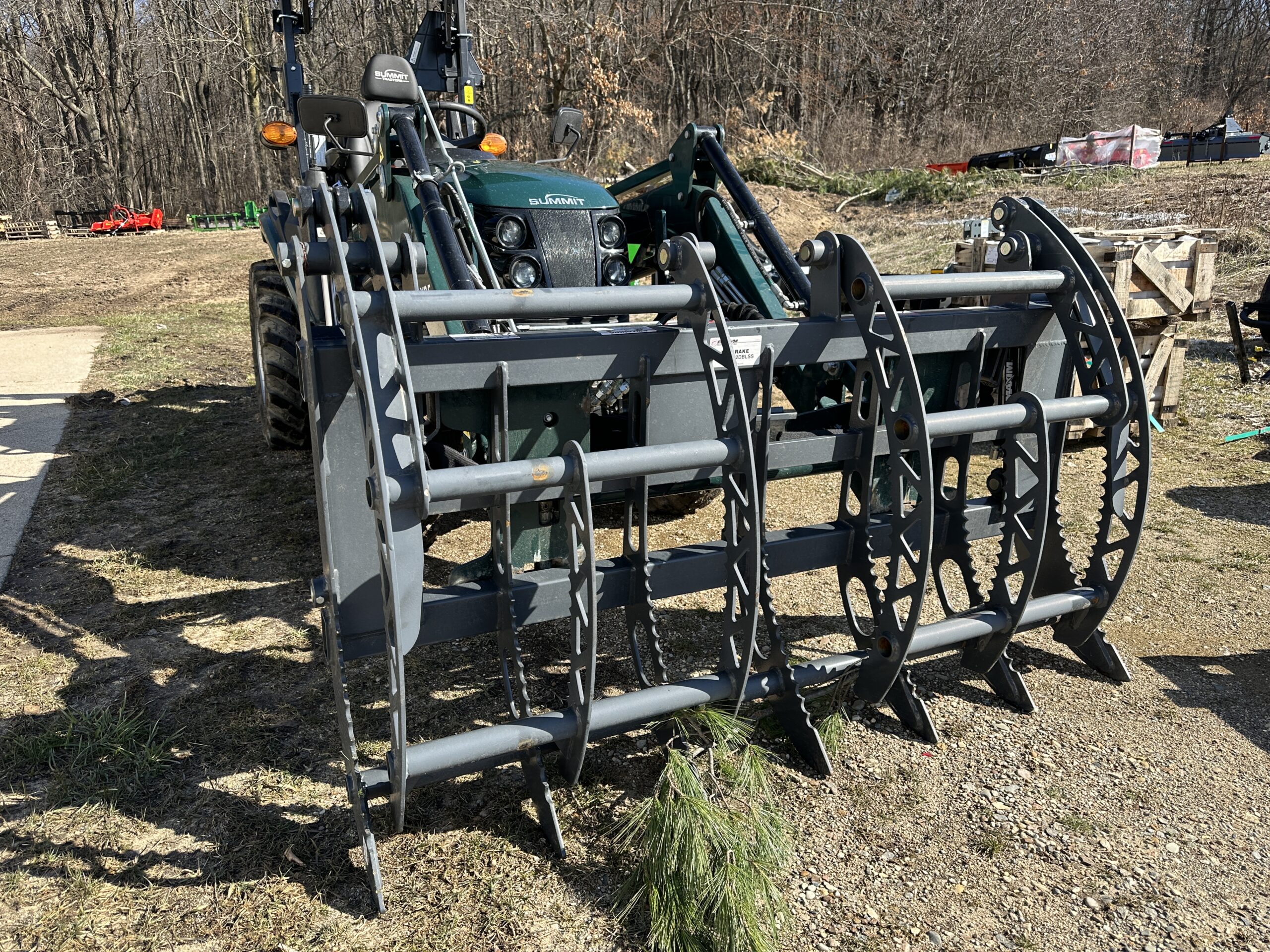

  • Stands to Easily Connect & Disconnect Allows for Compact Storage
  • Recommended for Utility Tractor & Larger Compact Tractors 40–70hp
  • Made of 3/8” AR400 Steel

Additional information

Shipping Weight N/A
Model

Big Mouth Mini 320, Big Mouth Mini 322, Big Mouth Mini 327

Quick Attach Style

JDQA, SSQA

Width

50", 59", 60", 72"
