Self-Powered 27 Ton Horizontal Log-Splitter Wallenstein

Wallenstein 27 Ton SELF-Powered Horizontal Log-Splitters

This WXR720 is a Self-Powered Horizontal Log Splitter from Canadian manufacturer Wallenstein is towable with a 2″ ball hitch, but are self-supporting too. The WXR720L is a highway towable version of the splitter with hitch, safety chains, highway tires, and full trailer lighting.

This splitter has a 27 Ton Split Capacity, 24″ Split Opening, with a 5.35s cycle time powered by a 6.5 hp Vanguard engine.

Wallenstein created what they’re calling Firebolt Technology, that is said to speed up splitting with the efficient regenerative mode (from a regenerative valve design), meaning full power mode is always available.

A 12″ hitch extension is required to pull behind an ATV.

A 2-Way Wide Wedge is included that pops the log in a short distance. A 4-Way Wedge is an option.

To return the cylinder, just pull back on the lever and it will return to its starting position automatically, and then pop into neutral.

An optional stroke limiter is available to stop the cylinder from fully retracting, reducing your cycle time by almost 50% (for use on shorter logs).

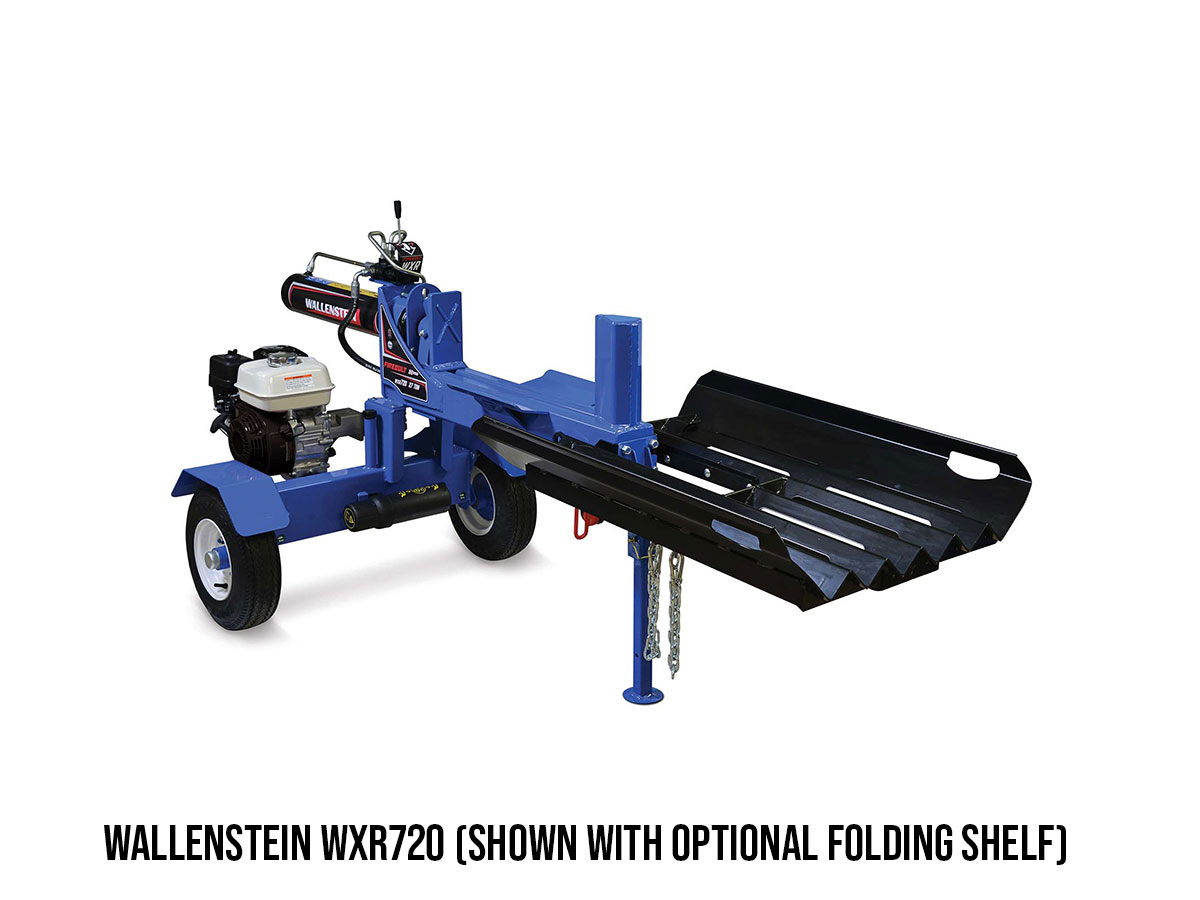

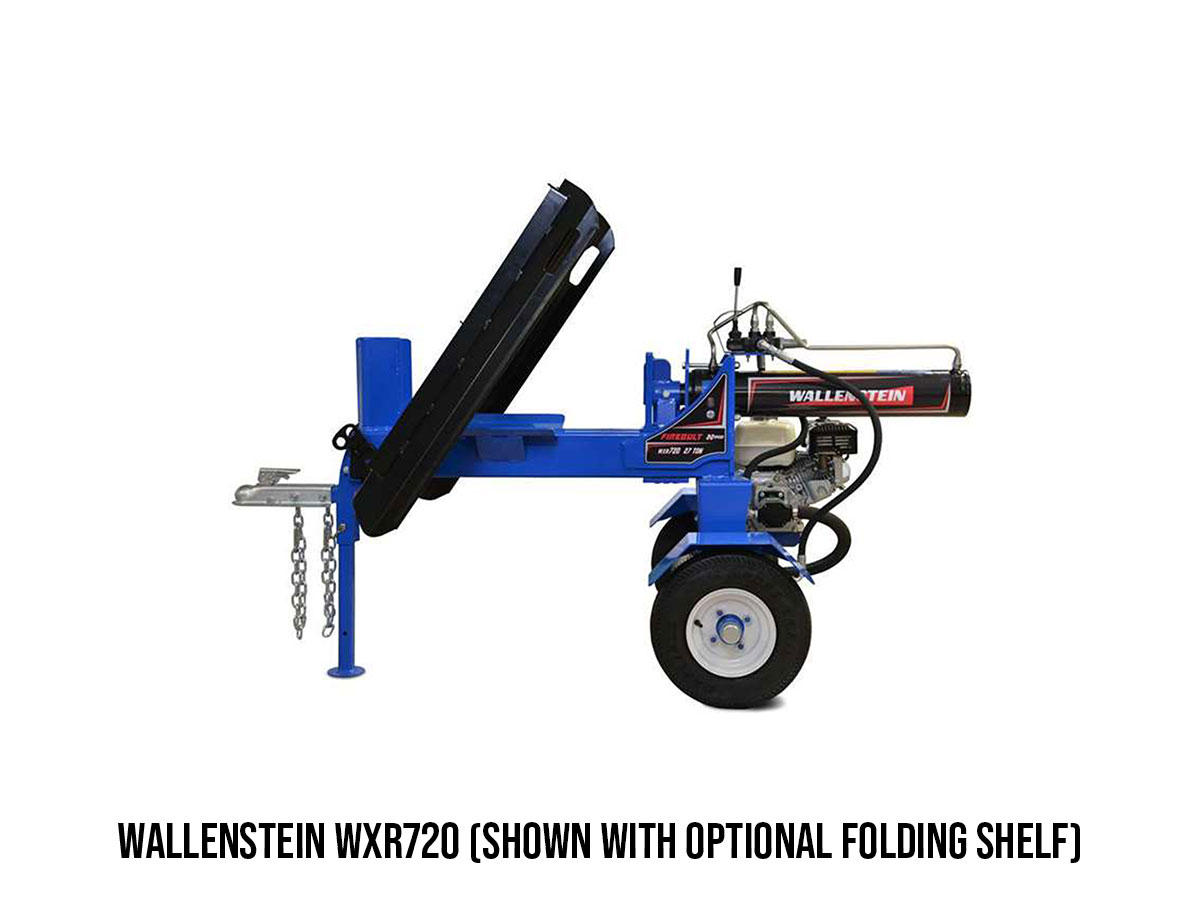

An optional clamp on side-shelf is available to catch your split logs. An optional, much larger folding shelf at the end of the splitter run is available to catch split wood, too.

There is also an All-Weather Cover available to protect your splitter from the elements.

All in all this is a well thought out, compact, log splitter.

Wallenstein WXR720 Log Splitter Details

• 27 Ton Split Capacity
• 24″ Split Opening
• Powered by a 6.5 hp Vanguard Engine
• 5.35s Cycle Time (dependent on hydraulic flow)
• 460 lb
• 76 x 40 x 44 (LxWxH)
• 27″ Bed Height

Add the Highway Towable kit to make the WX720 become the WX720L. The kit includes hitch, safety chains, highway tires, and full trailer lighting. The light kit is equipped with brake lights and turn signals, and uses a standard 4-pin connector.

How to Choose the Right Log Splitter:

There are 4 main choices to consider:

1) TYPE: Do you require an engine-powered model or would you prefer to power it off your tractor or skidsteer?

2) POWER: Most wood can be split by a 20-ton splitter. However, hardwoods with gnarled, twisted grains, such as those that often grow up along a fence line may require a splitter with a higher splitting force.

3) ORIENTATION: Vertical 3-point hitch models, inverted skidsteer models and horizontal-vertical woodsplitters are very helpful when the wood being split is too large or heavy to lift onto a log bed. The Log Lifter fitted to some of the WX900 series models is also helpful in this regard.

4) SPLIT LENGTH: Do you require 24”, 36” or 48” lengths of split wood? If you are interested in a trailer model, consider how much wood you intend to spilt, is it for commercial or rental use, does towed equipment require lights and licensing where you live. If available in your chosen model, a “T”, or Tall version of the splitter can raise the working height to a more comfortable level. The horizontal / vertical splitters can also help in this regard.
