Wallenstein FX40 Skidding Winch

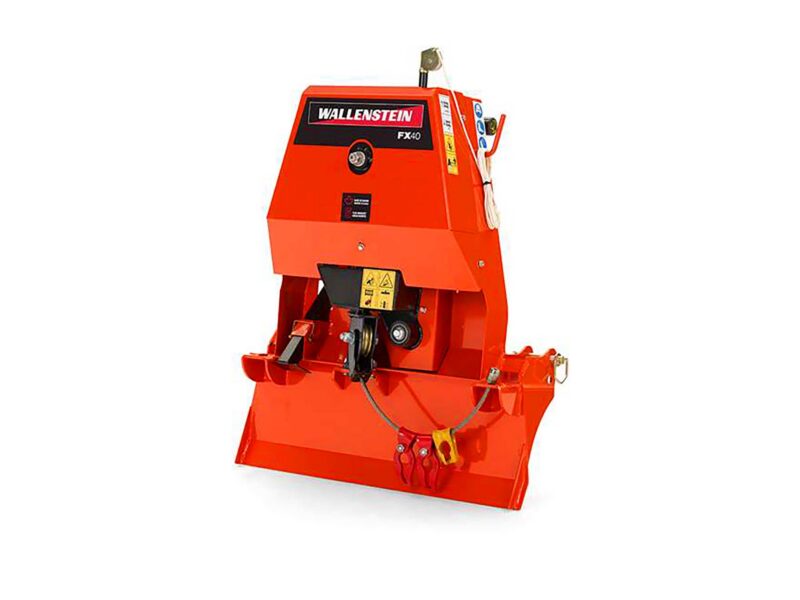

Wallenstein FX40 Skidding Winch

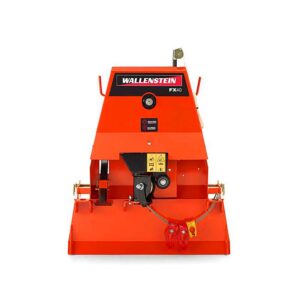

Wallenstein FX40 Skidding Winch Front

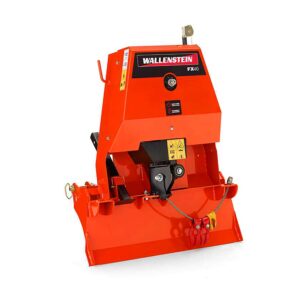

Wallenstein FX40 Skidding Winch Left

Wallenstein Skidding Winch FX40

$4,730.00

When you can’t reach your fallen timber, use a skidding winch. The FX40 from Wallenstein is a lightweight 3-Pt Skidding Winch powered by your tractor’s rear PTO, which can reach up to 165′ away and haul in three separate logs at a time with the additional chokers.

*Free Shipping

Lead times vary depending on color

Join the waitlist to be emailed when this product becomes available

Purchase this item and get 2365 Points worth $236.50 to save on future orders!  You must register an account to track receive and track points.

Before you buy, read our shipping FAQ

Join the waitlist to be emailed when this product becomes available

Description

fx40 IGHLIGHTS

  • 2 Choker Chains
  • 2 Keyhole Sliders
  • Choose Your Colour
  • Removable Clutch Assembly
  • Rope Controlled brake/clutch system
  • Shearbolt Protected PTO Drivetrain
  • Snatch Block Pulley System
  • Tow Bar

Get complete details on the manufacturer’s website by clicking here!



SPECIFICATIONS

Pulling Capacity: 4000 lbs (1814 kg)
Engine HP Range: 12 – 30
Winch Type: Mechanical, Dry Disc Clutch
Line Speed: 103 – 290 ft/min (31 – 88 m/min)
Cable Type: Steel
Cable Length: 165′ (50 m)
Cable Diameter: 3/8″ (10 mm)
Choker Chains: 2
PTO Input Speed: 540 rpm
PTO Height: 16″ (41 cm)
Total Weight: 280 lbs (127 kg)
Dimensions (LxWxH): 17″ x 36″ x 45″ (43 cm x 191 cm x 114 cm)
Mounting System: Cat I

Additional information

Shipping Weight 430 lbs
Dimensions 24 × 36 × 45 in
Manufactured In Canada
HP Maximum 55
HP Minimum 30
Weight 470 lbs.
Mounting Method 3 Point Hitch Mount
