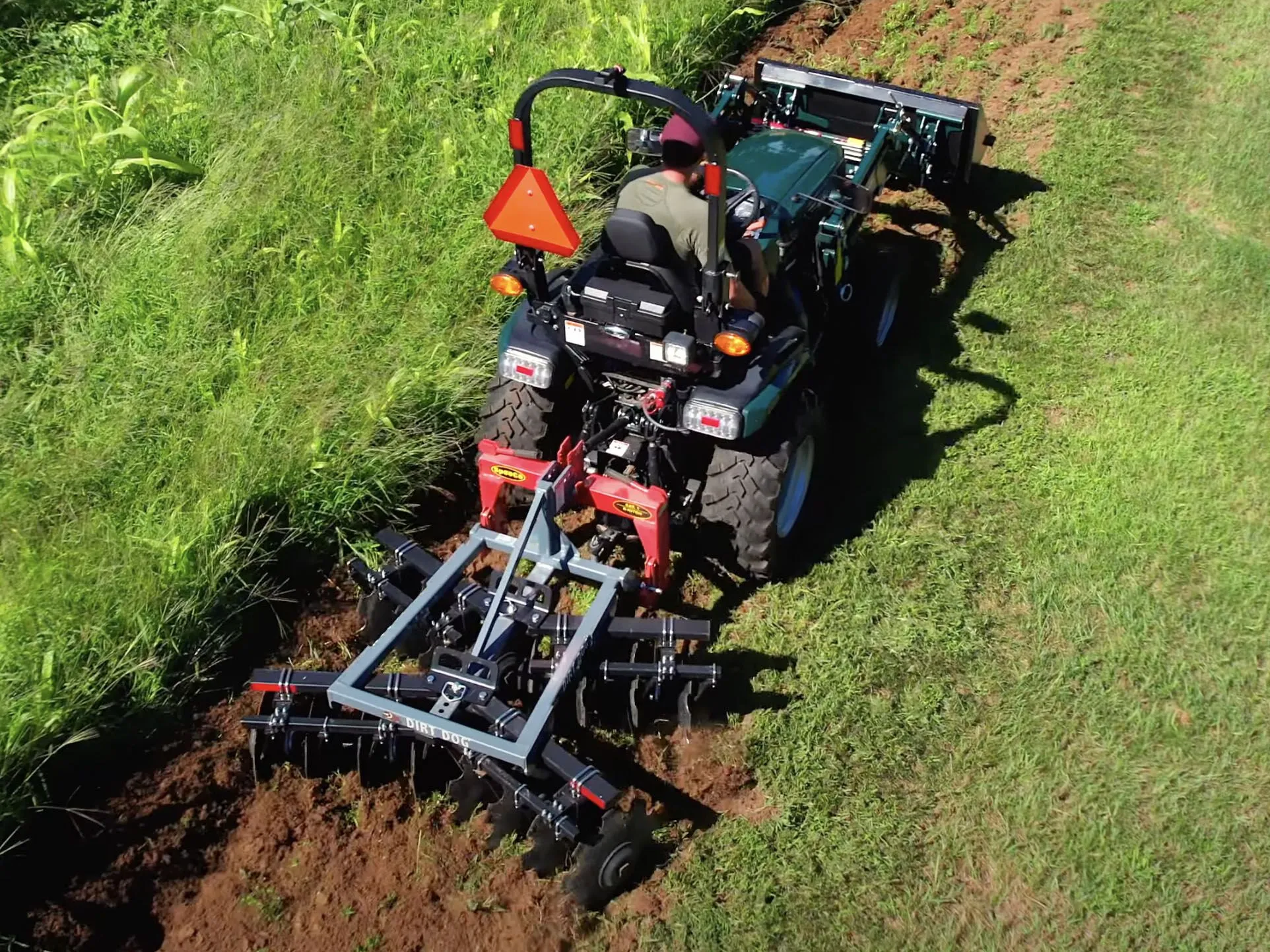

Gardeners, small farmers, hunters, landscapers, property owners and really anyone who needs to break up the ground should consider a disc harrow. A heavy-duty frame and heat-treated notched discs till the land as you go, and easily adjustable front and rear gangs allow you to decide how aggressively you want to till the land with the simple pull and set of a pin. Dirt Dog makes their attachments right here in the USA, and they make a disc for tractors ranging from 35–95HP.
100 SERIES highlights
- 35 HP Range
- Cat 1 Quick Hitch Compatible
- Blade Spacing: 7-1/2″, 9″ or Combination
- Blade Type: Notched
- Frame Tube: 2” Square
- Bearing Hanger: 3/8” Plate, with 2 Each 1/2” U-Bolt
- Bearing Type: Sealed, Self Aligning , Ball Bearing
- Gang Tube: 1-1/2″ x 3″ x 3/16″
- Gang Axle: 1” Square, High Carbon Steel
- Angling: Front Gang: 0, 7, 14, and 21 Degrees
- Rear Gang: 0, 7, 14, and 21 Degrees
Model 100-1: 12 16″ Notched Discs, 7.5″ Front Spacing, 7.5″ Rear Spacing, Overall Cut Width 45.75–48″, 425lb
Model 100-4: 16 18″ Notched Discs, 7.5″ Front Spacing, 7.5″ Rear Spacing, Overall Cut Width 61–68″, 530lb
200 SERIES highlights
- 65 HP Range
- Cat 1 Quick Hitch Compatible
- Blade Spacing: 7-1/2″, 9” or Combination
- Blade Type: Notched
- Frame Tube: 2-1/2″ Square
- Double Strap Hitch
- Bearing Hanger: 3/8” Plate, with 2 Each 5/8” U-Bolt
- Bearing Type: Sealed, Self Aligning , Ball Bearing
- Gang Tube: 2″ x 3″ x 3/16″
- Gang Axle: 1” Square, High Carbon Steel
- Angling: Front Gang: 0, 7, 14, and 21 Degrees: Rear Gang: 0, 7, 14, and 21 Degrees with Angling Adjustment Handle
Model 200-6: 16 20″ Notched Discs, 9″ Front Spacing, 9″ Rear Spacing, Overall Cut Width 71–77.5″, 727lb
Model 200-18: 20 20″ Notched Discs, 9″ Front Spacing, 9″ Rear Spacing, Overall Cut Width 89–96″, 815lb
300 SERIES highlights
- 95 HP Range
- Cat 1 & 2 Quick Hitch Compatible
- Blade Spacing: 7-1/2″ , 9” or Combination
- Blade Type: Notched
- Triple Strap Hitch
- Frame Tube: 3” Square
- Bearing Hanger: 1/2” Plate, with 2 Each 5/8” U-Bolt
- Bearing Type: Sealed, Self Aligning , Ball Bearing
- Gang Tube: 3″ x 4″ x 1/4″
- Gang Axle: 1 1/8” Square, High Carbon Steel
- Angling: Front Gang: 0, 7, 14, and 21 Degrees: Rear Gang: 7, 14, and 21 Degrees with Angling Adjustment Handle
Model 300-14: 24 22″ Notched Discs, 7.5″ Front Spacing, 7.5″ Rear Spacing, Overall Cut Width 93–100″, 1311lb
