Purchase this item and get Description

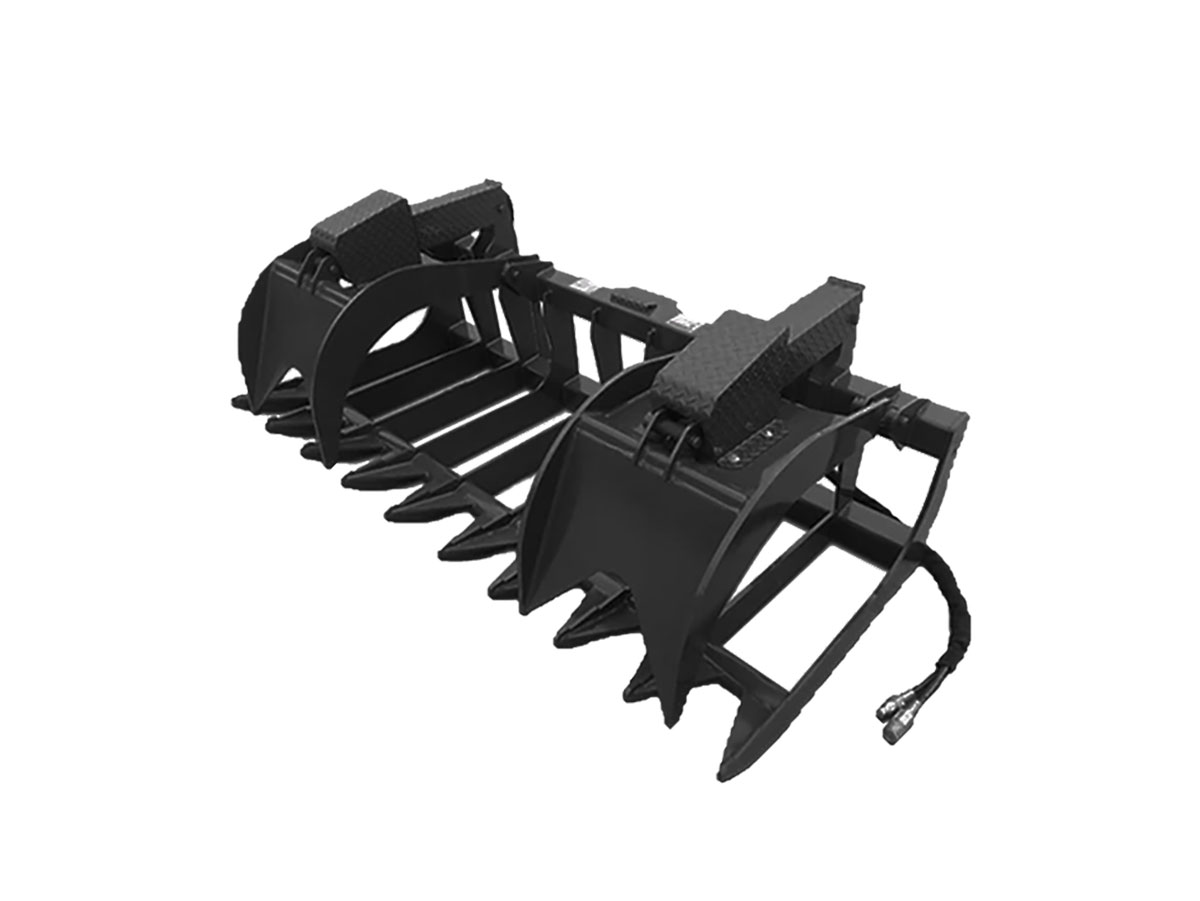

IronCraft Extreme Duty Root Grapple Details
- Dual 2″ bore by 10″ stroke cylinders, double top jaw
- Available Widths: 72″, 78″, and 84″

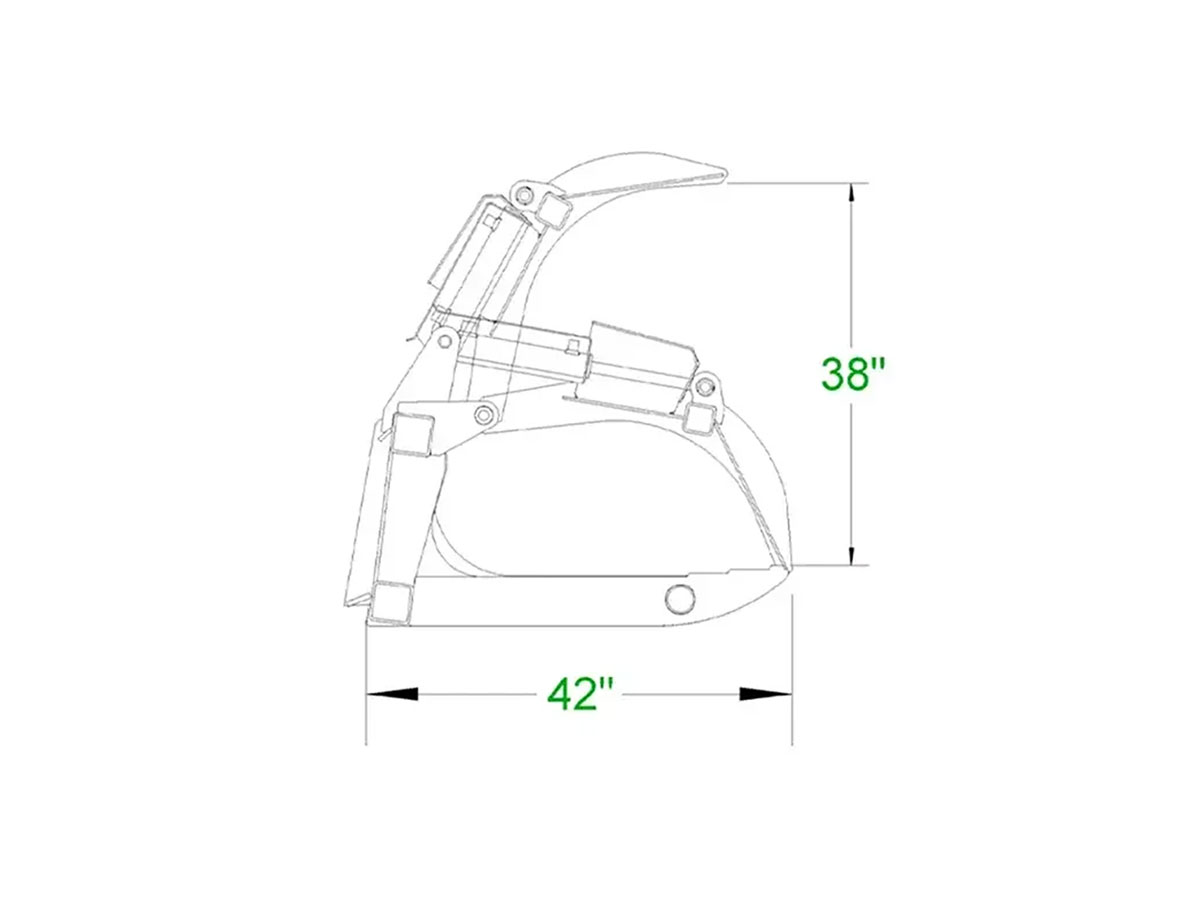

- Grapple Opening of 38″
- Recommended for Tractors with at least 65 hp
- Hydraulic Lines on Grapple Routed Inside Tubing for Protection
- Flat-Face Couplers
*Hoses and fittings typically are not included. On some occasions, manufacturers will include hoses and fittings, but seldom are the hose lengths and fittings correct. We recommend waiting until you have the grapple mounted to your tractor to determine the correct hose length and fittings needed.
Save 5% with code GWT at Summit Hydraulics if you need to add a 3rd Function or 3rd Function Diverter to your tractor.
Or save 5% on hydraulic hoses and fittings by clicking here.
IronCraft Extreme Duty Root Grapple Specs
| Product Family | Extreme Duty Root Grapple | Extreme Duty Root Grapple | Extreme Duty Root Grapple |
| Model Name | XRG72 | XRG78 | XRG84 |
| Description | Extreme Duty Root Grapple 72″ | Extreme Duty Root Grapple 78″ | Extreme Duty Root Grapple 84″ |
| Weight | 929 lb | 943 lb | 967 lb |
| Grapple Opening (Vertical) | 38″ | 38″ | 38″ |
| Top Jaws | Dual | Dual | Dual |
