Purchase this item and get Description
This 48-inch wide grapple is fabricated from 3/8″ steel, and sized in width and height and opening to provide your with the best strength to weight ratio for small tractors, especially tractors under 32 horsepower.

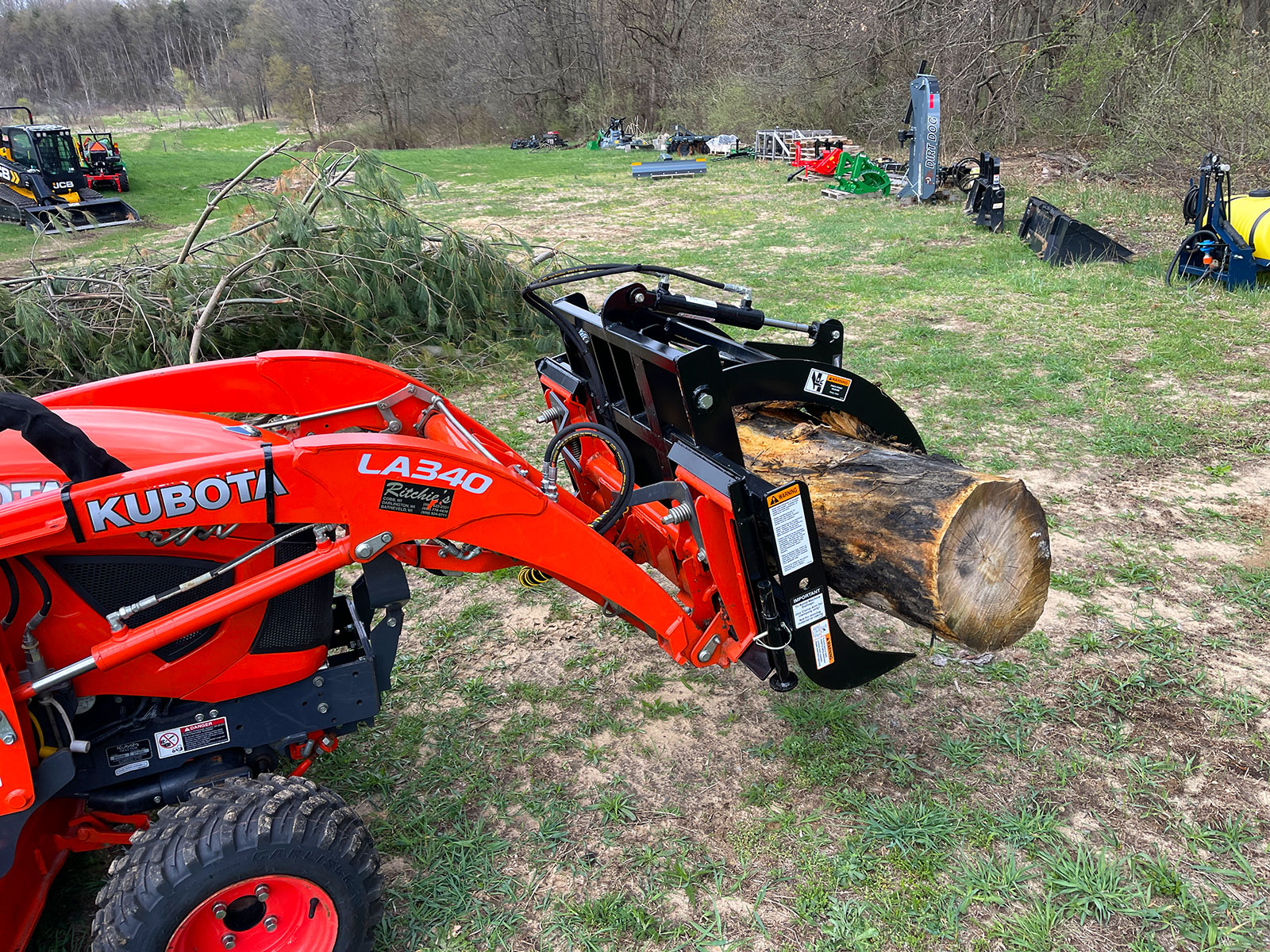

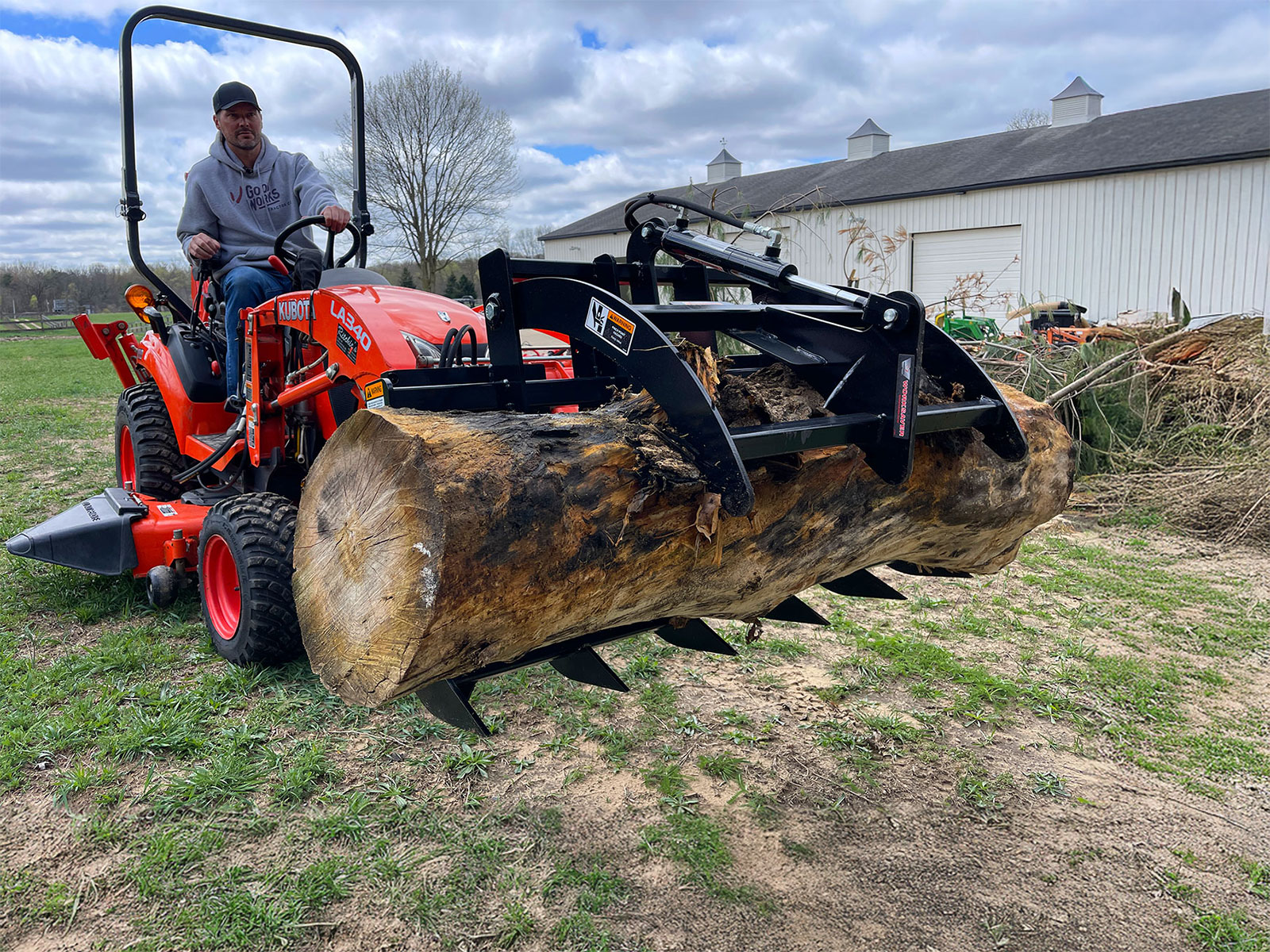

Use this Mini Grapple to collect debris, firewood, brush, or orchard prunings.
Worksaver Mini Tine Grapple Highlights
- Upper grapple, lower tines have CNC gripping notches cut into them to help secure material
- Single upper grapple is 28” wide
- Parking stand to assist storage and hook-up
- This is a very nice feature as you’ll find when using a grapple without a parking stand
- Durable square tubing provides strength to lower tines
- 33-inch grapple opening for ease of gathering materials

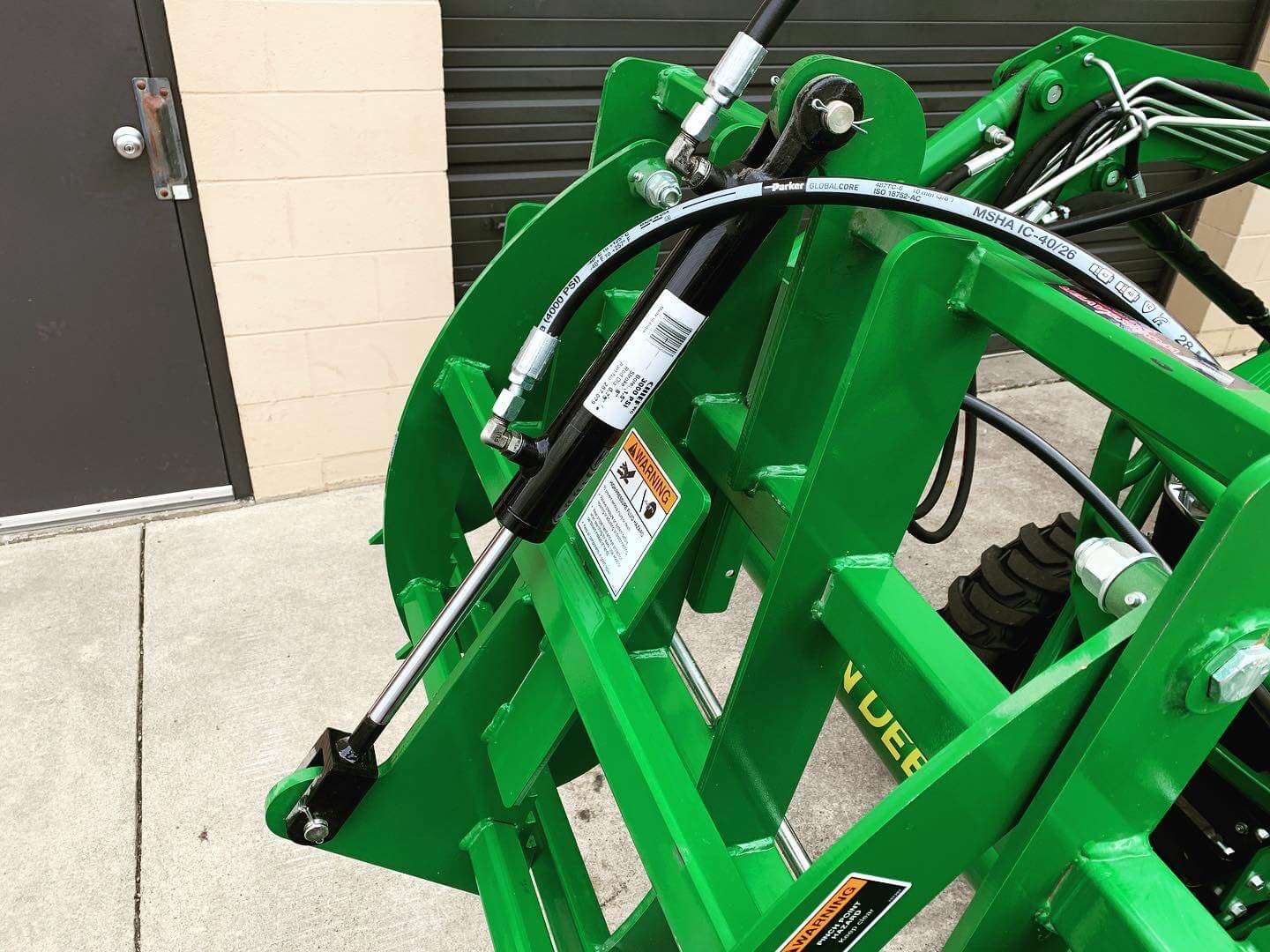

- 1.5” x 8” cylinder for upper clamp is job matched.
- No hoses or fittings included as every loader and outlet setup varies.
- Only weighs 205 lb!
- Preserves the lift capacity of your loader
- Made in the USA!
*Hoses and fittings typically are not included. On some occasions, manufacturers will include hoses and fittings but seldom are the hose lengths and fittings correct. We recommend waiting until you have the grapple mounted to your tractor to determine the correct hose length and fittings needed.
Where to find DIY hydraulic kits?
Do you need a 3rd function kit to operate your grapple or hoses and fittings to mate up your grapple to your tractor? Save 5% with code GWT on high-quality tractor hydraulic solutions at Summit Hydraulics. These are DIY hydraulic solutions that you can install with simple tools in your garage. Save dealer mark-ups, save dealer labor, and save the headache of transporting your tractor to the dealer.
Available Colors

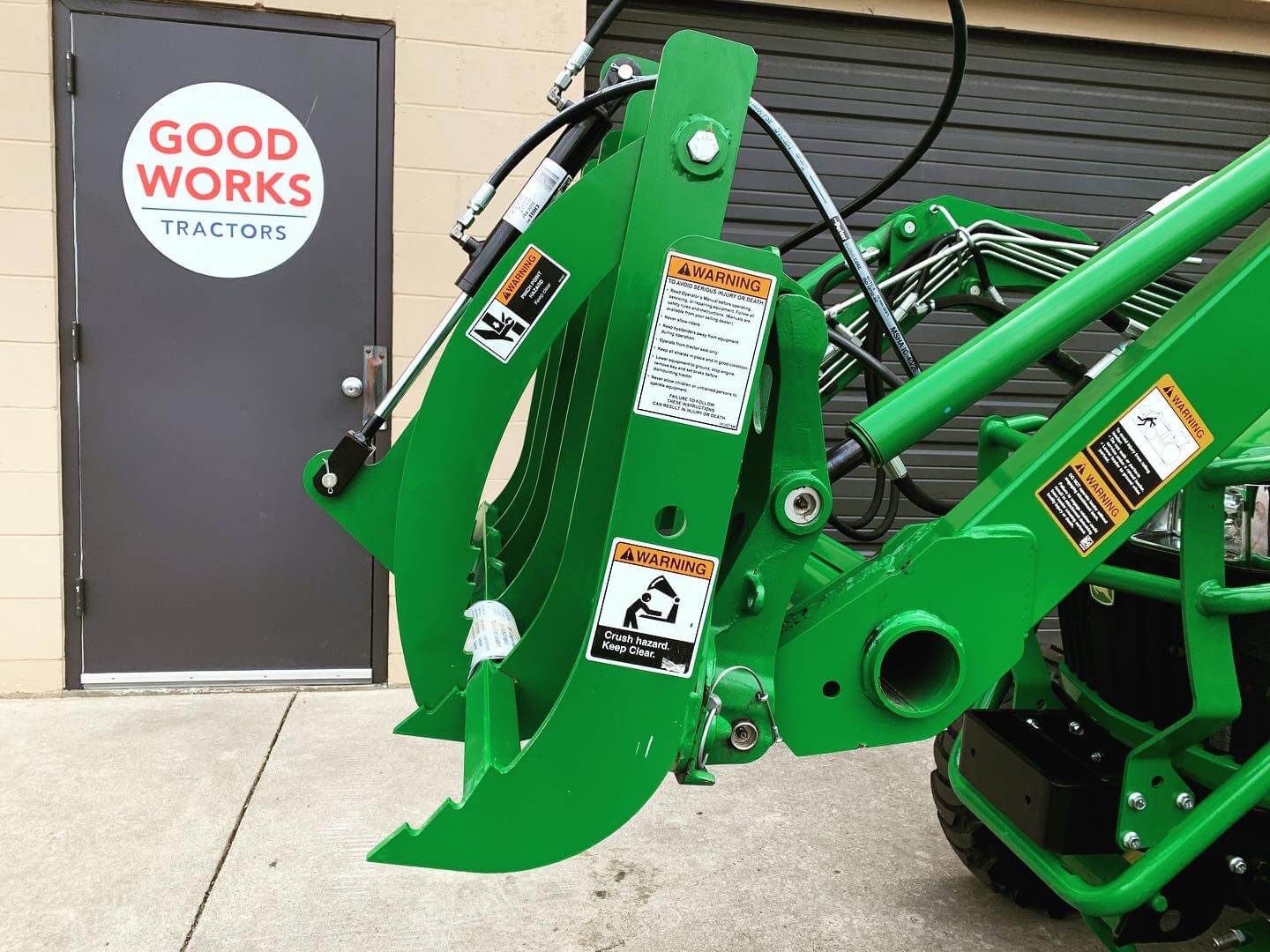

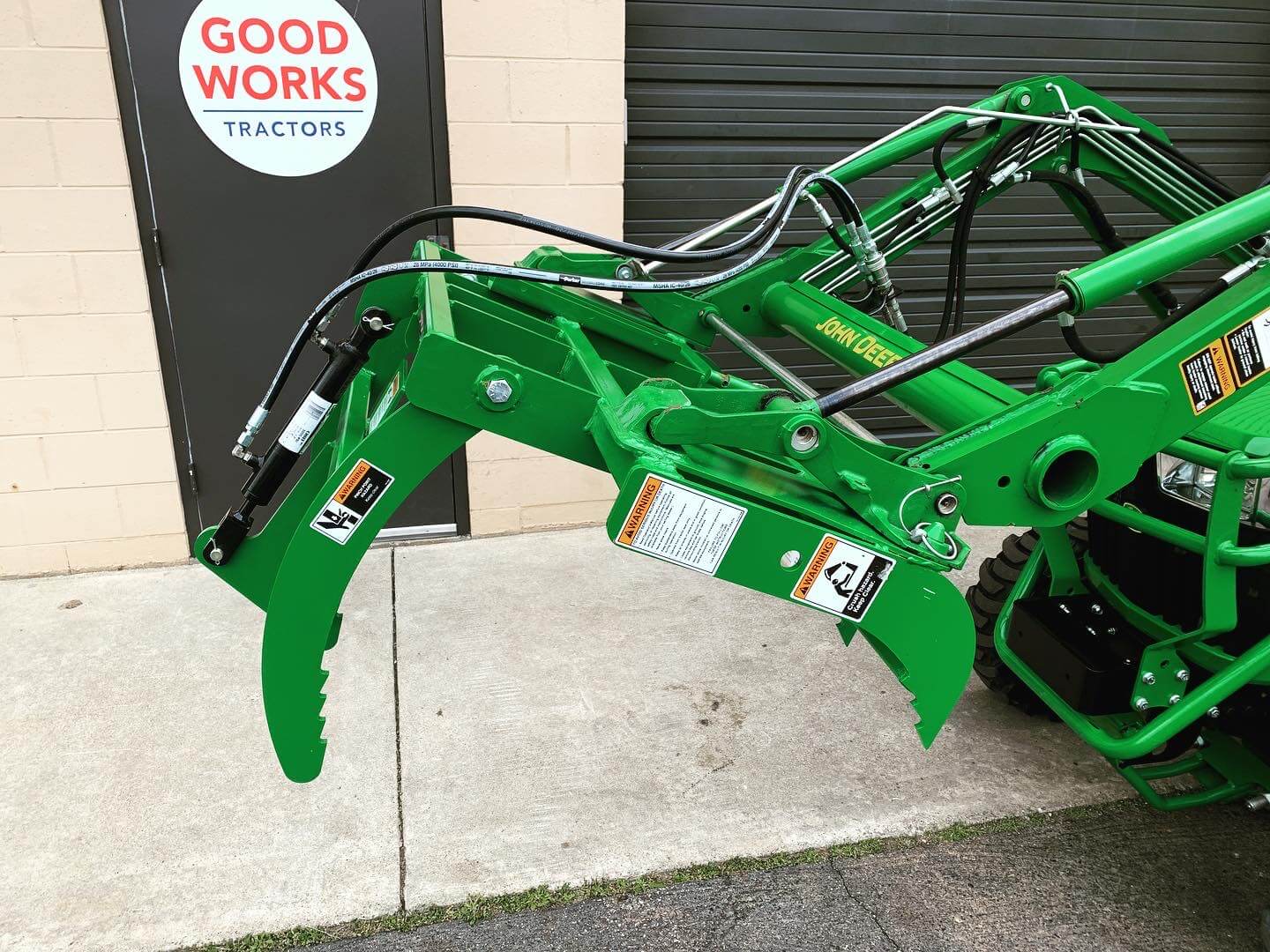

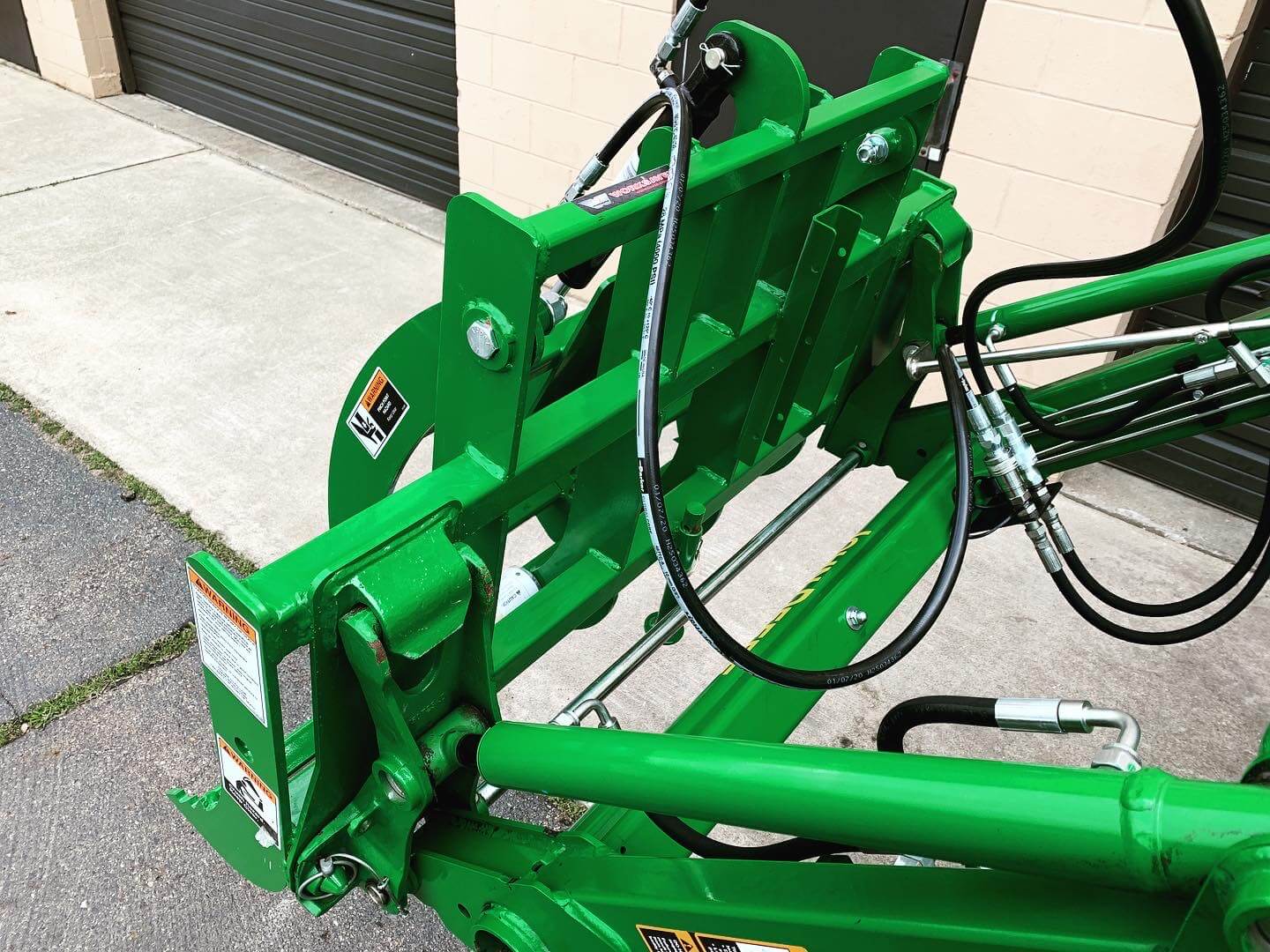

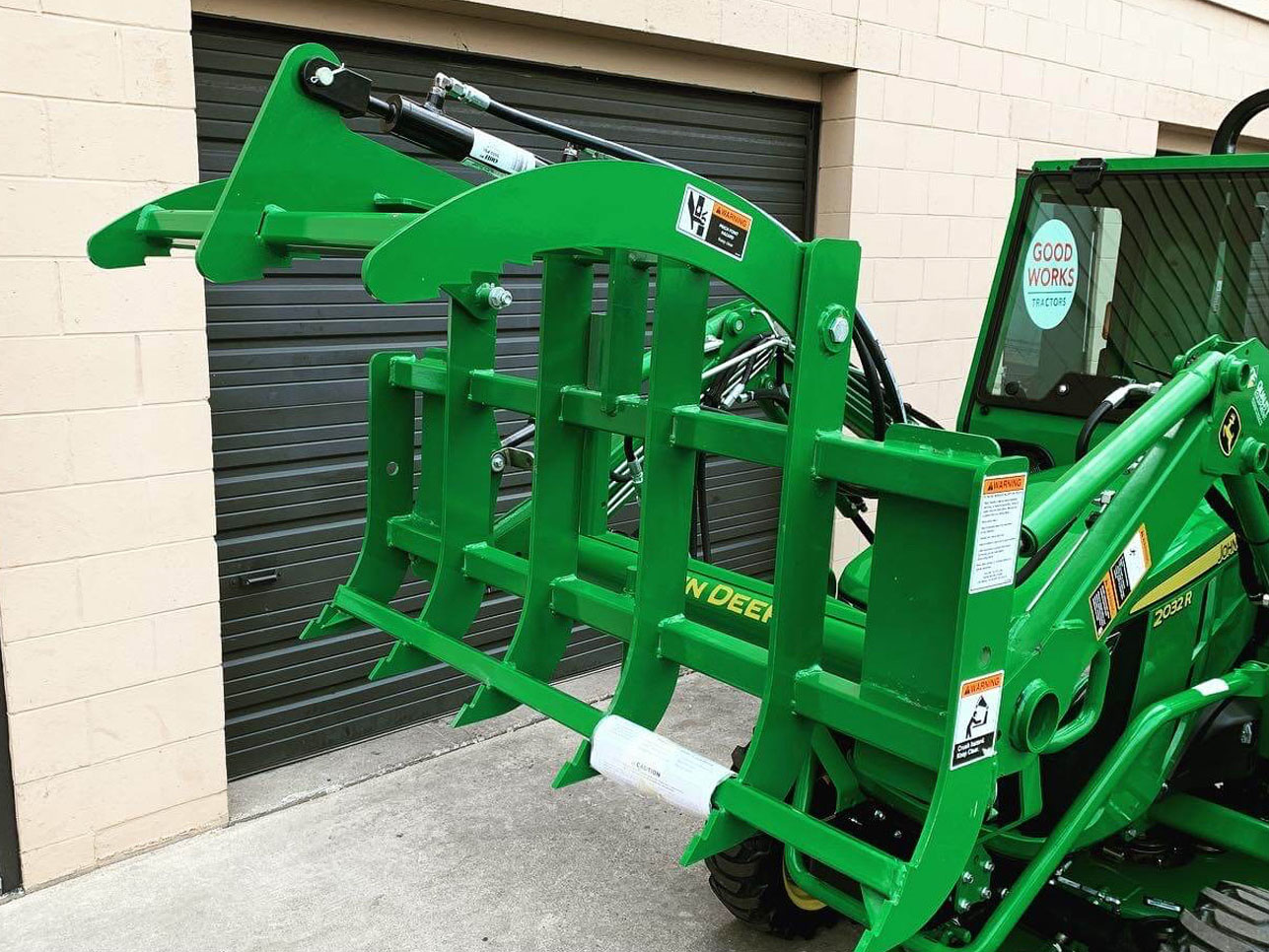

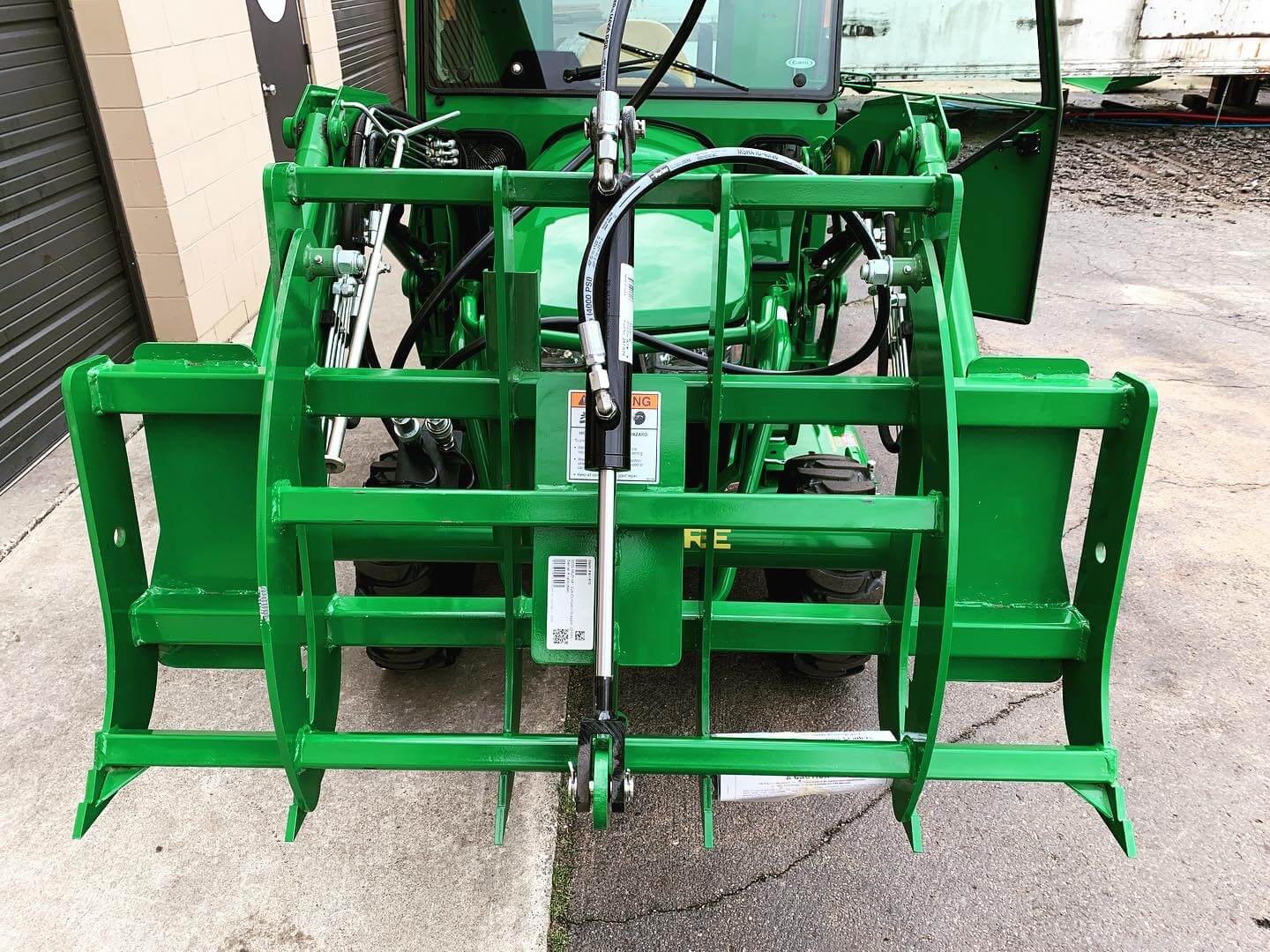

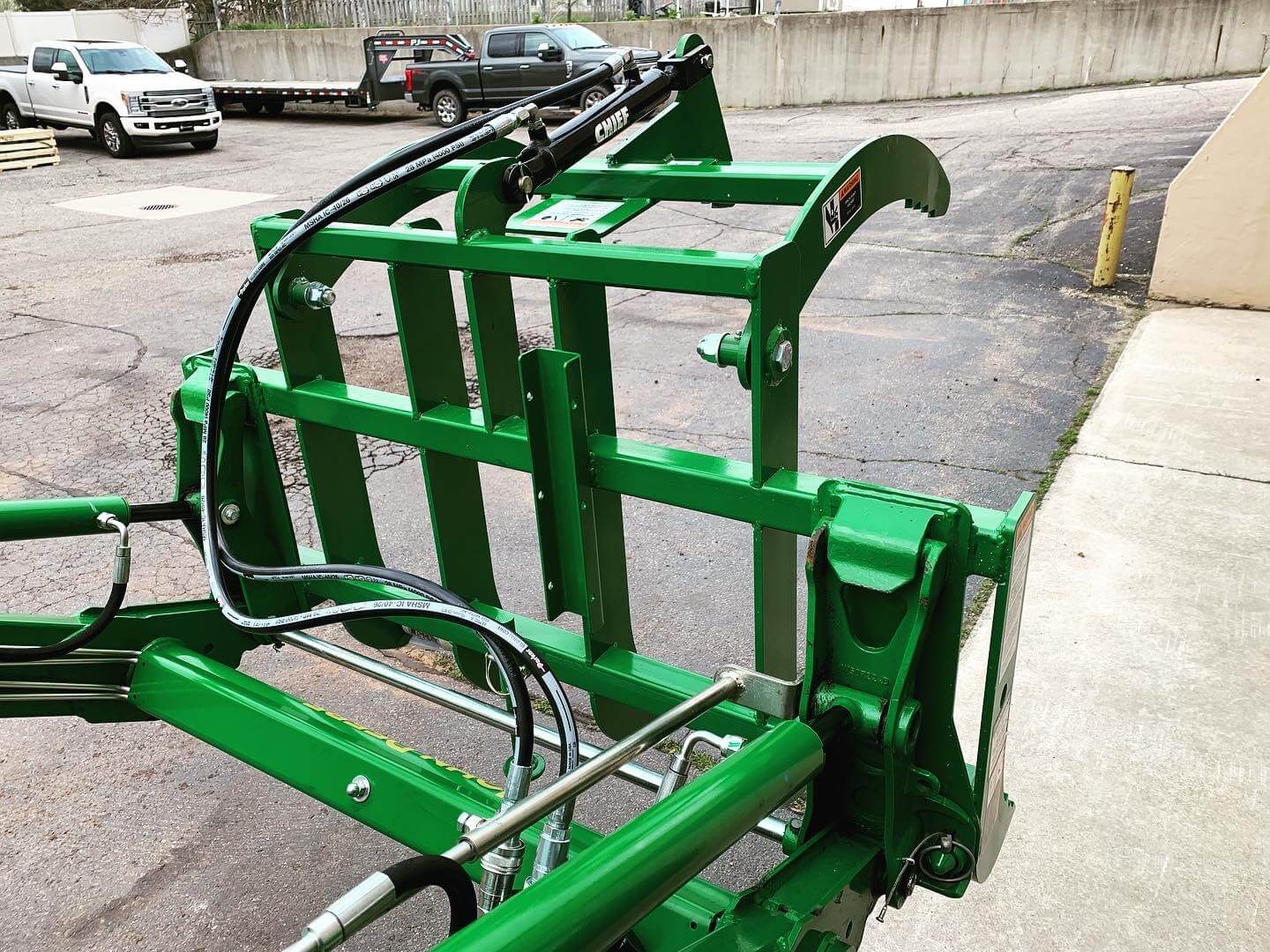

- John Deere Quick Attach ships in Green
- Perfect for the John Deere 1023e, 1025r, 1026r, 2025r, 2032r, 3032e, & more!

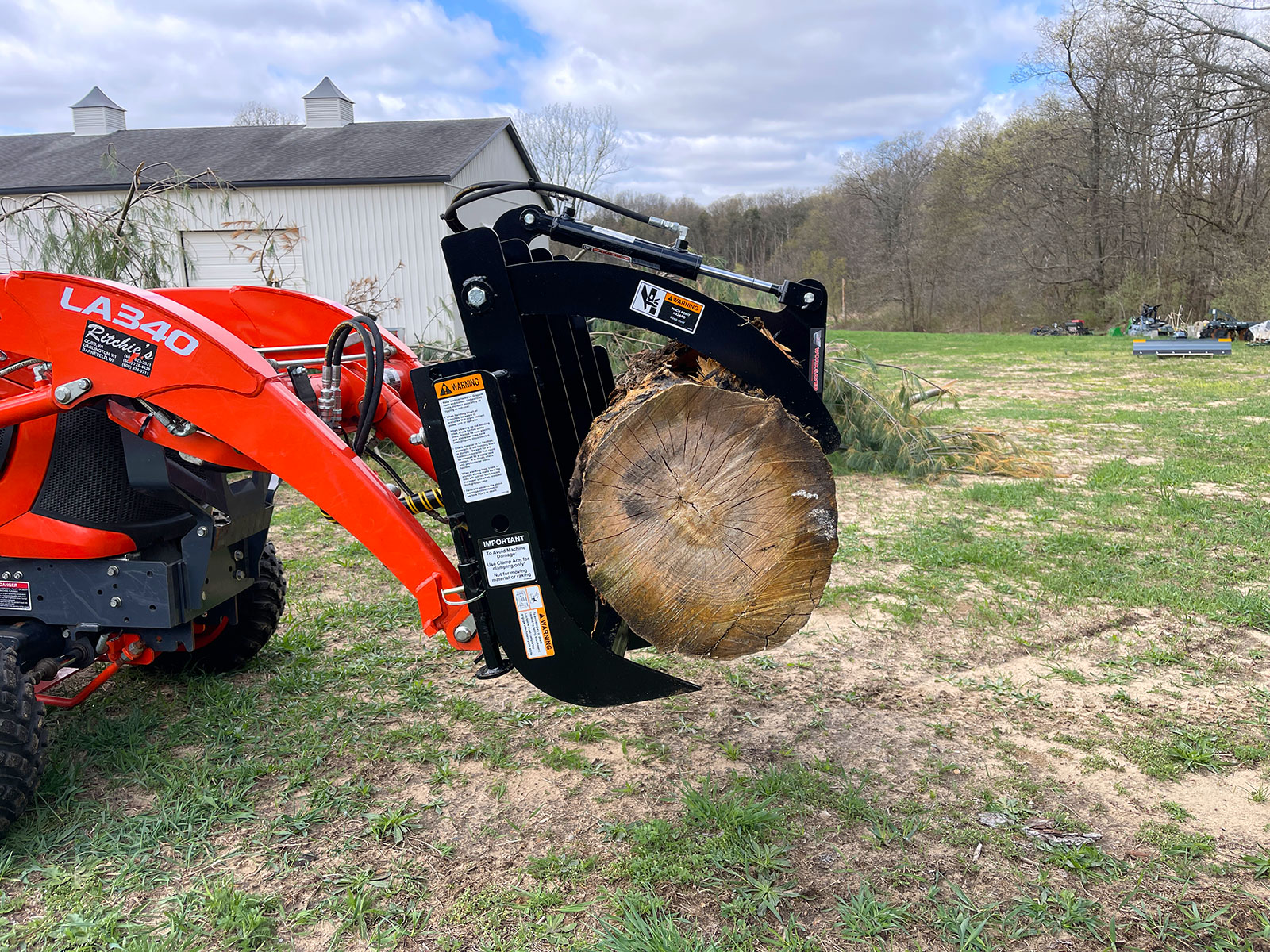

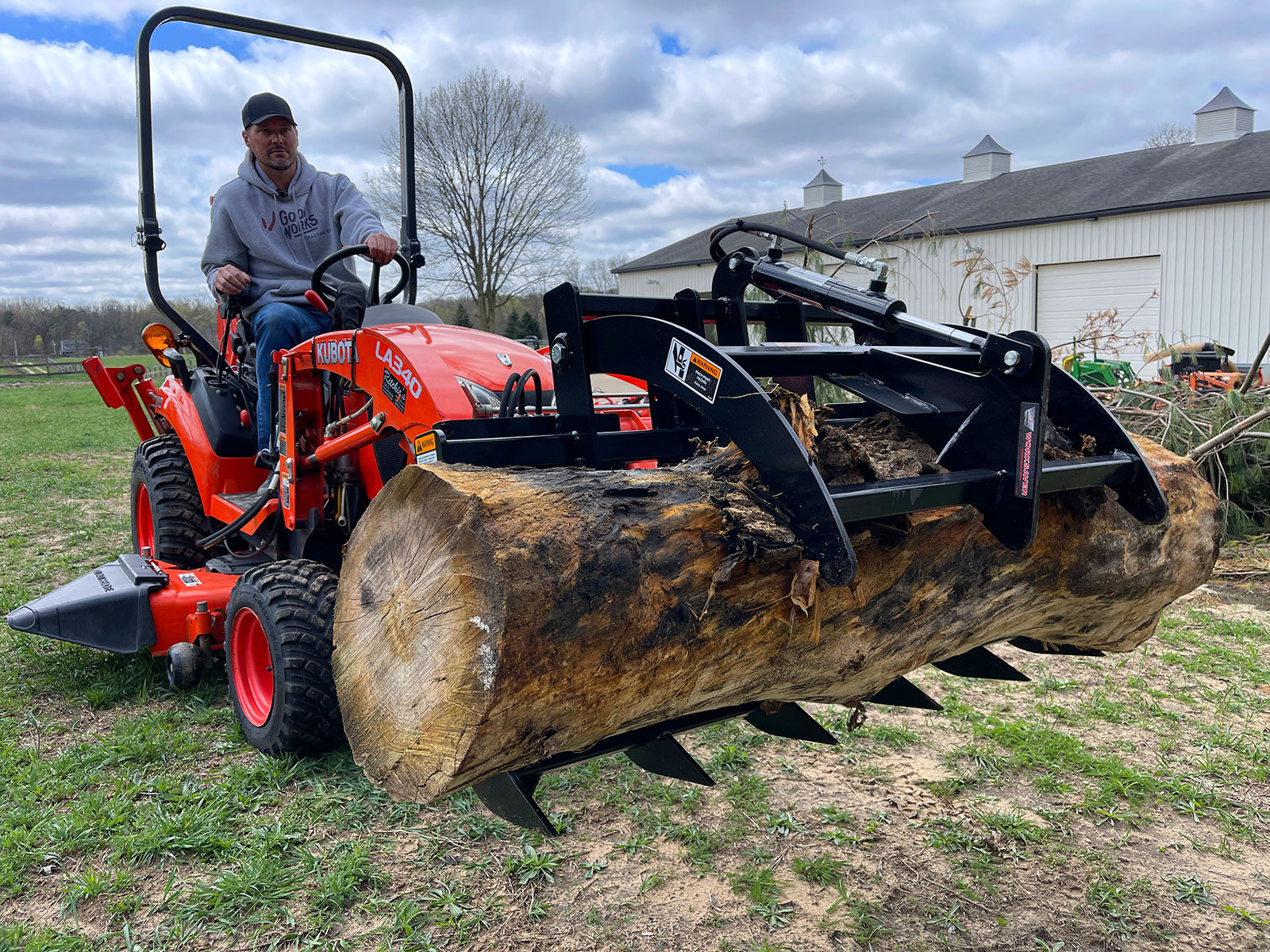

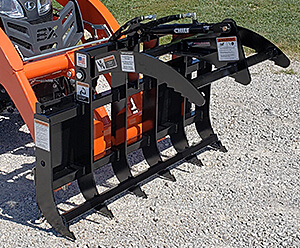

- Skid Steer Quick Attach ships in Black
- Perfect for Kubota BX23s, BX2380, BX2680, BX2670, B2650, B2620, & more!
___
A note about safety!
Whenever you are putting a load on the front-end of your tractor, you need to counter that weight on the back end. This is accomplished many ways. One of which is just by hanging weights off your 3-Point. We have a great solution for this in our Counterweight Bundle.
Mini Hydraulic Grapple Specs
| Model | SCG-48S | SCG-48JD |
| Overall Width | 49 in / 1245 mm | 49 in / 1245 mm |
| Mount Type | Skid Steer | JDQA |
| Overall Height Closed | 32.75 in / 832 mm | 32.75 in / 832 mm |
| Grapple Opening | 33 in / 838 mm | 33 in / 838 mm |
| Upper Grapple Width | 28.25 in / 718 mm | 28.25 in / 718 mm |
| Lower Grapple Width | 49 in / 1245 mm | 49 in / 1245 mm |
| Tine Spacing | 9.25 in / 235 mm | 9.25 in / 235 mm |
| Number of Tines/Grapples (lower/upper) | 6 / 3 | 6 / 3 |
| Reinforcing Tubes Between Lower Tines | Yes | Yes |
| Number of Hydraulic Cylinders | 1 | 1 |
| Cylinder Size | 1.5″ x 8″ | 1.5″ x 8″ |
| Weight | 205 lb / 93 kg | 205 lb / 93 kg |
| Product No. | 811690 | 811670 |
Lifetime Warranty
Increase the standard manufacturer’s warranty to GWT’s Lifetime Warranty.
What is covered
Your GWT Lifetime Warranty covers issues stemming from the craftsmanship of the product, like broken welds, torn steel, or improper fit. Tractor attachments are generally designed to be used in harsh environments, so normal wear-and-tear is not covered (things like lost paint or chipped paint, scratches, dents, or bent teeth).
We will repair or replace, at our discretion, your attachment/product under the Lifetime Warranty, if purchased.
What isn’t covered
Any shipping necessary for repair or replacement, as well as transportation costs are not covered under the factory warranty. Lost time and down time are not covered. Replacement parts are covered, but not labor costs.
If damage occurs from improper use (a use other than what the product is marketed for), the warranty is void. Damage caused to your tractor while using an attachment will not be covered.
Your warranty is non-transferable, meaning it exists as long as you’re the owner and operator of the product.
