Purchase this item and get Description

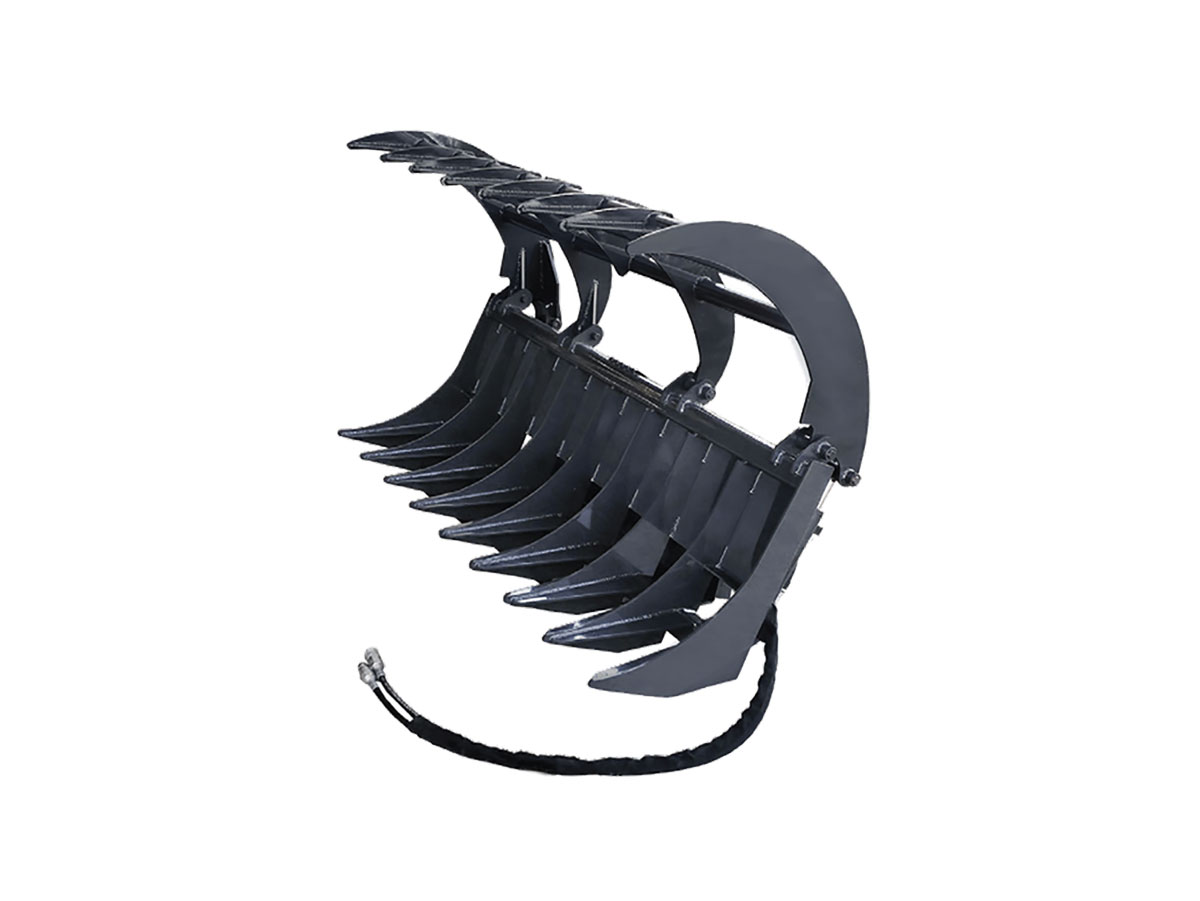

IronCraft Standard Duty AR400 Grapple Rake
- Available in 66″ or 72″ Width
- 2″ x 6″ 4,000 PSI American Made Cylinders
- Constructed from AR400 3/8″ Steel
- Grapple opens to 51″
- For Tractors with 35–60 hp
*Hoses and fittings typically are not included. On some occasions, manufacturers will include hoses and fittings but seldom are the hose lengths and fittings correct. We recommend waiting until you have the grapple mounted to your tractor to determine the correct hose length and fittings needed.
Do you need a 3rd function kit to operate your grapple or hoses and fittings to mate up your grapple to your tractor? Save 5% with code GWT on high-quality tractor hydraulic solutions at Summit Hydraulics. These are DIY hydraulic solutions that you can install with simple tools in your garage. Save dealer mark-ups, save dealer labor, and save the headache of transporting your tractor to the dealer.
Standard Duty Grapple Rake Specs
| Model | ARSGR66 | ARSGR72 |
| Description | STANDARD GRAPPLE RAKE (3/8), 66” |
STANDARD GRAPPLE RAKE (3/8), 72”
|
| Material Thickness | 3/8″ AR400 Steel |
3/8″ AR400 Steel
|
| Cylinder Size | 2″ x 6″ 4,000 PSI American Made |
2″ x 6″ 4,000 PSI American Made
|
| RPM | Recommended for machines 35-60 HP |
Recommended for machines 35-60 HP
|
| Working Width | 66″ | 72″ |
| Weight | 487 lb | 550 lb |
| Notes | Unique design makes it easy to roll debris into tight piles |
Unique design makes it easy to roll debris into tight piles
|
