Purchase this item and get Description

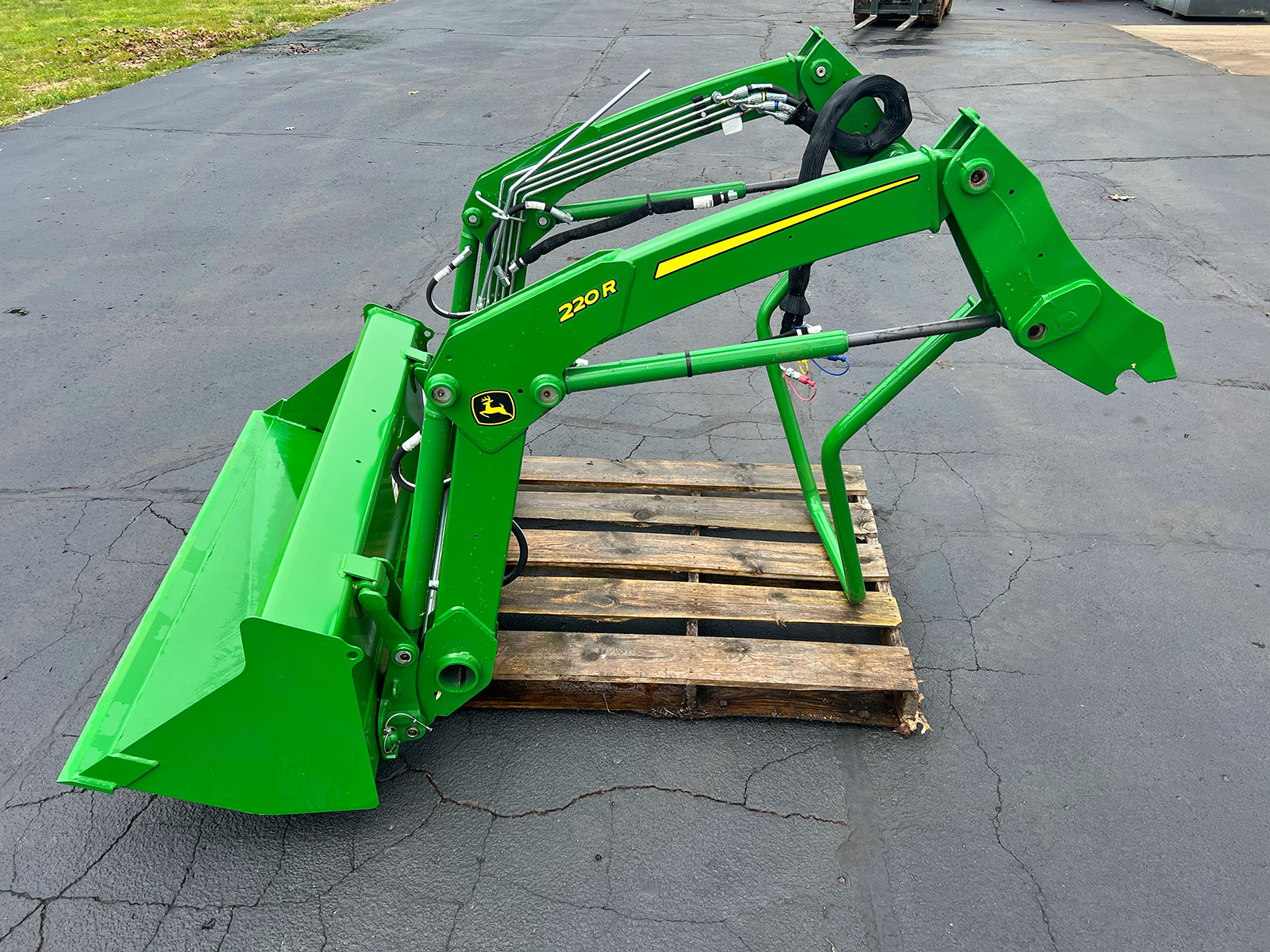

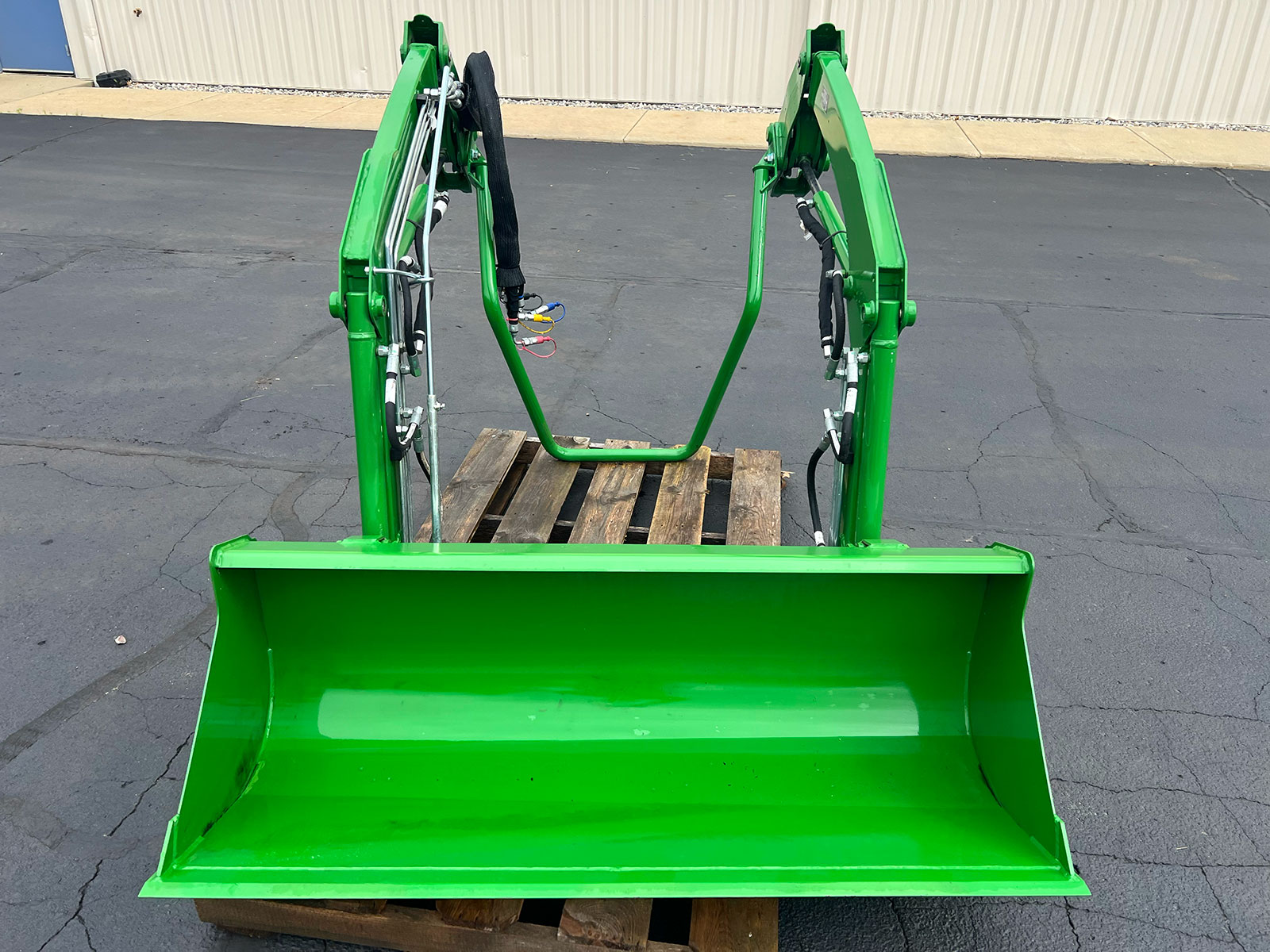

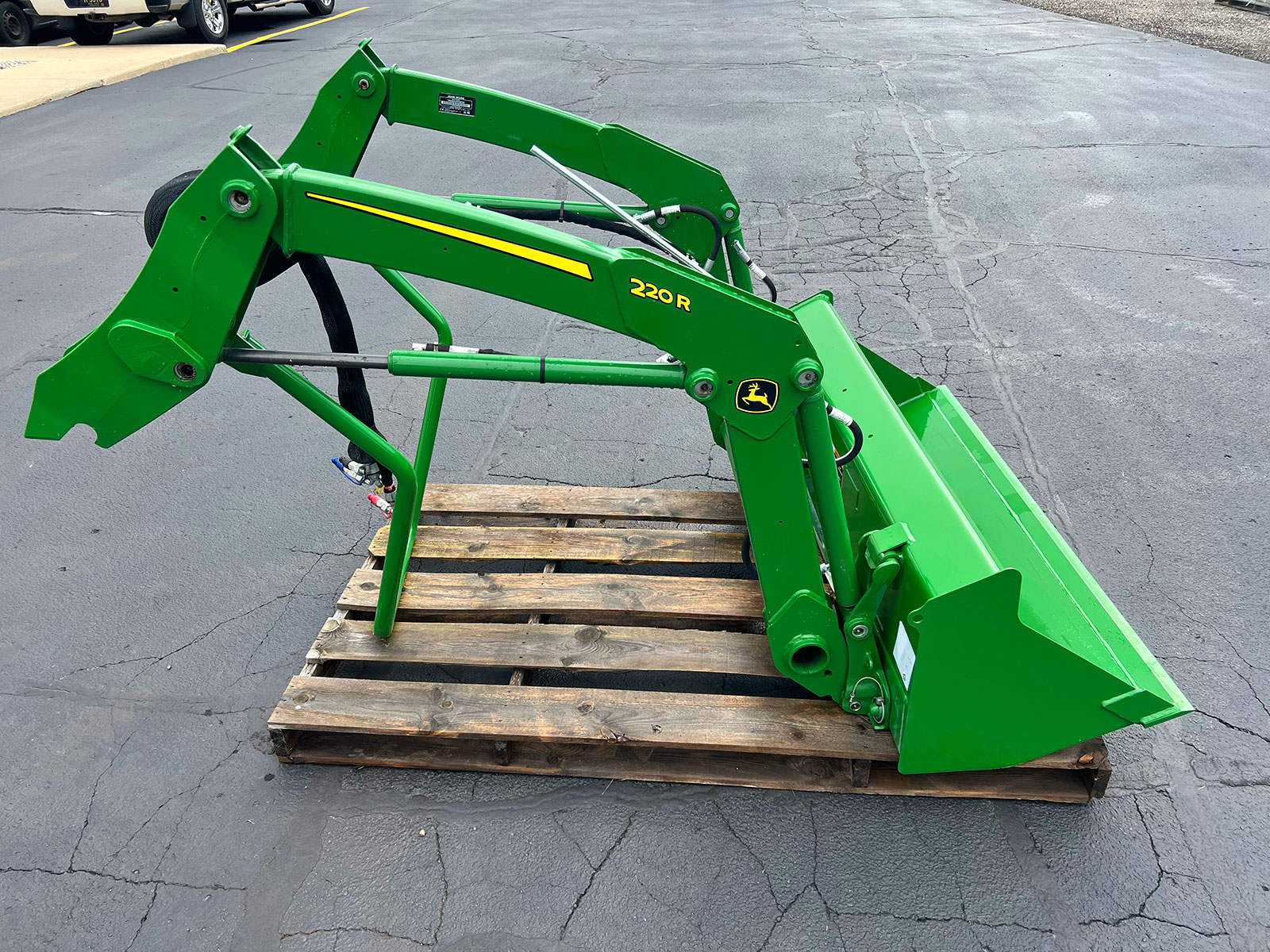

John Deere 220R Front-End Loader FEATURES
- Compatible with 2032R and 2038R tractors
- Quik-Park™ mounting system for easy on, easy off in minutes
- Optional single-point hydraulic coupler connects hydraulics with pull of a lever
- Quik-Change™ Bucket System for fast and easy attachment changeovers
- Mechanical Self-Leveling (MSL) Loader option with 1,377 lb (626 kg) lift capacity

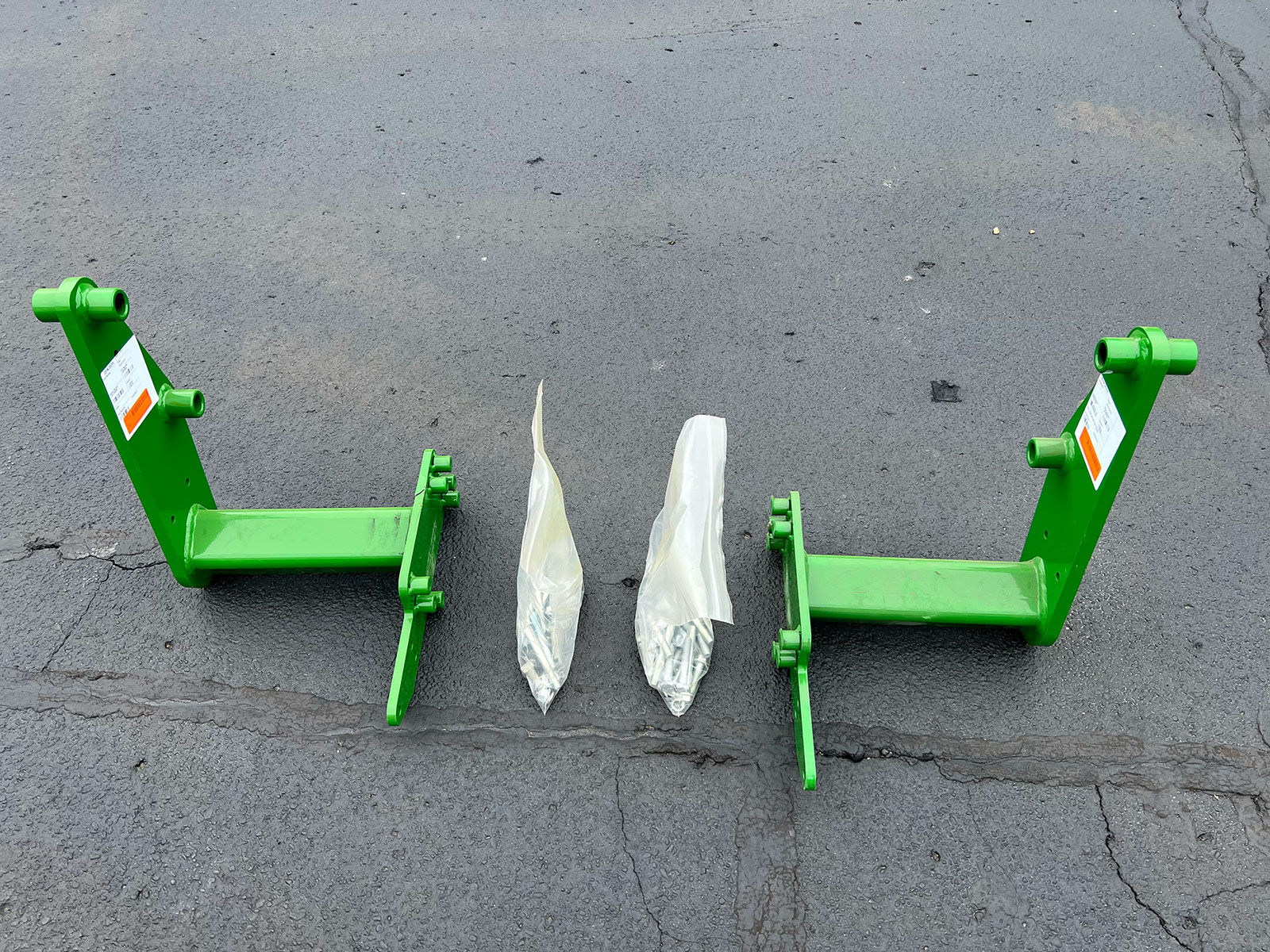

Quik-Park Mounting System
The 220R loader is designed to easily attach to and detach from the tractor without tools.

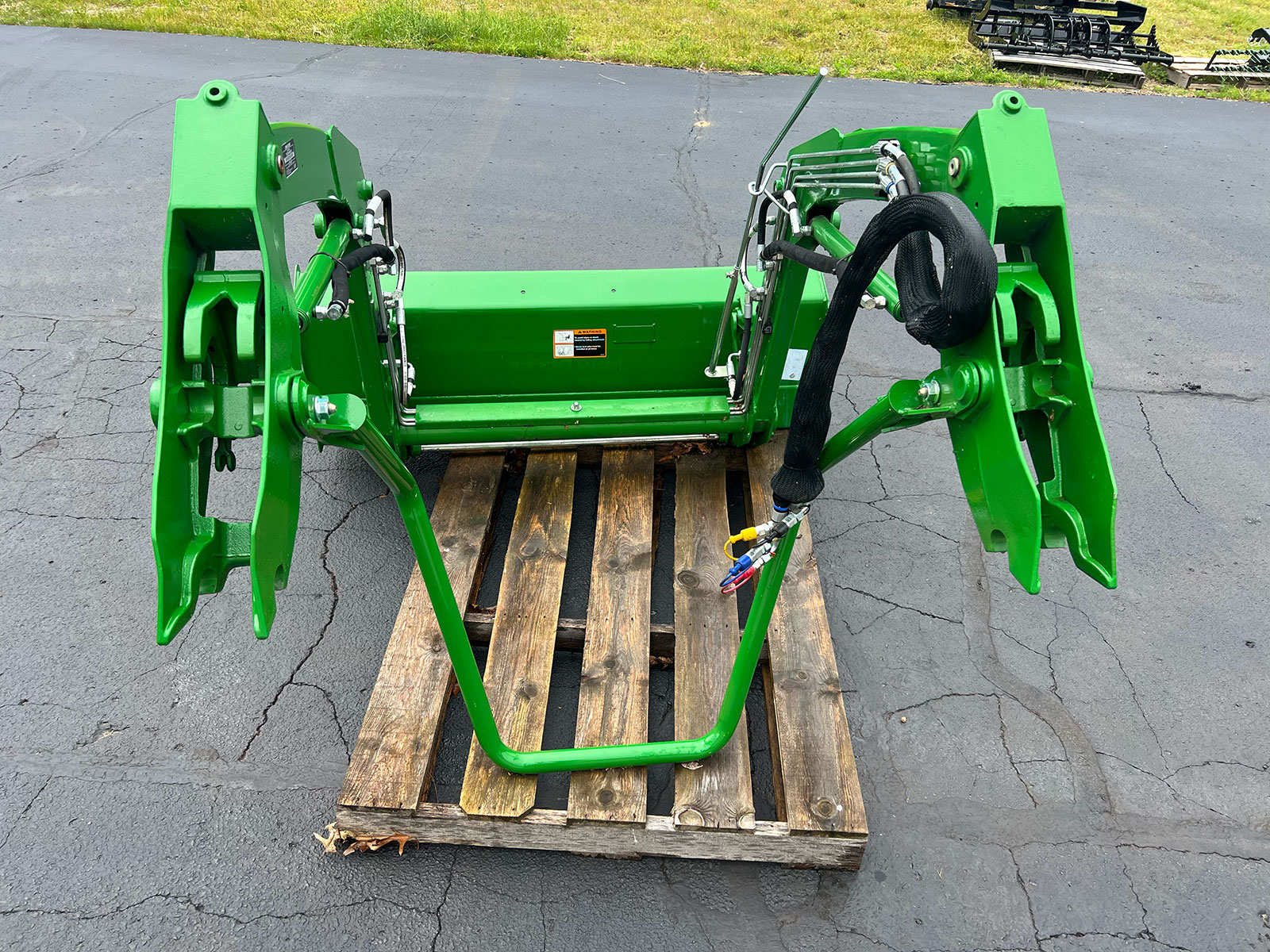

The parking stand is attached to the mast and lowers into position by moving the joystick to the raise position once the latches are opened to allow the loader to move to the park position.
JDQA System
Change front-end attachments quickly with the JDQA quick connect system using two top hooks and two pins.
John Deere 220R Loader Specs
| Maximum lift height | 2160 mm 85 in. |
| Lift capacity at full height | Measured at pivot 509 kg 1120 lb Measured at 500 mm ahead of pivot 365 kg 803 lb |
| Boom breakout force | Measured at pivot 886 kgf 1949 lbf Measured at 500 mm ahead of pivot 618 kgf 1360 lbf |
| Bucket rollback force capacity | At ground-level line 972 kgf 2138 lbf |
| Clearance at full height – bucket dumped | 1667 mm 66 in. |
| Dump angle, degrees | 36 degree (angle) |
| Rollback angle, degrees | 34 degree (angle) |
| Model | 2032R, 2038R |
| Front tire | 23×8.50-14 4PR R4 |
| Rear tire | 14-17.5 6PR R4 |
| Wheelbase | 1725 mm 68 in. |
| Pump capacity | 20.2 L/min 5.3 gpm |
| Rated pressure | 17.23 MPa 2499 psi |
