The Add-A-Wrecker just got a big brother. Check it out

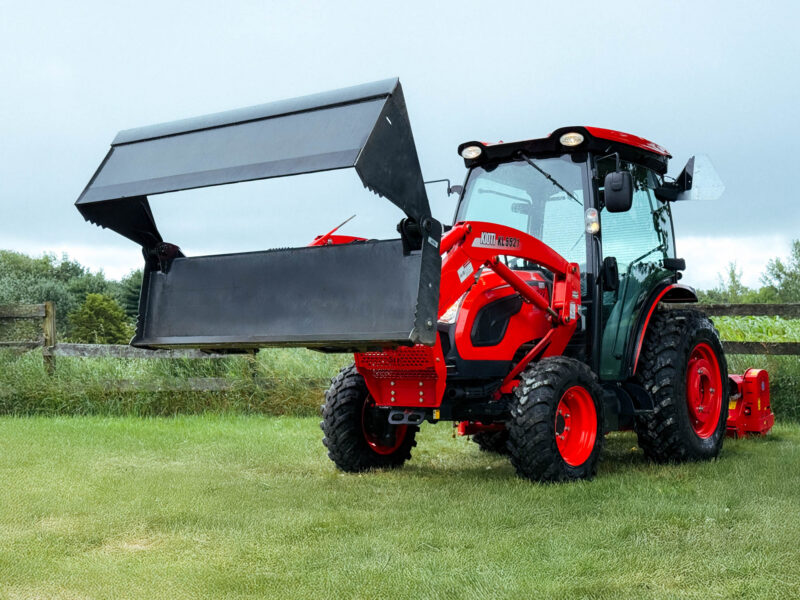

A 4-N-1 Bucket explains itself with its name—you get four unique functions for your tractor from one, single attachment.
The first function is digging, using the traditional bucket form. The second is as a grapple, with the side wall jaws able to clamp onto logs, limbs, and brush. Or clamp onto a rock with the middle of your open bucket. The third function is dozing, lifting the front of the bucket all the way, and pushing material around as needed. The fourth function is grading, as you can open the bucket slightly, and as you push material it will self-level and the bucket will act like a spill-over hopper. Or you can backdrag to grade as well. Alternatively, you can lay new material controlling your discharge rate by how wide you open the bucket.
All IronCraft 4-N-1 buckets are Made in the USA, down in Tennessee.
4-N-1 Bucket Min 30 hp | JDQA, SSQA
Price range: $3,274.00 through $5,985.00
20% Off (Save $967.00)
Purchase this item and get In Stock Available to pre-order now
Picking the right attachment to fit your tractor isn’t always easy. That’s why we exist.
Contact us prior to purchase to get our recommendation for your tractor model, and if it doesn’t work, you can exchange for the right size at no cost to you.
All orders qualify for Basic Free Shipping, whether Ground or Freight.
Our Free Shipping Zone includes 36 states.
If you live in the continental United States, but outside of this zone, your shipping price will be calculated at checkout.
All freight orders are eligible to upgrade to a Lift-Gate for delivery. Otherwise the customer is responsible for offloading their order from the truck.
For full shipping details, go here.
Every product comes with its own factory warranty specified by the manufacturer.
We offer extended warranties to protect your purchase even longer.
Extended Confidence Coverage
Extends the manufacturer’s warranty one year beyond the factory warranty.
Lifetime Priority Protection (Most Popular)
Extends the manufacturer’s warranty for the lifetime of the product and includes priority handling, no-hassle claims, and lifetime support.
What’s Covered
Our extended warranties cover defects in workmanship such as broken welds, torn steel, or improper fit. If a covered issue occurs, we will repair or replace the product at our discretion.
What’s Not Covered
Damage caused by improper use or use outside the product’s intended purpose voids the warranty.
Cosmetic wear such as paint loss, scratches, dents, or bent teeth, as well as normal wear to common attachment components and consumables including cutting edges, shanks, tines, skid runners, skid shoes, blades, belts, bushings, bearings, oils, grease, and similar wear items is not covered under warranty.
Shipping or transportation costs, downtime, and labor are not covered.
Transferability
This warranty is non-transferable and applies only to the original owner/operator.
Compact 4-n-1 Bucket Series HighLights
The cylinders on IronCraft’s compact tractor 4-N-1 Buckets have a 2″ bore. They are equipped with a 1/2″ x 6″ cutting edge and 1/2″ x 4″ at all other ground engaging points.
They are also built with top quality steel, oversized pins and bushings, with grease fittings at every pivot point. Every unit exceeds the lifting capacity of the tractor or skid steer machine it is used on.
- Widths: 60, 66, 72 inches
- Weight: 477 lb, 550 lb, 575 lb
- For Tractors Under 40 Horsepower
- Cutting Edges 1/2″ x 6″
- 2″ Bore Hydraulic Cylinder
- Grease fittings at every pivot point
- Optional weld on teeth
Standard 4-n-1 Bucket Series HighLights
The cylinders on IronCraft’s Standard Duty have a 2.5″ bore. They are equipped with a 1/2″ x 6″ cutting edge and 1/2″ x 4″ at all other ground engaging points.
They are also built with top quality steel, oversized pins and bushings, with grease fittings at every pivot point. Every unit exceeds the lifting capacity of the tractor or skid steer machine it is used on.
- Widths: 60, 66, 72 inches
- Weight: 600 lb, 725 lb, 650 lb
- For Tractors 40–50 Horsepower
- Cutting Edges 1/2″ x 6″
- 2 1/2″ Bore Hydraulic Cylinder
- Grease fittings at every pivot point
- Optional weld on teeth
- Available in JDQA or SSQA
Heavy Duty 4-n-1 Bucket Series HighLights
The cylinders on IronCraft’s Heavy Duty 4-N-1 Buckets have a 2.5″ bore. They are equipped with a 1/2″ x 6″ cutting edge and 1/2″ x 4″ at all other ground engaging points.
They are also built with top quality steel, oversized pins and bushings, with grease fittings at every pivot point. Every unit exceeds the lifting capacity of the tractor or skid steer machine it is used on. Optional weld-on teeth available for Heavy-Duty Buckets.
- Widths: 63, 66, 72 inches
- Weight: 785 lb, 810 lb, 840 lb
- For Tractors 50–65 Horsepower
- Cutting Edges 1/2″ x 6″
- 2 1/2″ Bore Hydraulic Cylinder
- Grease fittings at every pivot point
- Optional weld on teeth
- Available in JDQA or SSQA
X-TREME Duty 4-n-1 Bucket Series HighLights
IronCraft’s X-treme 4-N-1 Buckets have cylinders with a 3″ bore. They are equipped with a 1″ x 8″ cutting edge and 3/4 ” x 6″ at all other ground engaging points.
They are also built with top quality steel, oversized pins and bushings, with grease fittings at every pivot point. Every unit exceeds the lifting capacity of the tractor or skid steer machine it is used on. Optional weld-on teeth available for X-treme Buckets.
- Widths: 72, 78, 81, 84 inches
- Weight: 1150 lb, 1255 lb, 1295 lb, 1271 lb
- For Tractors 65 Horsepower and Above
- Cutting Edges 1″ x 8″
- 3″ Bore Hydraulic Cylinder
- Grease fittings at every pivot point
- Side cutters standard
- Optional weld on teeth and bolt on edge
- Available in JDQA or SSQA
***Hoses and fittings normally not included. If they are included, they may be the wrong length or have the wrong fittings. Consider it a bonus if they are correct. Order at the links below to get what you need to fit your tractor.***
Save 5% with code GWT at Summit Hydraulics!
Buy 3rd function kits for tractors by clicking here.
Buy hydraulic hoses and fittings by clicking here.
