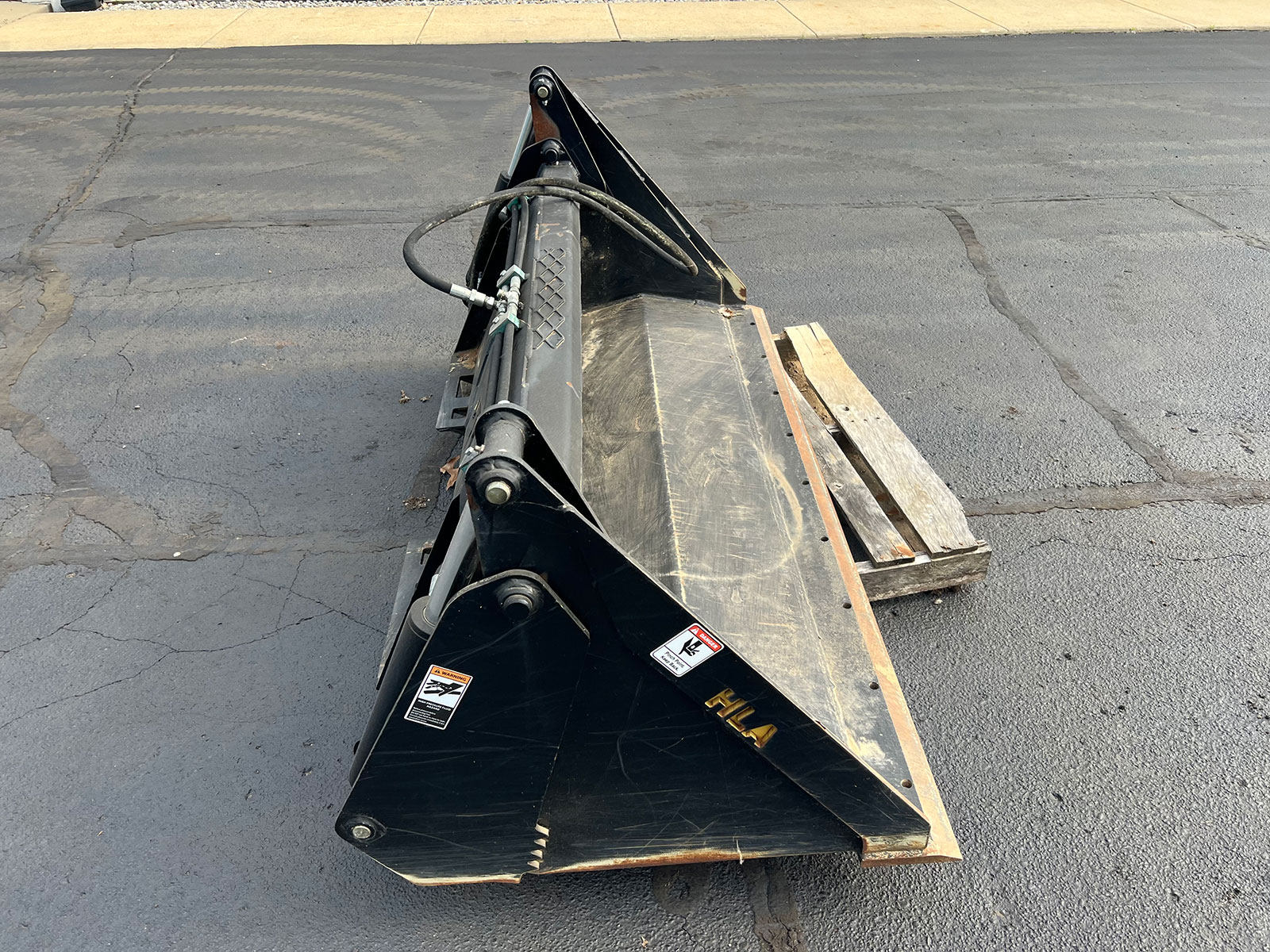

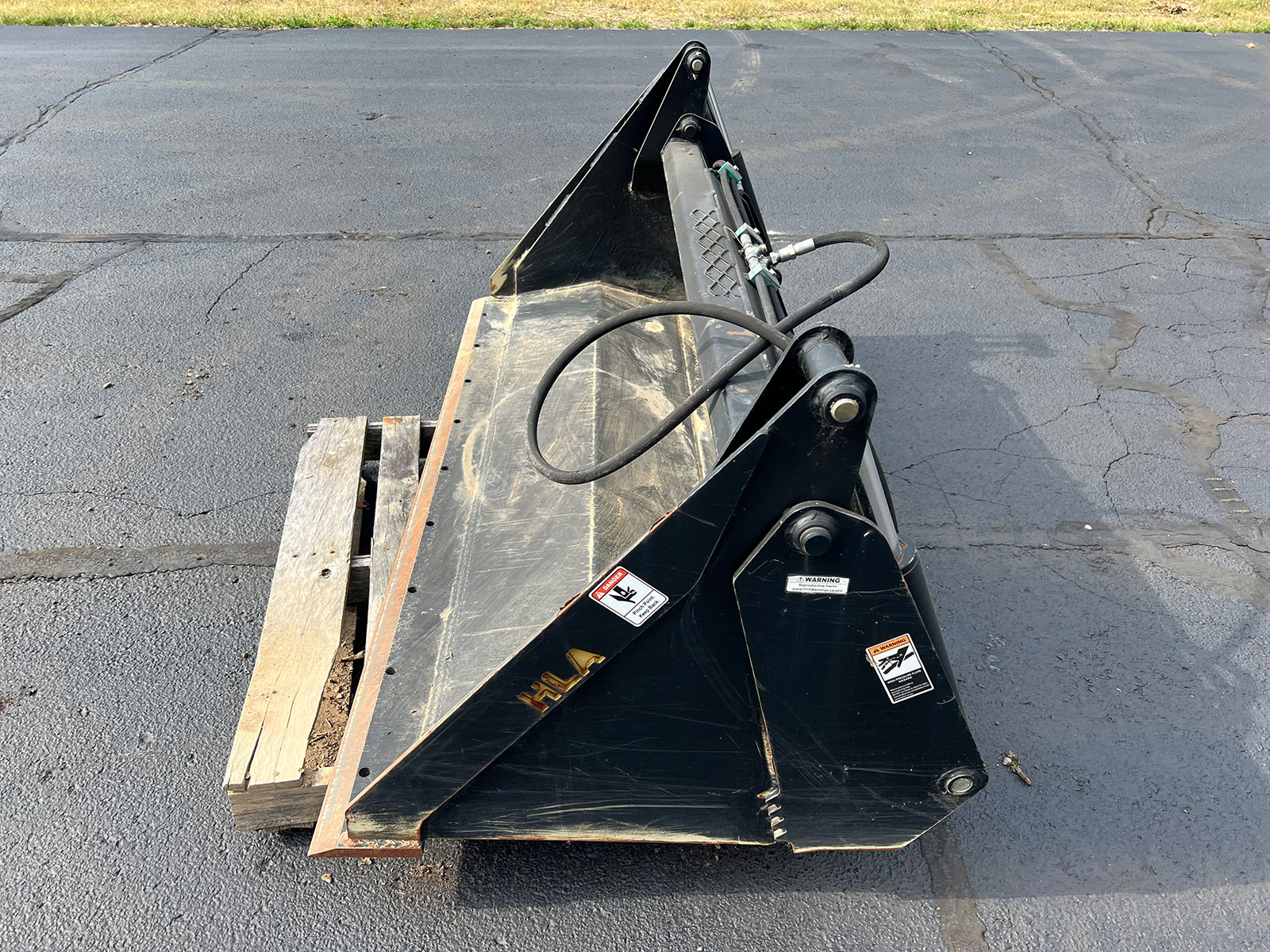

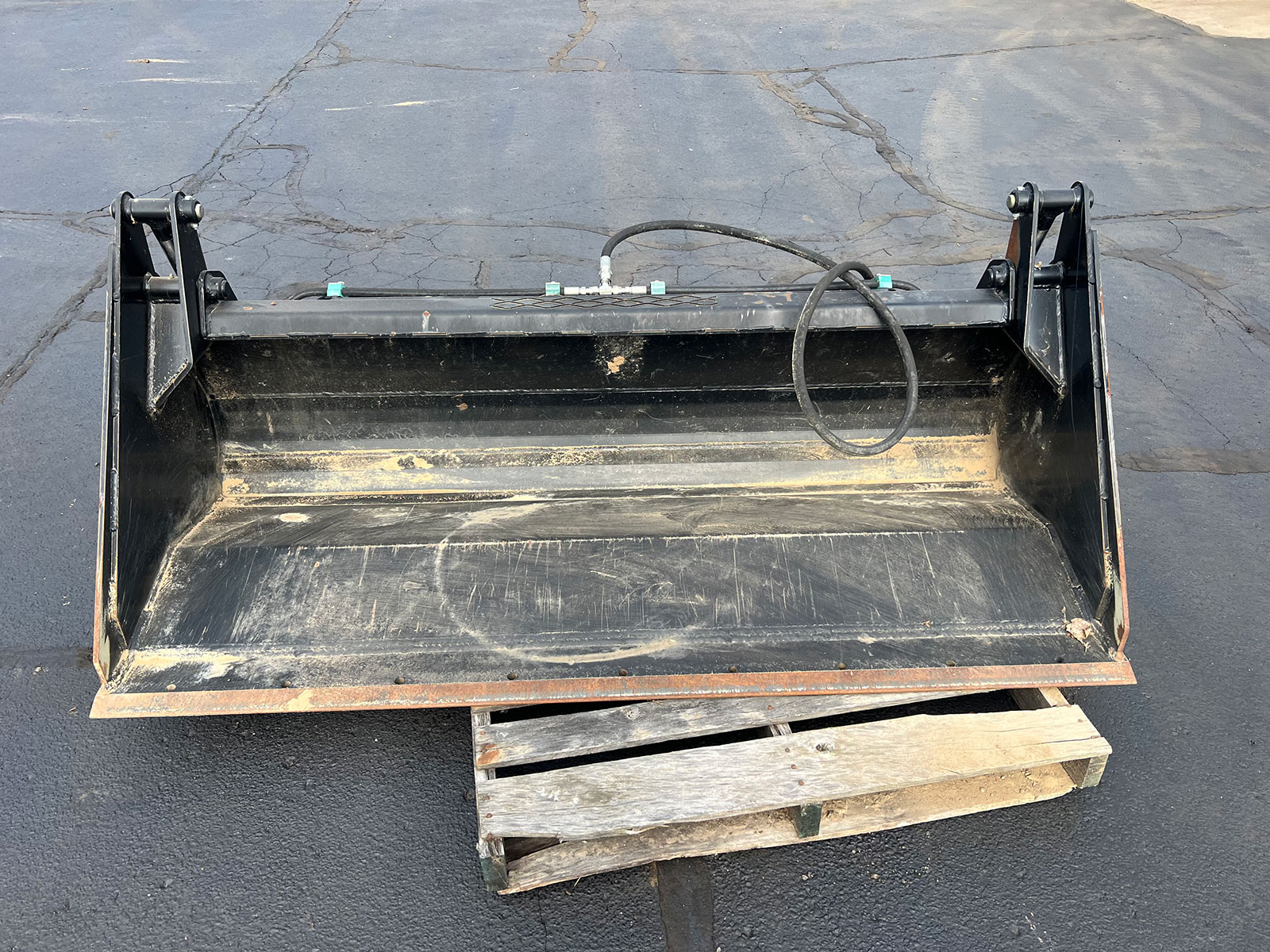

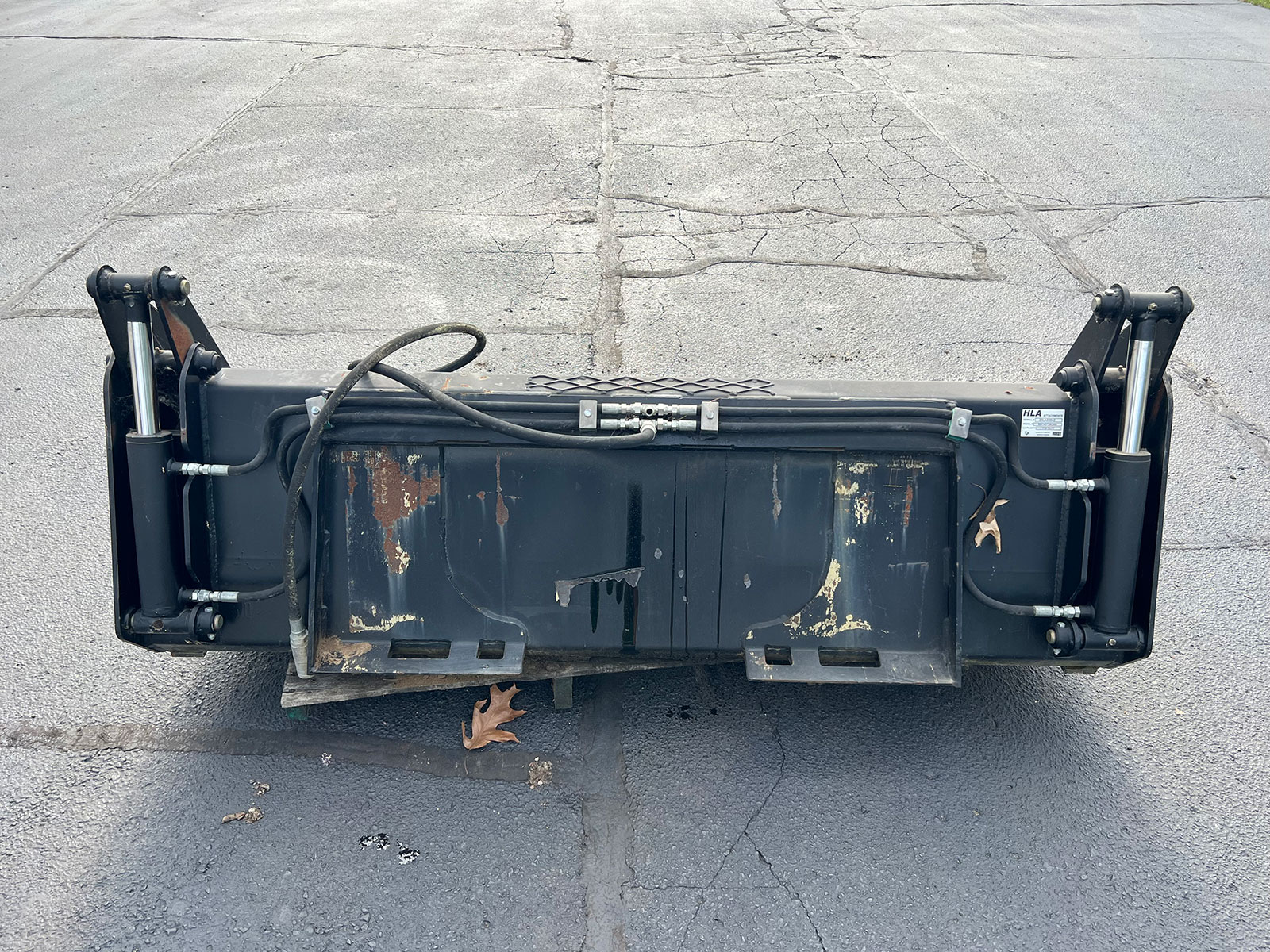

HLA 4-In-1 Bucket Highlights
A 4-In-1 bucket for skid steers, also referred to as a multi-purpose bucket, is capable of performing multiple functions.
Its design allows the bottom and sides to separate from the back, so operators can doze, dig, load, carry, and dump material.
This additional feature allows you to accomplish way more from the seat without having to switch attachments. A hydraulic connection is required.
HLA is known for making incredibly high quality, well thought out attachments up in Canada. Their Snow Pushers are our number one snow attachment sold every year, so we don’t hesitate to recommend them to any customer for any other attachment.
- 29 in deep x 20 in high
- Includes 2-½ in x 8 in cylinders
- Main Bucket Construction — ¼” Steel
- End Plates Construction — ⅜” Steel
- Clam Floor Bottom Plate Construction ⅜” Steel
- For skid steers (but a large tractor with grapple ready hydraulics could operate this)
*Hoses and fittings typically are not included. HLA offers a hose package that may work for you, but we recommend waiting until you have the bucket mounted to your skid steer to determine the correct hose length and fittings needed.
4-In-1 Bucket Model Specs
| Part Number | Description | Inside Width (inches) |
Struck Capacity (Cubic Feet) |
SAE Heaped Capacity (Cubic Feet) |
Weight (lb) |
|---|---|---|---|---|---|
| SBFNO66 | 66″ Skidsteer 4-In-1 Bucket | 66 | 10.6 | 12.8 | 880 |
| SBFNO72 | 72″ Skidsteer 4-In-1 Bucket | 72 | 11.6 | 15.1 | 935 |
| SBFNO78 | 78″ Skidsteer 4-In-1 Bucket | 78 | 12.5 | 16.4 | 980 |
| SBFNO84 | 84″ Skidsteer 4-In-1 Bucket | 84 | 13.5 | 17.7 | 1040 |
| HK90 |
Optional 90″ Hose Kit c/w Flat Faced Couplers
|
||||
| SHMK |
Optional Spring Hose Mount Kit
|
NOTE: Add 2″ to inside width to calculate outside width of bucket
