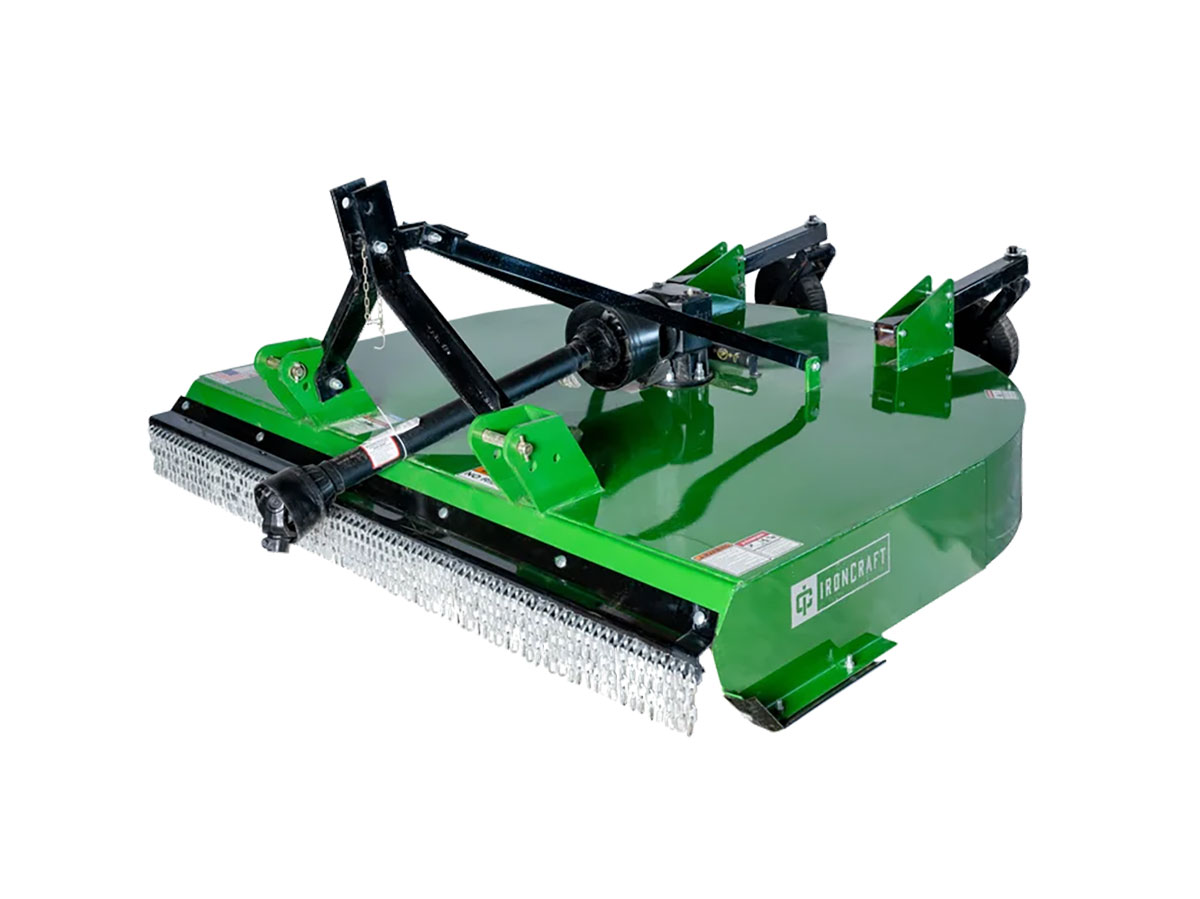

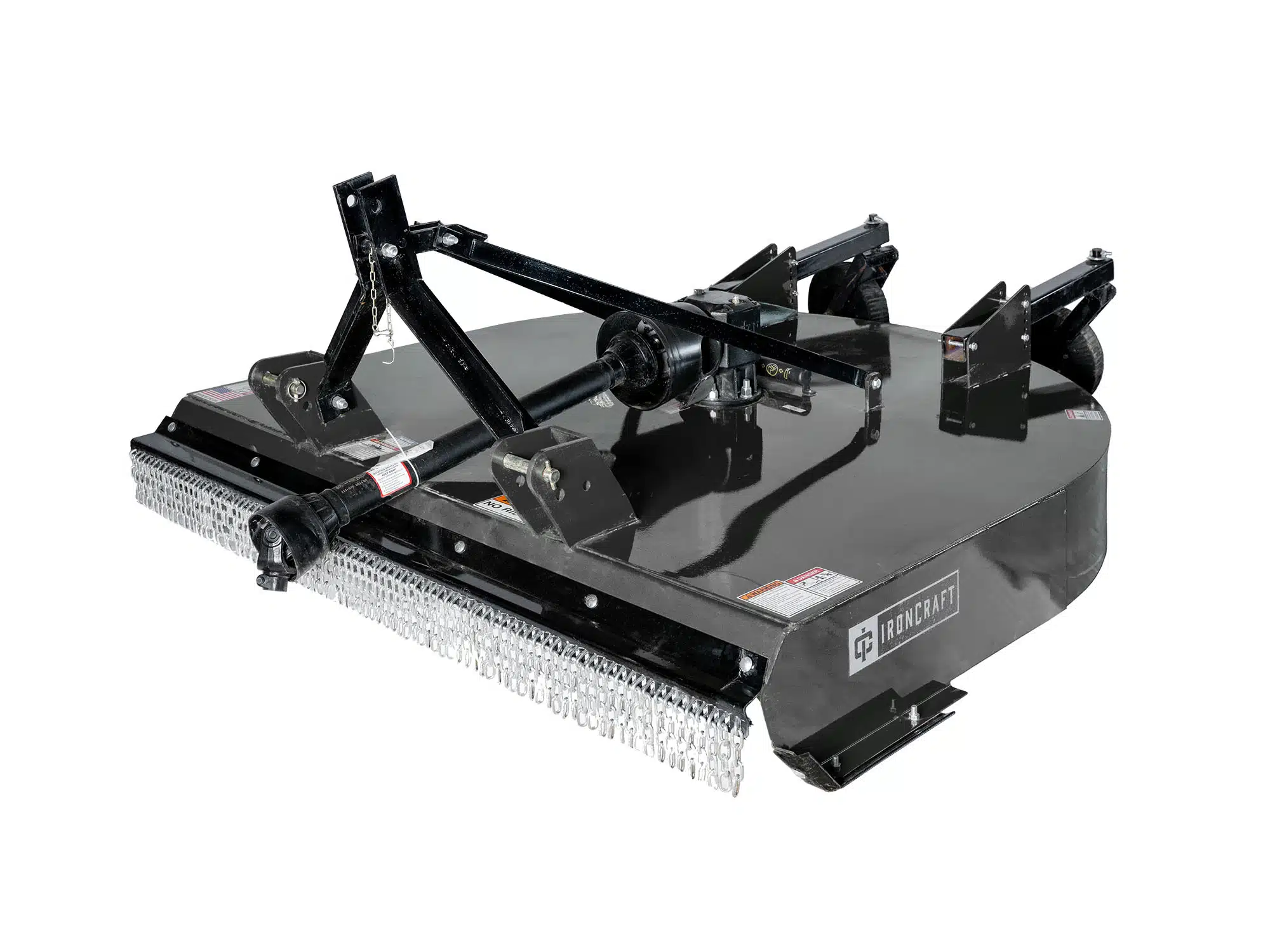

IRONCRAFT Severe DUTY Roundback BRUSH HOG DETAILS
The free swinging blades, heavy-duty stump jumper, and slip clutch protects the gearbox and the driveline from damage. The dual wheels tend to keep the blades from cutting onto the ground on uneven terrain with mounds, low lying areas, ridges, or cuts.
Standard Features
- 7 Gauge Steel Decking
- Cat II 3-Pt Compatible
- Cat II Quick Hitch Compatible
- 4″ Dia Cut Capacity
- Slip Clutch
- Chain Guard

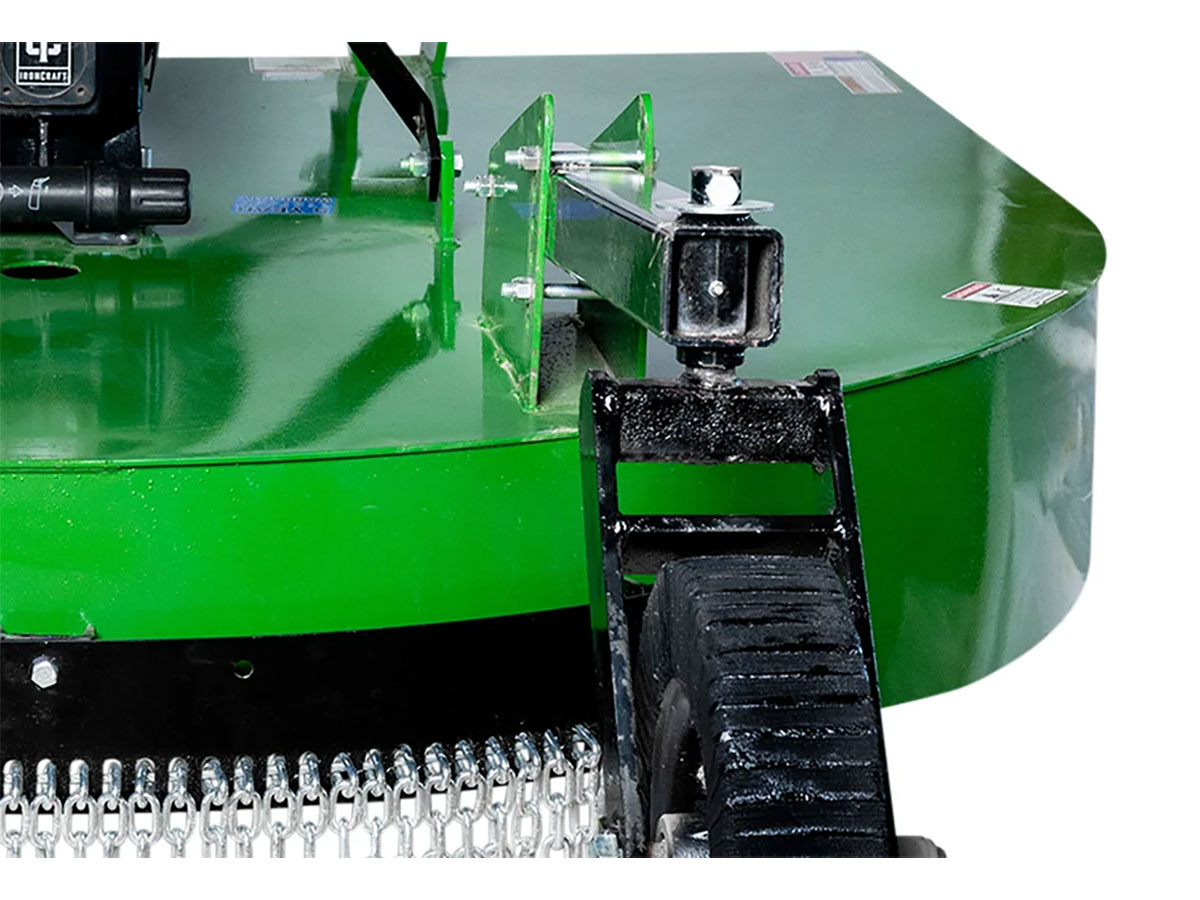

- Dual Tail Wheels
- Stump Jumper

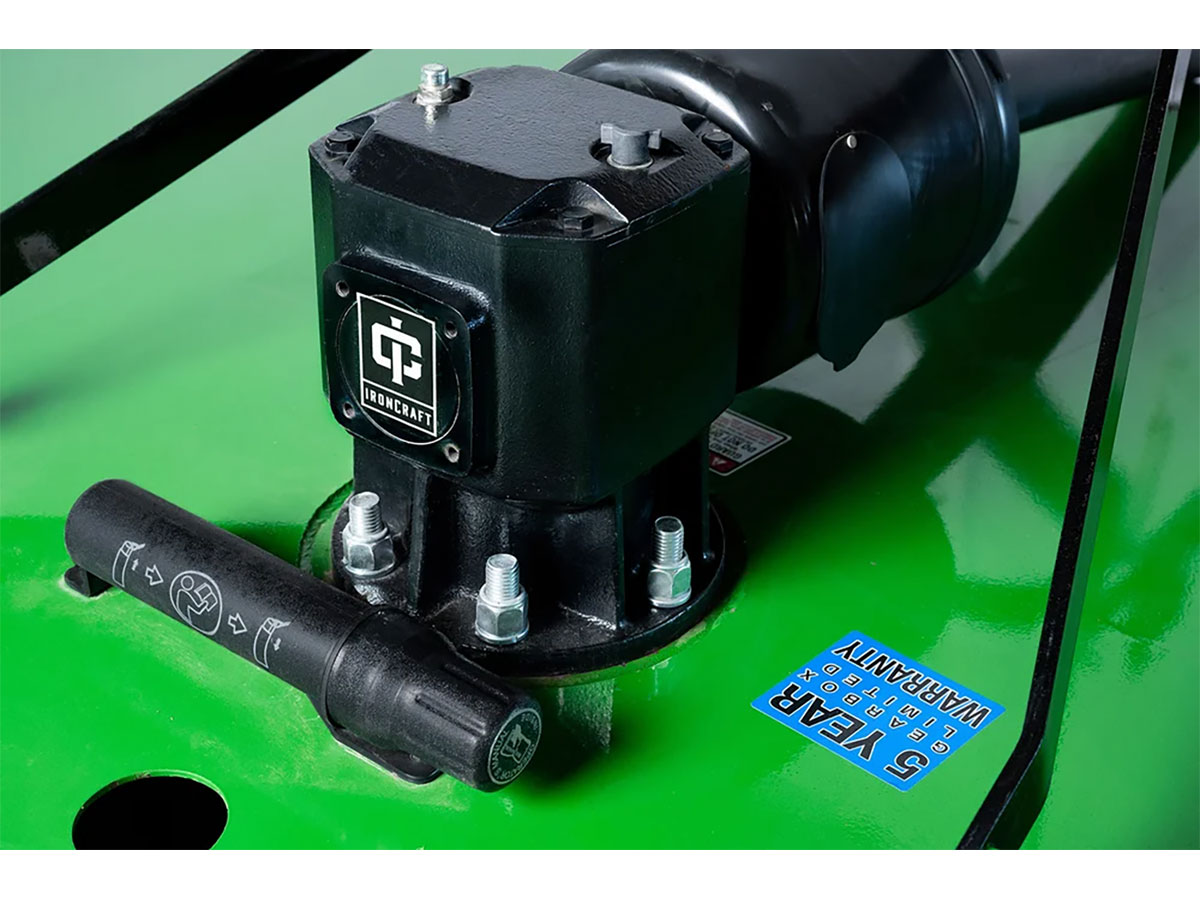

- 180 hp Gearbox
- 84″ Wide
- 1450 lb
- For Tractors with at least 60 PTO hp
IRONCRAFT Severe DUTY Roundback BRUSH HOG SPECS
| Model | 970 |
| Description |
7′ Extreme Duty Cutter
|
| RPM | 540 |
| HP Required |
60 Minimum PTO
|
| Working Width | 84″ |
| Transport Width | 90″ |
| Weight | 1450 lb |
| Cutting Height |
1″ Minimum
|
| Cutting Capacity | 4″ |
| Deck Thickness | 7 GA |
| Side Bands | 1/4″ x 12″ |
| Skid Shoes |
1/4″ with lip – replaceable
|
| PTO Drive Shaft | Series 6 |
| Driveline Protection | Slip Clutch |
| Blade Holder |
3/16″ Formed Plate w/ 3/4″ x 10″ x 29″ Blade Bar
|
| Gearbox Rating | 175 HP |
| Output Shaft Diameter | 2″ |
| Wheel Type | Laminated |
| Hub Type | Bearing |
| Hitch | Cat 2 |
| Gearbox Warranty |
5 year limited
|
| Guarding Options |
Chains Standard
|
| FPM | 16500 |
