These batwing mowers give you a wide mowing width, but a narrow transport width so you can haul it down the road, a trail, or get through a narrow gate. And their flexibility means you can brush hog land with uneven contours.
Flex-Wing Rotary Cutter 25–60 hp | Clevis Connection | PTO
Price range: $22,449.00 through $28,724.00
Purchase this item and get In Stock Available to pre-order now
Picking the right attachment to fit your tractor isn’t always easy. That’s why we exist.
Contact us prior to purchase to get our recommendation for your tractor model, and if it doesn’t work, you can exchange for the right size at no cost to you.
All orders qualify for Basic Free Shipping, whether Ground or Freight.
Our Free Shipping Zone includes 36 states.
If you live in the continental United States, but outside of this zone, your shipping price will be calculated at checkout.
All freight orders are eligible to upgrade to a Lift-Gate for delivery. Otherwise the customer is responsible for offloading their order from the truck.
For full shipping details, go here.
Every product comes with its own factory warranty specified by the manufacturer.
We offer extended warranties to protect your purchase even longer.
Extended Confidence Coverage
Extends the manufacturer’s warranty one year beyond the factory warranty.
Lifetime Priority Protection (Most Popular)
Extends the manufacturer’s warranty for the lifetime of the product and includes priority handling, no-hassle claims, and lifetime support.
What’s Covered
Our extended warranties cover defects in workmanship such as broken welds, torn steel, or improper fit. If a covered issue occurs, we will repair or replace the product at our discretion.
What’s Not Covered
Damage caused by improper use or use outside the product’s intended purpose voids the warranty.
Cosmetic wear such as paint loss, scratches, dents, or bent teeth, as well as normal wear to common attachment components and consumables including cutting edges, shanks, tines, skid runners, skid shoes, blades, belts, bushings, bearings, oils, grease, and similar wear items is not covered under warranty.
Shipping or transportation costs, downtime, and labor are not covered.
Transferability
This warranty is non-transferable and applies only to the original owner/operator.
Maybe you’ve heard it called a Brush Hog or a Batwing Mower. RhinoAg calls them their Flex-Wing Rotary Cutter. Two models are available for compact tractors—the TS10 and the TS12, a 10′ and 12′ mower respectively. Both connect to your tractor’s drawbar, and not its 3-Point hitch.
The TS10 is the latest and greatest, and the baby of the Flex-Wing Family. Suitable for any tractor between 25–60 horsepower at the PTO. Keeping the transport width at 93″ makes this the perfect option for getting in to maintain those pastures. It has a 2″ cut capacity and packs a good punch for compact tractor mowers.
The TS12 is a 12′ Flex-Wing Rotary Cutter with a 1 1/2″ cut capacity. Suitable for any tractor between 35–50 horsepower at the PTO. Other than the minor difference in cut capacity, the only difference between the TS12 and TS10 is fitting through those 8′ gates to mow.
Built to order. Expect lead time of at least 3 months.

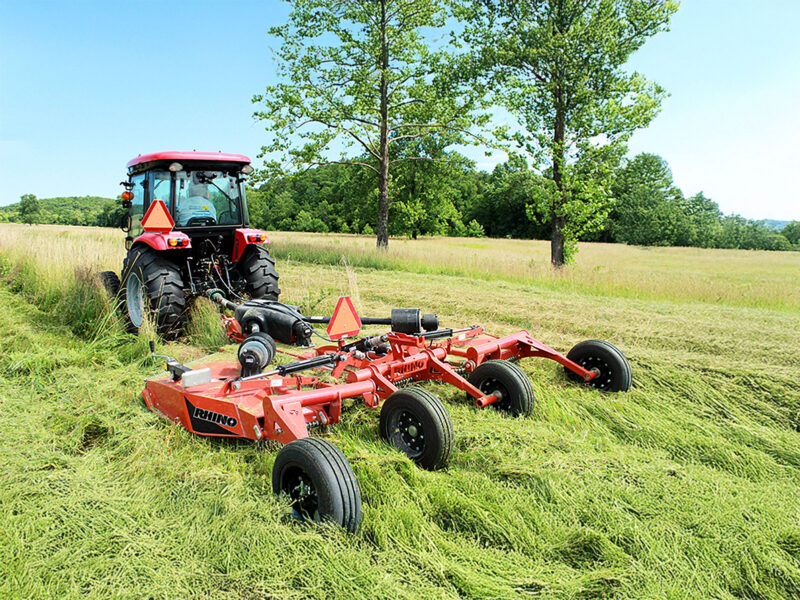

TS10 Flex-Wing Mower HIGHLIGHTS
Don’t let the small size of the TS10 deceive you—it’s packing some seriously heavy-duty guts. With a 120″ cutting width and 1/2″ x 3″ blades, the TS10 is prepared to take on brush up to a full 2″ in diameter.
The Flex-Wing deck design lets you cut on rolling terrain without having to make multiple passes—something fixed-deck cutters can only dream of doing. And with a transport width of only 93″, the TS10 can get practically anywhere: through gates as narrow as 8′, easily into storage, and into the bed of your pickup truck.
Turns out that bigger isn’t always better.
- Fits through gates as narrow as 8′
- 2″ cutting capacity
- Walterscheid EZ-Lock collar makes hookup easy
- Replaceable skid shoes
- Average mowing time of 4 MPH
- Heavy-duty turn buckles
- Designed for Tractors with 25–60 PTO HP
- 1 Yr Full Machine Warranty
- 5 Yr Limited Gearbox Warranty
- 1 Yr Limited Driveline Warranty
| Cutting Width | 120” |
| Transport Width | 93” |
| Transport Height | 68” |
| Overall Width | 126” |
| Overall Length | 162” |
| Cutting Height * | 1” – 15” |
| Height Adjustment | 3 1/2” x 8” Hyd Cylinder |
| Jack Stand | Std |
| Hitch | Pull Type, Parallel Clevis |
| Blade Carrier | Infinity – Steel |
| Blades | 1/2” x 3” High Lift |
| Blade Overlap | 6” |
| Tractor PTO HP Range | 25—60 |
| Gearbox Rating – Power Divider ** | 160 HP |
| Gearbox Rating – Center & Wing ** | 65 HP |
| Gearbox Oil (85W-140) | Factory Filled Lucas Oil |
| Output Shaft Diameter | 1 9/16” |
| Blade Tip Speed – Center 540 RPM | 13,028 |
| Blade Tip Speed – Wing 540 RPM | 13,680 |
| Cutting Capacity | 2” |
| Driveline Protection | Slip Clutch |
| Driveline ASABE – Main | CAT 4 CV |
| Driveline ASABE – Wing | CAT 3 SC |
| Deck Thickness | 12 Ga |
| Side Skirt | 1/4” x 10” |
| Tires & Wheels (4 or 6) | Laminated, Foam Filled Used Airplane, Rhino Trax Foam Filled |
| Wing Lift | 2” x 14” Hyd Cylinder |
| Wing Flex (Degrees) | 90° Up / 22° Dn |
| Safety Tow Chain | Std |
| Safety Deflectors | Rubber Deflectors or Single Chain Guards |
| Tongue Weight | 720 lbs |
| Weight (Approx) | 2,190 lbs |
| * Cutting Height dependent on Tire Size. |
TS12 Flex-Wing Mower HIGHLIGHTS
The TS12 Stealth features an exclusive close-coupled design for low tongue weight and shorter turning radius, targeting tractors in the 35–50 PTO horsepower class.
Designed specifically for customers with smaller tractors, this machine’s unique ‘stealth’ appearance, its very short wheel base, and its anti-scalp features make this the ideal machine for customers who need a flex-wing cutter’s versatility but may not have a tractor large enough to pull a 15 foot unit. The TS12 offers a full 12′ cutting width, 1 1/2″ cutting capacity, and is designed for 540 RPM PTO tractors.
- Designed for Tractors with 35–50 PTO HP
- Short Turning Radius for Cutting Small Areas
- 1-1/2” Cutting Capacity
- Low Tongue Weight for Smaller Horsepower Tractors
- Unique “Wing-Bar” Blade Carrier Protects the Gearbox Output Shaft with Minimal Weight
- Equal-Angle, Fully Pivoting Tongue and Direct Acting Suspension System for Uneven Terrain
- Smooth Decks for Easy Cleaning and Unobstructed Underside for Airflow Through the High-Volume Cutting Chamber
- Provides Dramatic Reduction in Mowing Time
- Large Center Skid Shoes and Tapered Wing Shoes Provide Anti-Scalping Protection
- Chain Guards Included for Protection
| Cutting Width | 144” |
| Transport Width | 97” |
| Transport Height | 65” |
| Overall Width | 155” |
| Overall Length | 148” |
| Cutting Height * | 2” – 12” |
| Self-Leveling Height Adjustment | Hydraulic Cylinder |
| Jack Stand | Std |
| Hitch | Pull Swivel |
| Blade Carrier | Infinity |
| Blades | 1/2” x 3” |
| Blade Overlap | 6” |
| Tractor PTO HP Range | 35–60 PTO |
| Gearbox Rating – Power Divider ** | 160 HP |
| Gearbox Rating – Center & Wing ** | 65 HP |
| Gearbox Oil (85W-140) | Factory Filled |
| Output Shaft Diameter | 1 9/16” |
| Blade Tip Speed – Center 540 RPM | 14,504 FPM |
| Blade Tip Speed – Wing 540 RPM | 13,925 FPM |
| Cutting Capacity | 1 1/2″ Diameter |
| Driveline Protection | Slip Clutch |
| Driveline Size – Main | CAT 4 Equal Angle |
| Driveline Size – Wing | CAT 3 |
| Deck Thickness | 10 Ga Bottom, 12 Ga Top (Center), Double 12 Ga (Wings) |
| Side Skirt | 1/4” x 11 1/2” |
| Tires & Wheels (4 or 6) | (4 or 6) Foam Filled Aircraft OR Laminated Tires |
| Wing Lift Hydraulics | Std |
| Wing Flex (Degrees) | 88° Up / 25° Dn |
| Safety Tow Chain | Std |
| LED Light Kit | Std |
| Safety Deflectors | Chain Guards |
| Tongue Weight | 748 lbs |
| Weight (Approx) | 2,750 lbs |
| * Cutting Height dependent on Tire Size. |
