20-Ton Self-Powered Horizontal / Vertical Log Splitters!
- 20-Ton Split Capacity
- 24″ Split Opening
- 2″ Ball Hitch
- 2-Way Wide Wedge For “Popping” Logs in a Short Distance
- Can Operate Horizontally or Vertically
- Optional 4-Way Wedge Available
- Optional Stroke Limiter Available
- Optional Hitch Extension for ATV’s Available
Log Splitter 20 Ton | Horizontal / Vertical | Self-Powered | Towable
Price range: $3,848.00 through $4,486.00
20% Off (Save $962.00)
Purchase this item and get In Stock Available to pre-order now
Picking the right attachment to fit your tractor isn’t always easy. That’s why we exist.
Contact us prior to purchase to get our recommendation for your tractor model, and if it doesn’t work, you can exchange for the right size at no cost to you.
All orders qualify for Basic Free Shipping, whether Ground or Freight.
Our Free Shipping Zone includes 36 states.
If you live in the continental United States, but outside of this zone, your shipping price will be calculated at checkout.
All freight orders are eligible to upgrade to a Lift-Gate for delivery. Otherwise the customer is responsible for offloading their order from the truck.
For full shipping details, go here.
Every product comes with its own factory warranty specified by the manufacturer.
We offer extended warranties to protect your purchase even longer.
Extended Confidence Coverage
Extends the manufacturer’s warranty one year beyond the factory warranty.
Lifetime Priority Protection (Most Popular)
Extends the manufacturer’s warranty for the lifetime of the product and includes priority handling, no-hassle claims, and lifetime support.
What’s Covered
Our extended warranties cover defects in workmanship such as broken welds, torn steel, or improper fit. If a covered issue occurs, we will repair or replace the product at our discretion.
What’s Not Covered
Damage caused by improper use or use outside the product’s intended purpose voids the warranty.
Cosmetic wear such as paint loss, scratches, dents, or bent teeth, as well as normal wear to common attachment components and consumables including cutting edges, shanks, tines, skid runners, skid shoes, blades, belts, bushings, bearings, oils, grease, and similar wear items is not covered under warranty.
Shipping or transportation costs, downtime, and labor are not covered.
Transferability
This warranty is non-transferable and applies only to the original owner/operator.
Wallenstein 20 Ton SELF-Powered Horizontal / Vertical Log-Splitters
These 5 Series Self-Powered Horizontal / Vertical Log Splitters from Canadian manufacturer Wallenstein are towable with a 2″ ball hitch, but are self-supporting too.
And more interestingly, they can split in the horizontal position, or you can pull a pin and set them up to split vertically, eliminating the need to lift logs up to the split bed.
Three models are available in this series: the WX530, WX540, and the WX540L.
All models have a 20 Ton Split Capacity, 24″ Split Opening, with a 6.62s cycle time. The difference between the WX540 and WX540L is that the L is Highway Towable with its hitch, safety chains, highway tires, and full trailer lighting. Lighting kits are factory installed, and equipped with brake lights and turn signals. They use a standard 4-pin connector.
The WX530 is powered by a 160cc Honda engine, while the WX540, WX540L are powered by a 6.5 hp (203cc) Vanguard engine.
A 12″ hitch extension is required to pull behind an ATV.
A 2-Way Wide Wedge is included that pops the log in a short distance. A 4-Way Wedge is an option.
To return the cylinder, just pull back on the lever and it will return to its starting position automatically, and then pop into neutral.
An optional stroke limiter is available to stop the cylinder from fully retracting, reducing your cycle time by almost 50% (for use on shorter logs).
An optional clamp on side-shelf is available to catch your split logs.
There is also an All-Weather Cover available to protect your splitter from the elements.
All in all this is a well thought out, compact, log splitter.
Wallenstein WX530 Log Splitter Details
- 20 Ton Split Capacity
- 24″ Split Opening
- Powered by a 160cc Honda Engine
- 6.62s Cycle Time (dependent on hydraulic flow)
- 470 lb
- 80 x 48 x 40 (LxWxH)
- 24″ Bed Height
- Can Split Horizontally or Vertically

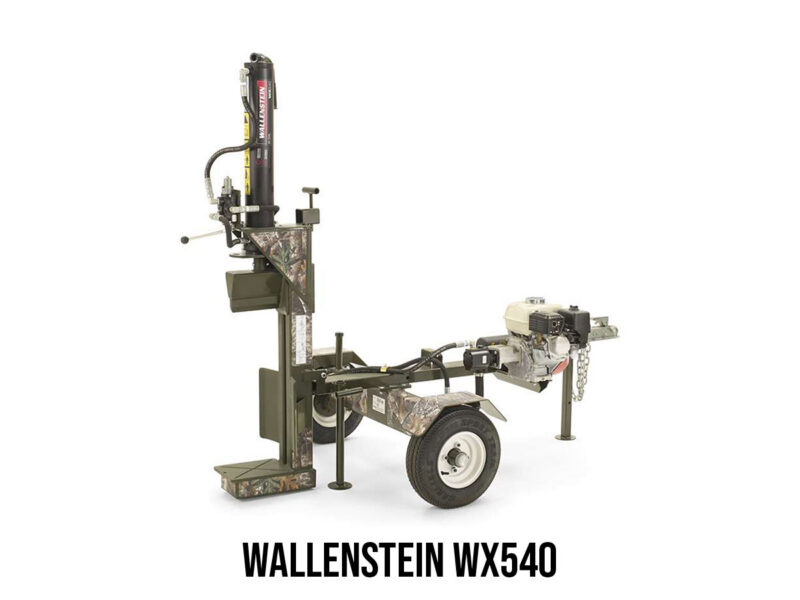

Wallenstein WX540 Log Splitter Details
- 20 Ton Split Capacity
- 24″ Split Opening
- Powered by a 6.5 hp Vanguard Engine
- 6.62s Cycle Time (dependent on hydraulic flow)
- 470 lb
- 80 x 48 x 40 (LxWxH)
- 24″ Bed Height
- Can Split Horizontally or Vertically
Wallenstein WX540L Log Splitter Details
The WX540L has all the features of the WX540 but is also Highway Towable with a factory installed light kit and a 4-pin electric connection, as well as safety chains, and highway rated tires.
How to Choose the Right Log Splitter:
There are 4 main choices to consider:
1) TYPE: Do you require an engine-powered model or would you prefer to power it off your tractor or skidsteer?
2) POWER: Most wood can be split by a 20-ton splitter. However, hardwoods with gnarled, twisted grains, such as those that often grow up along a fence line may require a splitter with a higher splitting force.
3) ORIENTATION: Vertical 3-point hitch models, inverted skidsteer models and horizontal-vertical woodsplitters are very helpful when the wood being split is too large or heavy to lift onto a log bed. The Log Lifter fitted to some of the WX900 series models is also helpful in this regard.
4) SPLIT LENGTH: Do you require 24”, 36” or 48” lengths of split wood? If you are interested in a trailer model, consider how much wood you intend to spilt, is it for commercial or rental use, does towed equipment require lights and licensing where you live. If available in your chosen model, a “T”, or Tall version of the splitter can raise the working height to a more comfortable level. The horizontal / vertical splitters can also help in this regard.
