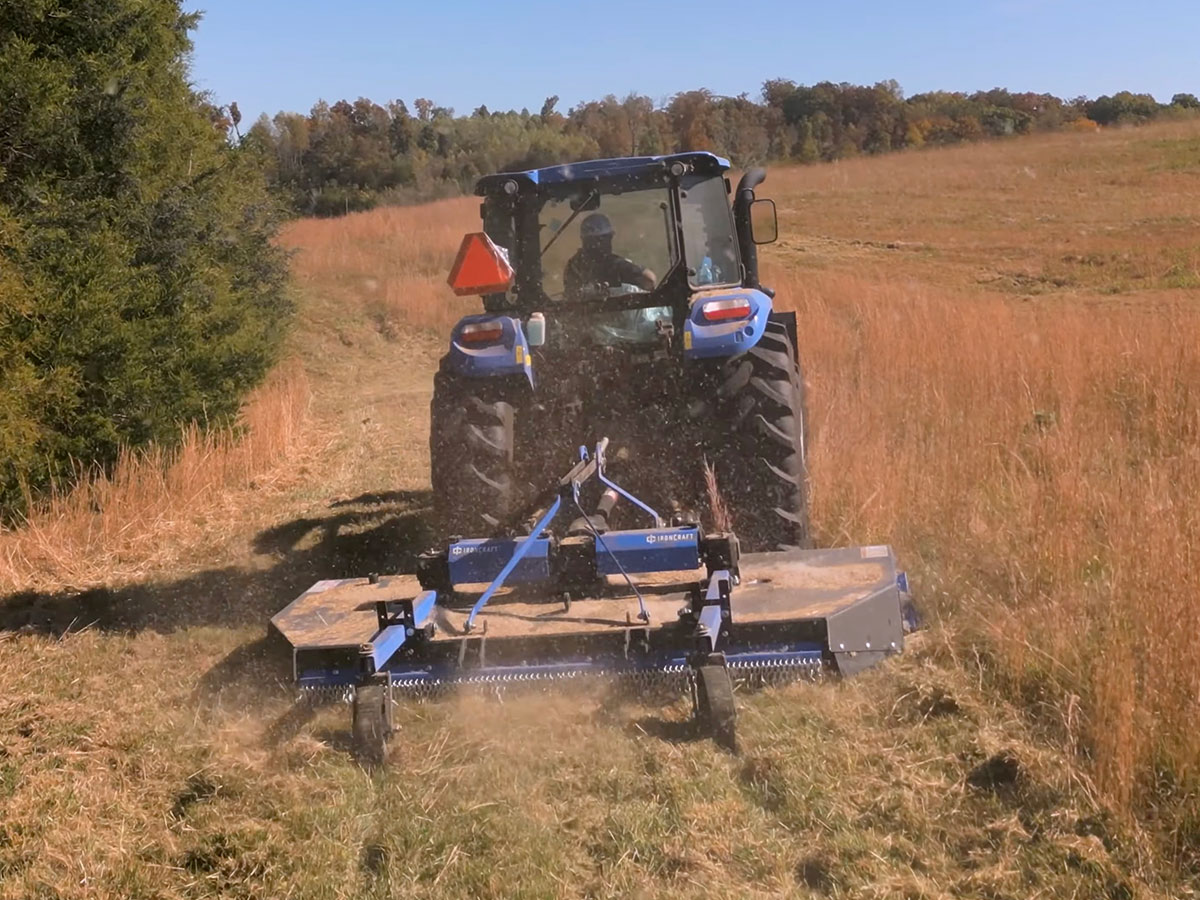

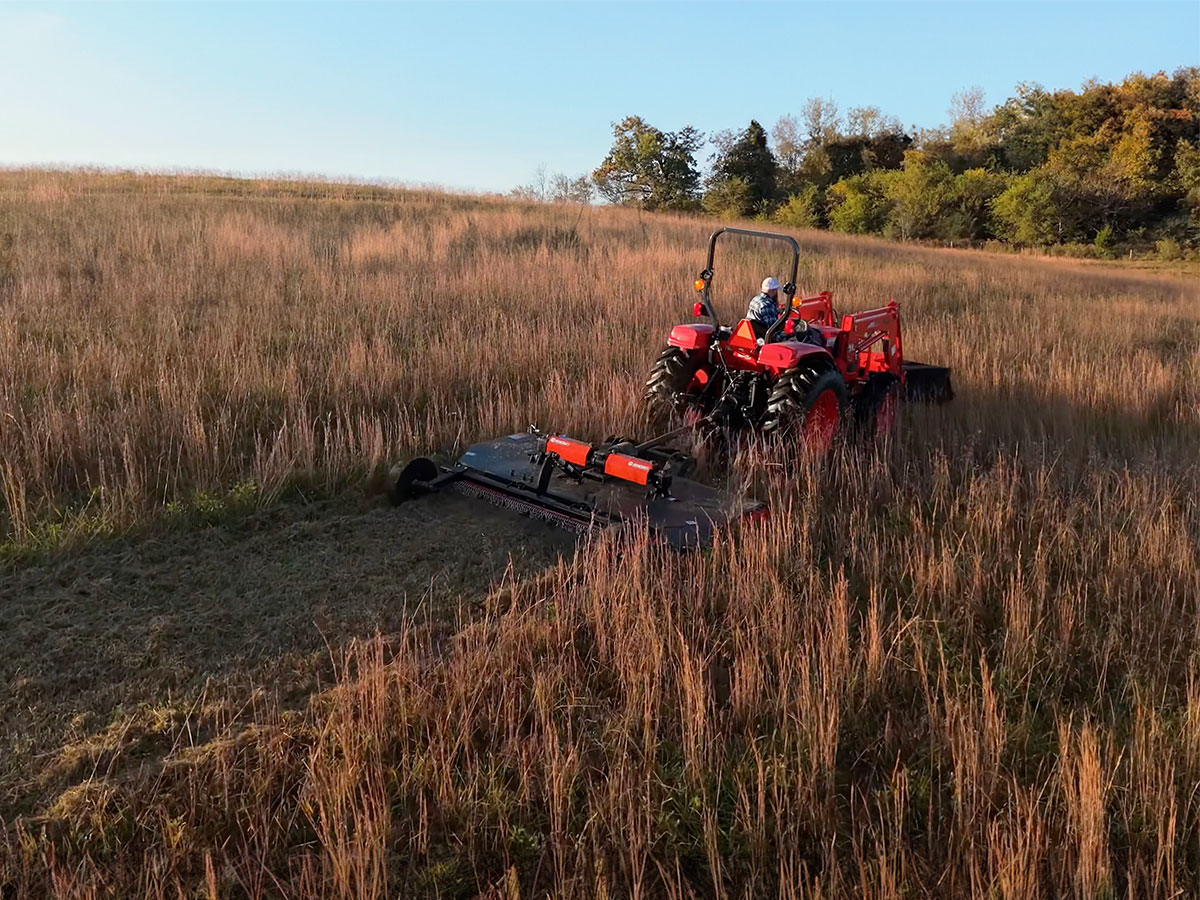

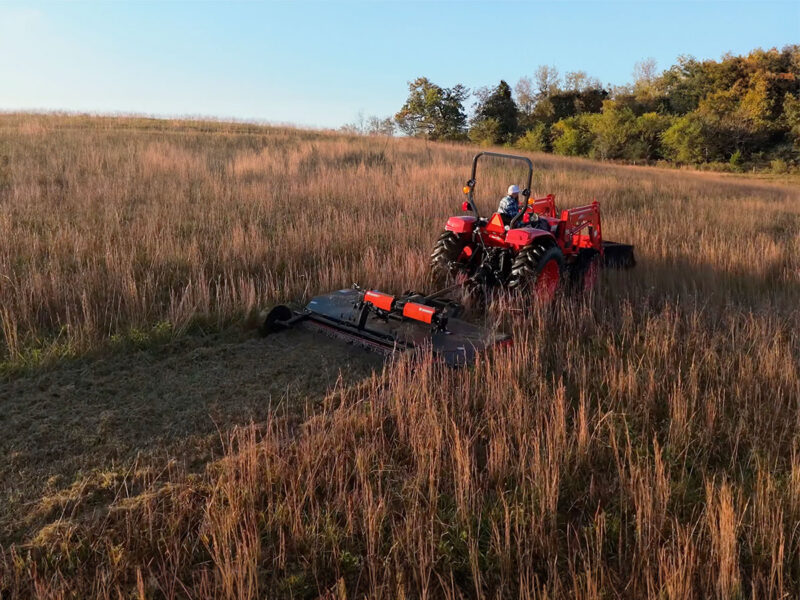

IronCraft Severe Duty Brush Hog Details

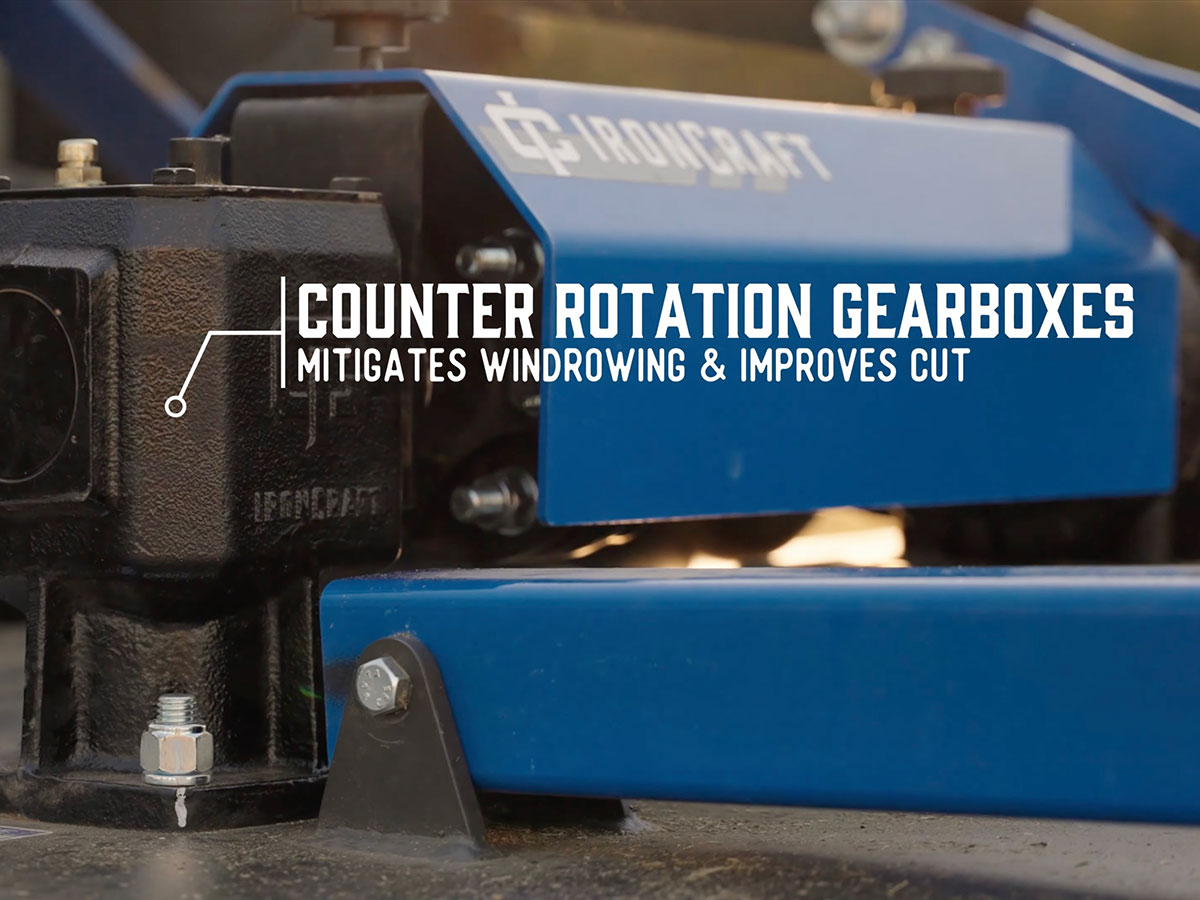

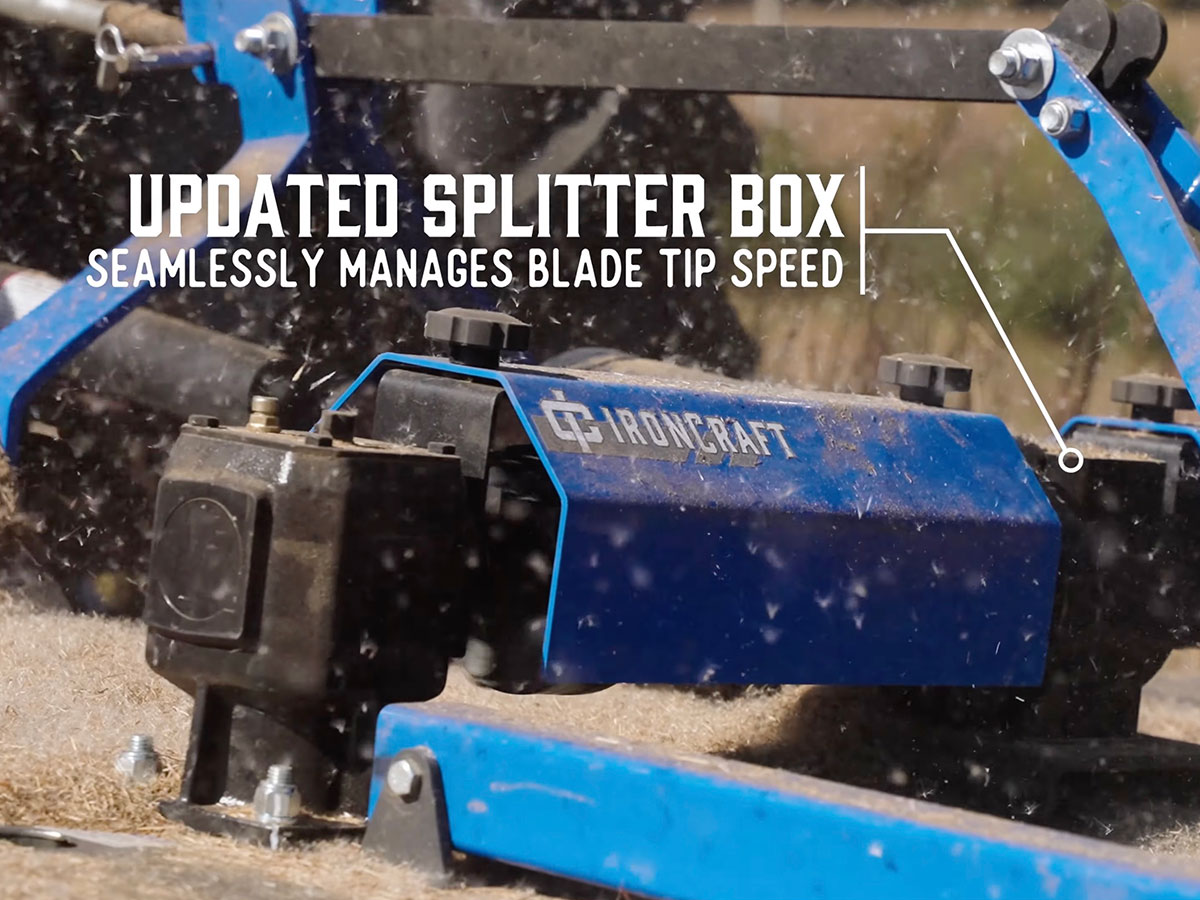

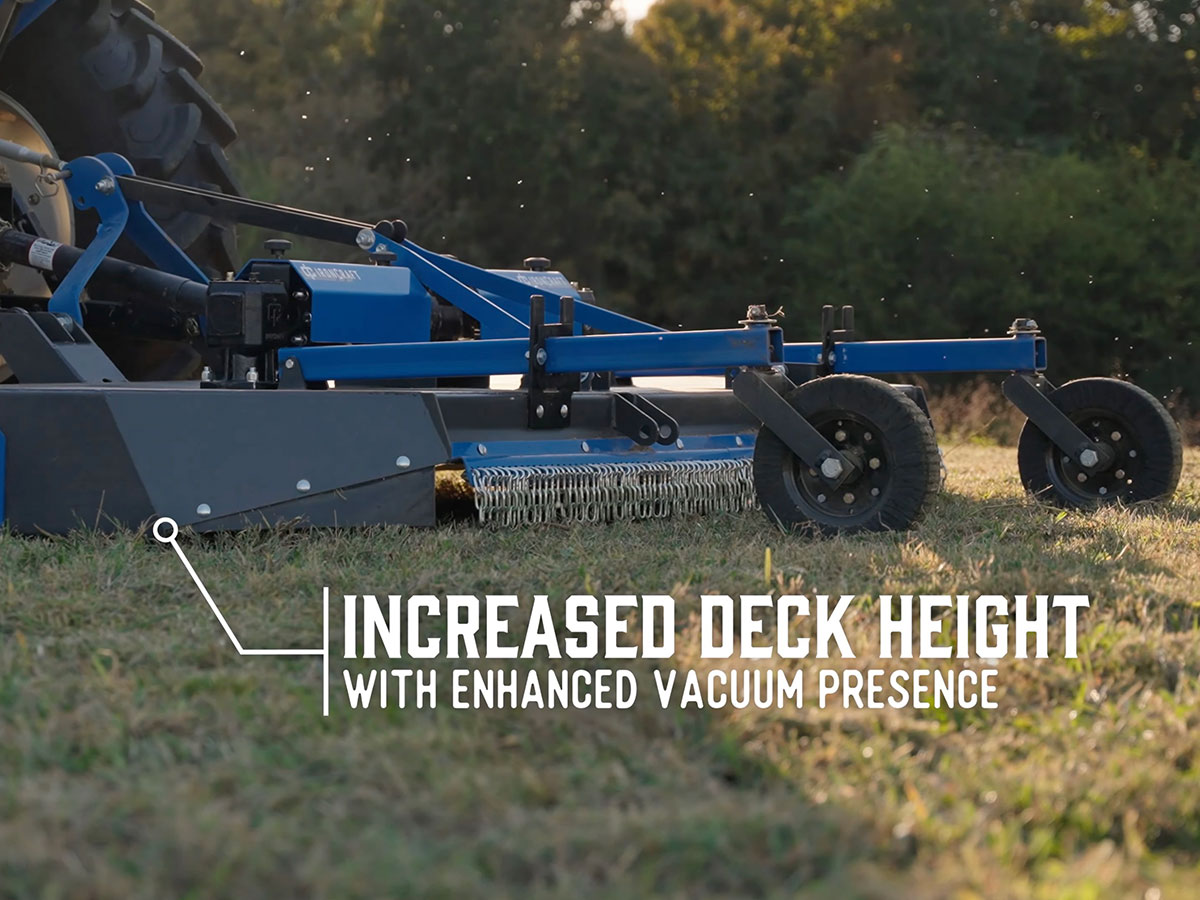

An updated splitter box that seamlessly manages tip speed between 8′ and 10′, ensuring a consistent and controlled cut. The combination of counter rotation, 4″ full uplift blades, adjustable tailwheel brackets, and increased deck skirt height is guaranteed to deliver remarkable cut quality through changing conditions.
Standard Features
- 10 Gauge Steel Decking
- 3″ Dia Cut Capacity

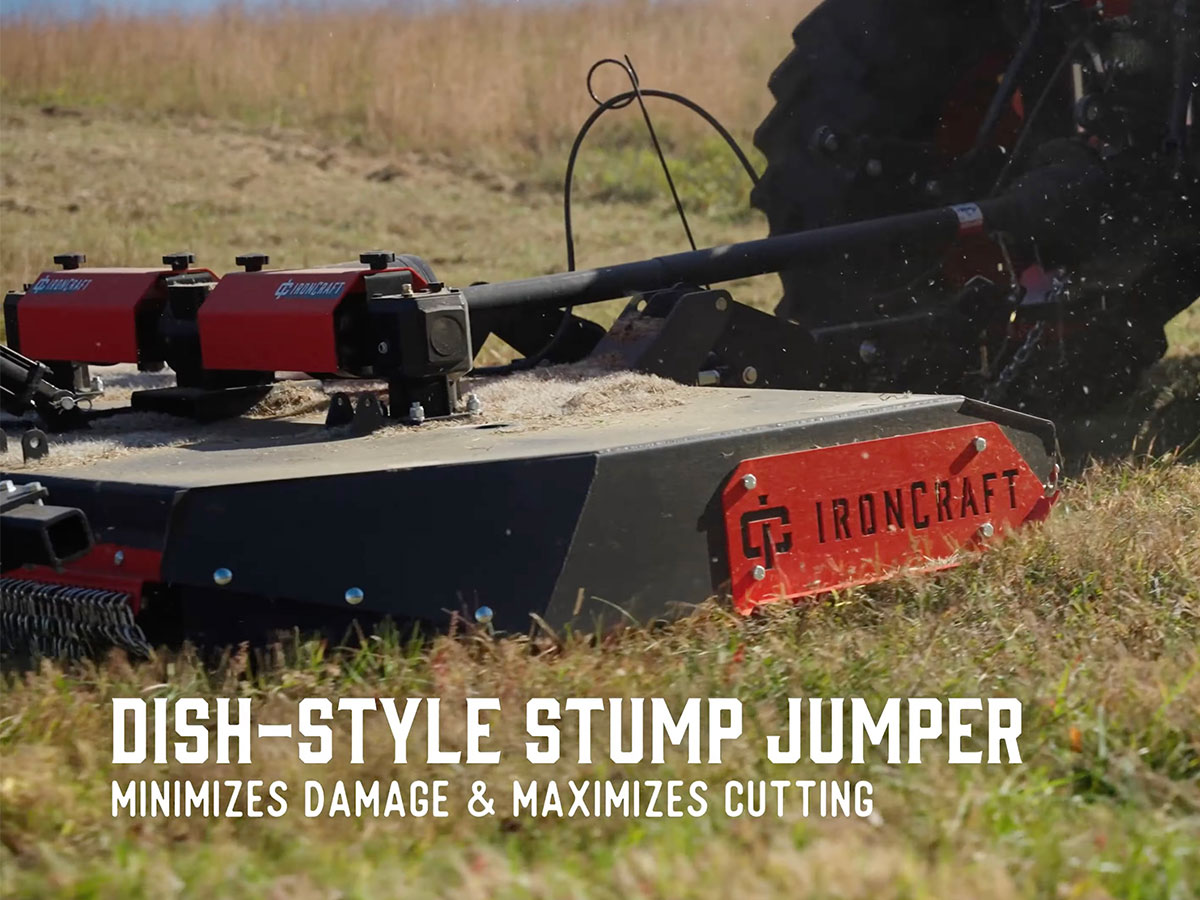

- Dish Style Stump Jumper

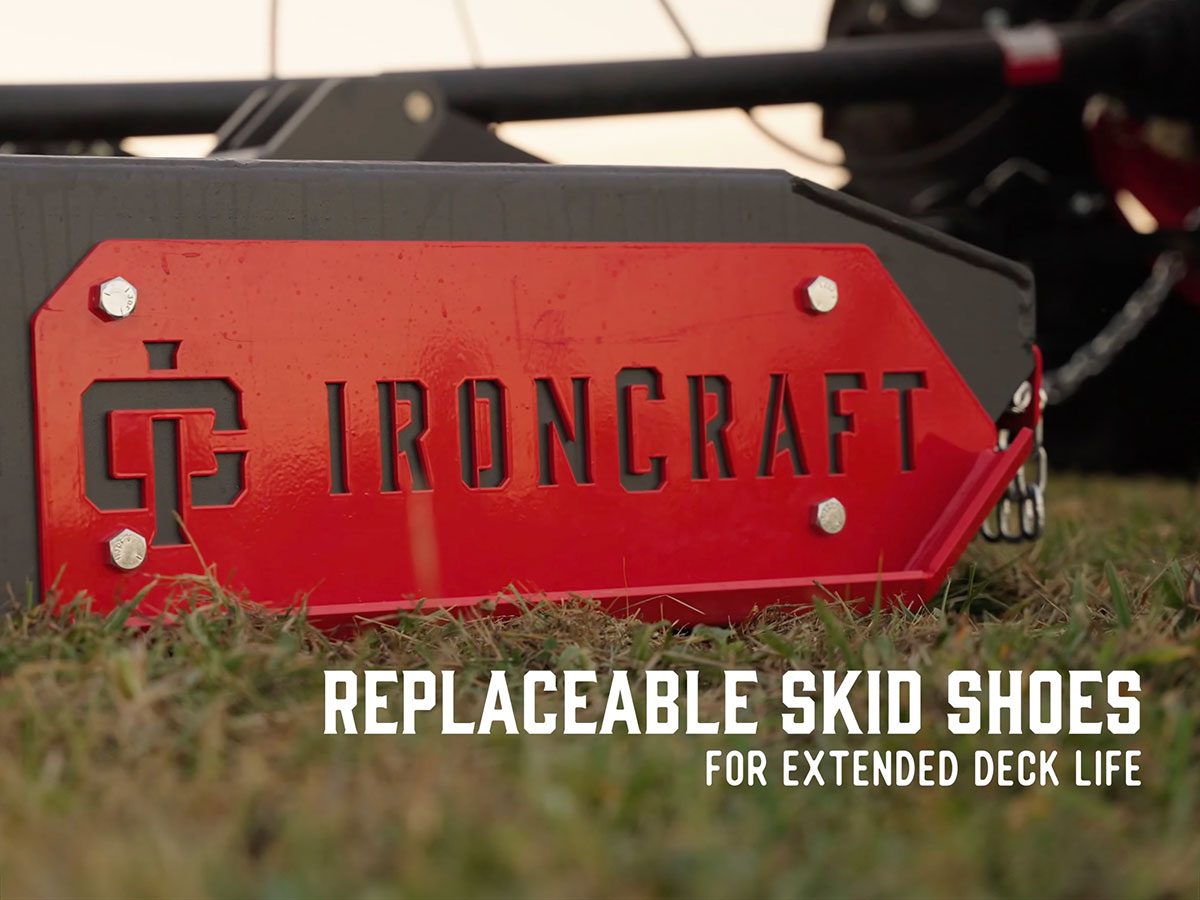

- Replaceable Skid Shoes

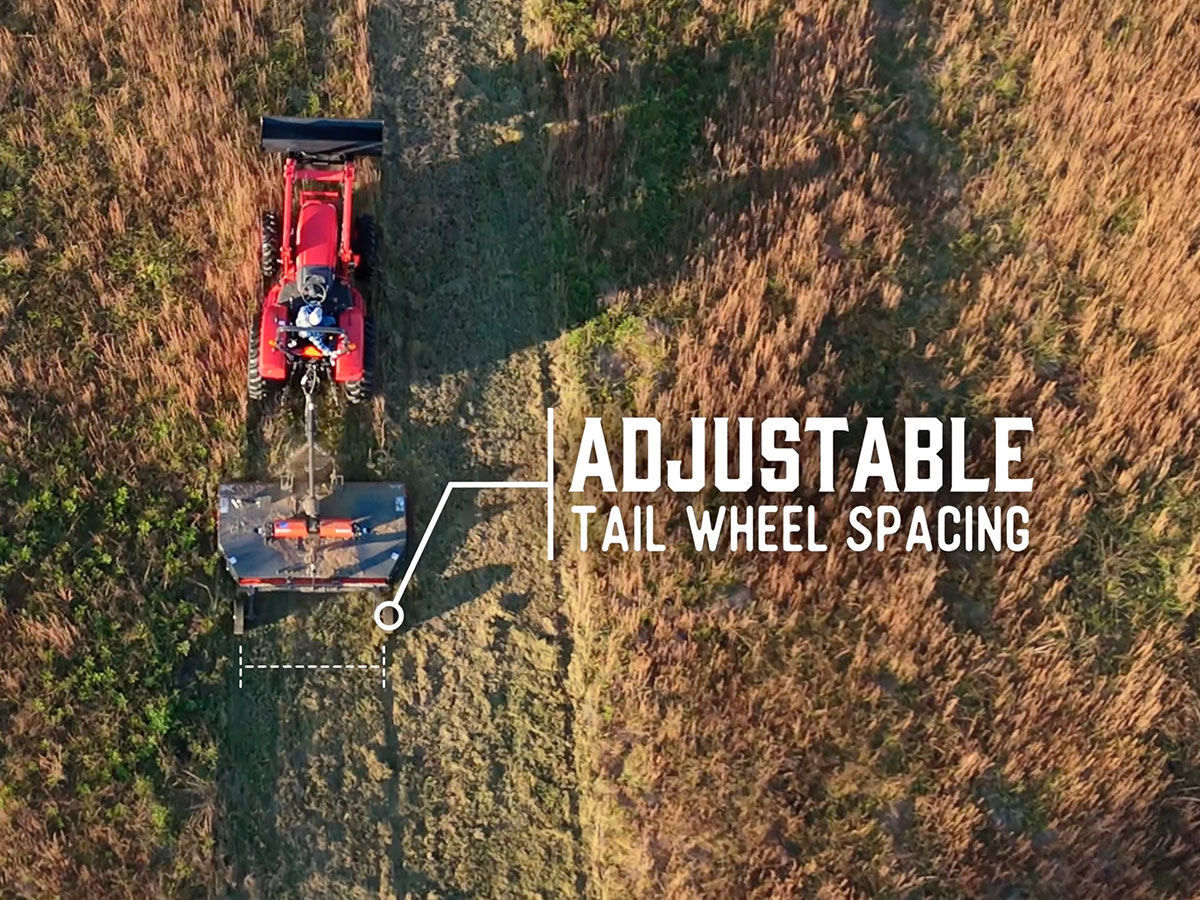

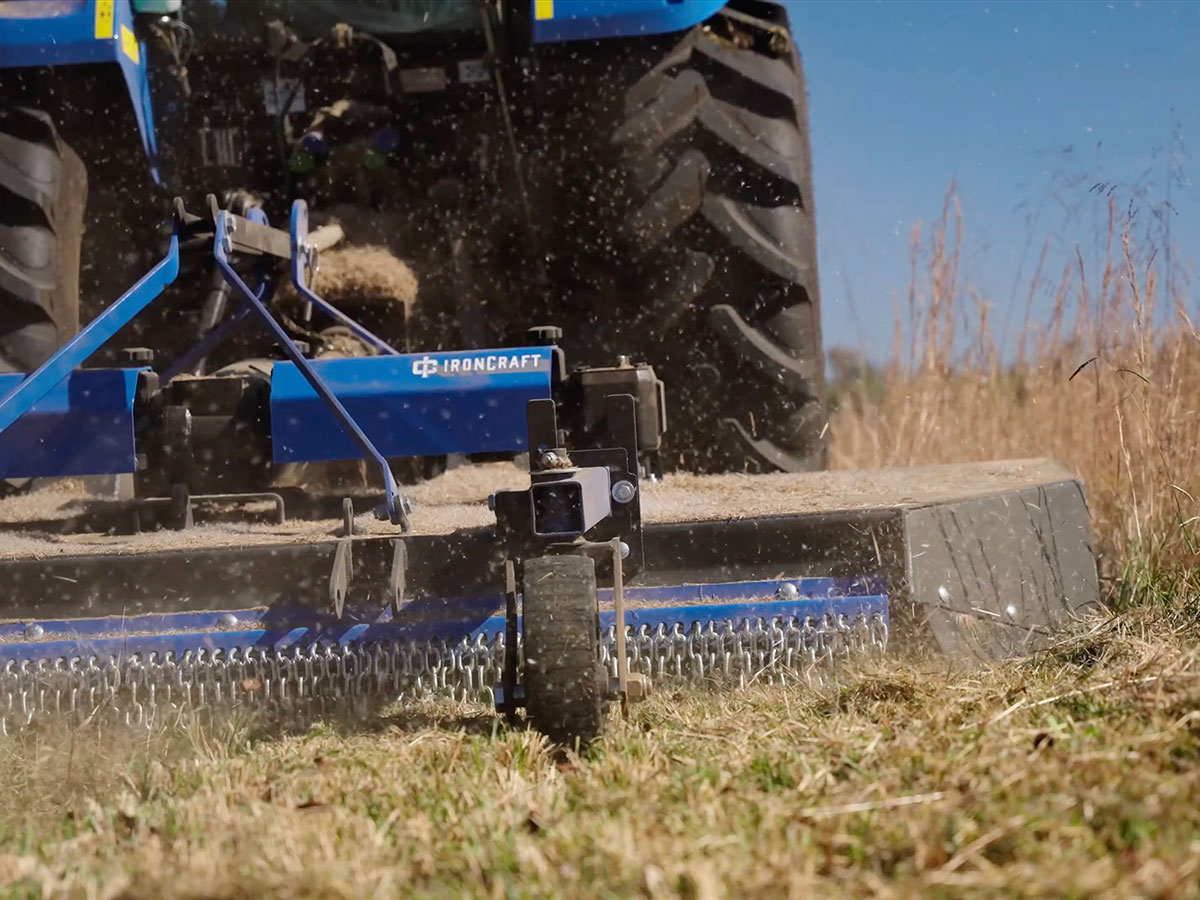

- Adjustable Tail Wheel Spacing

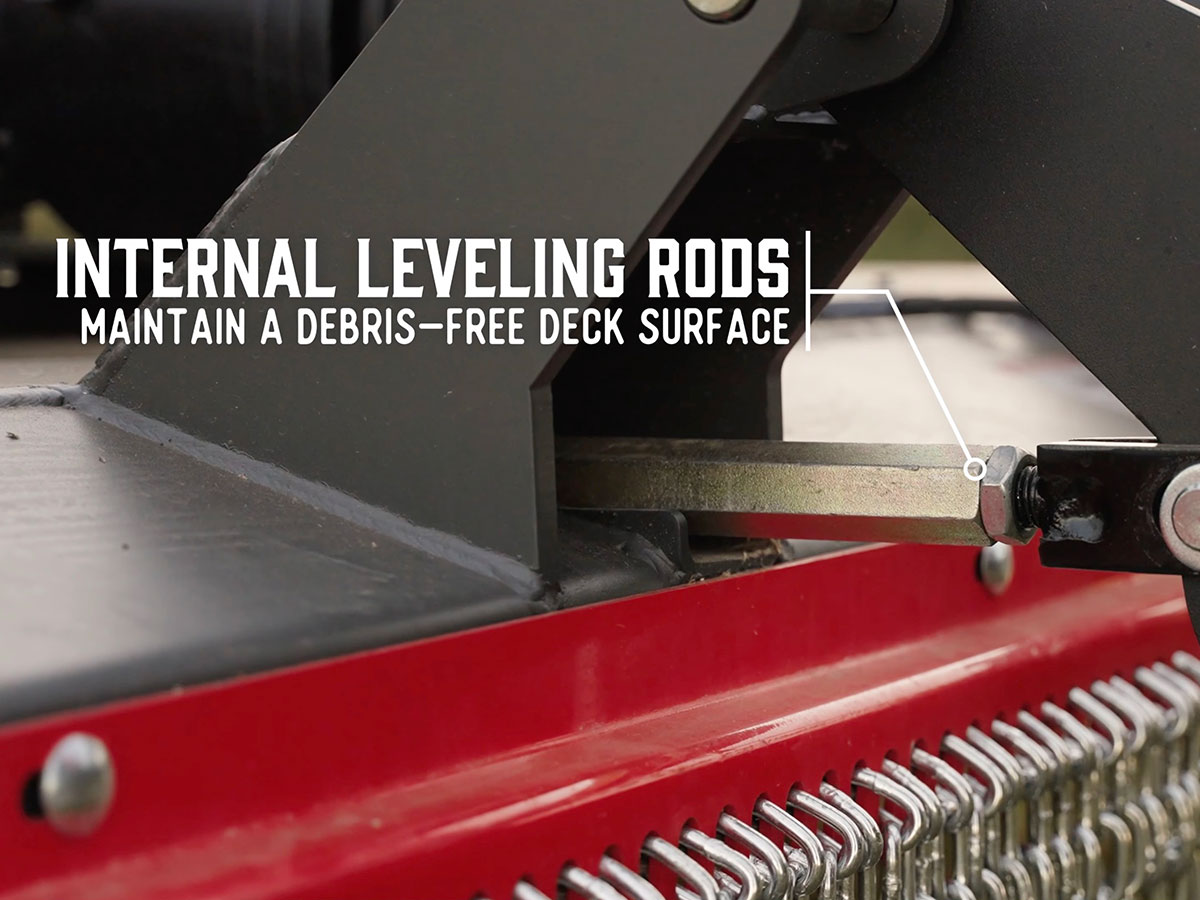

- Internal Leveling Rods
- Slip Clutch Protection

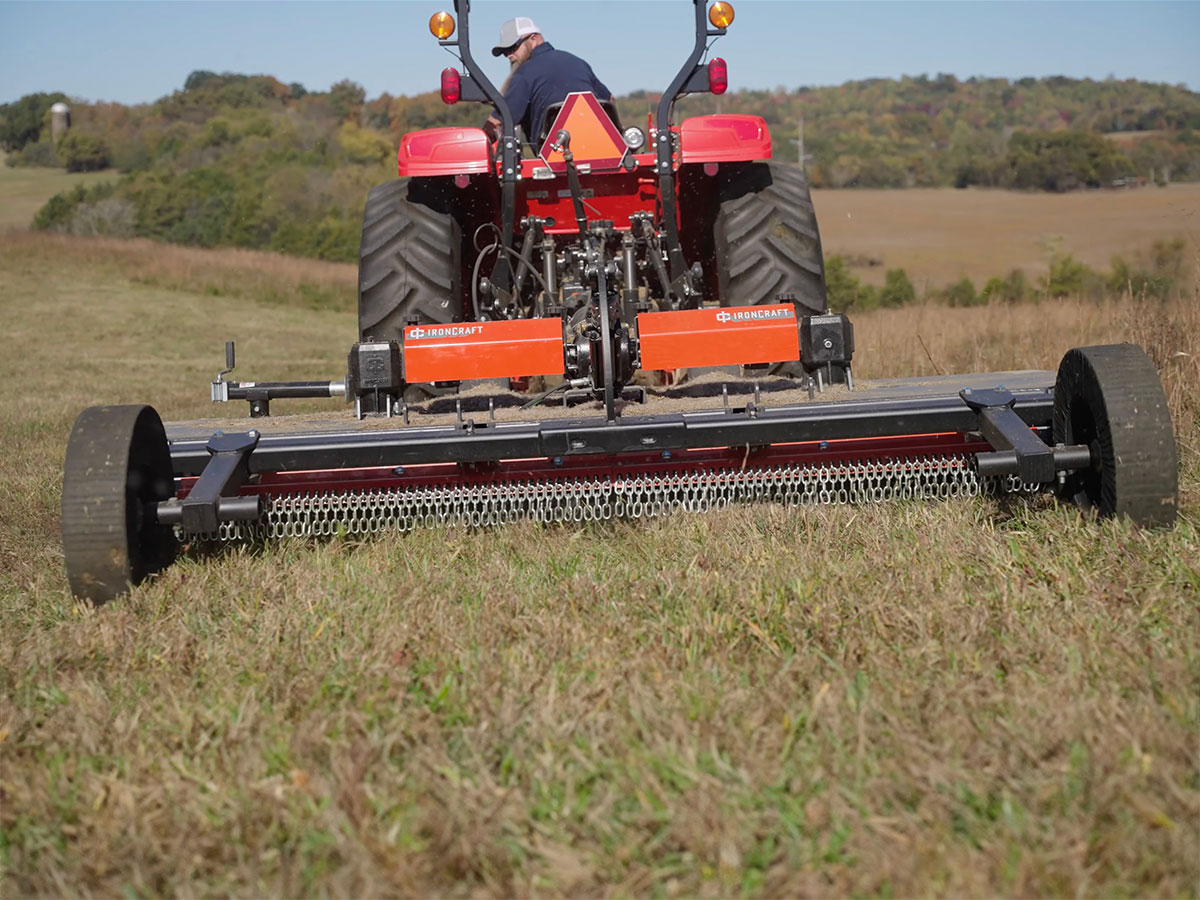

- Chain Guard
- 125 hp Gearbox
- Available Widths: 96″ or 120″
- For Tractors with at least 42 PTO hp
Optional Features
- 1 3/4″ 20 Spline PTO
- 1 3/8″ 21 Splint PTO
- Pull-Type or Cat I or II 3-Point Hitch Lift-Type
IronCraft Severe Duty Brush Hog Specs
| Model | 2408 | 2410 |
| Description | 8′ Heavy Duty Dual Spindle Cutter |
10′ Heavy Duty Dual Spindle Cutter
|
| RPM | 540 or 1000 | 540 or 1000 |
| HP Required | 42 minimum PTO |
52 minimum PTO
|
| Working Width | 96″ | 120″ |
| Transport Width | 98″ | 122″ |
| Weight | 1450/1600 lb * |
1585 / 1680 lb *
|
| Cutting Height | 3-1/2″ to 10″ | 3-1/2″ to 10″ |
| Cutting Capacity | 3″ | 3″ |
| Deck Thickness | 10 GA | 10 GA |
| Side Bands | 11″ | 11″ |
| Skid Shoes | Replaceable | Replaceable |
| PTO Drive Shaft | Series 5 w/ slip clutch |
Series 5 w/ slip clutch
|
| Center Driveshaft | Shock Coupler Protected |
Shock Coupler Protected
|
| Blade Holder | 3/16″ Formed plate with 3/4″ x 2″ blade bar |
3/16″ Formed plate with 3/4″ x 2″ blade bar
|
| Gearbox Rating | 125 HP | 125 HP |
| Outboard Gearbox Rating | 75 HP | 75 HP |
| Wheel Type | Laminated | Laminated |
| Hub Type | Bearing | Bearing |
| Hitch Type | Lift or Pull | Lift or Pull |
| Hitch | Cat 1 & 2 | Cat 1 & 2 |
| Gearbox Warranty | 5 year limited |
5 year limited
|
| Guarding Options | Chains | Chains |
*Two weights are given. The first is for the 3-Point Model, the second is for the Pull-Type model.
