3rd Function Kit for John Deere 1025R Summit Hydraulics

SAVE 5% WITH DISCOUNT CODE GWT

Buy direct from Summit Hydraulics and have a 3rd Function Kit shipped right to your home.

Need to add a new hydraulic function to your John Deere 1025R, 1023E, or 1026R Tractor? This Summit Hydraulics complete 3rd Function Kit allows you to add an electronically controlled hydraulic function up to your front-end loader, most commonly used to control a function on a:

• Grapple (open/close)
• Snowblower (chute, deflector, or backdrag control)
• Snowplow (tilt/angle)

This kit uses the Power Beyond port and Return-To-Tank port. Once installed, the kit will allow you to use multiple functions (i.e. curl bucket and close grapple) in conjunction with your new one.

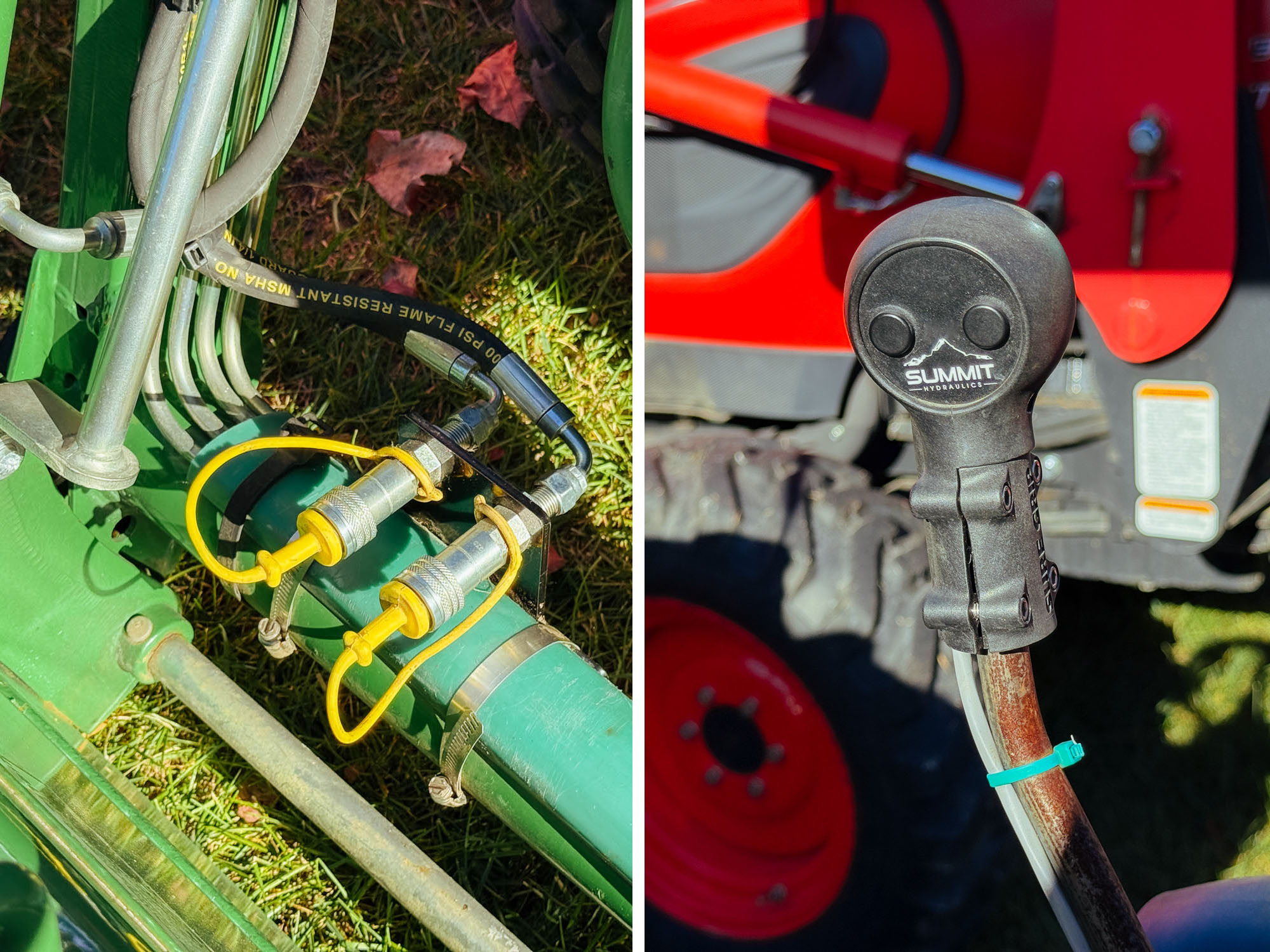

The included fully weatherproof Summit Hydraulics joystick handle replaces your existing handle, as it comes equipped with buttons for controlling your new third function. It easily attaches onto the existing joystick shaft with the included removable adapter bushings and adjustment screws. The joystick’s two integrated momentary push button switches allow you to open and close your cylinder with the push of a button.

*Note this kit is for the John Deere 1025R, 1026R, and 1023E using loader models 120R, 120R MSL, D120, or H120.

This kit serves as an aftermarket alternative to John Deere’s 028BLVBXX10370, 028BLVBLV11143 Third Function Kits and Artillian’s HDK-120R-PTL Third Function Kit.

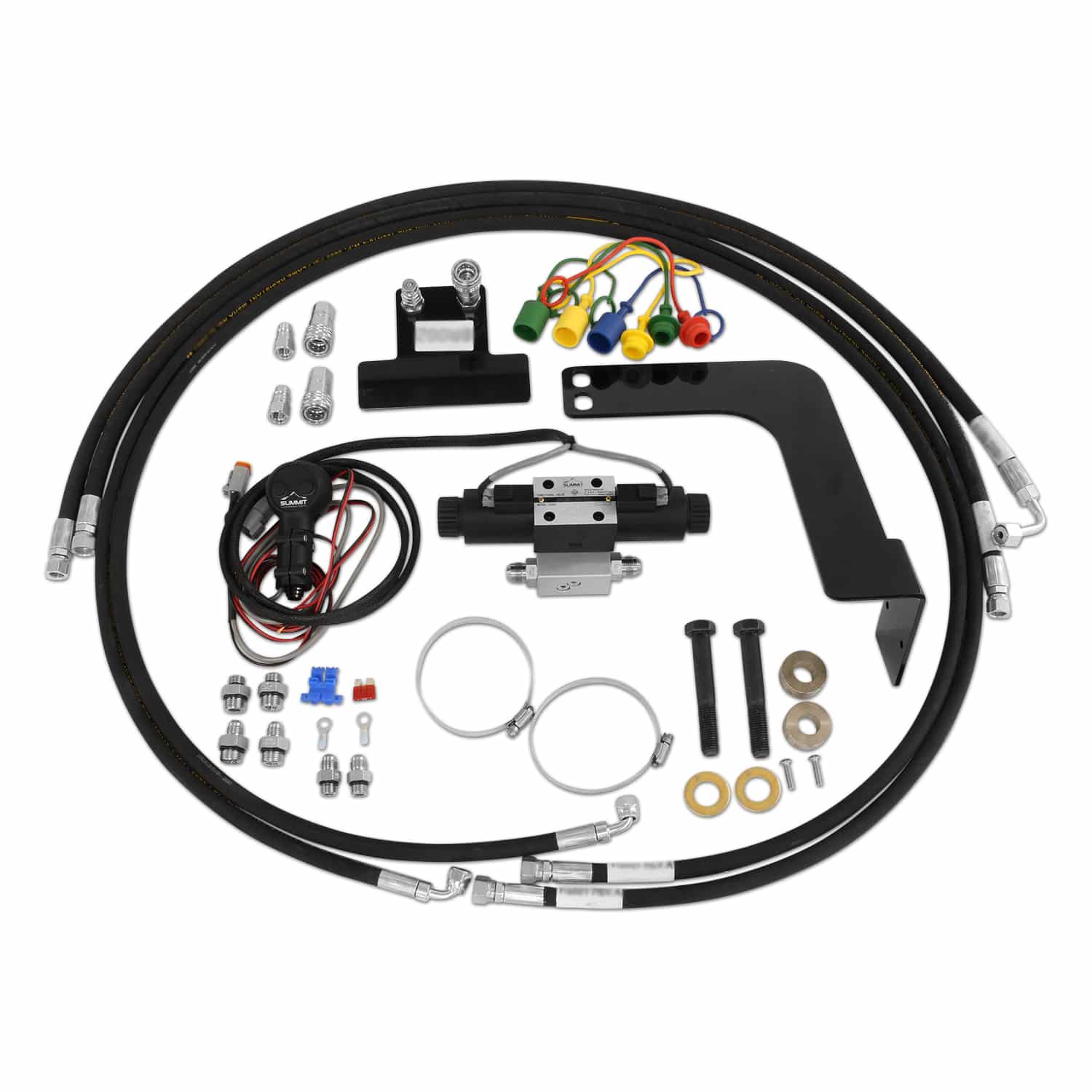

Kit Includes:

• 12v solenoid operated valve
• Joystick handle with 2 momentary push button switches
• Wiring harness with weatherproof Deutsch connectors
• Valve mounting bracket (including hardware)
• Quick coupler mounting bracket (including hardware)
• 1/4” Body ISO 5675 Agricultural Female Couplers
• 1/4” Body ISO 5675 Agricultural Male Couplers
• Assorted dust caps
• Hydraulic hose assemblies
• Adapters & fittings
• Installation instructions

Joystick Handle:

• Ergonomic design with two momentary push button switches
• Fully weatherproof
• Mounts on existing loader joystick shaft
• Removable adapter bushings designed to fit any joystick shaft
• Connects to 12v power source, necessary for full usage
• Wiring Harness uses Deutsch environmentally sealed connections for great functionality in harsh weather

Valve Body Features:

• Solid aluminum housing designed for rugged use
• Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
• Flow Rating: 15 GPM
• Aluminum Body
• 3000 PSI Rated
