The Add-A-Wrecker just got a big brother. Check it out
Split firewood powered by your tractor’s hydraulics!
- 20 Ton Split Capacity
- 24″ Split Opening
- Cat I 3-Point Hitch Compatible
- Quick Hitch Compatible
- Connects to your 3-Point Horizontally
- Can Pivot into a Vertical Split Position
- Optional Hydraulic Pump Pack
Log Splitter 20 Ton | 10 gpm | Horizontal / Vertical / Cat 1 | 3-Point
Price range: $3,016.00 through $4,176.00
20% Off (Save $755.00)
Purchase this item and get In Stock Available to pre-order now
Picking the right attachment to fit your tractor isn’t always easy. That’s why we exist.
Contact us prior to purchase to get our recommendation for your tractor model, and if it doesn’t work, you can exchange for the right size at no cost to you.
All orders qualify for Basic Free Shipping, whether Ground or Freight.
Our Free Shipping Zone includes 36 states.
If you live in the continental United States, but outside of this zone, your shipping price will be calculated at checkout.
All freight orders are eligible to upgrade to a Lift-Gate for delivery. Otherwise the customer is responsible for offloading their order from the truck.
For full shipping details, go here.
Every product comes with its own factory warranty specified by the manufacturer.
We offer extended warranties to protect your purchase even longer.
Extended Confidence Coverage
Extends the manufacturer’s warranty one year beyond the factory warranty.
Lifetime Priority Protection (Most Popular)
Extends the manufacturer’s warranty for the lifetime of the product and includes priority handling, no-hassle claims, and lifetime support.
What’s Covered
Our extended warranties cover defects in workmanship such as broken welds, torn steel, or improper fit. If a covered issue occurs, we will repair or replace the product at our discretion.
What’s Not Covered
Damage caused by improper use or use outside the product’s intended purpose voids the warranty.
Cosmetic wear such as paint loss, scratches, dents, or bent teeth, as well as normal wear to common attachment components and consumables including cutting edges, shanks, tines, skid runners, skid shoes, blades, belts, bushings, bearings, oils, grease, and similar wear items is not covered under warranty.
Shipping or transportation costs, downtime, and labor are not covered.
Transferability
This warranty is non-transferable and applies only to the original owner/operator.
Wallenstein Tractor-Powered Horizontal/Vertical Log-Splitters

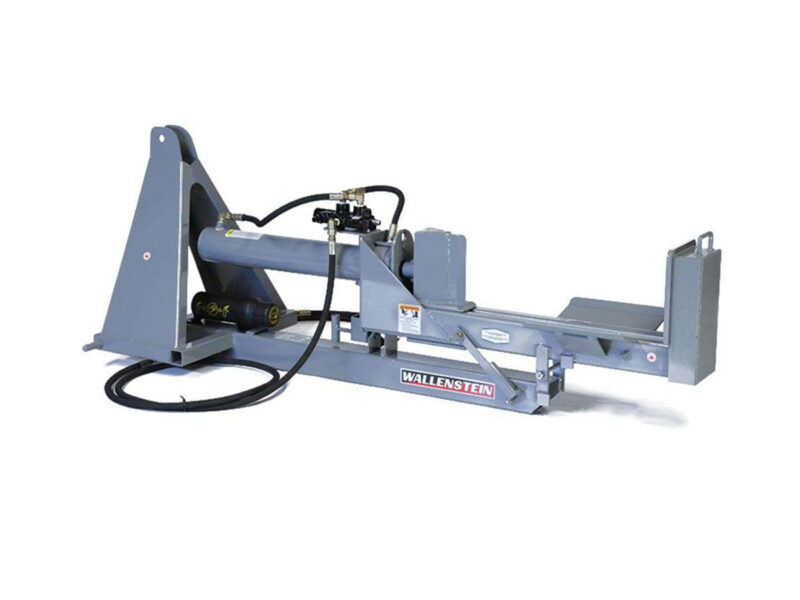

The WX370 is a Cat I 3-Point Hitch log splitting solution powered by your tractor’s hydraulics, from Canadian manufacturer, Wallenstein. This splitters sits horizontally on your 3-Point and you can split in that direction, or you can pivot it vertically once you’re in place to split vertically. A vertical orientation eliminates the need to lift logs to the bed.
The WX370 has a 20 Ton split capacity with a 24″ split opening and requires 10 gpm hydraulic flow.
This log splitter is quick hitch compatible.
A 2-Way Wide Wedge is included that pops the log in a short distance. A 4-Way Wedge is an option.
To return the cylinder, just pull back on the lever and it will return to its starting position automatically, and then pop into neutral.
An optional stroke limiter is available to stop the cylinder from fully retracting, reducing your cycle time by almost 50% (for use on shorter logs).
If your tractor lacks the hydraulic flow necessary to power the splitter, an optional PTO Pump Kit is available to gain up to 11 gpm of hydraulic flow.
Optional clamp on shelves are available to catch your split logs.
All in all this is a well thought out, compact, log splitter.
Wallenstein WX370 Log Splitter Details
- 20 Ton Split Capacity
- Hydraulic Powered
- Cat I 3-Point Hitch Compatible
- Quick Hitch Compatible
- 24″ Split Opening
- 6.62s Cycle Time (dependent on hydraulic flow)
- 290 lb
- 86″ x 30″ x 30″ (LxWxH)
- Horizontal or Vertical Orientation
How to Choose the Right Log Splitter:
There are 4 main choices to consider:
1) TYPE: Do you require an engine-powered model or would you prefer to power it off your tractor or skidsteer?
2) POWER: Most wood can be split by a 20-ton splitter. However, hardwoods with gnarled, twisted grains, such as those that often grow up along a fence line may require a splitter with a higher splitting force.
3) ORIENTATION: Vertical 3-point hitch models, inverted skidsteer models and horizontal-vertical woodsplitters are very helpful when the wood being split is too large or heavy to lift onto a log bed. The Log Lifter fitted to some of the WX900 series models is also helpful in this regard.
4) SPLIT LENGTH: Do you require 24”, 36” or 48” lengths of split wood? If you are interested in a trailer model, consider how much wood you intend to spilt, is it for commercial or rental use, does towed equipment require lights and licensing where you live. If available in your chosen model, a “T”, or Tall version of the splitter can raise the working height to a more comfortable level. The horizontal / vertical splitters can also help in this regard.
