IronCraft 2510 Flex-Wing Mower Highlights
- 10 ft Cutting Width
- Narrower Transport Width to Fit Thru 8 Ft Gates
- Up to 2″ Diameter Cut Capacity
- 1.75″ to 11.5″ Cut Height
- Only Requires 25 hp at the PTO!
- 2 Tire Options
- Laminated Tires or Aircraft Tires
- 5 Yr Gearbox Warranty
- Pull-Type Drawbar Connection (Not 3-Point)
- Flat Top Deck
- For Easier Clean Off

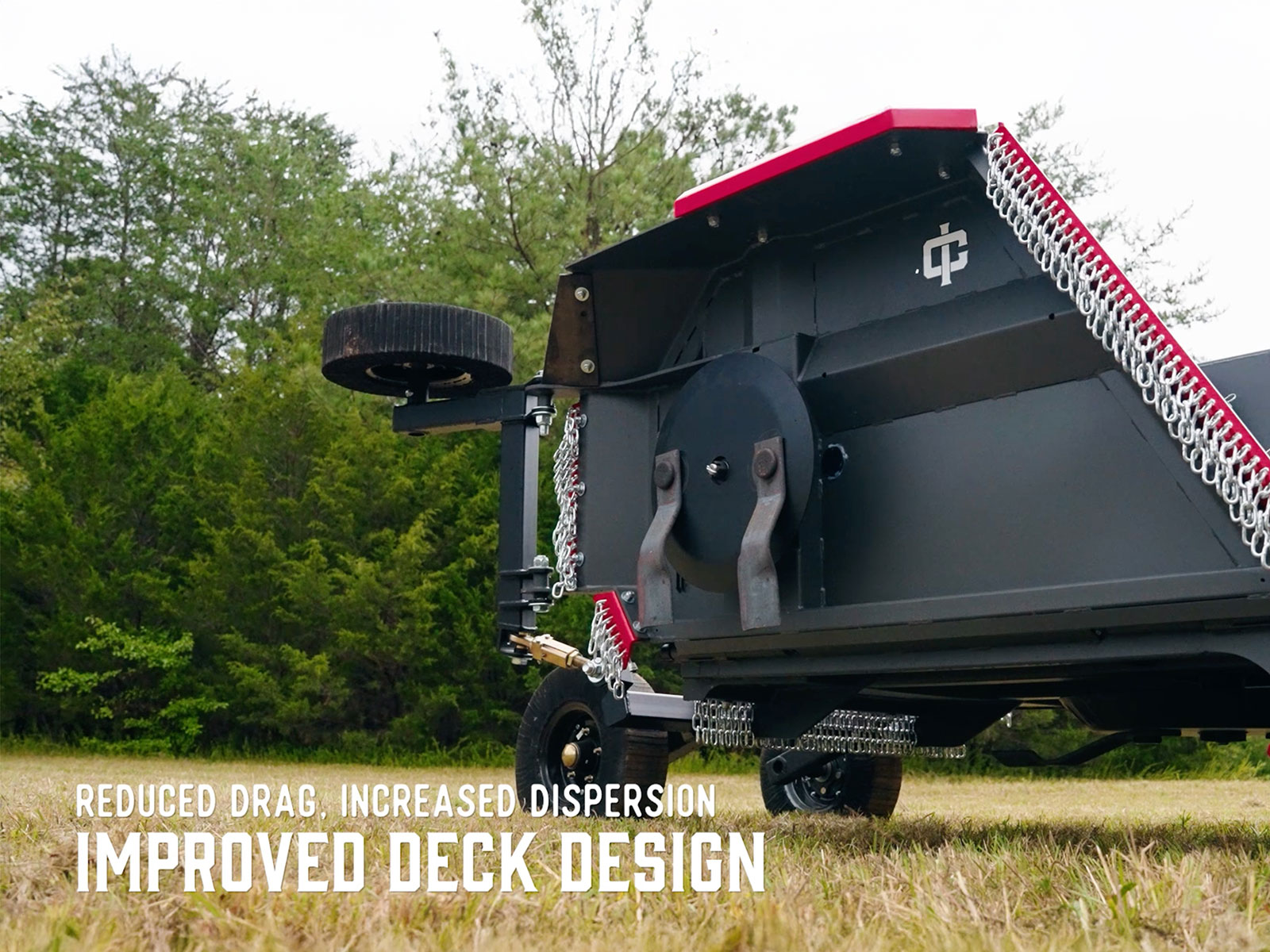

- Improved Deck Design
- Reduces Drag and Increases Dispersion of Cuttings
- Only Requires One Hydraulic Remote
10 Ft Flex-Wing Rotary Cutter IronCraft 2510
Price range: $15,241.70 through $15,992.42
20% Off (Save $3,810.69)
Purchase this item and get On Backorder
Picking the right attachment to fit your tractor isn’t always easy. That’s why we exist.
Contact us prior to purchase to get our recommendation for your tractor model, and if it doesn’t work, you can exchange for the right size at no cost to you.
All orders qualify for Basic Free Shipping, whether Ground or Freight.
Our Free Shipping Zone includes 36 states.
If you live in the continental United States, but outside of this zone, your shipping price will be calculated at checkout.
All freight orders are eligible to upgrade to a Lift-Gate for delivery. Otherwise the customer is responsible for offloading their order from the truck.
For full shipping details, go here.
Every product comes with its own factory warranty specified by the manufacturer.
We offer extended warranties to protect your purchase even longer.
Extended Confidence Coverage
Extends the manufacturer’s warranty one year beyond the factory warranty.
Lifetime Priority Protection (Most Popular)
Extends the manufacturer’s warranty for the lifetime of the product and includes priority handling, no-hassle claims, and lifetime support.
What’s Covered
Our extended warranties cover defects in workmanship such as broken welds, torn steel, or improper fit. If a covered issue occurs, we will repair or replace the product at our discretion.
What’s Not Covered
Damage caused by improper use or use outside the product’s intended purpose voids the warranty.
Cosmetic wear such as paint loss, scratches, dents, or bent teeth, as well as normal wear to common attachment components and consumables including cutting edges, shanks, tines, skid runners, skid shoes, blades, belts, bushings, bearings, oils, grease, and similar wear items is not covered under warranty.
Shipping or transportation costs, downtime, and labor are not covered.
Transferability
This warranty is non-transferable and applies only to the original owner/operator.
IronCraft 2510 Flex-Wing Cutter Advantages
The advantage of a Flex-Wing cutter over a regular rotary cutter is 2-fold:
- You get a wider cutting width with a narrower transport width, able to pass through 8 ft gates and travel safely down the road (because the wings fold up during transport)

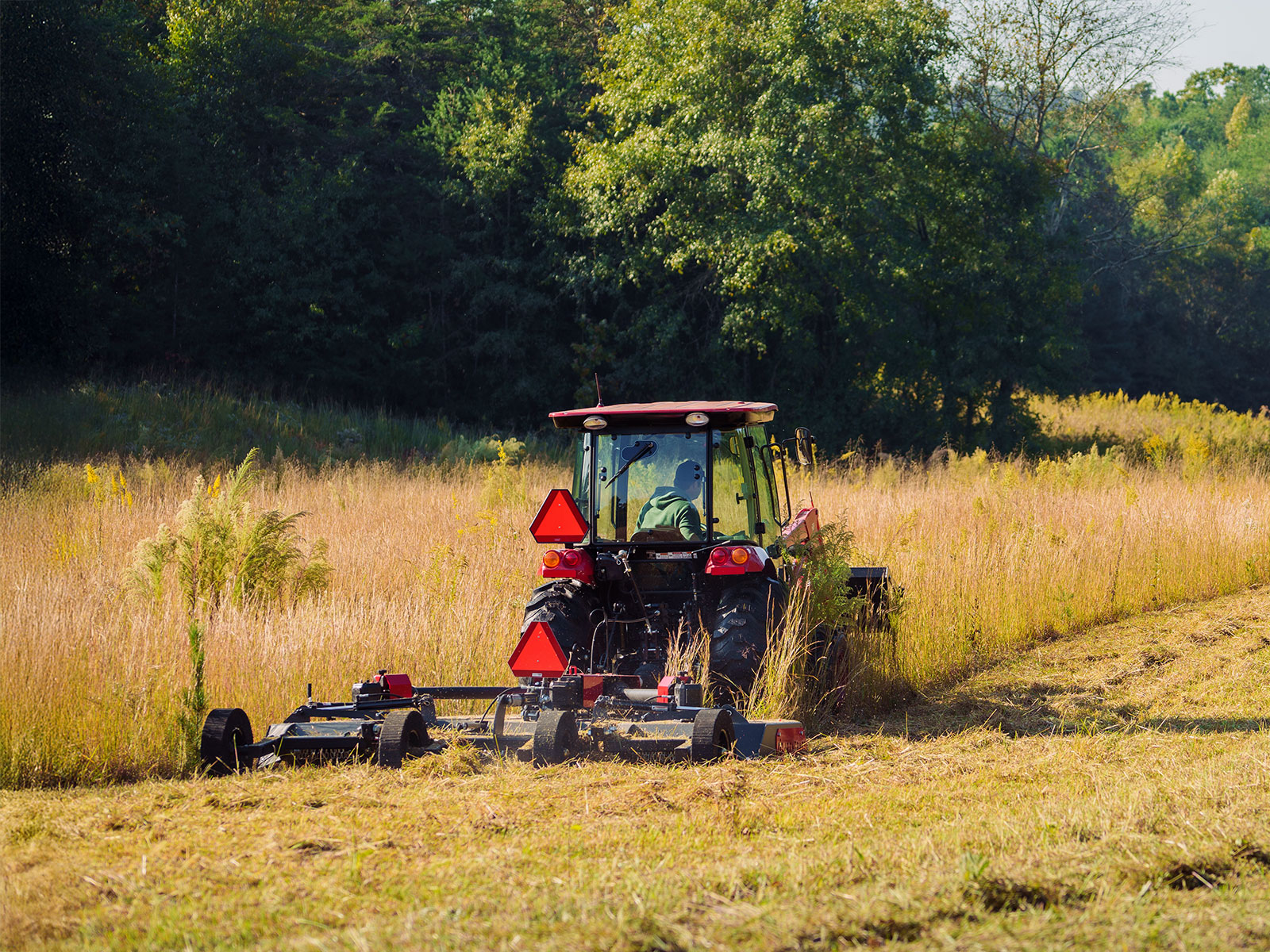

- Your mower will contour to the land, which is important across a huge width of 10 ft or more
IronCraft Design

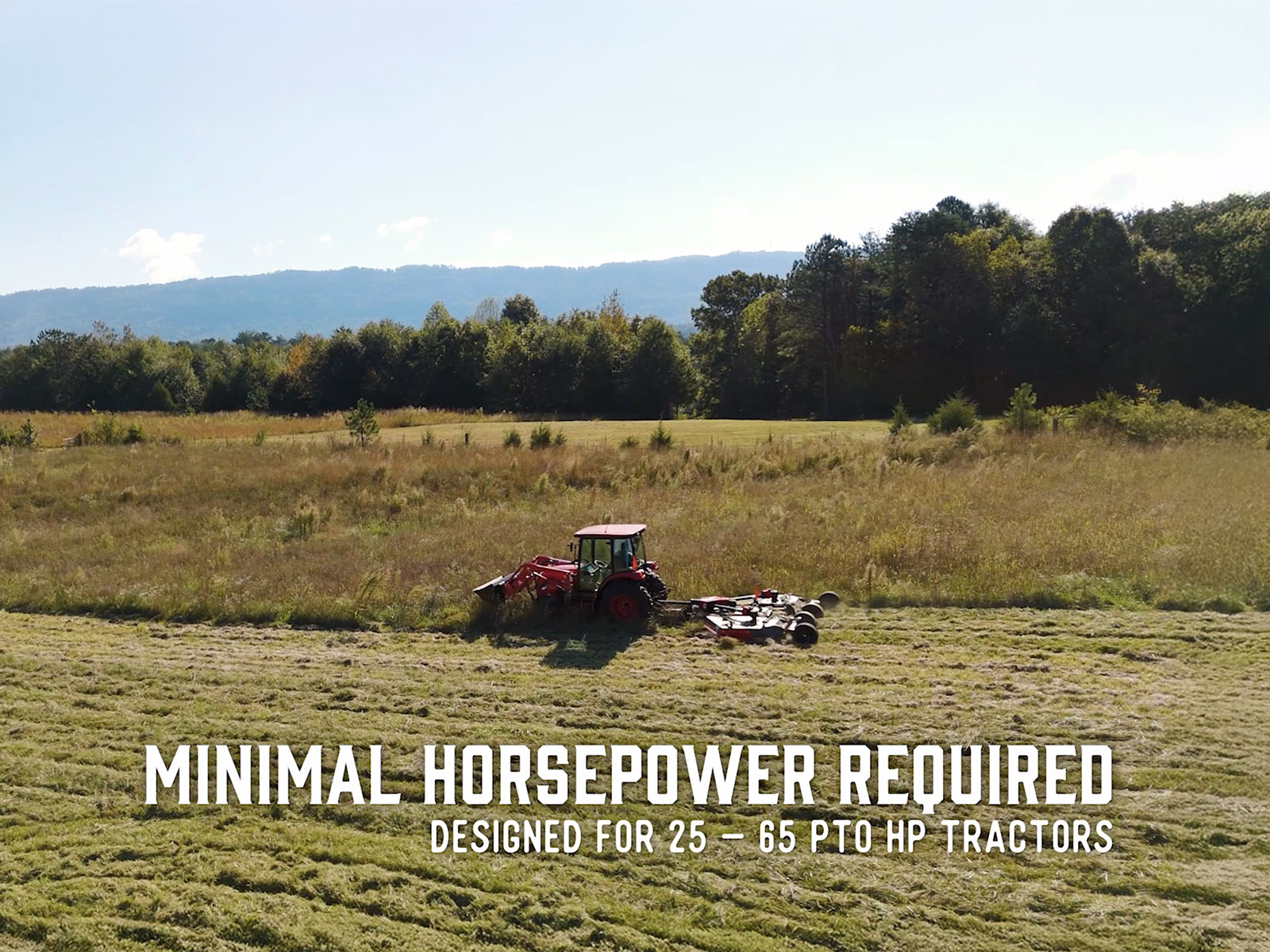

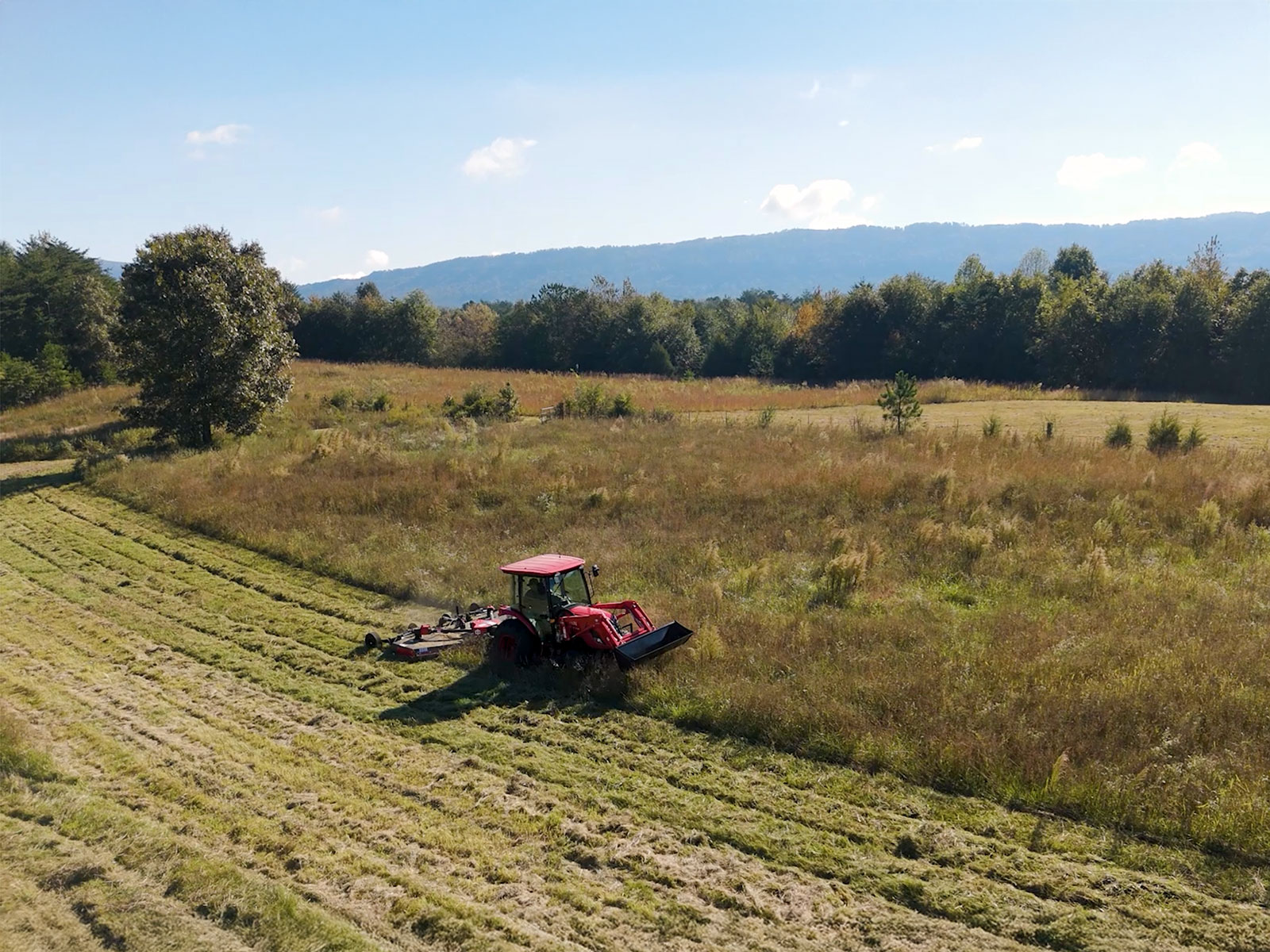

With an advanced suspension, this flex-wing is designed to cut grass, weeds, and light brush, while only requiring a minimum PTO horsepower of 25, and only requiring one hydraulic outlet to raise and lower the wings.
Designed for fairly small compact tractors with at least 25 hp at the PTO (again this is at the PTO, not engine horsepower), this Flex-Wing provides a 123 inch cut width with a 2″ diameter cut capacity.

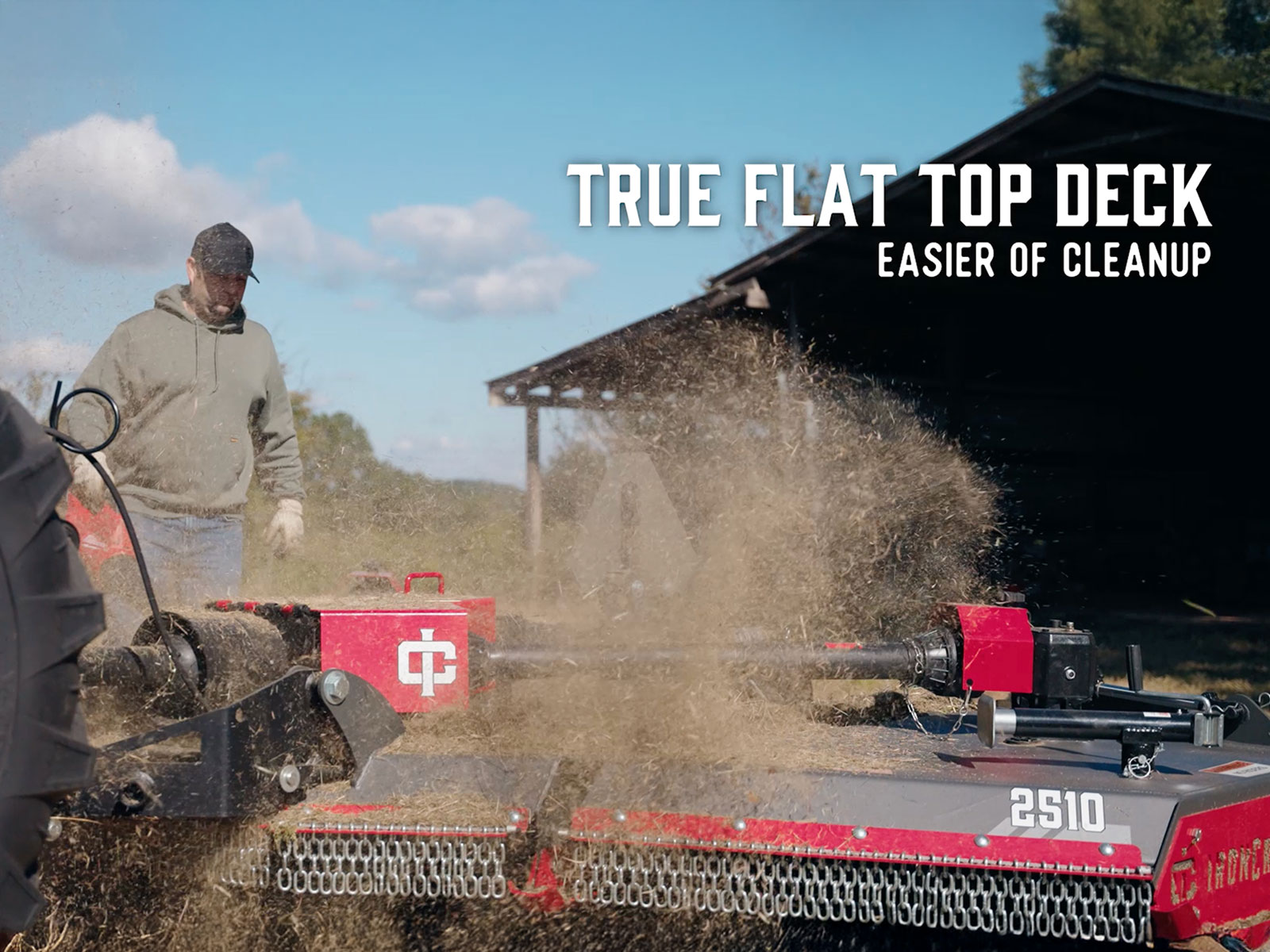

IronCraft has developed this cutter with a true, flat-top deck so you can clean it off easier, and prevent wet material from sitting on top while unused.

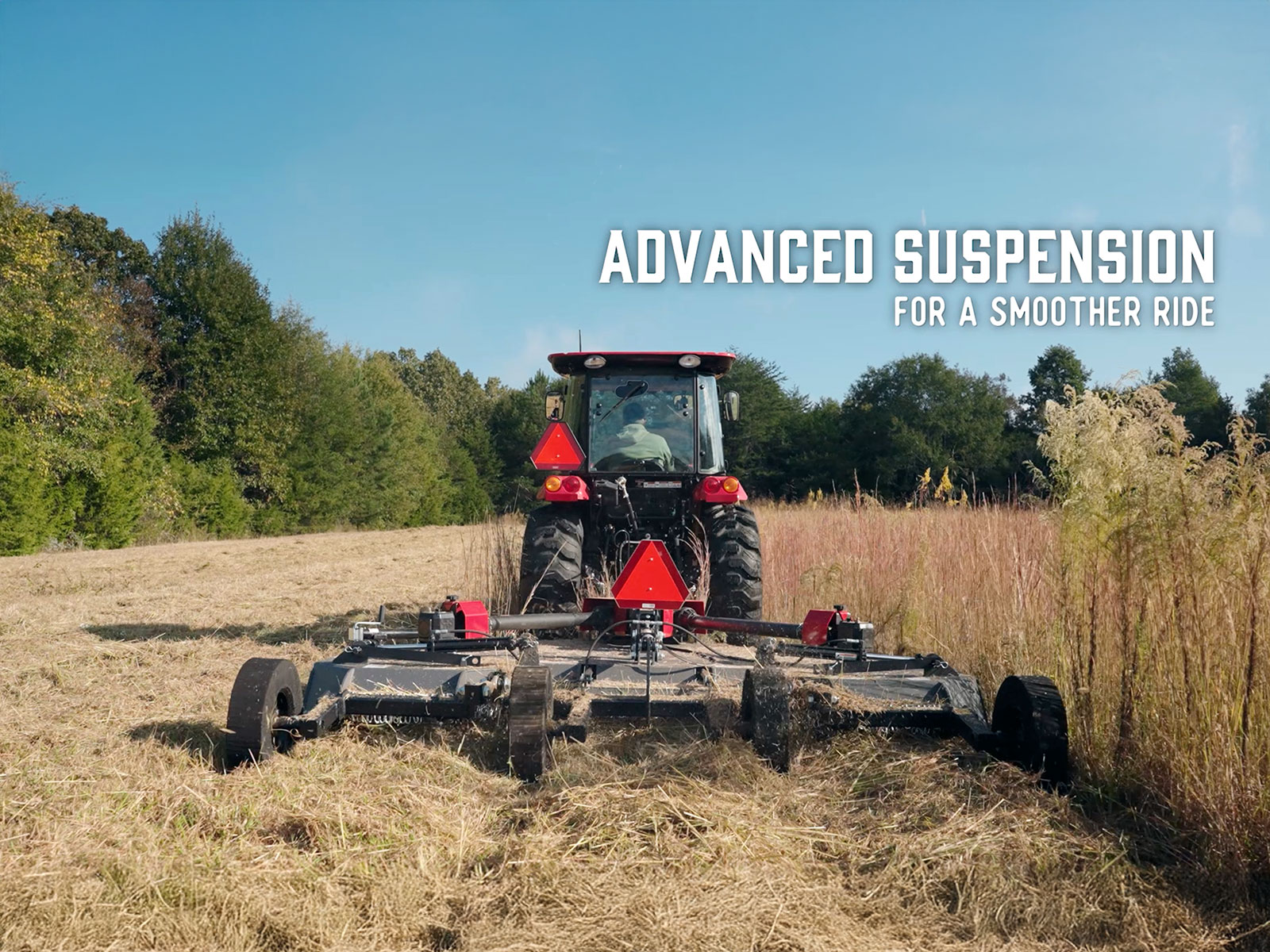

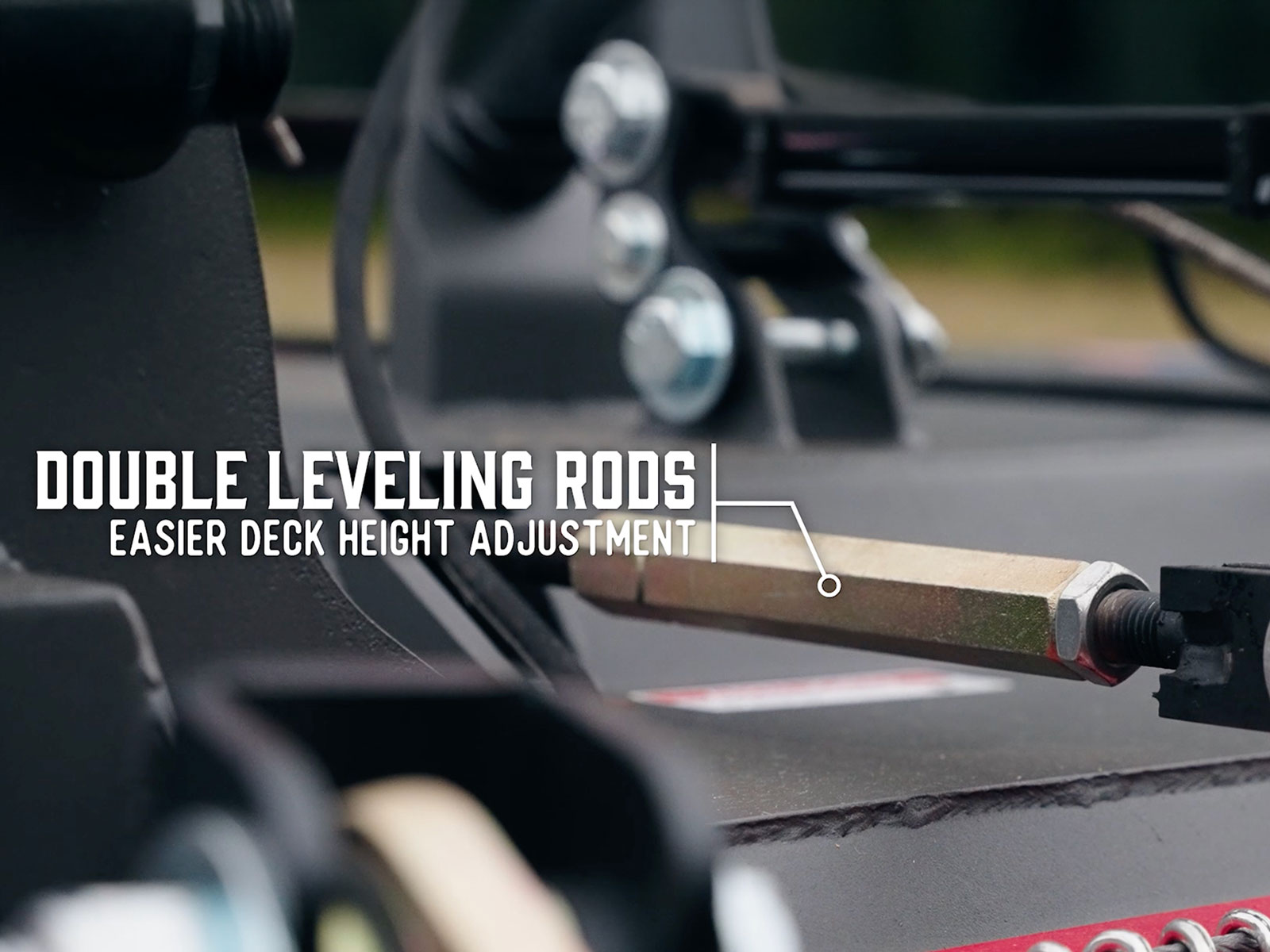

Dual leveling rods make for easy deck height adjustment, with a cutting height ranging from 1.75″ all the way up to 11.5″. An improved suspension system keeps the mower planted to the ground and keeps your ride smoother, while the cutter follows the contours of your land better than ever.

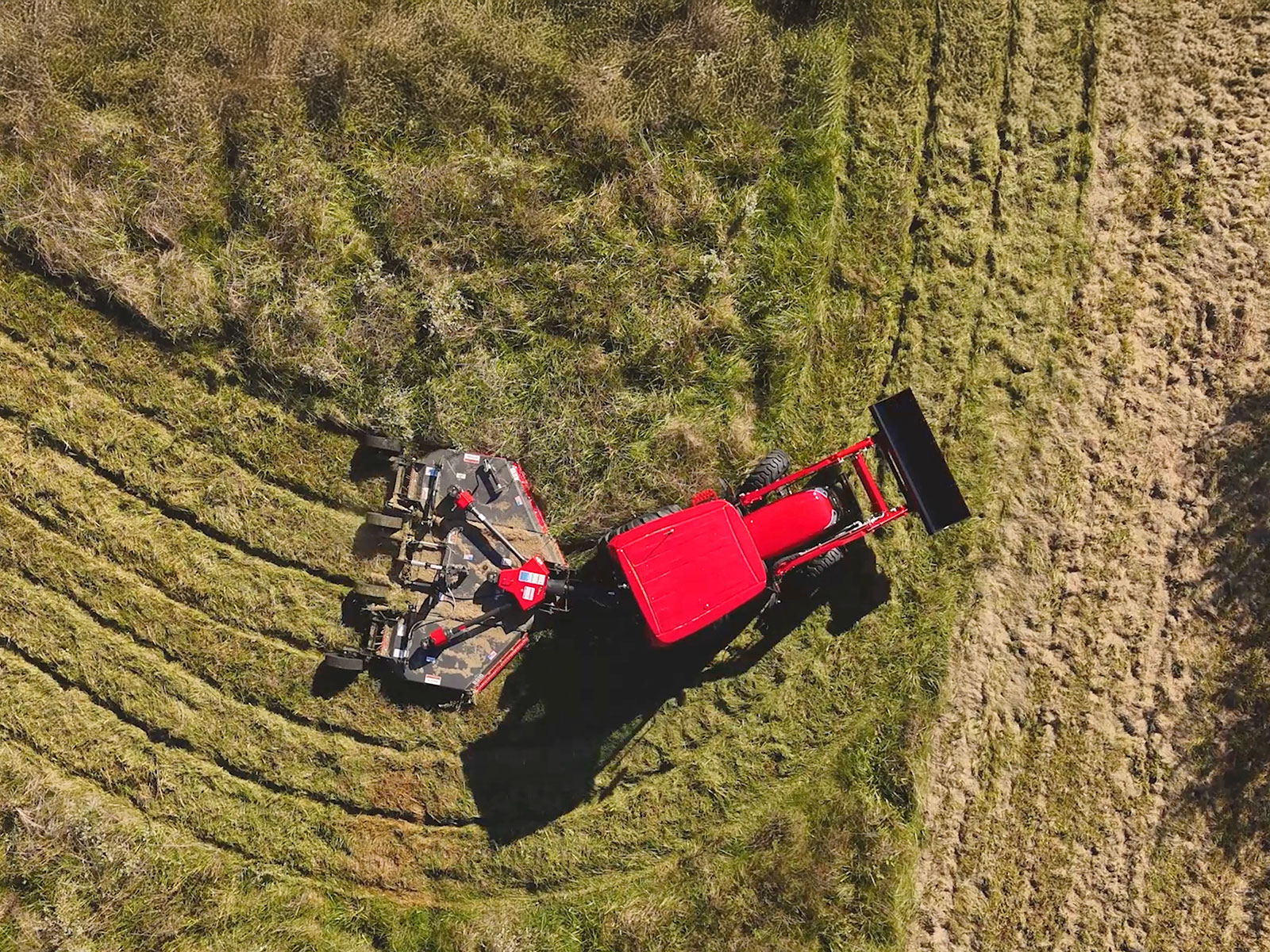

Designed as a pull-type cutter, you can make tighter turns with this flex-wing than with a traditional 3-Point cutter.

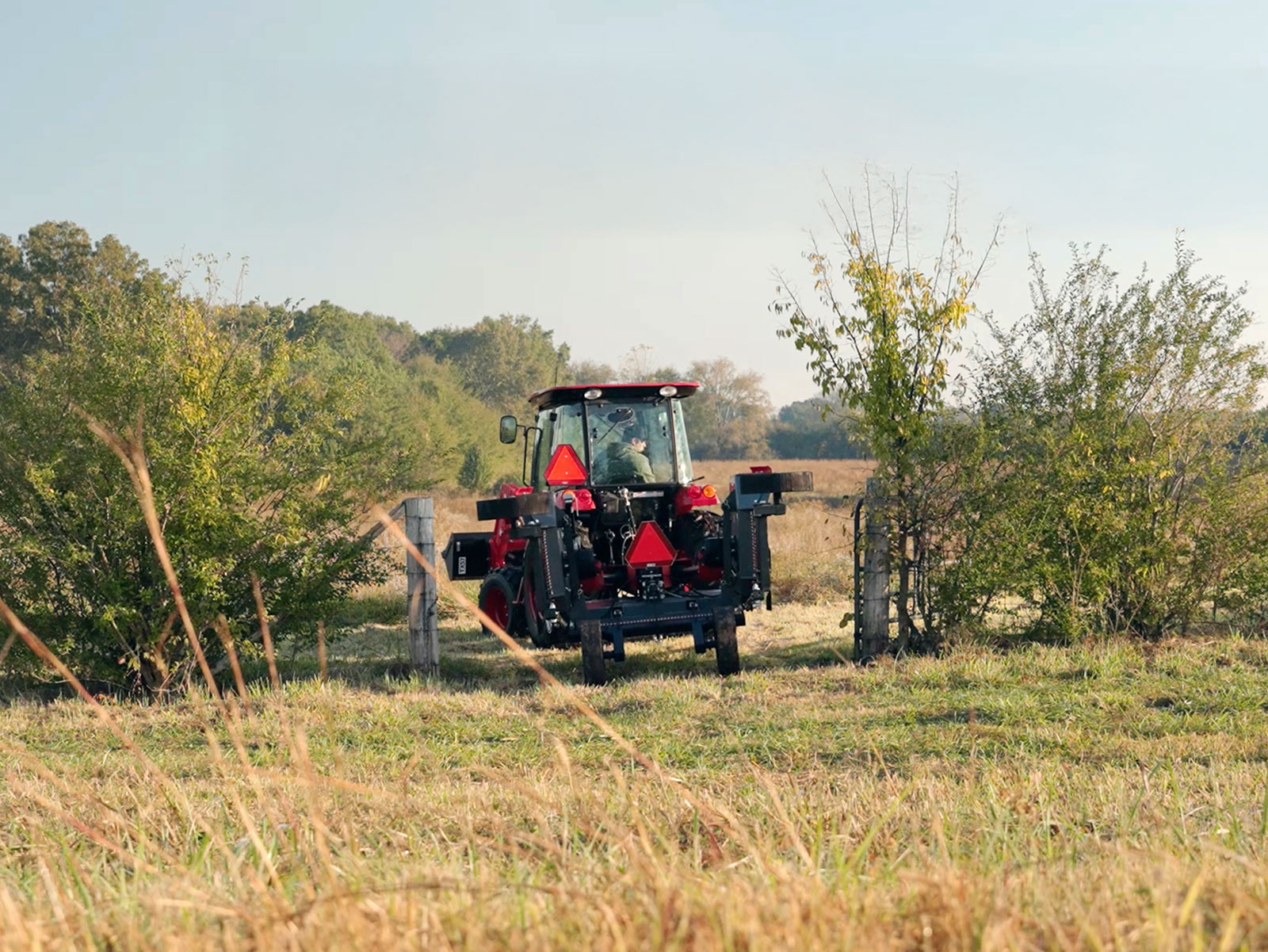

Its 96.5″ transport width, makes it easy to tow down the road, a path in the woods, or pass through your fence-gate.
The cutter uses three spindles with two free-swinging blades each, which reduce the shock of impact when a stationary object is contacted. Each blade has a stump jumper for protection. Slip clutches protect the gearboxes and drivelines.
Standard equipment includes driveline shields, clutch shields, chain discharge shields and a safety chain discharge cover.
This cutter is available with 4 Laminated Tires or 4 Used Aircraft Tires.
IronCraft 2510 Flex-Wing Cutter Specs
| Product Family | 2510 Series |
|---|---|
| Product | 2510 |
| Description |
10′ Flex-Wing Cutter
|
| RPM | 540 |
| HP Required | 25 – 60 PTO |
| Working Width | 123″ |
| Overall Width | 132″ |
| Transport Width | 96.5″ |
| Tongue Weight | 830 lbs |
| Weight (lbs) |
2400 lbs with 4-20″ Laminated Tires
|
| Cutting Height |
1-3/4″ to 11-1/2″
|
| Cutting Capacity | up to 2″ |
| Deck Thickness | 11 GA |
| Deck Height | 11″ |
| Side Bands | 7 GA |
| Suspension |
1 Medium Duty Spring in Center Tailwheel Assembly
|
| Skid Shoes |
Replaceable
|
| PTO Drive Shaft | ASAE CAT 5 |
| Wing Drive PTO | ASAE CAT 4 |
| Driveline Protection | Slip Clutch |
| Blade Holder |
Round Stump Jumper
|
| Gearbox Rating | 175 HP |
| Outboard Gearbox Rating | 75 HP |
| Wing Flex |
20 Degrees Down to 85 Degrees Up
|
| Blades |
1/2″ x 3″ Uplift
|
| Blade Overlap | 5-1/4″ |
| Wheel Type |
20″ Laminated
|
| Hitch Type |
Swivel Pivot Self Leveling
|
| Gearbox Warranty |
5 Year Limited
|
| Safety Tow Chain | Standard |
| Guarding Options |
Single Row Chains Standard
|
| FPM | 14600 |
