dirt dog ROTARY CUTTER HIGHLIGHTS
Dirt Dog Decided Good Wasn’t Good Enough For Their Brush Hog.
A 3-Pt Brush Mower is one of the most common tractor attachments, and it gets referred to by a few different names—brush hog and bush hog being two of the most familiar. Dirt Dog calls their version a Rotary Cutter, named for the spindle blades that do the cutting under the deck, and they’ve made some real improvements to make theirs stand above the competition.
This mower connects to your Category I 3-Point Hitch or Quick Hitch and 540rpm PTO, and is meant for mowing tall grass and even saplings and brush up to 1 1/2 in diameter. Think of it as a rough cut mower.
Dirt Dog added a pivoting A-frame allowing more range of motion as you mow up and down uneven terrain, and also as you hook up your attachment. Knowing many owners have to leave their cutter outside, the top is a smooth, domed deck formed from 10 gauge steel, with an overhanging lip designed to significantly reduce standing water and thus reduce rust. Why that isn’t a standard in the industry, we don’t know.
This rotary cutter series is perfect for compact tractors from 25 to 60 horsepower, and is available with an optional slip clutch for those encounters with hidden objects too big to cut through. Note, these encounters are pretty common when you’re mowing an overgrown field for the first time and don’t know where the stumps, roots, and rocks are.
Dirt Dog’s Rotary Cutters are perfect examples of that American drive to make something that’s good enough even better. All of their attachments are Made in the USA, down in Commerce, Georgia.
- Cat I 3-Point and Quick Hitch Compatible
- 1 1/2″ Max Cut Diameter
- 2″ Minimum Cutting Height
- Cutting Blades Made From 3″ x 1/2″ Hardened Steel
- Front Rubber Closure, Rear Steel Closure
- 60 horsepower Rated Gear Box w/ 3 Year Warranty
- Smooth, Domed Deck for Water Runoff to Reduce Rusting Potential
- No Pinch, A-Frame Pivot
- Replaceable Bolt-on Skids
- 10 Gauge Deck & Sides
- For Tractors from 18 to 60 horsepower
- RC104 is for Tractors up to 40 hp
- RC105 is for Tractors up to 60 hp
- RC106 is for Tractors up to 60 hp
- Shear bolt: 1/2”-13 x3” , Optional Slip Clutch
what sets the dirt dog rotary cutter apart?

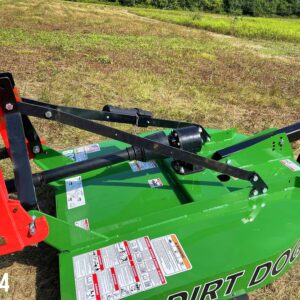

- A-frame pivot mechanism: The innovative pivot mechanism located at the base of the yoke straps provides an industry-leading 23° of motion to assist in mowing over rolling terrain… and, just as important, it eliminates traditional pinch points associated with hitching/unhitching experienced on many other rotary cutters.
- Domed deck design: A 3/4 inch vertical offset in the top deck plate along the center of the cutter may be difficult to discern with the naked eye, but proof is in the pudding… water runs off to the front and the rear thereby keeping the deck dry and rust free.
- Smooth top deck: The top deck plate is extended over the side bands thereby making a nice secure ledge for welding the two pieces together AND it creates a super smooth top deck that is easy to clean when the cutting is done.
- Replaceable bolt-on skids: Replaceable bolt-on skids are a “next level” feature on this standard duty cutter class when compared to the competition… they provide quick and easy replacement when out AND the skids provide added strength and rigidity to the cutter’s sidebands.
- Cat 1 Standard and Quick Hitch: The RC Series is developed to fit both standard and quick hitch Cat 1 mounting arrangements.
- Three-year gearbox warranty: The RC series come equipped with a 3-year limited gearbox warranty (see op manual for complete details).
- Front/rear enclosures: The RC series units come equipped with front belting and rear metal band enclosures as standard equipment.
- Single beam tailwheel design: A single beam “stinger” tailwheel minimizes the risk associated with backing up or swinging into an object when mowing.
- Segmented rear tire with replaceable bushings: The tried-and-true segmented rear tire with replaceable bushings for extended life means your cutter rolls through the toughest stuff and keeps on keeping on.
- Slip Clutch: Often times rotary cutters are cutting in unkempt and unknown areas, or areas with low visibility. For those times when your blades encounter an immovable or uncuttable object, you can rely on the optional slip clutch to protect your PTO.
Upgrade your 3-point attachment performance, improve operator efficiency, and get better results on your projects with a hydraulic top and tilt kit. These hydraulic cylinders replace your manual top and side link on the 3-point hitch and allow you to make adjustments on the fly to your 3-point attachment. Save 5% with code GWT at Summit Hydraulics. Do-it-yourself hydraulics solutions that will completely change the way you use your tractor.
Lifetime Warranty
Increase the standard manufacturer’s warranty to GWT’s Lifetime Warranty.
What is covered
Your GWT Lifetime Warranty covers issues stemming from the craftsmanship of the product, like broken welds, torn steel, or improper fit. Tractor attachments are generally designed to be used in harsh environments, so normal wear-and-tear is not covered (things like lost paint or chipped paint, scratches, dents, or bent teeth).
We will repair or replace, at our discretion, your attachment/product under the Lifetime Warranty, if purchased.
What isn’t covered
Any shipping necessary for repair or replacement, as well as transportation costs are not covered under the factory warranty. Lost time and down time are not covered. Replacement parts are covered, but not labor costs.
If damage occurs from improper use (a use other than what the product is marketed for), the warranty is void. Damage caused to your tractor while using an attachment will not be covered.
Your warranty is non-transferable, meaning it exists as long as you’re the owner and operator of the product.
