Heavy Duty GRB Land Planes

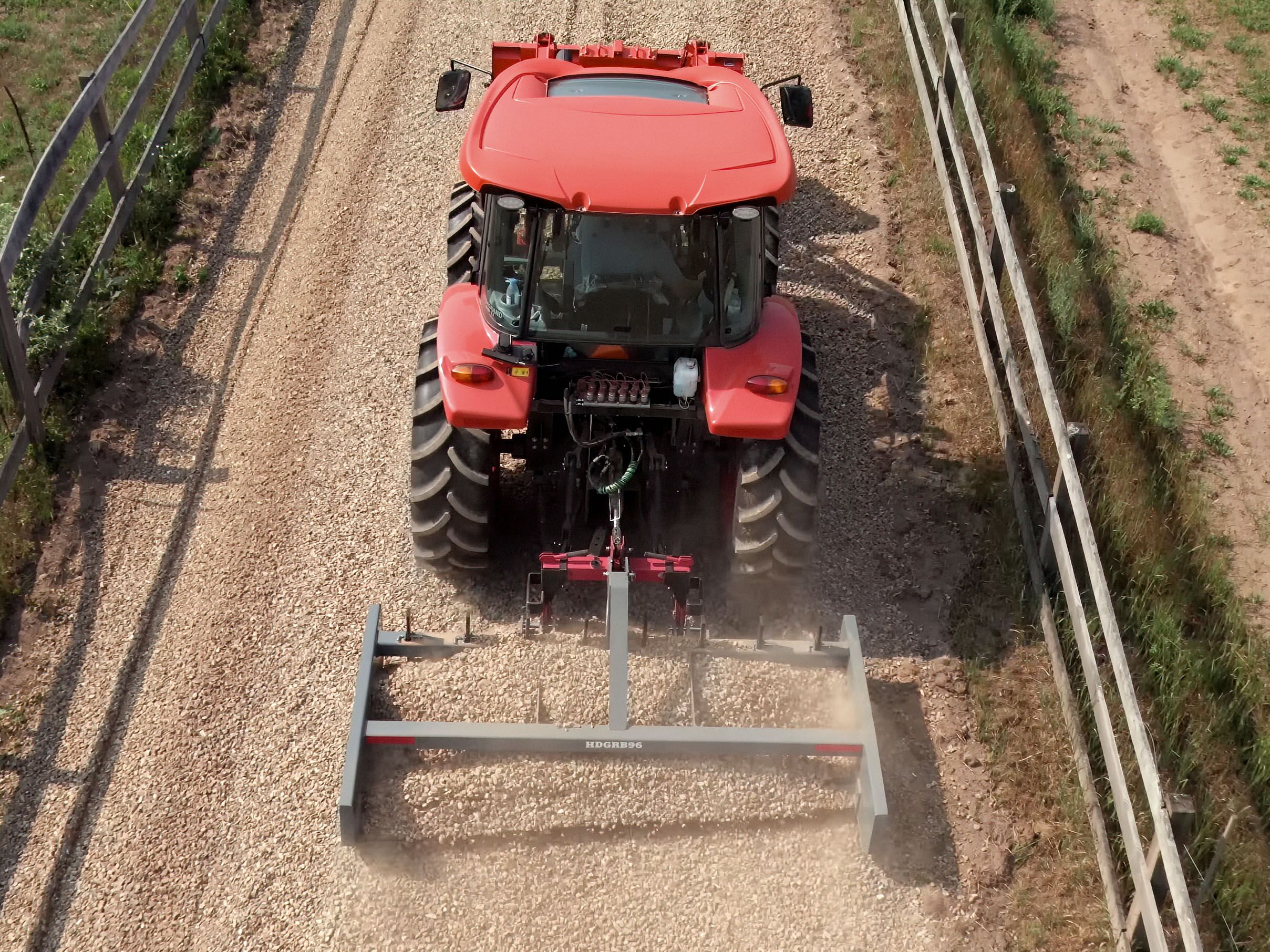

You can have beautiful, smooth, level roads. The Land Plane really does all the work as you can see in our videos below—just lower the grader box and go.
Dirt Dog’s Grader Boxes are the perfect tool for maintaining gravel roads and parking lots. Just connect the implement to you 3-Point Hitch and let the grader take care of the rest. The dual cutting edges are angled and spaced to allow the material to shave the high areas and fill in the low areas leaving a smooth, level surface. Available in three series: Light Duty, Standard Duty, and Heavy Duty.
The adjustable shanks add the ability to break up extremely rough sections before smoothing them out with the cutting edges (note the 48″ Light Duty Land Plane does not have these shanks). Each shank has a replaceable plow point. The triple lug hitch on the HD Series is not only Cat 1 or 2 quick hitch compatible, but extremely durable. Each side plate has a replaceable skid attached with plow bolts, protecting your investment against wear and tear. The cutting edges are also replaceable and reversible so you get the maximum amount of life out of each blade.
- Category I & II Quick Hitch compatible
- Triple lug hitch
- Adjustable Cutting Depth
- 2 – 1/2″ × 6” cutting edges at a 6°
- 4” x 4” x 3/8” Scarifier box
- 1/2″ x 2 1/2″ Replaceable Skids
- For up to 90 hp tractors
Land Plane Model Details
- HDGRB84, 90″ Overall Width, 54 7/16″ Overall Depth, 15 7/8″ Box Height, 710 lb, 6 Shanks
- HDRGB96, 102″ Overall Width, 54 7/16″ Overall Depth, 15 7/8″ Box Height, 800 lb, 8 Shanks
Optional Upgrades
Upgrade your 3-point attachment performance, improve operator efficiency, and get better results on your projects with a hydraulic top and tilt kit. These hydraulic cylinders replace your manual top and side link on the 3-point hitch and allow you to make adjustments on the fly to your 3-point attachment.
