Dirt Dog Land Plane

Dirt Dog CGRB Land Planes

Intended for subcompact tractors (like your John Deere 1025R or Kubota BX), with the same dual action cutting edge as the GRB, but no scarifying shanks to save weight and drive all the power to the leveling edges.

• Category 0 or 1 Quick Hitch compatible
• 1/4” x 2” Bolt on Replaceable skids
• 2 – 3/8″ × 6” cutting edges at a 6°
• Maximum Tractor HP 25 for 2WD or 18 for 4WD
• Available in grey
• Custom Colors available with a 6 month lead time (Red, Green, Orange, Blue, Yellow)

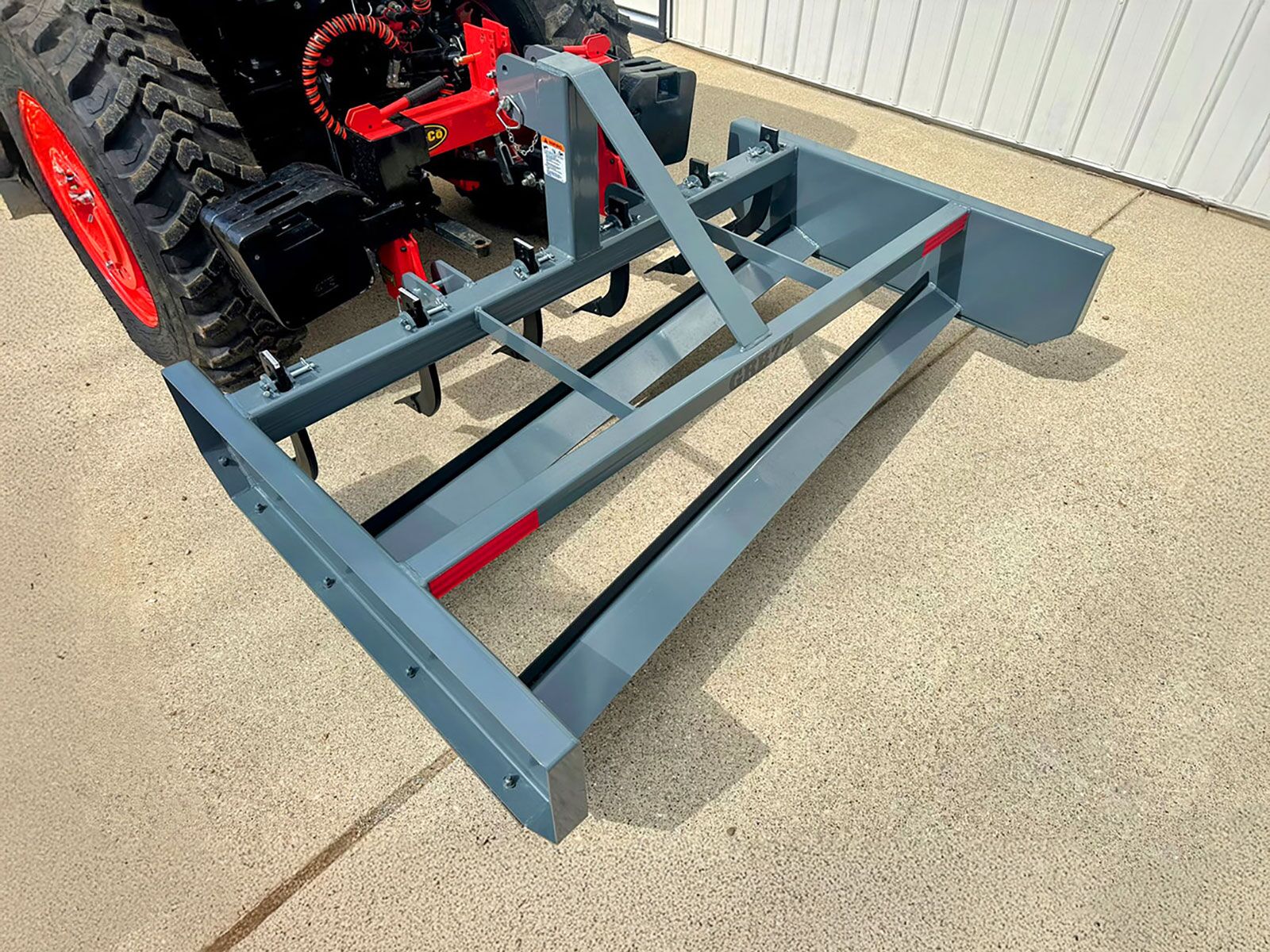

Dirt Dog GRB Land Planes

Dirt Dog’s Grader Boxes are the perfect tool for maintaining gravel roads and parking lots. Just attach the road grader and let it take care of the rest. The dual cutting edges are angled and spaced to allow the material to shave the high areas and fill in the low areas leaving a smooth, level surface.

If you can attach one to your tractor, you can have beautiful, smooth, level roads. It does all the work, just lower the grader box and go. The adjustable shanks add the ability to break up extremely rough sections before smoothing them out with the cutting edges. Each shank has a replaceable plow point. The double lug hitch design is not only Cat. 1 quick hitch compatible but extremely durable. Each side plate has a replaceable skid attached with plow bolts, protecting your investment against wear and tear. The cutting edges are also replaceable and reversible so you get the maximum amount of life out of each blade.

• Category 1 Quick Hitch compatible
• Double lug hitch
• Bolt on Replaceable skids
• 2 – 1/2″ × 6” cutting edges at a 6°
• 4” x 4” x 5/16” Scarifier box
• Available in grey
• Custom Colors available with a 6 month lead time (Red, Green, Orange, Blue, Yellow)

Dirt Dog HDGRB Land Planes

All the features of the GRB, but built bigger and heavier, plus you gain adjustable cutting depth.

• Category 1 & 2 Quick Hitch compatible
• Triple lug hitch
• Adjustable cutting depth
• Bolt on replaceable skids
• 2 – 1/2″ × 6” cutting edges at a 6°
• 4” x 4” x 3/8” Scarifier box
• Available in grey
• Custom Colors available with a 6 month lead time (Red, Green, Orange, Blue, Yellow)

Land Plane Model Details

• CRG48, 52 3/16″ Overall Width, 44″ Overall Depth, 28 5/8″ Overall Height, 10 1/4″ Box Height, 233lb, No Shanks
• GRB60, 65 3/16″ Overall Width, 49 1/2″ Overall Depth, 31 1/2″ Overall Height, 13 3/4″ Box Height, 500lbs, 4 Shanks
• GRB72, 77 3/16″ Overall Width, 49 1/2″ Overall Depth, 31 1/2″ Overall Height, 13 3/4″ Box Height, 571lbs, 6 Shanks
• HDGRB84, 90″ Overall Width, 54 7/16″ Overall Depth, 34 7/16″ Overall Height, 15 7/8″ Box Height, 710lbs, 6 Shanks
• HDGRB96, 102″ Overall Width, 54 7/16″ Overall Depth, 34 7/16″ Overall Height, 15 7/8″ Box Height, 800lbs, 8 Shanks

*For a color other than grey email me, and prepare for a six-month lead time.
