Purchase this item and get Description

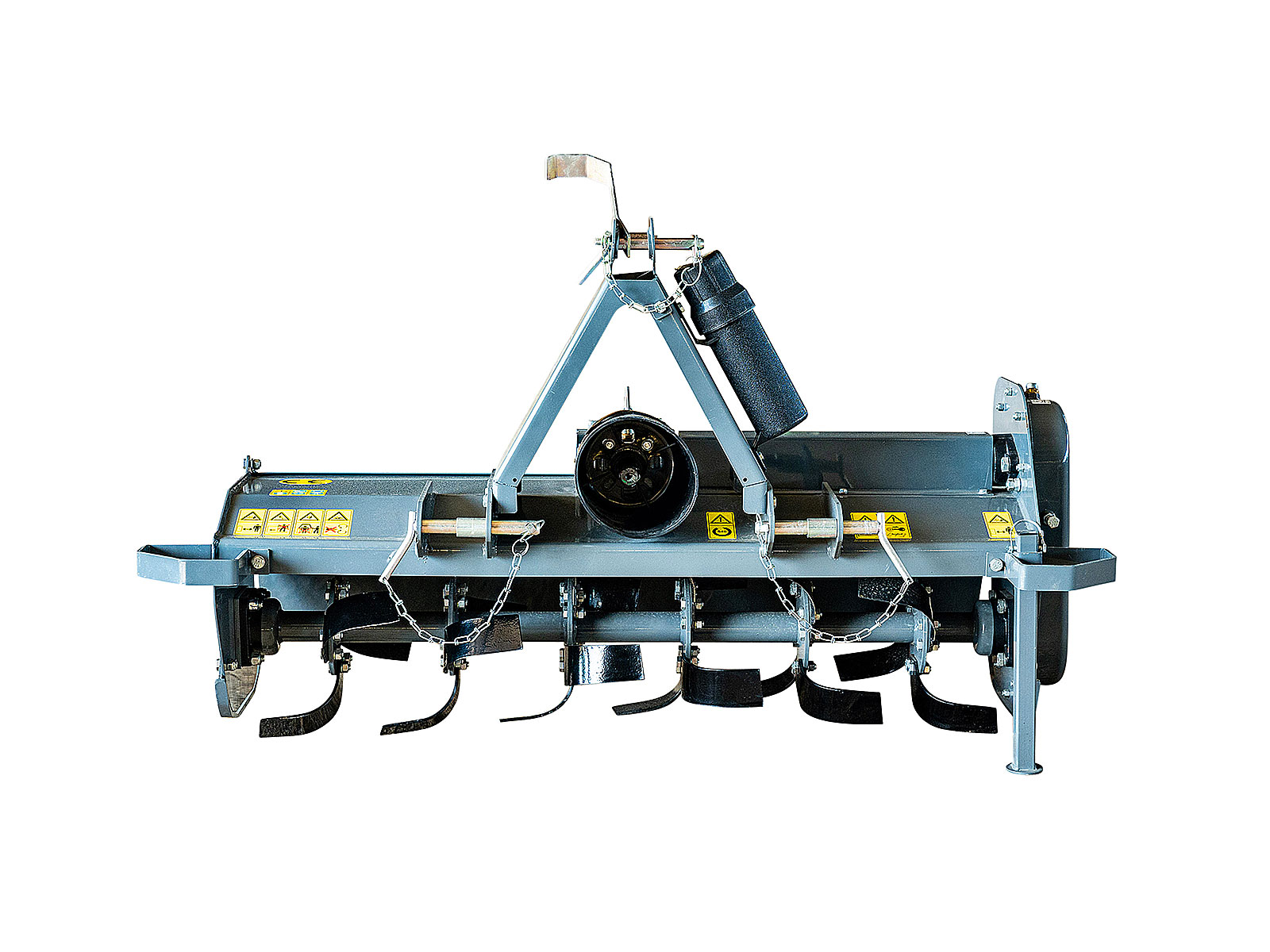

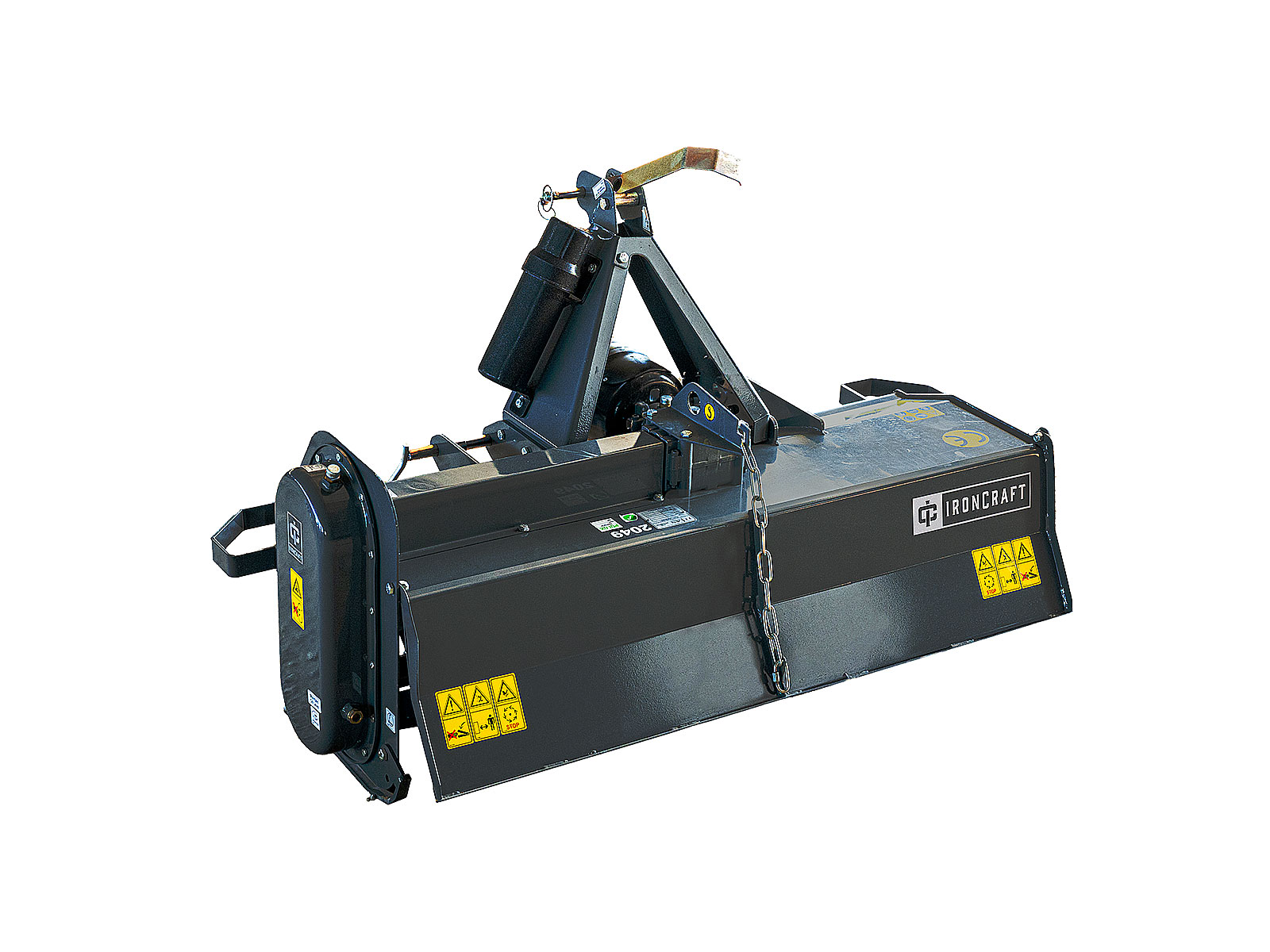

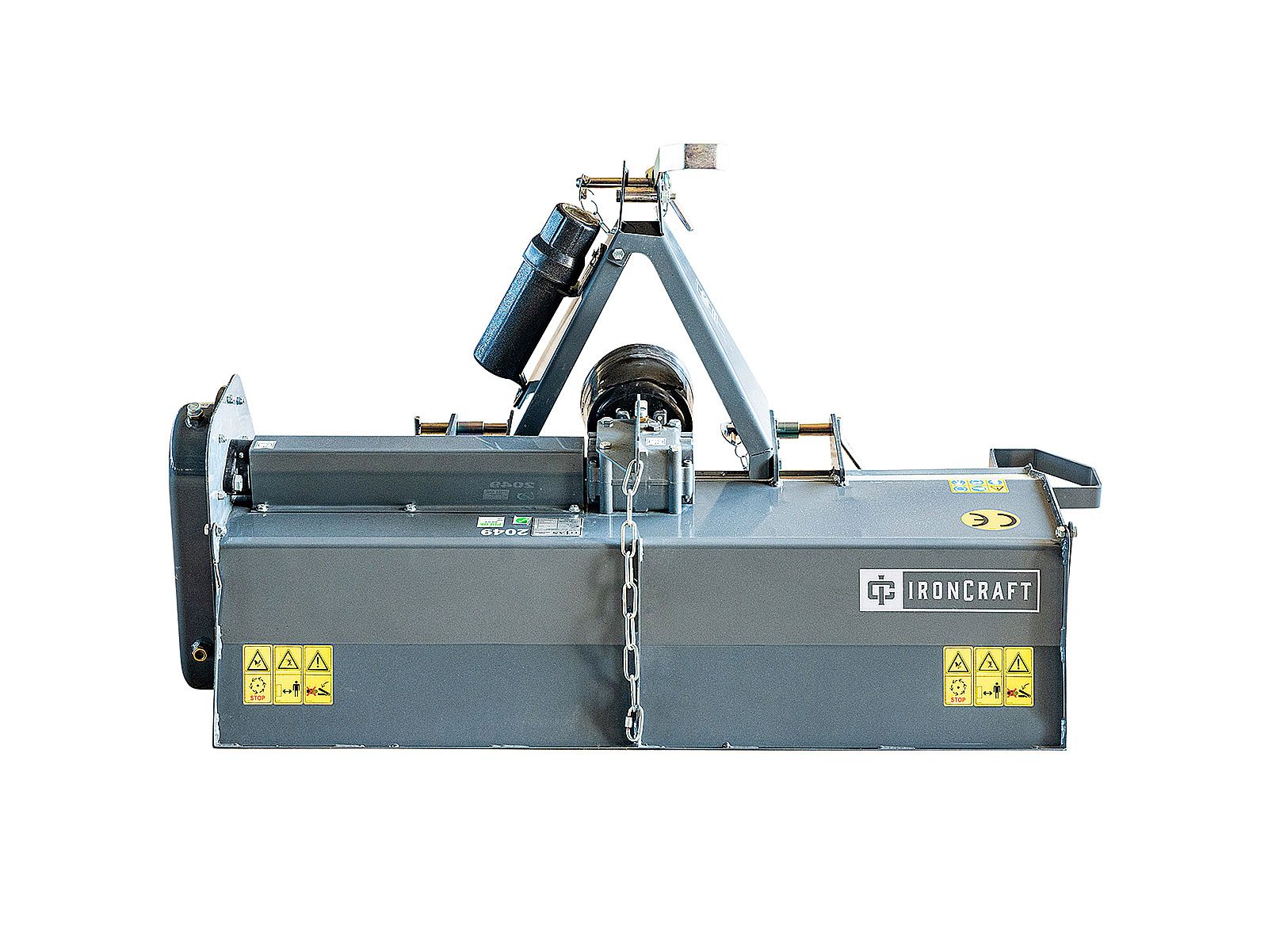

IronCraft FMA Light Duty Chain-Drive Rotary Tiller Highlights
All 3-Point Tillers from IronCraft are gear driven except one—the FMA Light Duty Tiller. As a Light Duty Tiller, this provides a more economical option for owners of tractors with 25 hp or less (that’s engine horsepower, you’ll want 13–20 hp at the PTO). As this is for small tractors, it’s meant for Cat I 3-Point Hitches.
But you still get 49 in of tilling width per pass, with a 53 in width overall. And you can till up to 4.75″ deep with the 24 flanges.
Available in IronCraft Gray only.
Specs
| Product Family | FMA Light Duty Chain-Drive Tiller |
|---|---|
| Description |
48″ Light Duty Chain Drive Tiller
|
| Rotation | Forward |
| RPM | 540 |
| HP Required | 15 to 25 |
| PTO HP Required | 13 to 20 |
| Working Width | 49″ |
| Max Working Depth | 4-3/4″ |
| # of Flanges on Rotor | 6 |
| # of Tines per Flange | 4 |
| Total # of Tines | 24 |
| Rotor Thickness or Diameter | 2″ |
| Rotor Swing Diameter | 12-1/2″ |
| Overall Width | 53″ |
| Weight (lbs) | 309 lbs |
| Hitch | Cat 1 |
Lifetime Warranty
Increase the standard manufacturer’s warranty to GWT’s Lifetime Warranty.
What is covered
Your GWT Lifetime Warranty covers issues stemming from the craftsmanship of the product, like broken welds, torn steel, or improper fit. Tractor attachments are generally designed to be used in harsh environments, so normal wear-and-tear is not covered (things like lost paint or chipped paint, scratches, dents, or bent teeth).
We will repair or replace, at our discretion, your attachment/product under the Lifetime Warranty, if purchased.
What isn’t covered
Any shipping necessary for repair or replacement, as well as transportation costs are not covered under the factory warranty. Lost time and down time are not covered. Replacement parts are covered, but not labor costs.
If damage occurs from improper use (a use other than what the product is marketed for), the warranty is void. Damage caused to your tractor while using an attachment will not be covered.
Your warranty is non-transferable, meaning it exists as long as you’re the owner and operator of the product.
Reviews
There are no reviews yet.
