SawHaul Chainsaw Carrier for Tractors
Securely carry your chainsaw with you on your tractor by adding the SawHaul—an easy-to-install mount designed to carry chainsaws from any manufacturer with up to 36″ bars.

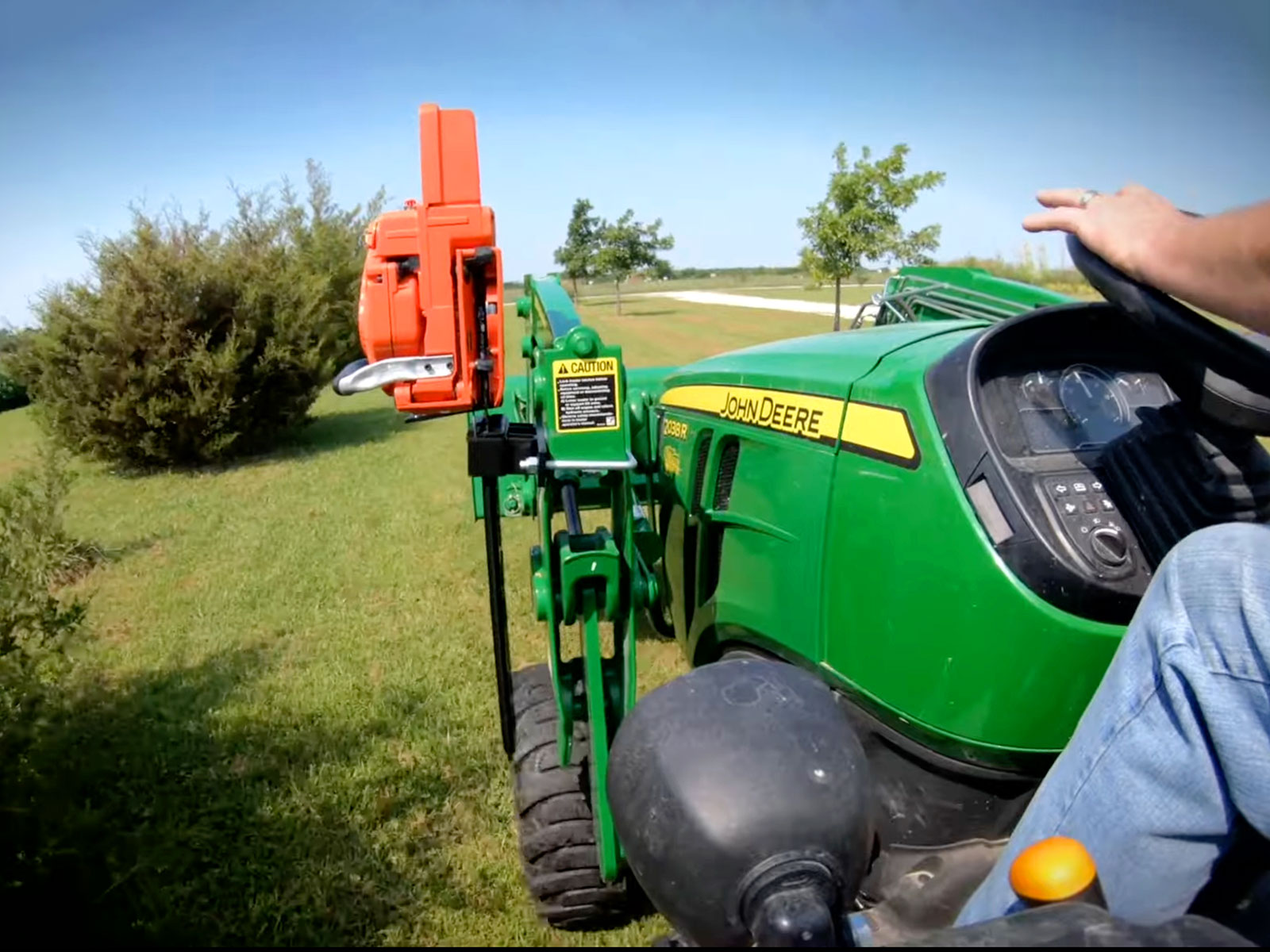

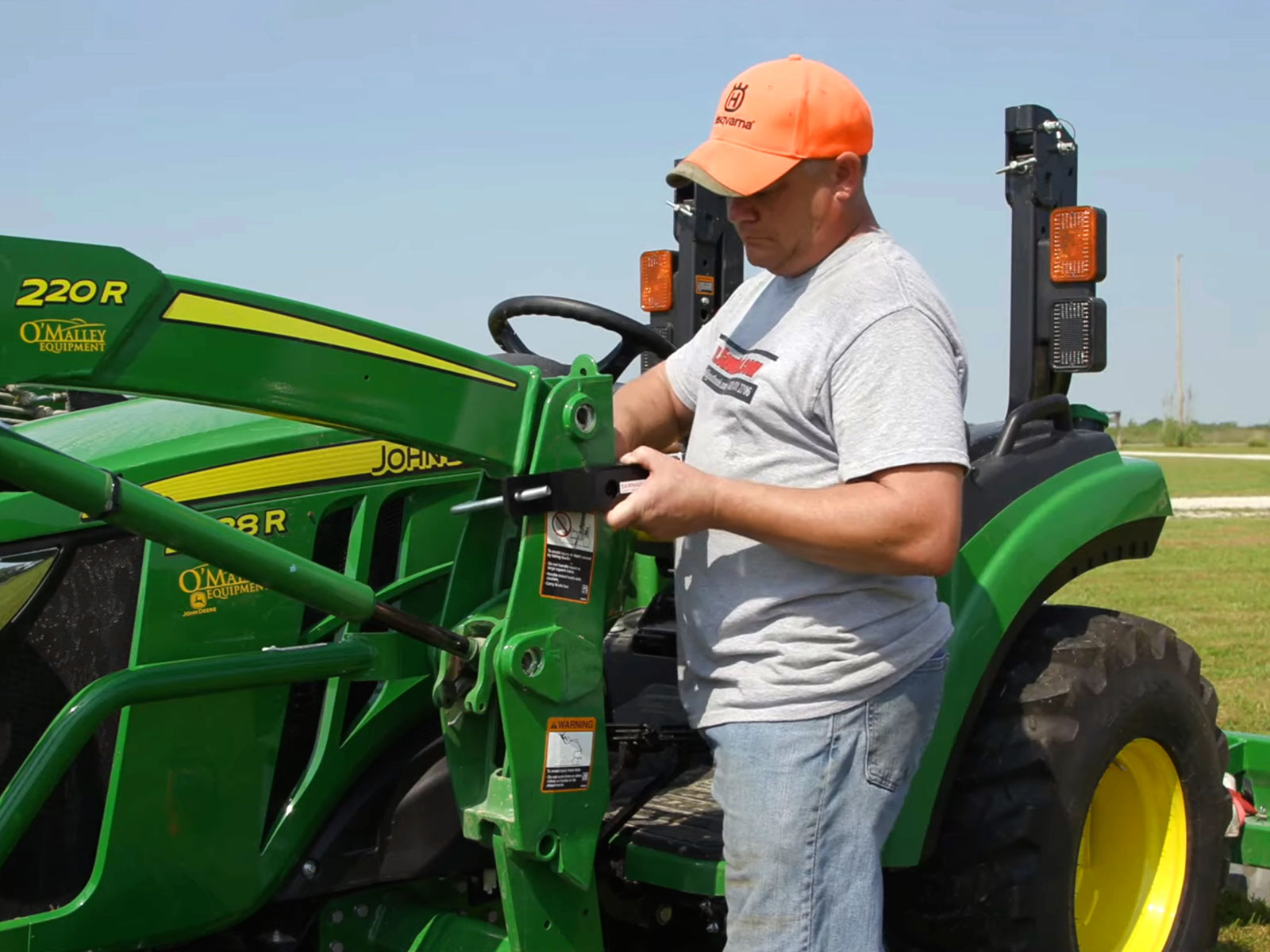

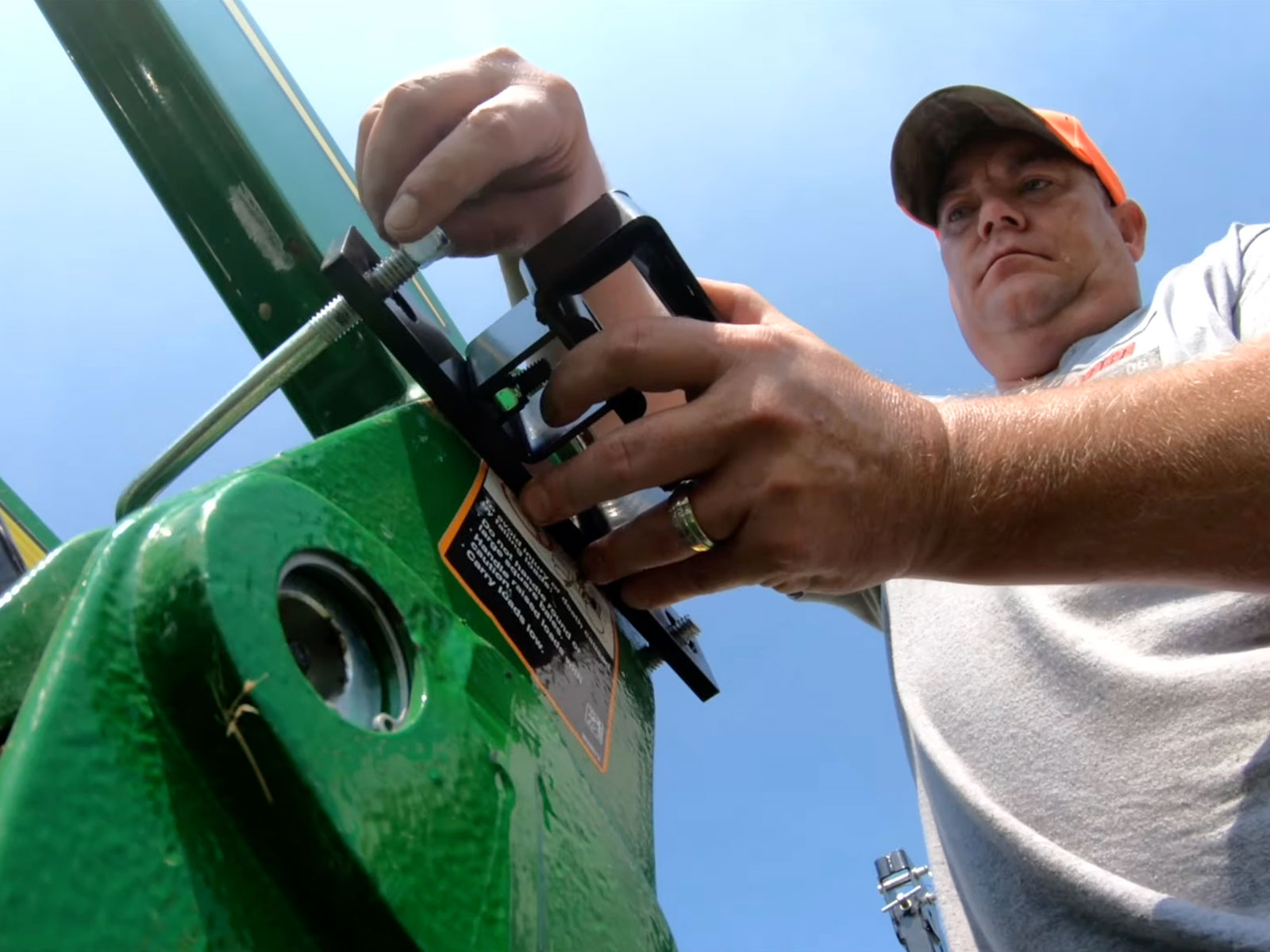

No drilling required, the SawHaul Tractor install in minutes, clamping to your front-end loader’s lift arm with a U-Bolt.
Carry the saw vertically with the Standard Mount, or opt for the Rotating Mount allowing you to rotate the saw to an easier position for removal.
Made with high-quality, powder-coated steel and UV protected plastic right here in the United States.
Product Highlights
- Carry your saw in a safe, out-of-the-way location
- Fits all makes of chainsaw
- Protects your chainsaw, just like the original case
- SawHaul comes as a complete mounting kit
- Mounts to the lift arm of your front-end loader
- Design for compact and sub-compact tractors from all manufactureres
- Fits chainsaw bars up to 36″ long
- Scabbards available in 20″, 28″, and 36″ lengths
- Two Mount Styles Available
- Fixed Mount: keeps your chainsaw locked in a vertical position
- Rotating Mount: stow vertically for transport, then pull a spring-loaded pin and pivot until you can easily pull out your chainsaw
- Installs in just minutes with no special hardware, no drilling required
- All SawHaul kits include: chainsaw mount, no-drill, loader lift arm kit, pro-grade scabbard, and hardware
- Heavy-duty, powder-coated steel
- UV protected plastic scabbard with weep hole for drainage
- Made in the USA
- Proudly designed and manufactured in Chanute, Kansas.
Two Mount Styles: Standard and Rotating
Standard and Rotating mounts are available.

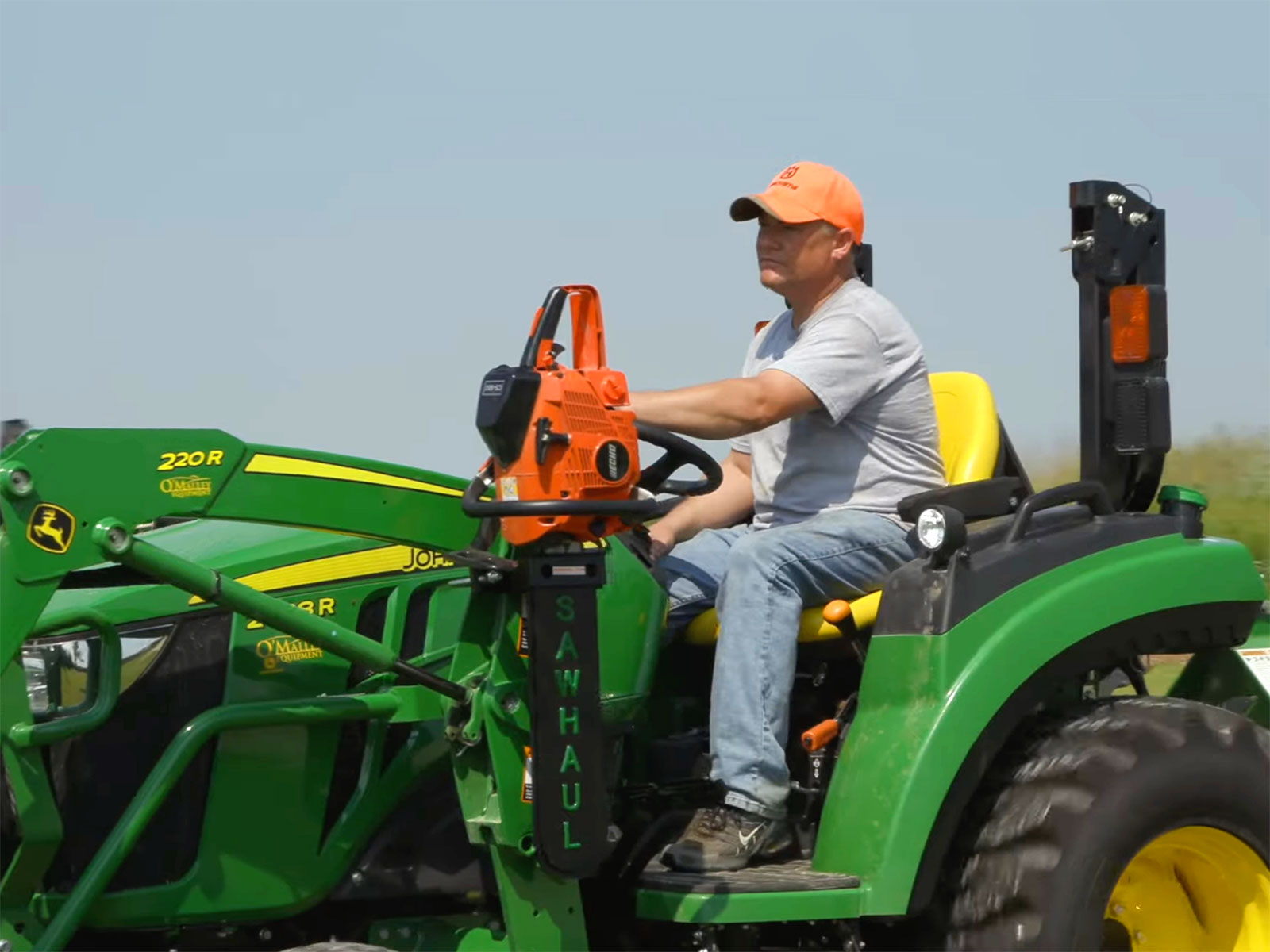

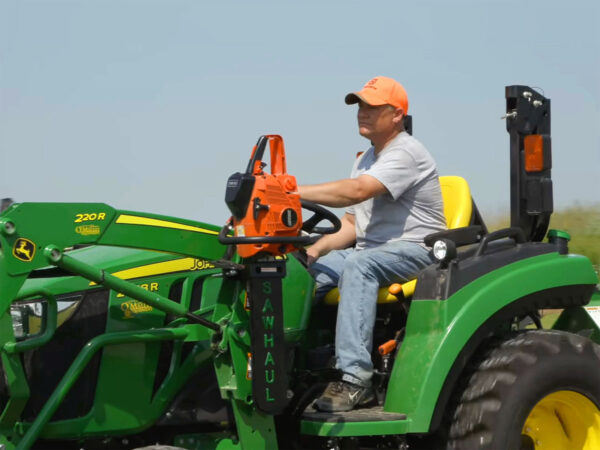

The Standard Mount carries your saw vertically.

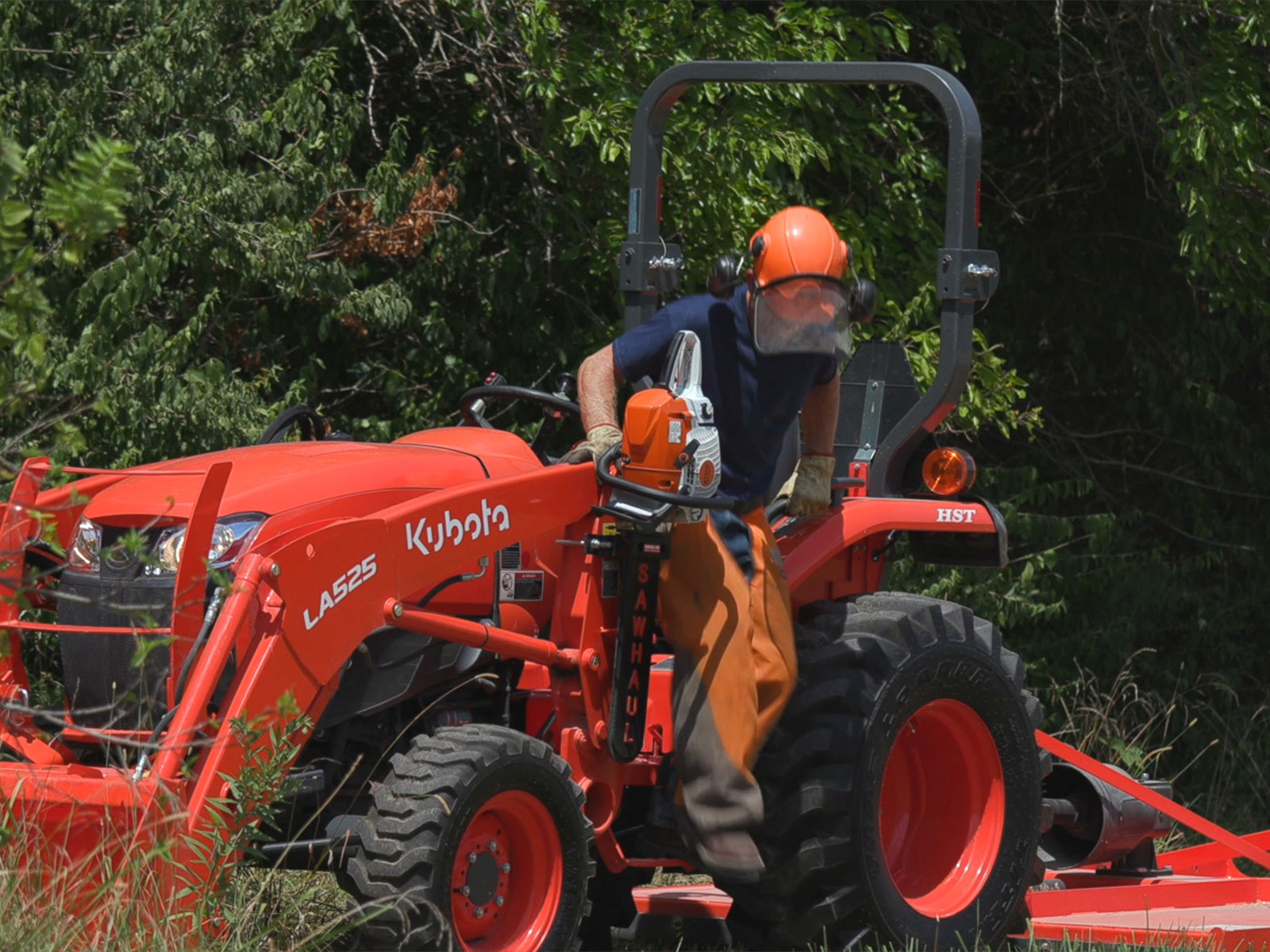

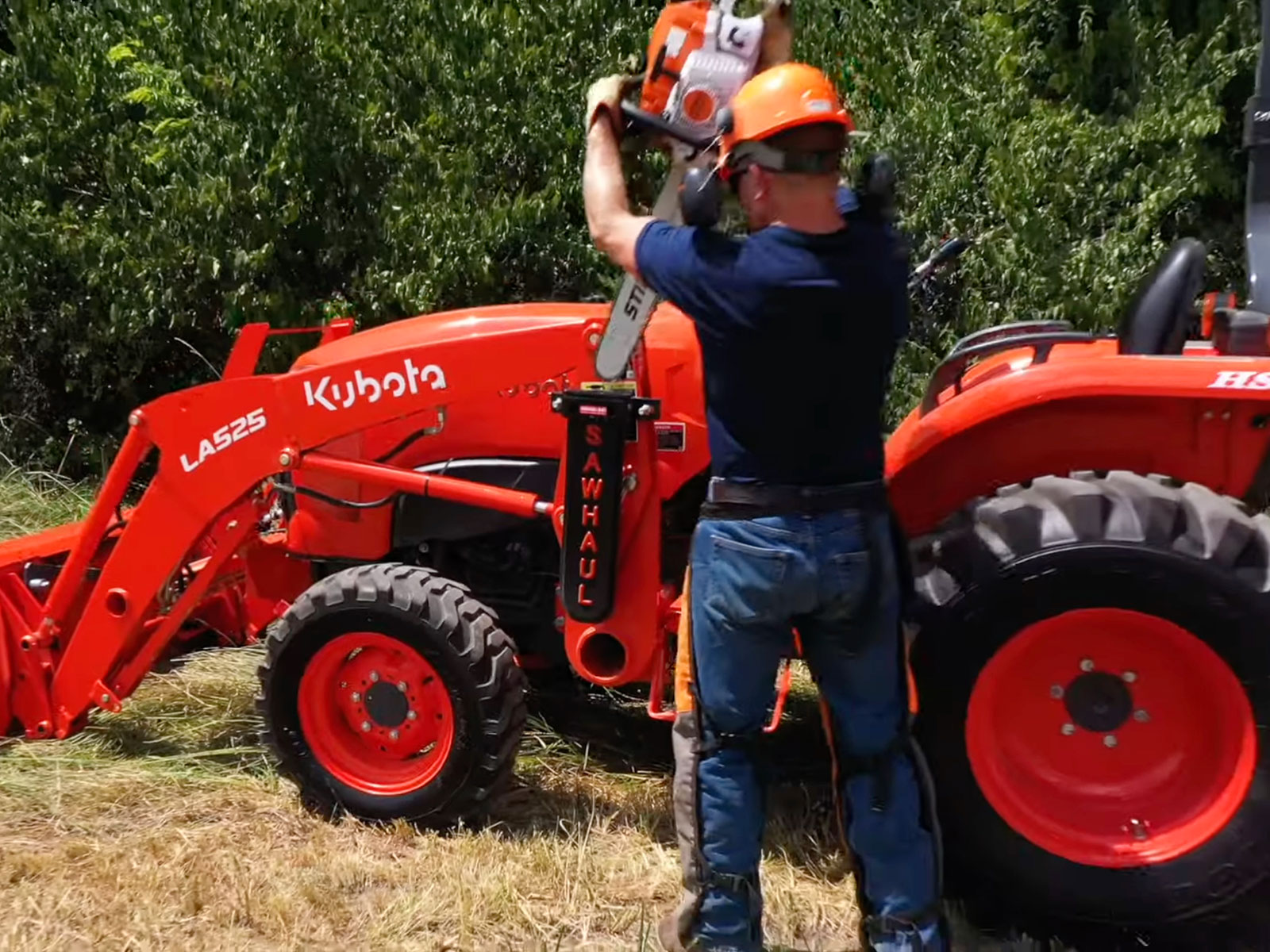

The Snap-Lock Rotating Mount uses a spring-loaded lock pin, allowing you to quickly rotate your carrier from vertical to any angle you desire for easier unloading of your saw. The Rotating Mount is also compatible with the Wall Mount, if you want to easily move your saw from your tractor to your garage (wall mount not included in kit).
Scabbard Size
The SawHaul has three optional scabbard sizes to fit the bar of your chainsaw—20″, 28″ and 36″.
Mount Size
There are two mount sizes for the SawHaul to fit to all lift arms on tractor front-end loaders, Standard and Large.
Please read the measurement guide below to properly size your Mount. If you have a John Deere Loader Model 300CX, 320R, 440R, 400X, or 400CX more details are below.
| Mount Size | |
|---|---|
| Loader Lift Arm Dimensions | |
|
Standard Mount
|
Up to 7 ¾” wide |
| 3–5 ½” deep | |
|
Large Mount
|
Up to 12″ wide |
| 4–6″ deep | |
Color

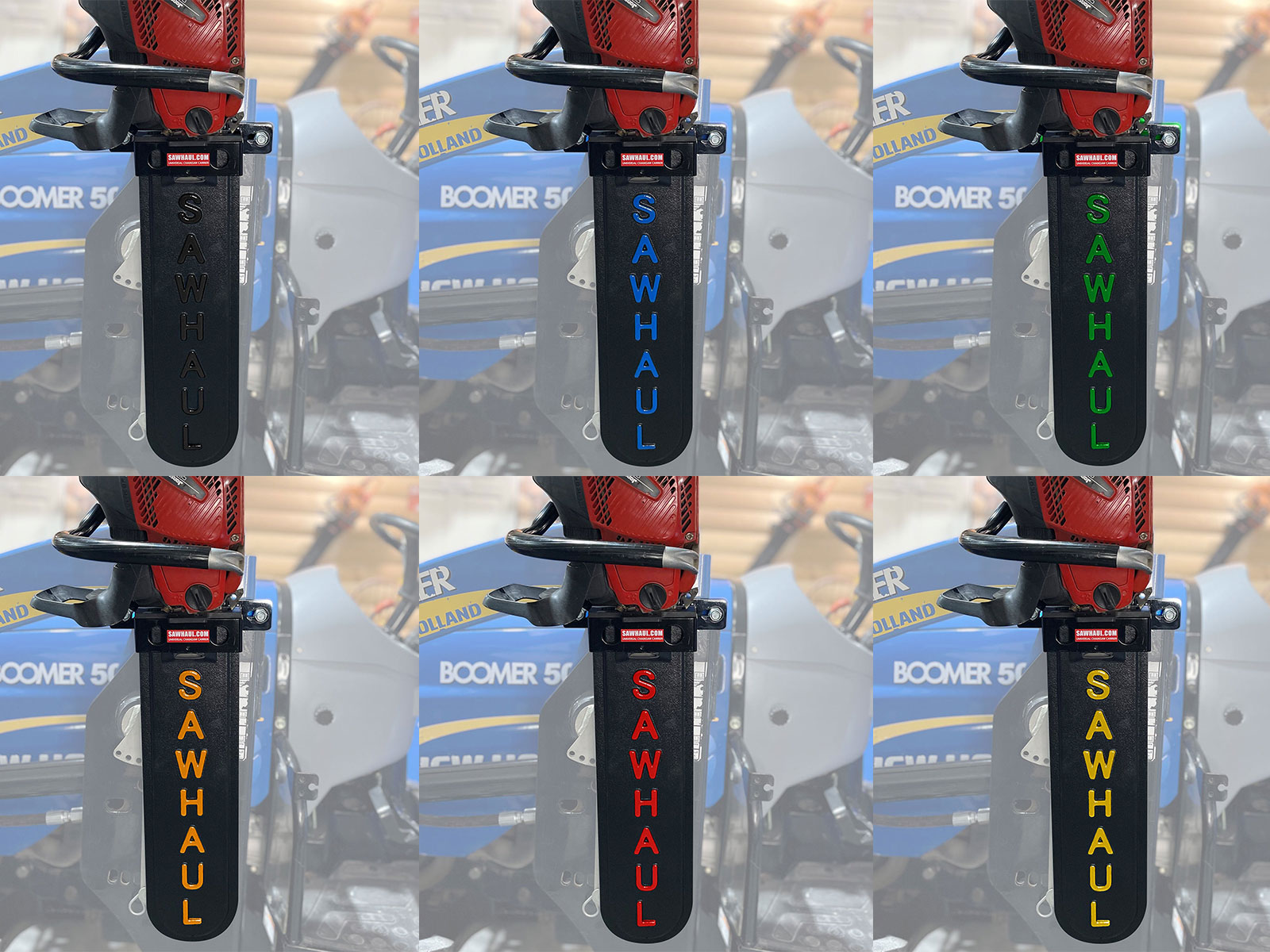

You can match the color raised lettering on the SawHaul to your tractor, be it Green, Orange, Red, Blue, or Yellow. So you’ve got an easy match for John Deere, Kubota, Mahindra, Kioti, LS, New Holland, or Ford tractors. Or you can stick with black.
Optional Accessories
Weather Resistant Cover
Protect your chainsaw from the rain, snow, and elements while in the SawHaul with a cover. Made from water-resistant canvas with a PVC backing. The cover also has mold and UV resistance, so you can expect it will last.
Secure Cable Lock
Command Lock has partnered with SawHaul to provide a cable lock that locks in seconds that uses a key, so no need to remember a combination. Two keys are included with the lock, which is designed from high-density, weather-protected cables.

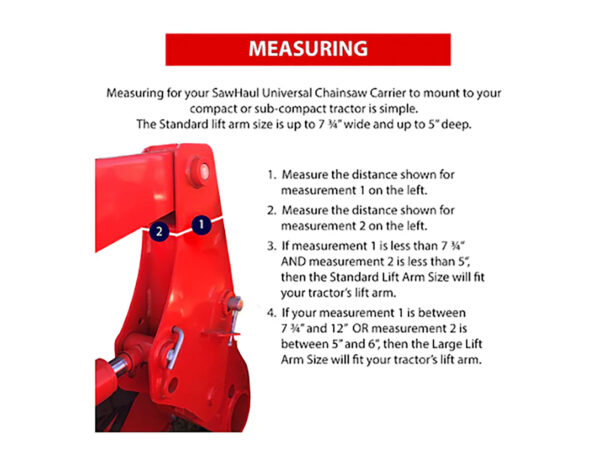

How To Measure Your Loader
John Deere Loader Compatibility
How to Fit Your Loader
John Deere loaders boast distinctive designs, and while models like 120R, H120, 220R, and 300E often accommodate Standard Tractor Mount adapters for their tool holders, not all models with the same number are identical. It’s crucial to take precise measurements.
Taking Measurements
Start by measuring the width and depth of your lift arm. SawHaul offer two mounting sizes:
- Standard: Width 4″ – 7 3/4″, Depth 3″ – 5 1/2″ thick
- Large: Width 7″ – 12″, Depth 4″ – 6″ thick
Your Options
Your lift arm may fit the Standard width but be too deep. Avoid the Large Mount size as it may stick out on each side a little too far. Opt for the Standard Mount and add an additional Flat Barfor lift arms with greater depth. Upon receiving your order, set aside the included U-Bolt and use longer all-thread bolts from your local hardware store.
Attach the tool holder per the included instructions, place the additional Flat Bar behind the lift arm, and secure with the longer bolts. Refer to the diagram below for a SawHaul Bracket installation.
Special Considerations for 300CX and 320R Models
The 300CX and 320R models feature distinctive curves, but the open backs of the lift arms do not affect tool carrier installation. To address concerns about slippage, consider wrapping a bicycle tire tube around the mounting point before securing the tool carrier. For these models, you may also opt to mount the tool carrier toward the driver on the side of the lift arm, as shown in the image below.
Another option is to mount a spacer on the inside of your tool carrier when dealing with lift arms that have an outer curve or indentation.
Installation for 440R Models
Most 440R models with cabs have one primary option—the Snap-Lok Rotating Large Mount Size. Due to the unique angle of attachment, the rotating ability is necessary for setting it back to a vertical position during transport. See the image below for a SawHaul installation with the Snap-Lok Rotating Mount.
Installation for 400X and 400CX
These models may have to follow the tips needed for the additional Flat Bar mentioned at the beginning under Your Options. Again, be sure to measure strategically.
