Tractor Powered Horizontal Log-Splitter Wallenstein

Wallenstein Tractor-Powered Horizontal Log-Splitters

The WX310, WX320, and WX330 are Cat I 3-Point Hitch log splitting solutions powered by your tractor’s hydraulics, from Canadian manufacturer, Wallenstein. These splitters are horizontally oriented.

Three models are available, the WX310, the WX320, and the WX330. The smaller of the series has a 20 Ton split capacity with a 24″ split opening and requires 10 gpm of hydraulic flow. The middle splitter has a 25 ton split capacity with a 36″ split opening and requires 13 gpm of hydraulic flow. The largest splitter has a 25 Ton split capacity with a 48″ split opening and requires 13 gpm of hydraulic flow.

All models are quick hitch compatible.

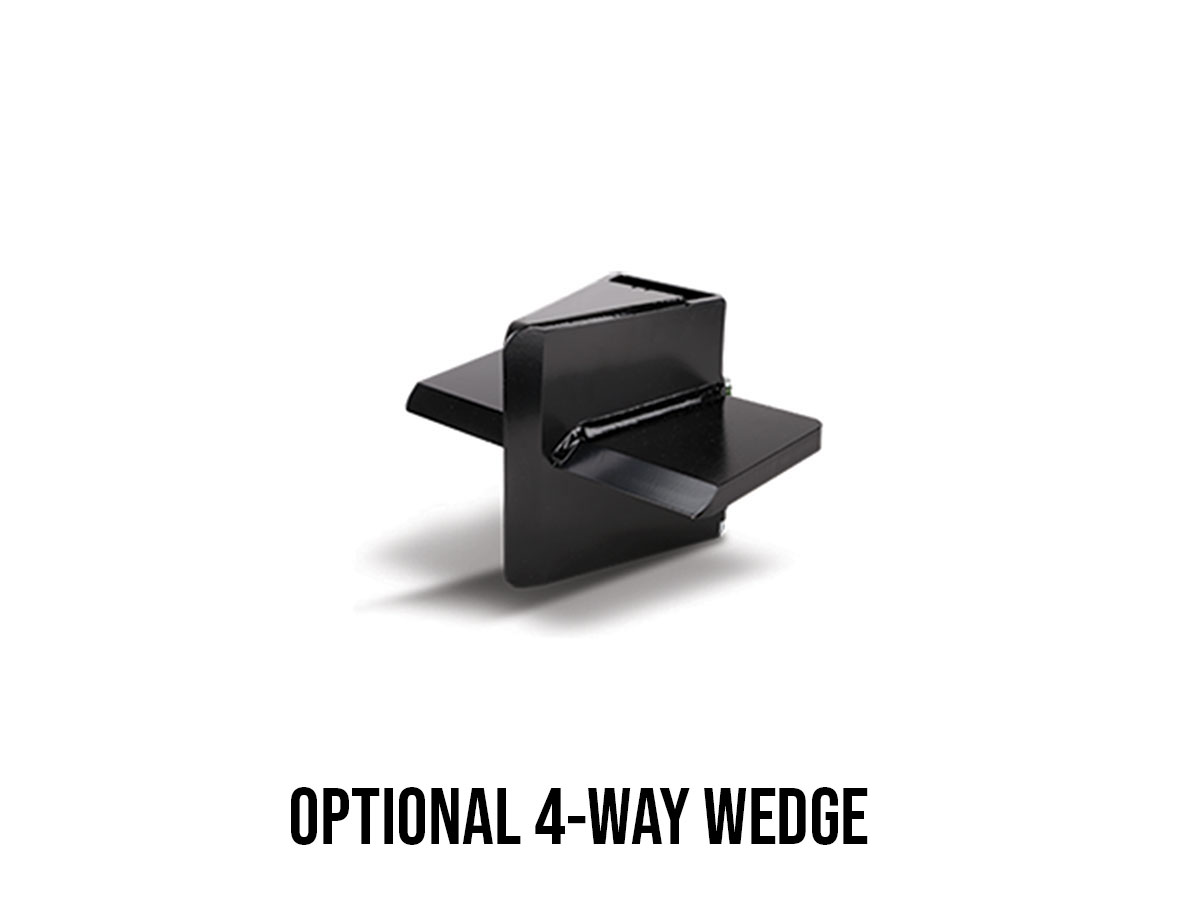

A 2-Way Wide Wedge is included that pops the log in a short distance. A 4-Way Wedge is an option.

To return the cylinder, just pull back on the lever and it will return to its starting position automatically, and then pop into neutral.

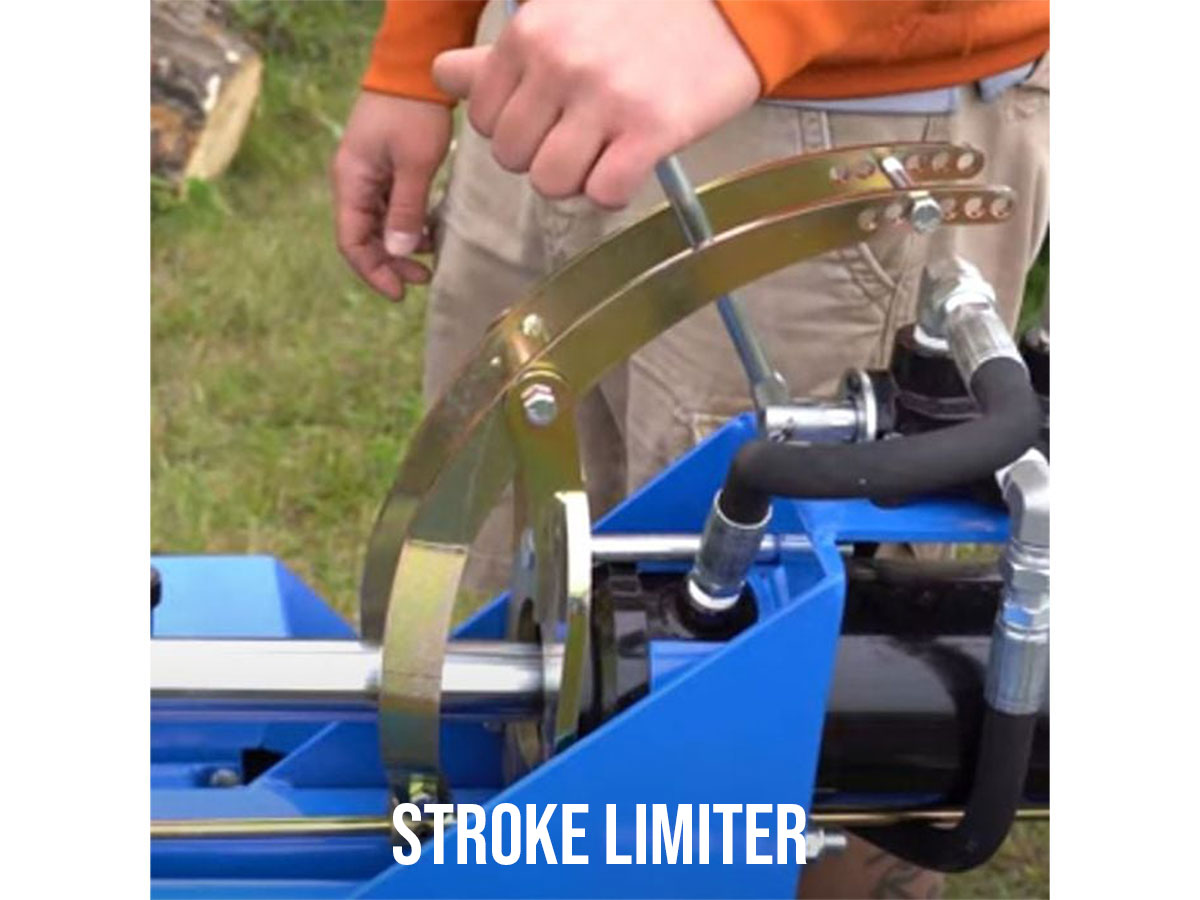

An optional stroke limiter is available to stop the cylinder from fully retracting, reducing your cycle time by almost 50% (for use on shorter logs).

If your tractor lacks the hydraulic flow necessary to power the 20 Ton splitter, an optional PTO Pump Kit is available to gain up to 11 gpm of hydraulic flow. Optional clamp on shelves are available for this unit, too.

All in all these are well thought out, compact, log splitters.

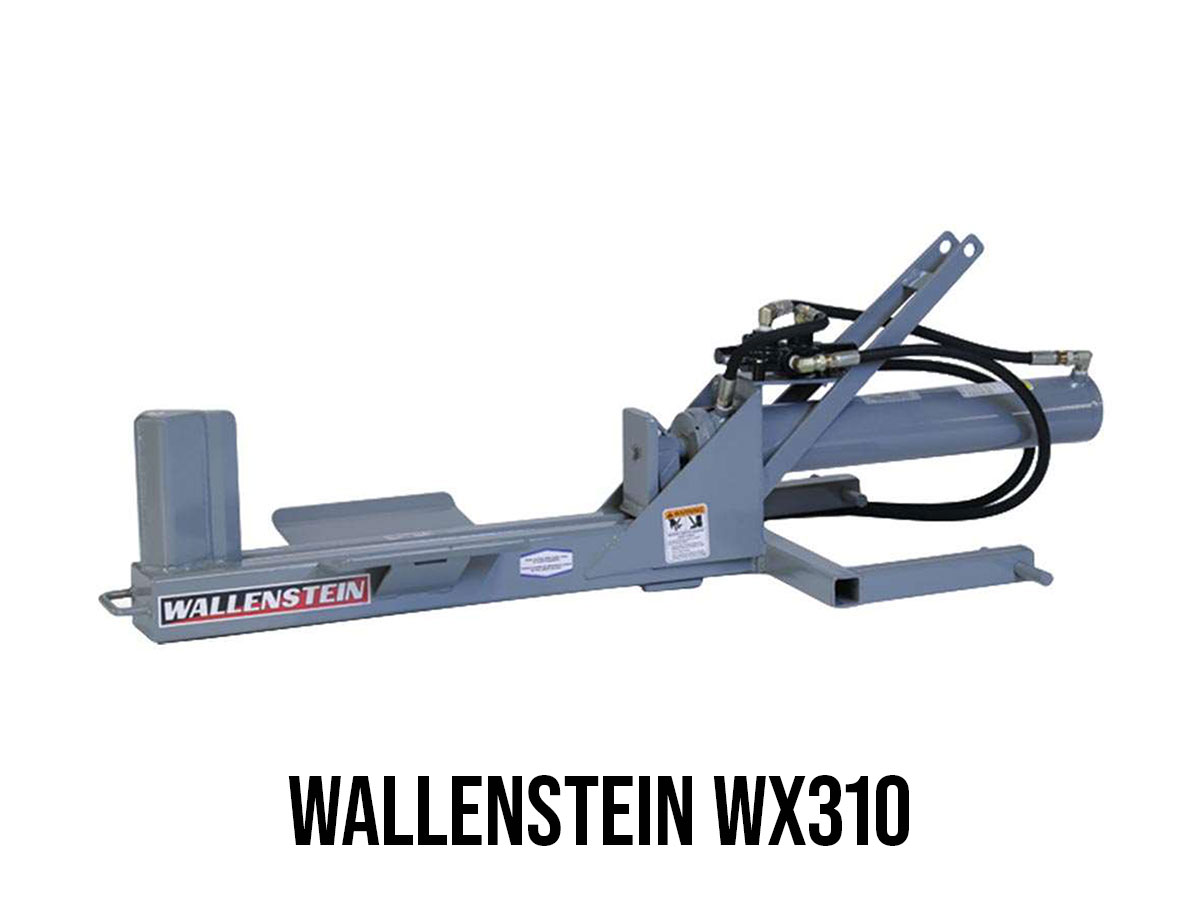

Wallenstein WX310 Log Splitter Details

• 20 Ton Split Capacity
• Requires 10 gpm of Hydraulic Flow
• Cat I 3-Point Hitch Compatible
• Quick Hitch Compatible
• 24″ Split Opening
• 6.62s Cycle Time (dependent on hydraulic flow)
• 215 lb
• 70″ x 28″ x 24″ (LxWxH)
• Optional PTO Power Pump Kit to Provide up to 11 gpm of Hydraulic Flow
• Optional Clamp On Shelves

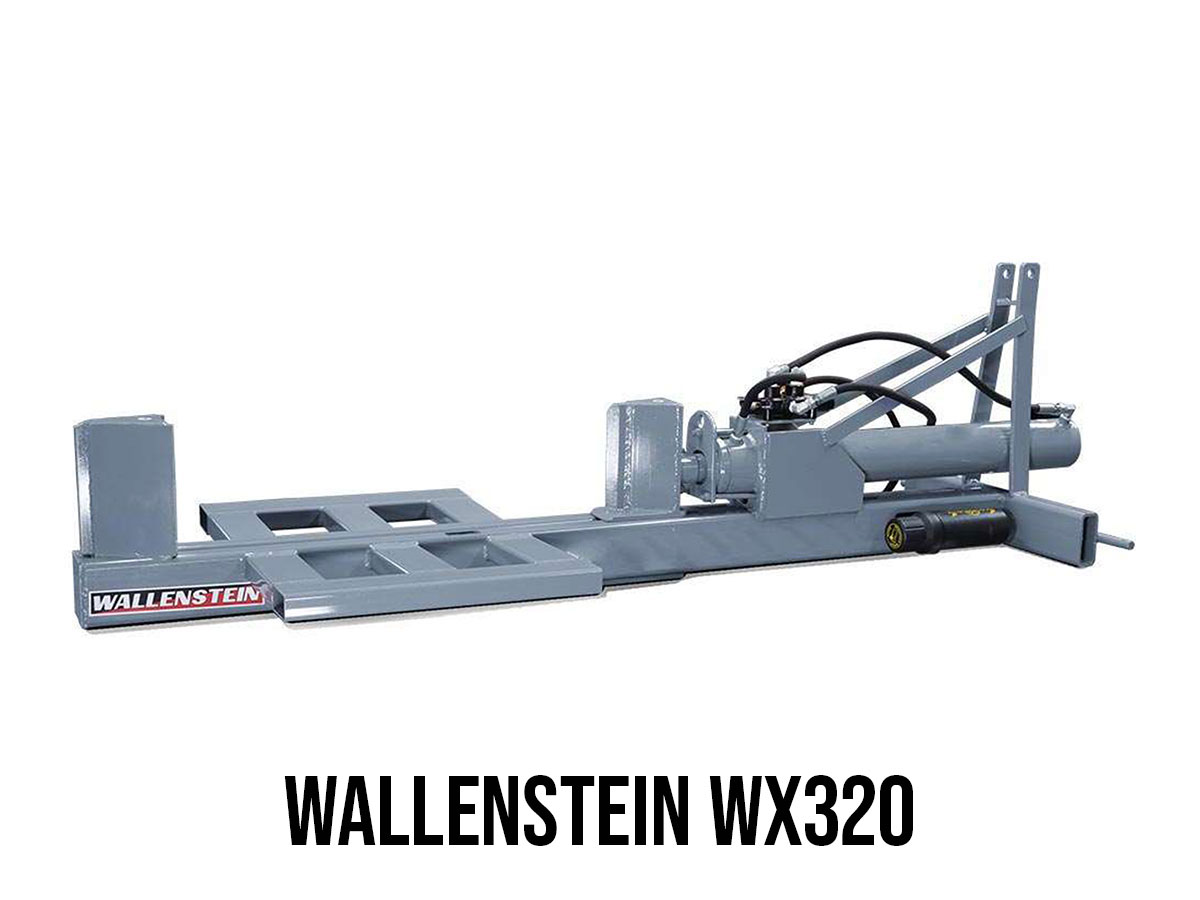

Wallenstein WX320 Log Splitter Details

• 25 Ton Split Capacity
• Requires 13 gpm of Hydraulic Flow
• Cat I 3-Point Hitch Compatible
• Quick Hitch Compatible
• 36″ Split Opening
• 11.43s Cycle Time (dependent on hydraulic flow)
• 375 lb
• 96″ x 30″ x 24″ (LxWxH)
• Wide Log Shelves

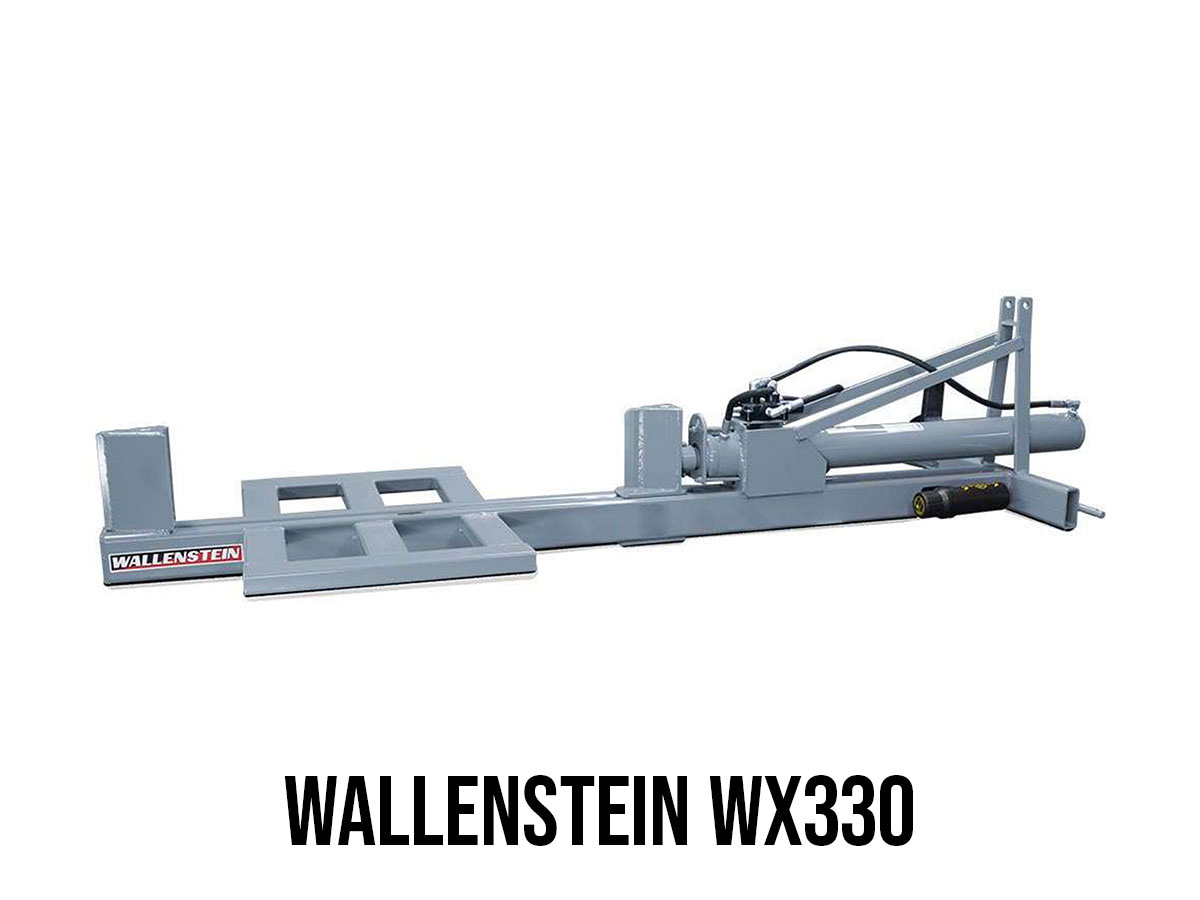

Wallenstein WX330 Log Splitter Details

• 25 Ton Split Capacity
• Requires 13 gpm of Hydraulic Flow
• Cat I 3-Point Hitch Compatible
• Quick Hitch Compatible
• 48″ Split Opening
• 15.24s Cycle Time (dependent on hydraulic flow)
• 425 lb
• 120″ x 30″ x 24″ (LxWxH)
• Wide Log Shelves

How to Choose the Right Log Splitter:

There are 4 main choices to consider:

1) TYPE: Do you require an engine-powered model or would you prefer to power it off your tractor or skidsteer?

2) POWER: Most wood can be split by a 20-ton splitter. However, hardwoods with gnarled, twisted grains, such as those that often grow up along a fence line may require a splitter with a higher splitting force.

3) ORIENTATION: Vertical 3-point hitch models, inverted skidsteer models and horizontal-vertical woodsplitters are very helpful when the wood being split is too large or heavy to lift onto a log bed. The Log Lifter fitted to some of the WX900 series models is also helpful in this regard.

4) SPLIT LENGTH: Do you require 24”, 36” or 48” lengths of split wood? If you are interested in a trailer model, consider how much wood you intend to spilt, is it for commercial or rental use, does towed equipment require lights and licensing where you live. If available in your chosen model, a “T”, or Tall version of the splitter can raise the working height to a more comfortable level. The horizontal / vertical splitters can also help in this regard.
