The Add-A-Wrecker just got a big brother. Check it out
This Gen II Mini Electric Grapple from Worksaver has major improvements over the first generation, and is still the perfect grapple solution for tractors under 32 horsepower that lack hydraulics run to their front-end loader.
When a manufacturer makes product improvements it implies at least two things: the product is selling well, and they care about making the highest quality product possible.
This 48″ grapple relies on an electric actuator to open and close the grapple, which has now doubled the clamping force compared to Gen I, giving you 2,000 lb of clamping force vs 1,000 lb. Doubled!
And this improved second generation grapple comes with a brushless motor vs brushed, and fully sealed thumb control. And also a potentiometer to monitor amp draw (which will shut off if overloaded, instead or relying on a shear pin and slip clutch to prevent damage).
So if you need a grapple, but lack the hydraulics, read on to see how you can utilize this electric grapple.
Mini Electric Grapple JDQA, SSQA
Original price was: $4,607.00.$3,685.00Current price is: $3,685.00.
20% Off (Save $922.00)
Purchase this item and get In Stock Available to pre-order now
Picking the right attachment to fit your tractor isn’t always easy. That’s why we exist.
Contact us prior to purchase to get our recommendation for your tractor model, and if it doesn’t work, you can exchange for the right size at no cost to you.
All orders qualify for Basic Free Shipping, whether Ground or Freight.
Our Free Shipping Zone includes 36 states.
If you live in the continental United States, but outside of this zone, your shipping price will be calculated at checkout.
All freight orders are eligible to upgrade to a Lift-Gate for delivery. Otherwise the customer is responsible for offloading their order from the truck.
For full shipping details, go here.
Every product comes with its own factory warranty specified by the manufacturer.
We offer extended warranties to protect your purchase even longer.
Extended Confidence Coverage
Extends the manufacturer’s warranty one year beyond the factory warranty.
Lifetime Priority Protection (Most Popular)
Extends the manufacturer’s warranty for the lifetime of the product and includes priority handling, no-hassle claims, and lifetime support.
What’s Covered
Our extended warranties cover defects in workmanship such as broken welds, torn steel, or improper fit. If a covered issue occurs, we will repair or replace the product at our discretion.
What’s Not Covered
Damage caused by improper use or use outside the product’s intended purpose voids the warranty.
Cosmetic wear such as paint loss, scratches, dents, or bent teeth, as well as normal wear to common attachment components and consumables including cutting edges, shanks, tines, skid runners, skid shoes, blades, belts, bushings, bearings, oils, grease, and similar wear items is not covered under warranty.
Shipping or transportation costs, downtime, and labor are not covered.
Transferability
This warranty is non-transferable and applies only to the original owner/operator.

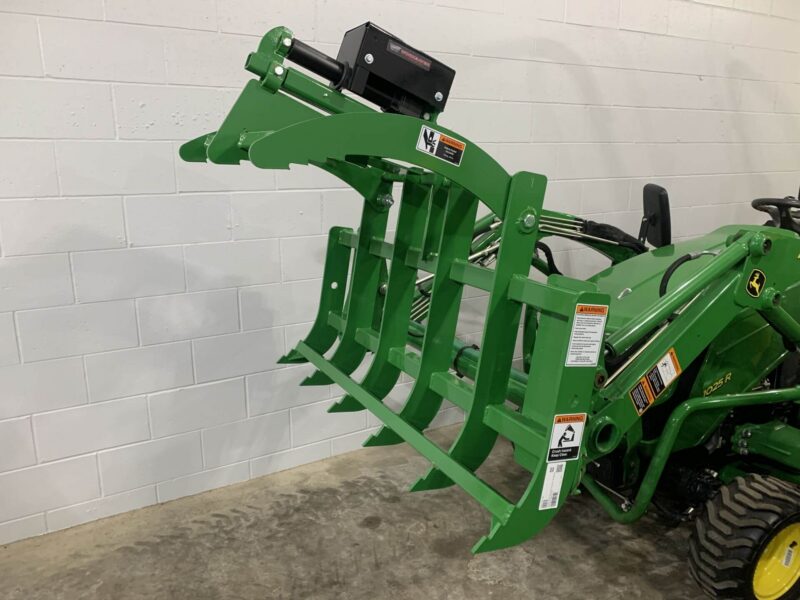

Worksaver Generation II Mini Electric Grapple ESCG-48 Overview
No auxiliary hydraulics needed for this grapple!
Worksaver’s Mini Electric Grapple is special in two ways. First it’s sized and engineered for small subcompact tractors less than 32hp.
Second, unlike a traditional grapple that requires a third function, this one is electric! No additional hydraulics required! Instead it is powered by your tractor battery. There is no cheaper way to get the advantages of a grapple than by going electric.
The wiring harness has a quick disconnect toward the grapple end, making connection to your attachment quick and easy.
It’s available in JDQA and SSQA connections for your loader (Models ESCGSS-48A and ESCGJD-48A).
Fabricated from 3/8″ steel, they still maintain a light weight so as to not waste your loader’s lift capacity.
This grapple design is great for collecting debris, downed branches, brush piles, firewood, decorative or unwanted rocks, and lots lots more.
This Worksaver grapple is made in the USA, super light at 247 lb (for limited capacity loaders on small tractors), includes a weather-sealed thumb control, no additional hydraulics required, and easy installation!
*This new actuator is backwards compatible with Gen I grapples. If you want to upgrade your Actuator for your Gen I Worksaver Mini Eletric Grapple, email us and we’ll provide a quote.
| Electric Sub-Compact Grapple Rake Specifications | ||
|---|---|---|
| ESCGSS-48A | ESCGJD-48A | |
| Overall Width | 49 in / 1245 mm | 49 in / 1245 mm |
| Mount Type | Skid Steer | JDQA |
| Overall Height Closed | 41.5 in / 1054 mm | 41.5 in / 1054 mm |
| Grapple Opening | 31 in / 787 mm | 31 in / 787 mm |
| Upper Grapple Width | 28.25 in / 718 mm | 28.25 in / 718 mm |
| Lower Grapple Width | 49 in / 1245 mm | 49 in / 1245 mm |
| Tine Spacing | 9.25 in / 235 mm | 9.25 in / 235 mm |
| Number of Tine/Grapple (lower/upper) | 6 / 3 | 6 / 3 |
| Type of Linear Actuator | 12-volt, IP65 Rated |
12-volt, IP65 Rated
|
| Actuator Stroke | 8 in / 203 mm | 8 in / 203mm |
| Weight | 247 lb / 112 kg | 240 lb / 109 kg |
| Product No. | 812075 | 812095 |
Mini Electric Grapple TECH Specs
- Powerful Clamping Force
- Equipped with Gen-II actuator delivering 2,000 lb of force
- Included patented telescopic tube that protects cylinder from horizontal load
- Built-in Overload Protection
- Features a potentiometer to monitor current draw, eliminating the slip clutch and shear pin.
- Quick and Efficient
- Operates at a speed of 1 in / sec for smooth and swift performance
- Pre-wired push button switch controls the grapples’ linear actuator
- Designed for sub-compact tractors
- Up to 32 horsepower
- 12-volt linear actuator with 8-inch stroke operates the grapple clamp
- Includes wiring harness for direct connection to the tractors’ battery
- Pre-wired rocker switch controls the grapples’ linear actuator
- Upper grapple, lower tines have CNC gripping notches cut into them to help secure material
- Parking stand to assist storage and hook-up
- Durable square tubing provides strength to lower tines
- 31 inch grapple opening for ease of gathering materials
- 1.5” x 8” cylinder for upper clamp is job matched
Available Colors
- John Deere Quick Attach ships in Greens
- Perfect for the John Deere 1023e, 1025r, 1026r, 2025r, 2032r, 3032e, & more!
- Skid Steer Quick Attach ships in Black
- Perfect for Kubota BX23s, BX2380, BX2680, BX2670, B2650, B2620, & more!
___
Watch the video showing installation and operation!
___
A note about safety!
Whenever you are putting a load on the front-end of your tractor, you need to counter that weight on the back end. This is accomplished many ways. One of which is just by hanging weights off your 3-Point. We have a great solution for this in our Counterweight Bundle.
