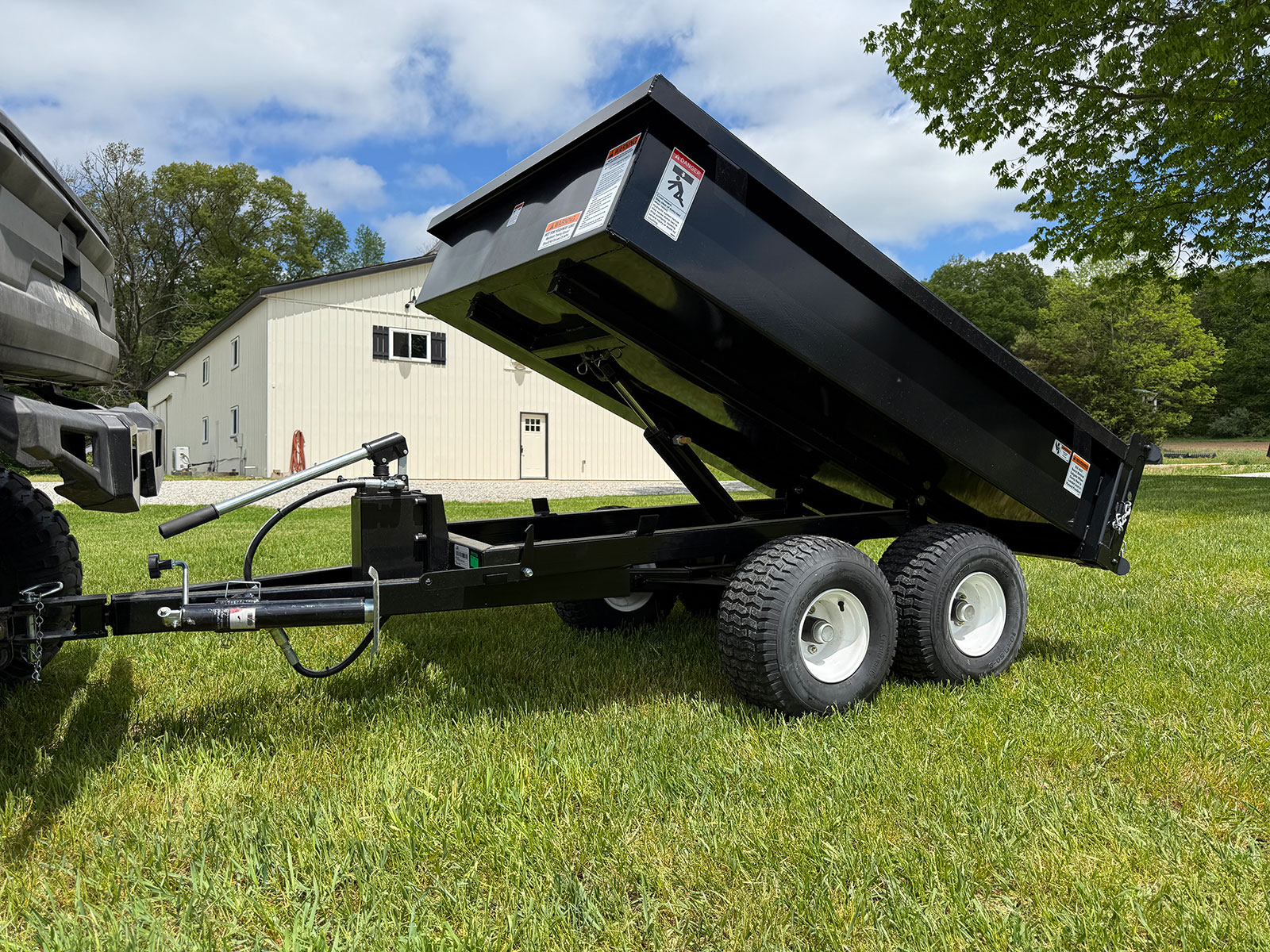

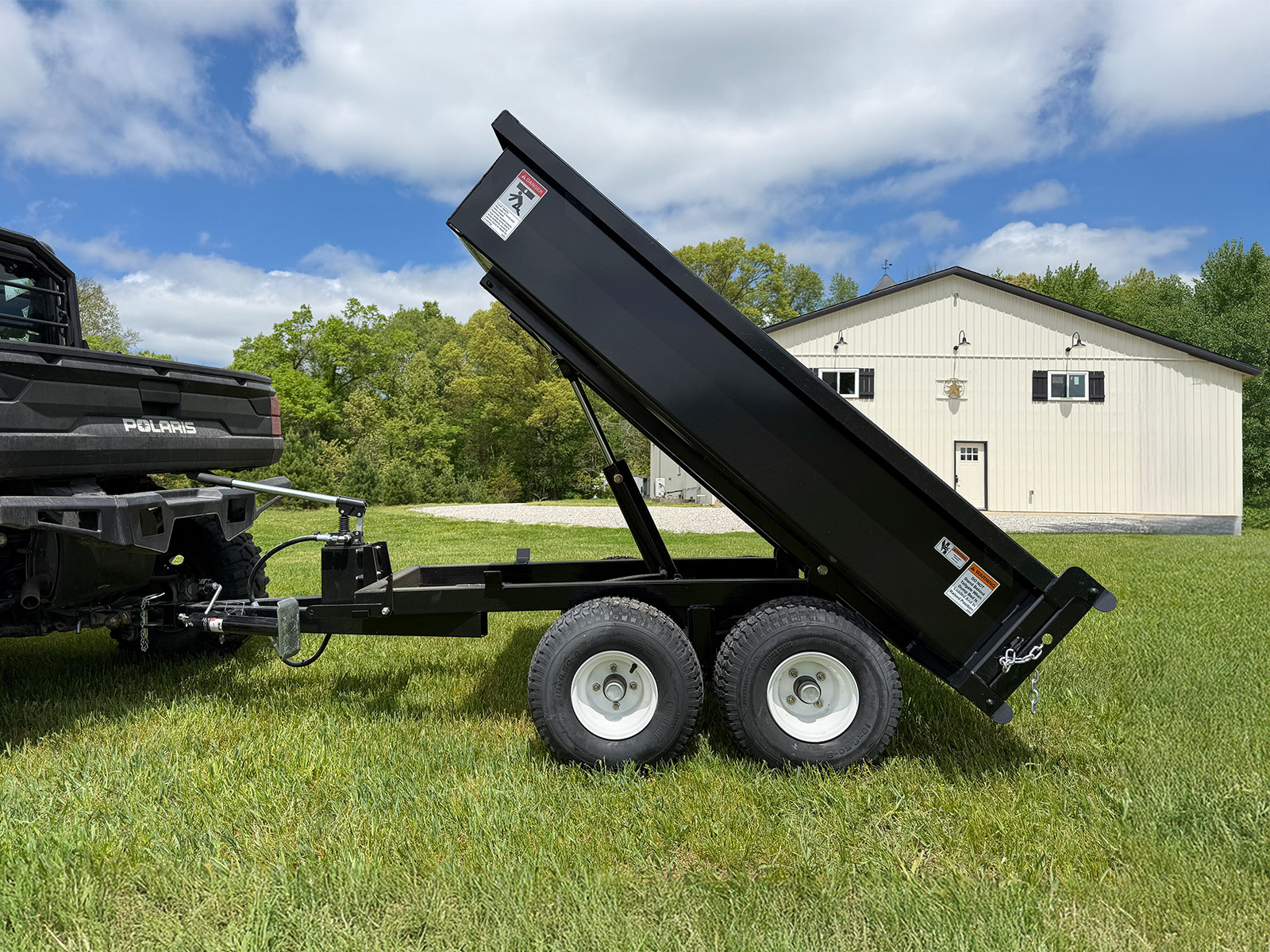

Hydraulic Dump Trailer for Tractor and UTVs

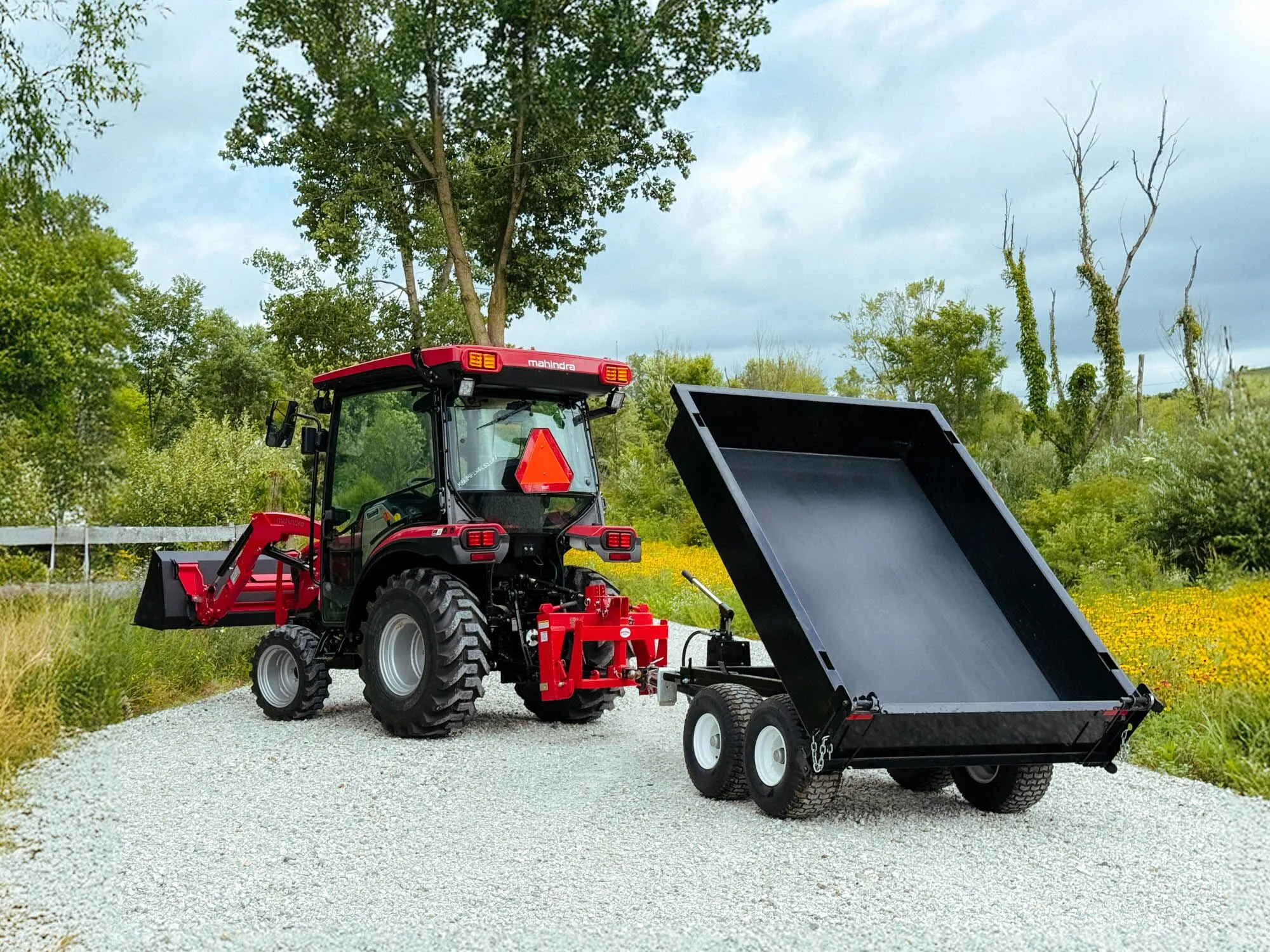

Our GWT Hydraulic Dump Trailer is a great solution to pull behind your tractor or UTV.

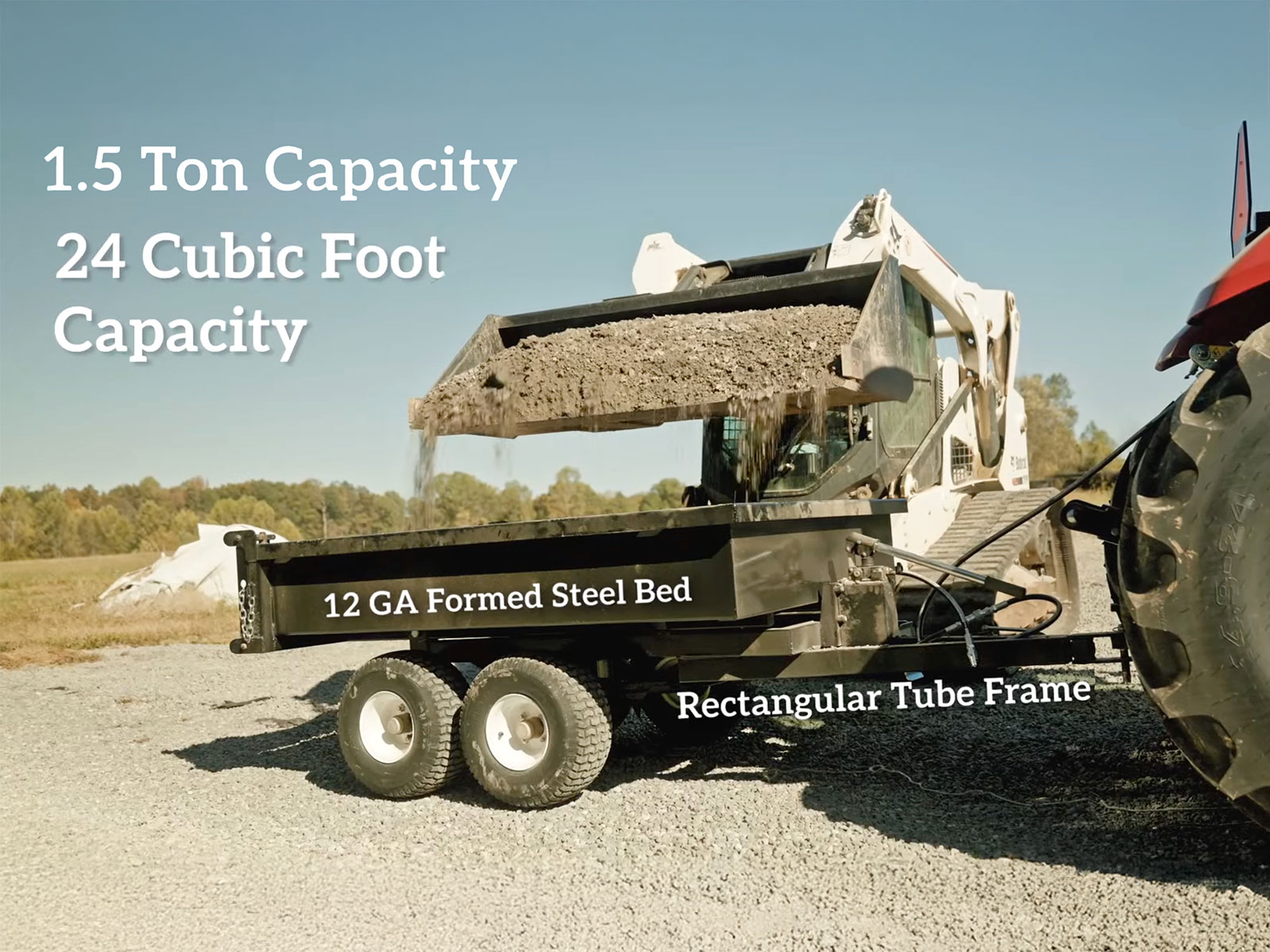

A generously sized bed holds big loads of sand, gravel, dirt, brush, logs, clippings, or whatever, carrying up to 1.5T (that’s 3,000 lb). That should tell you a thing or two about its build quality—with a bed made from 12 gauge steel, and a subframe made from 2×3″ rectangular steel tubing.
The trailer’s overall width of 54.5″ is a great match for all tractors, because wherever you can take your tractor you can also pull this trailer.
Don’t have a trailer hitch on your tractor?
If you don’t have a trailer hitch receiver on your tractor, shop our GWT VersaBracket which is a 3-Point weight rack with lots of additional features, including a 2″ receiver. Or shop our GWT VersaForks—pallet forks that fit your loader and your 3-Point and also come with a 2″ receiver.
Trailer Features & Benefits
- Load Capacity: 3000 lb
- Carrying Capacity: 24 cu ft
- Construction:
- 12 Gauge Steel Bed
- 2 x 3″ Tube Steel Frame
- 45° Dump Angle

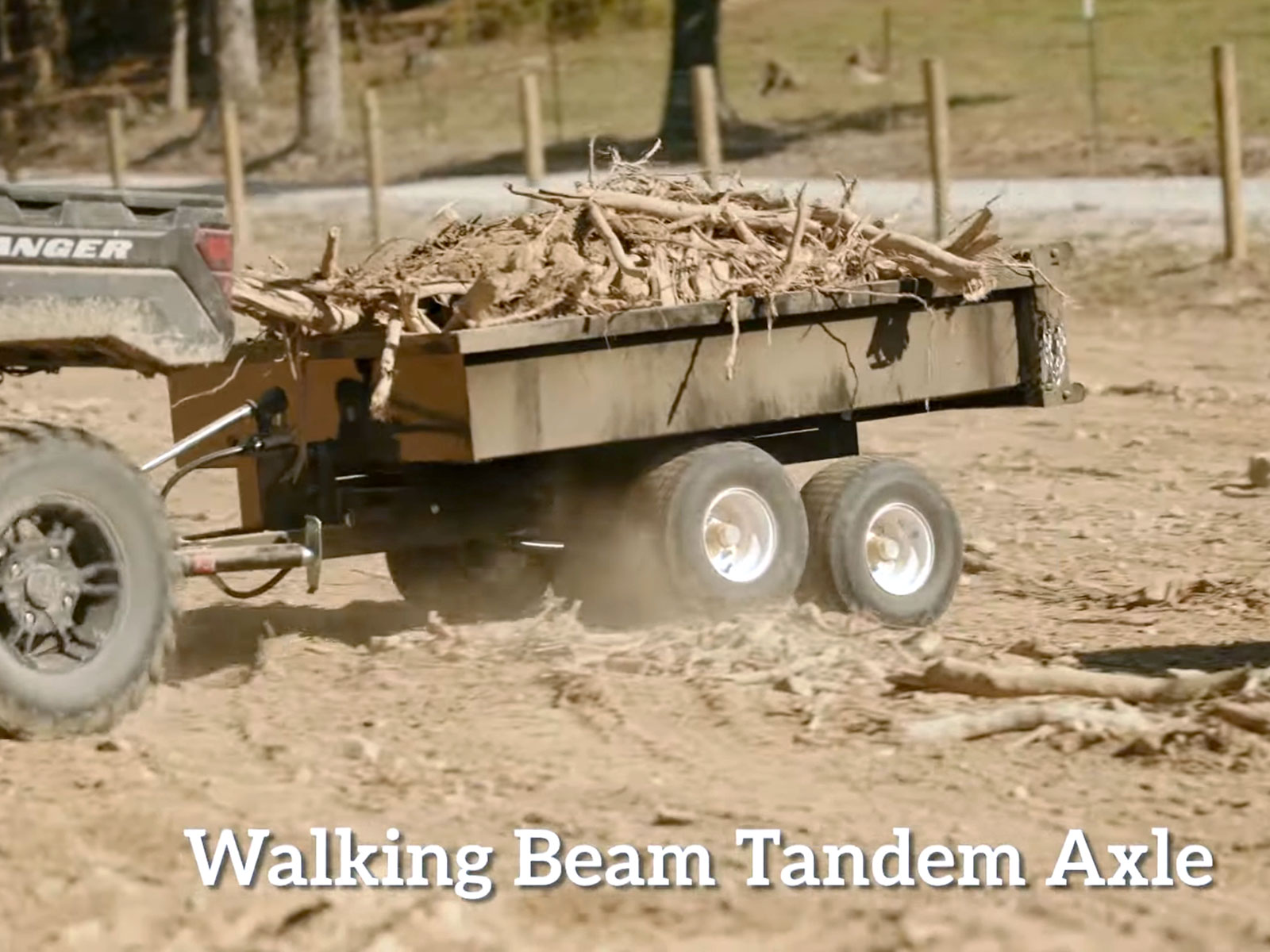

- Walking Beam and Tandem Axle
- Keeps the Bed Level Crossing Even Very Uneven Terrain
- Hydraulics:

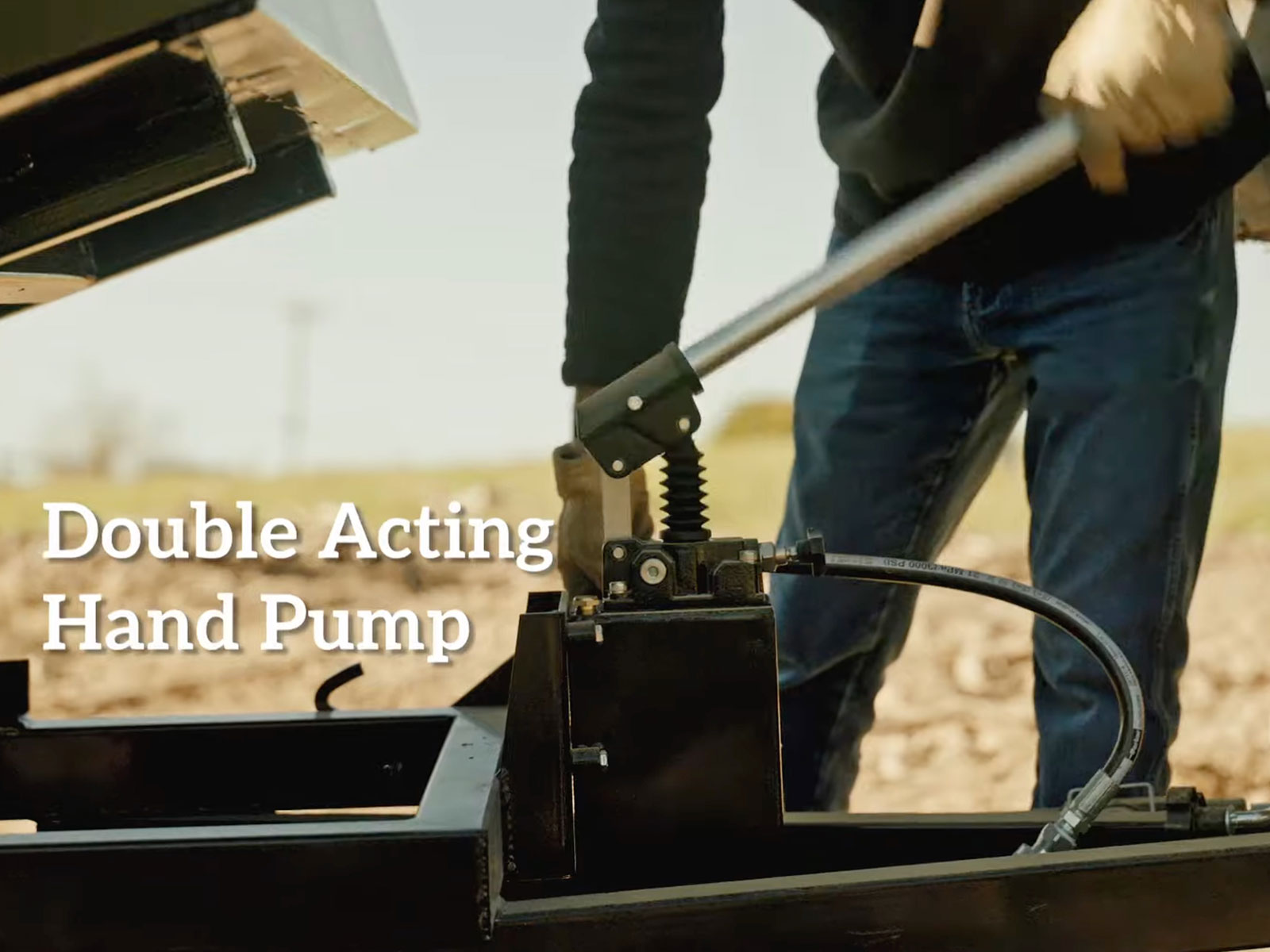

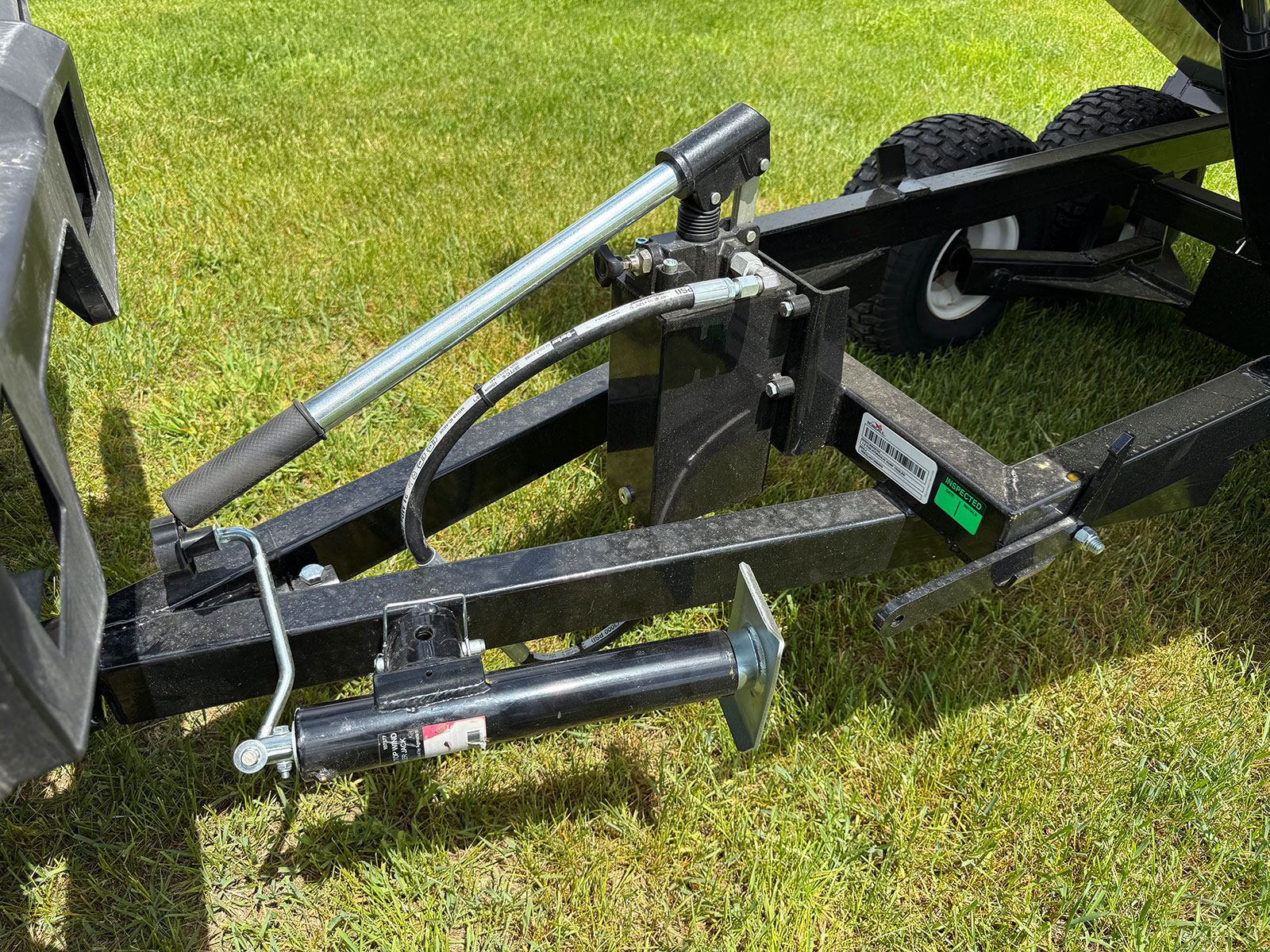

- Double-Acting Hydraulic Pump Handle

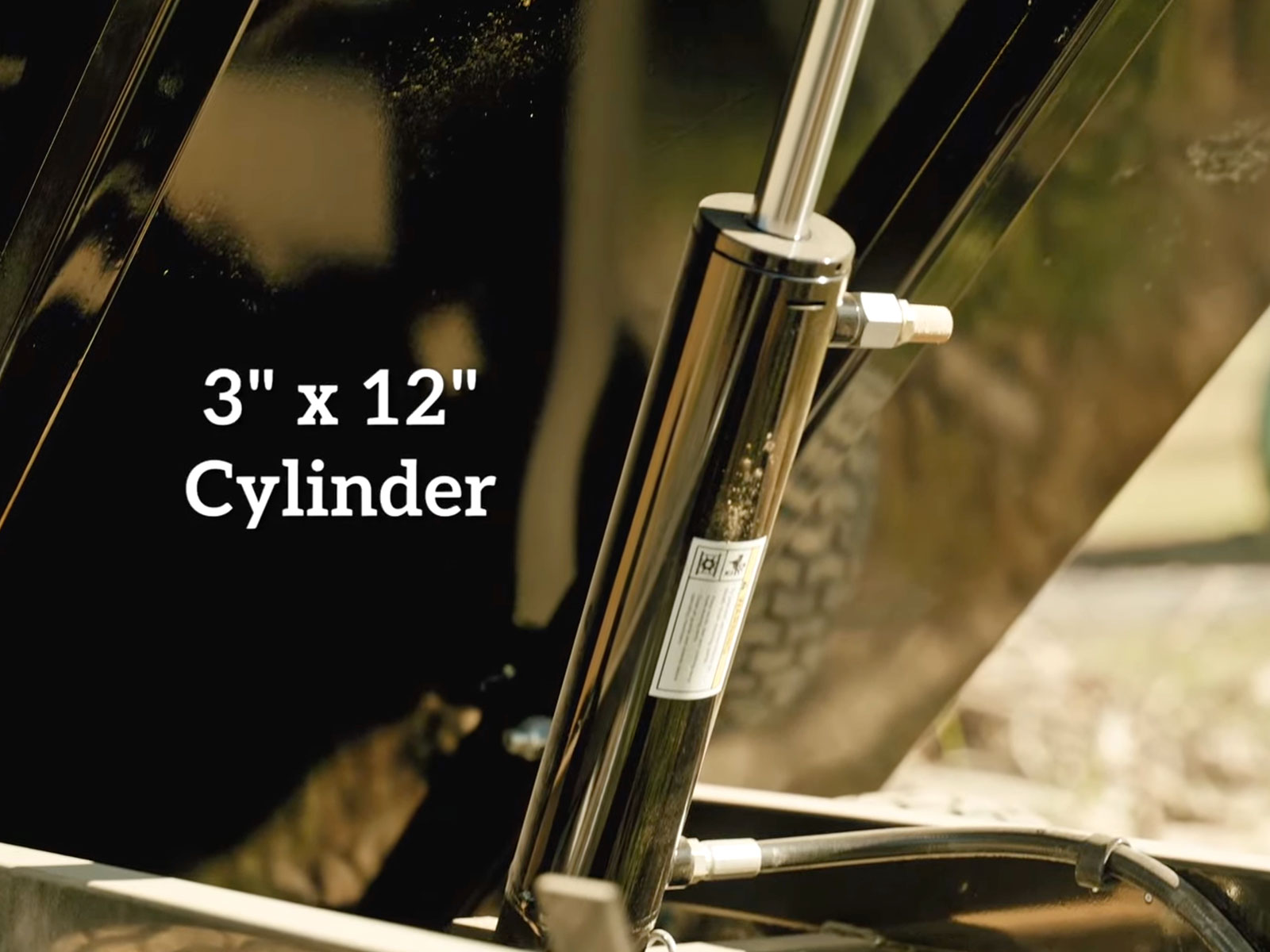

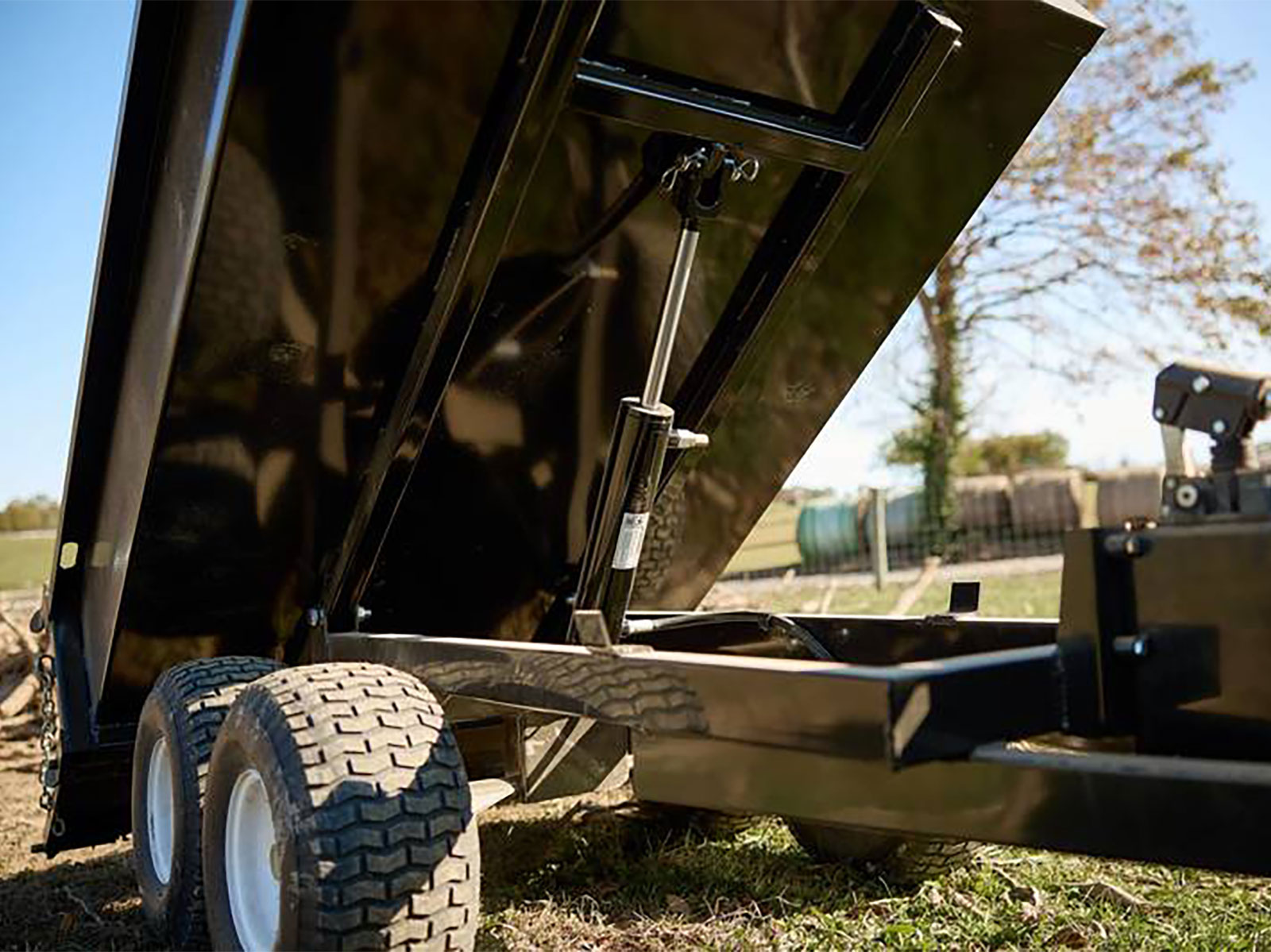

- Single Action 3×12″ Cylinder

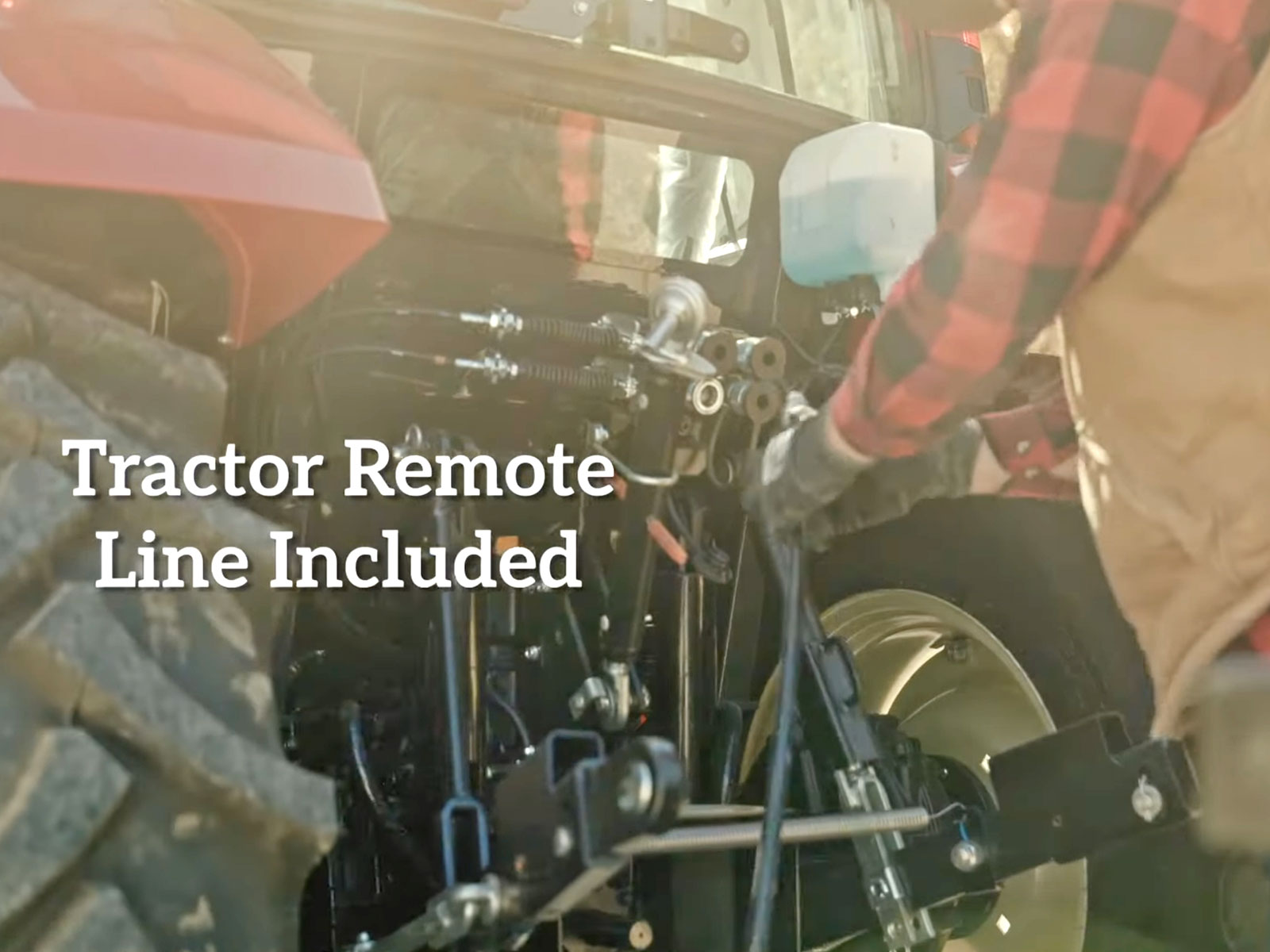

- Included Hydraulic Hose for Rear Remote Hookup on Tractors
- Hitch Style

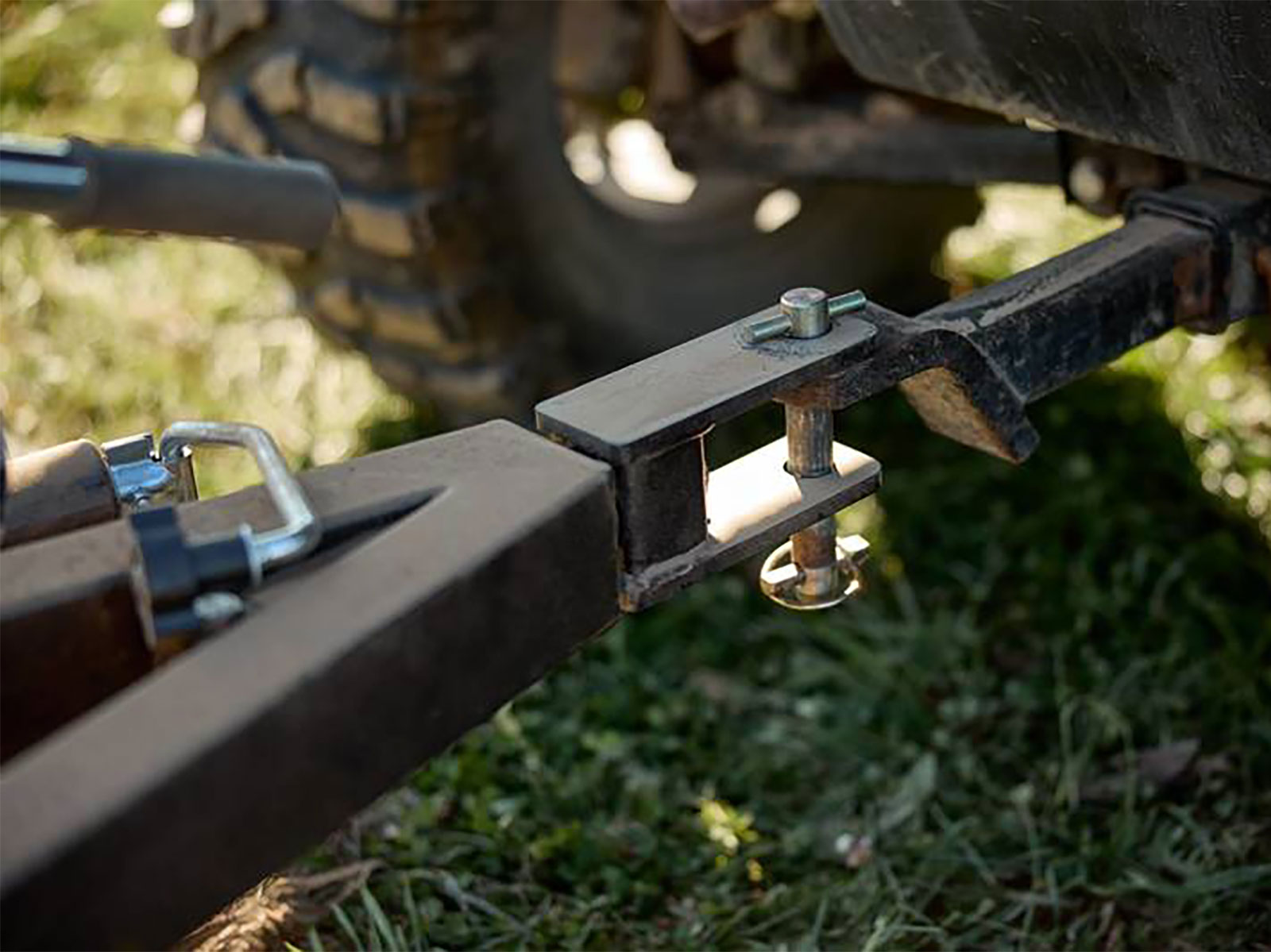

- Swivel Clevis, Standard

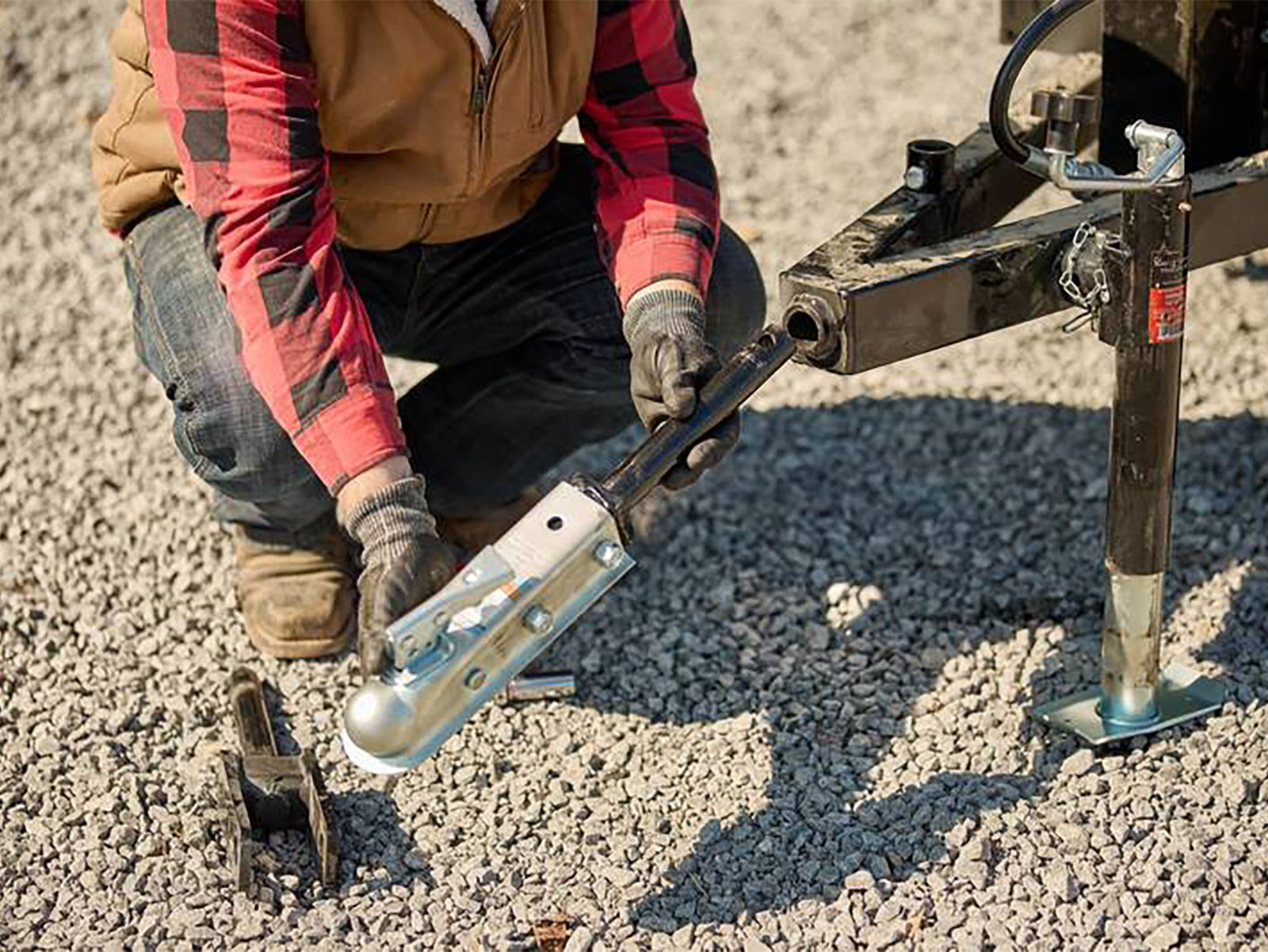

- 2″ Coupler with Ball, Optional

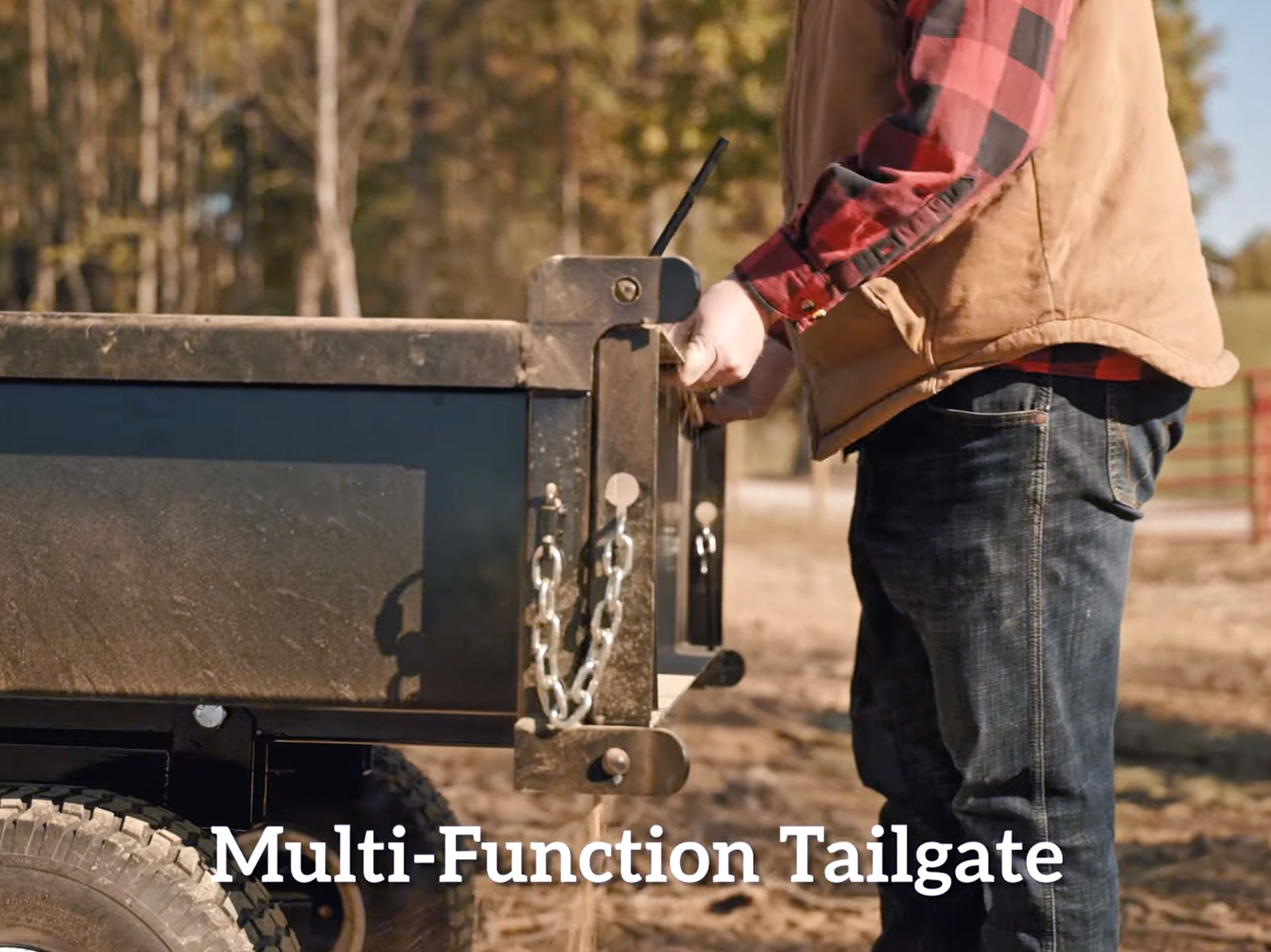

- Tailgate:
- Opens From Top for Dumping

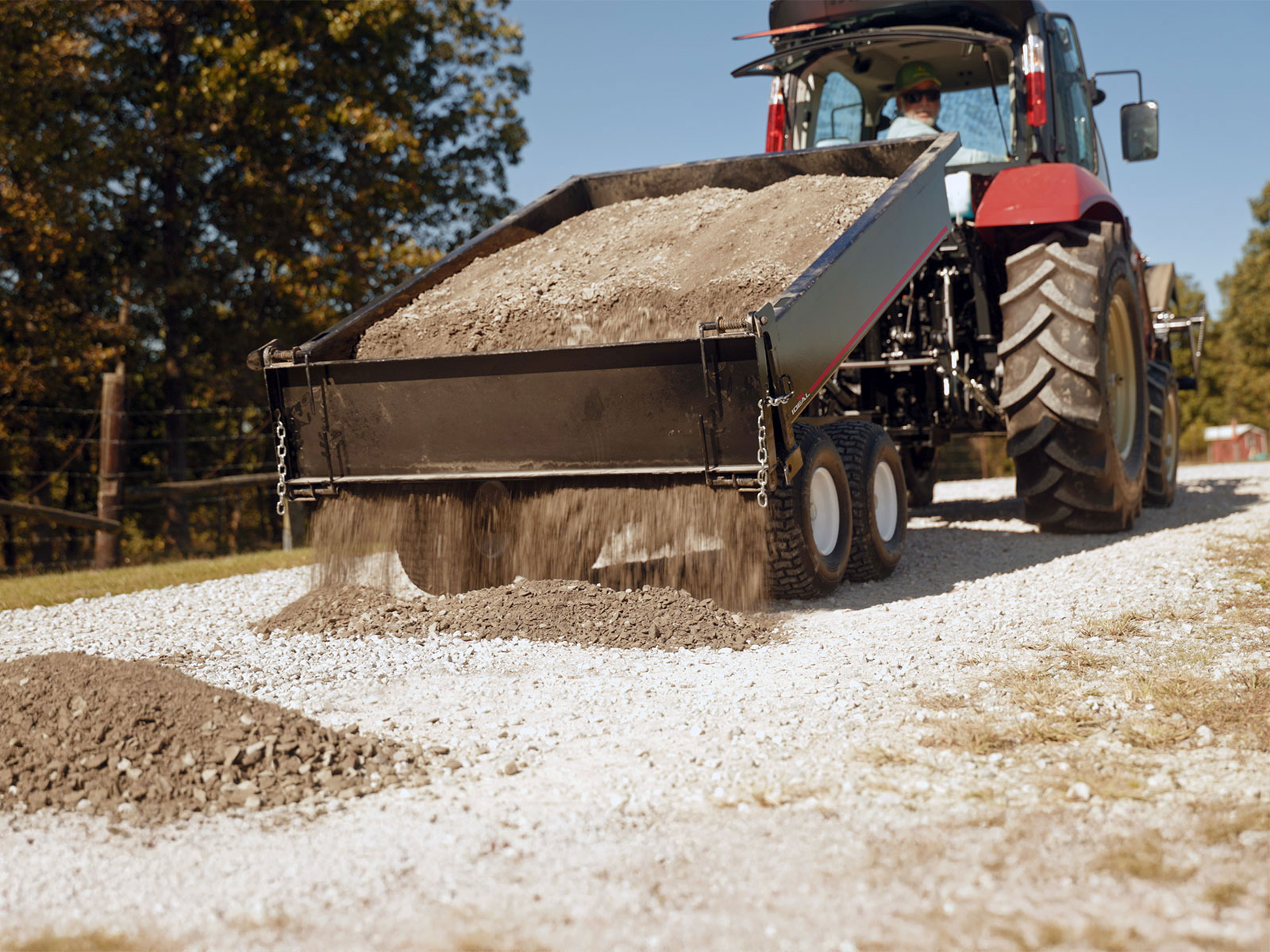

- Opens From Bottom for Spreading Material
- Built in the USA!
Note, this trailer is for off-road use only.
Hydraulic Dump Trailer Specs |
|
|---|---|
Overall Dimensions |
|
| Length | 100.5 inches |
| Width | 54.5 inches |
| Height | 33.5 inches |
Bed |
|
| Length | 70 inches |
| Width | 50 inches |
| Height | 12 inches |
| Bed | |
Construction |
|
| Bed | 12 Ga Formed Steel Sides |
| Frame | 1/8″ Rectangular Steel Tubing, 2×3 inches |
| Weight | 650 lb |
| Hitch |
Swivel Clevis Style Standard, 2″ Coupler Optional
|
| Tires | 18 X 8.5 X 8, 4-Ply Turf-Style |
| Axle | Walking Beam Tandem |
| Capacity | 3000 lb / 24 cu ft |
| Dumping Mechanism |
Double Acting Hydraulic Hand Pump, CUT Hydraulic Remote, Hose Included
|
| Features | Fold Away Tongue Jack Single Action 3×12 inch Cylinder 45° Dump Angle |
| Part Number | DT15ID |
| UPC | 704496030960 |
Warranty
Every GWT product is covered by a 1-Year Factory Warranty starting from the day of delivery.
What is covered
Your GWT Factory Warranty covers issues stemming from the craftsmanship of the product, like broken welds, torn steel, or improper fit. Our tools are generally designed to be used in harsh environments, so normal wear-and-tear is not covered (things like lost paint or chipped paint, scratches, dents, or bent teeth).
We will repair or replace, at our discretion, your GWT product so long as it is covered under warranty.
What isn’t covered
Any shipping necessary for repair or replacement, as well as transportation costs are not covered under the factory warranty. Lost time and down time are not covered. Replacement parts are covered, but not labor costs.
If damage occurs from improper use (a use other than what the product is marketed for), the warranty is void. Damage caused to your tractor while using a GWT product will not be covered.
Your warranty is non-transferable, meaning it exists as long as you’re the owner and operator of the product.
Extended Warranties
For each GWT product you have the option to increase the standard 1-Year Warranty to a Lifetime Warranty! This takes the exact same coverage and extends it in perpetuity from date of delivery.
