Reist RotoRake Description
Reist’s RotoRake uses a hydraulic, bi-directional rotor allows for operation in both rotational directions. This provides maximum attack on stubborn parts of your yard.
Angle your power rake up to 25 degrees, and tilt it up 28 degrees tilt for swaling and ditching. Choose whether you want these controls to be manual or hydraulic.
Gauge wheels can be locked in level position to gain you a uniform depth of raking. A dual-motor design delivers 40% more torque and eliminates outside bearings and chains.

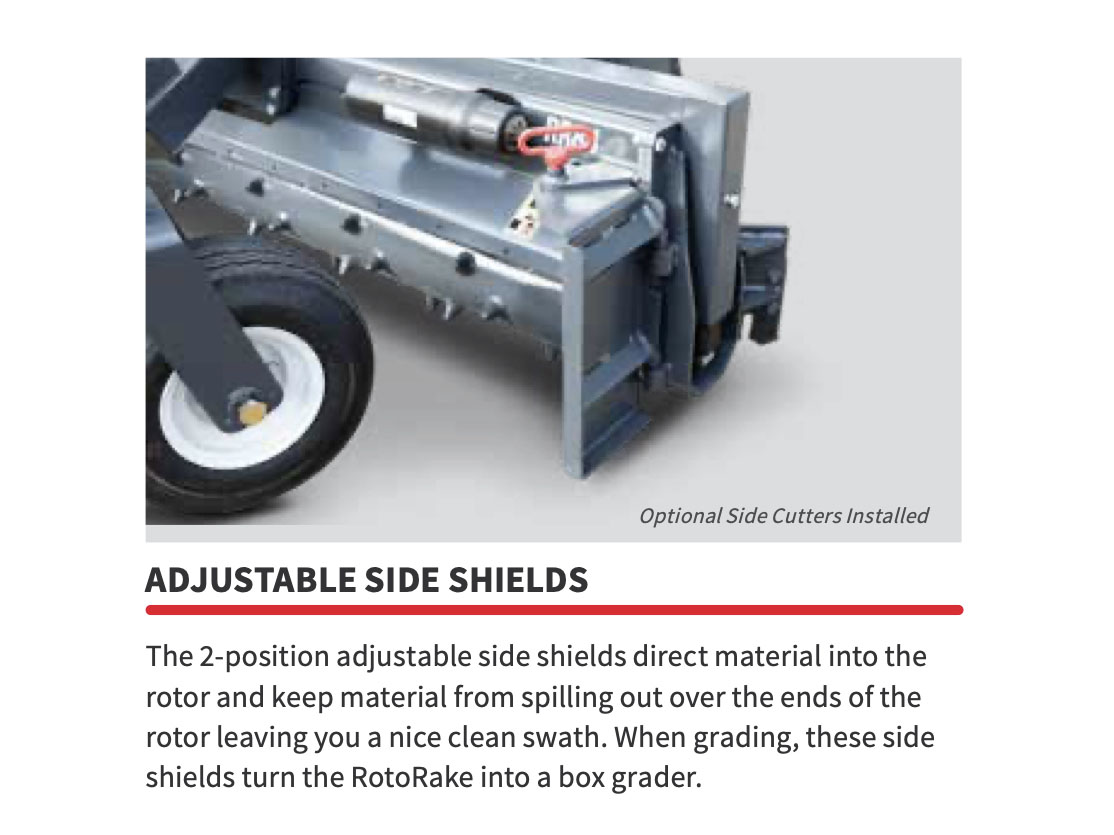

The power rake also features a floating rotor design with road-grade, mini carbide teeth, ditch cutters, and side shields. Designed for skid steers, this hydraulic model has optional 3-Point adapters for both Cat I and Cat II. However, Reist makes a 3-Point PTO powered Power Rake.
We carry Reist products because they are built with top-quality up in Canada.
Reist ROTORAKE Details
- 60, 72, 84, and 96 in Widths Available
- A Smaller 48 in Model is Available for Mini Skid Steers
- SSQA Connection

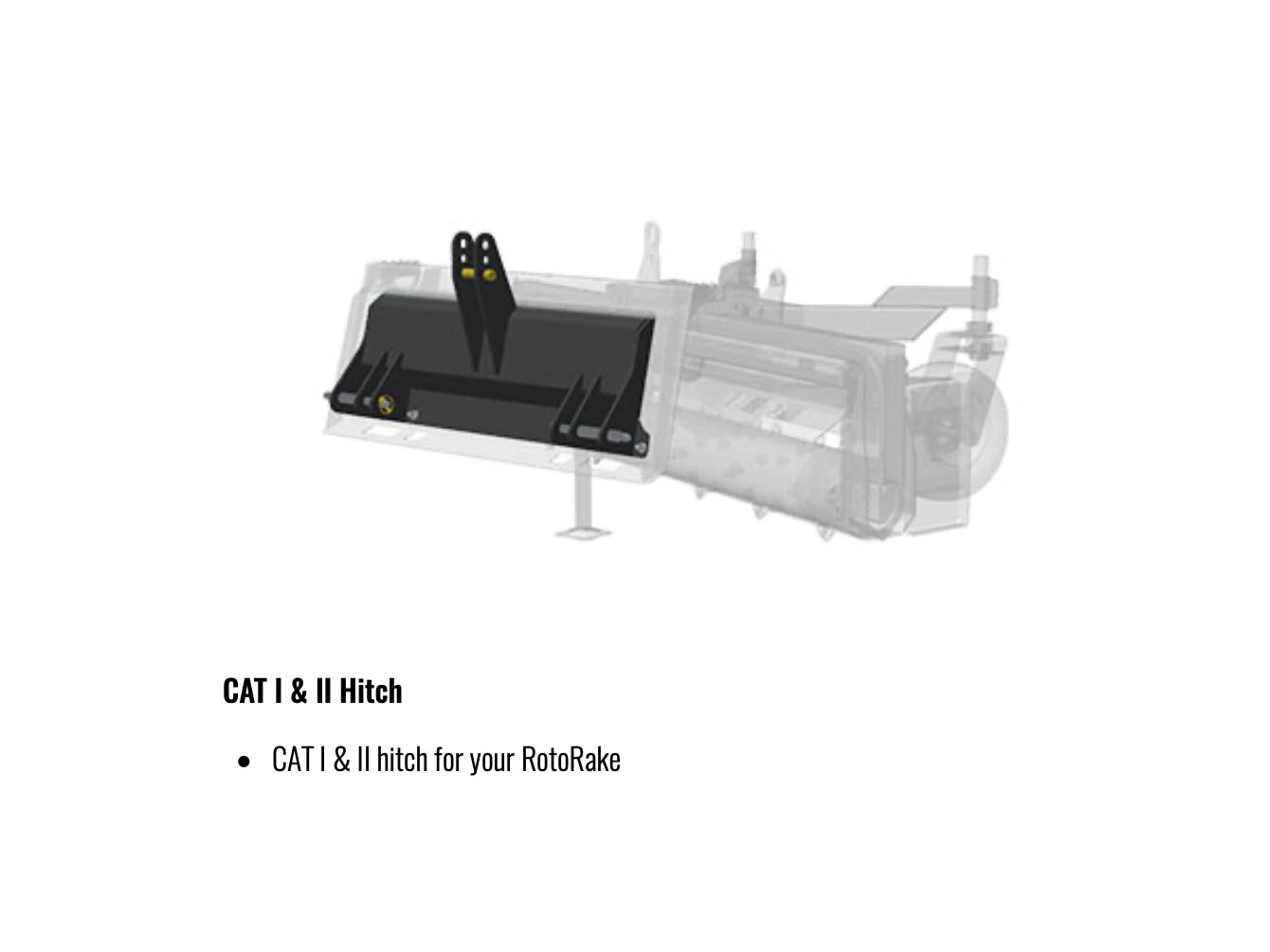

- Optional 3-Point Plate Available in Cat I and Cat II
- Tractor Owners May Prefer the PTO powered RotoRake from Reist

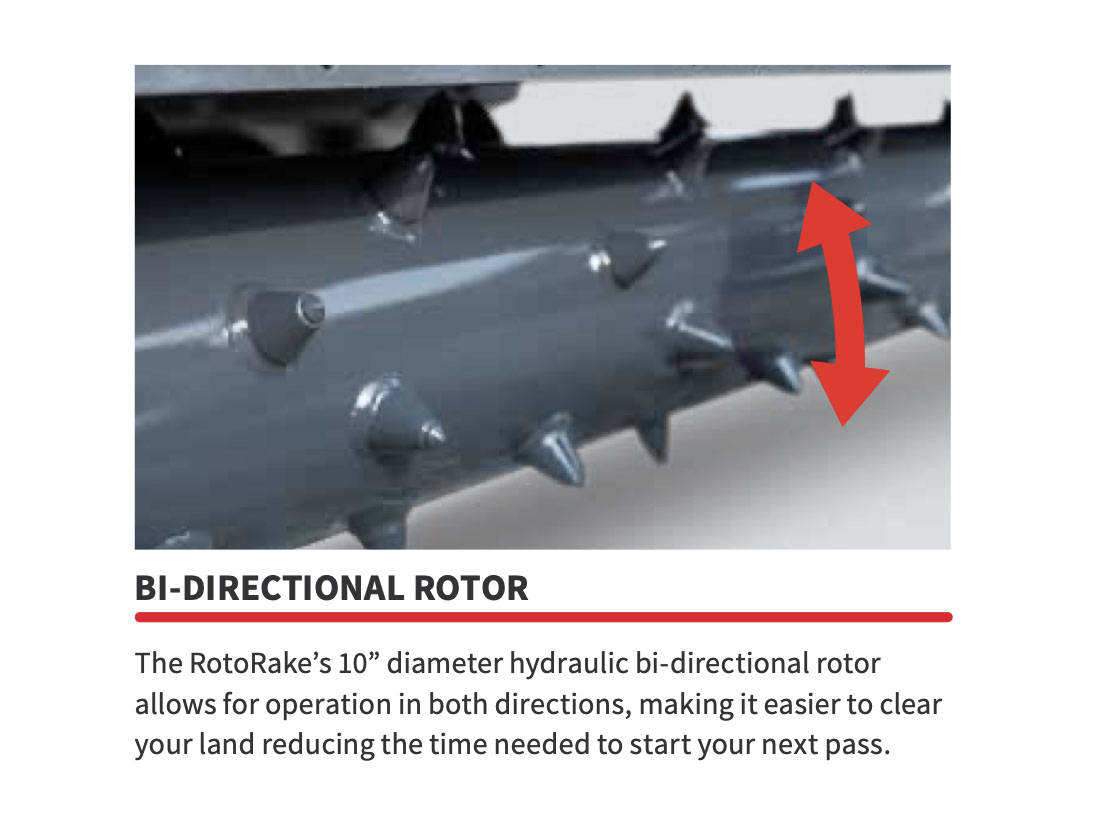

- Hydraulic, Bi-directional Rotor
- Allows for Operation in Both Directions

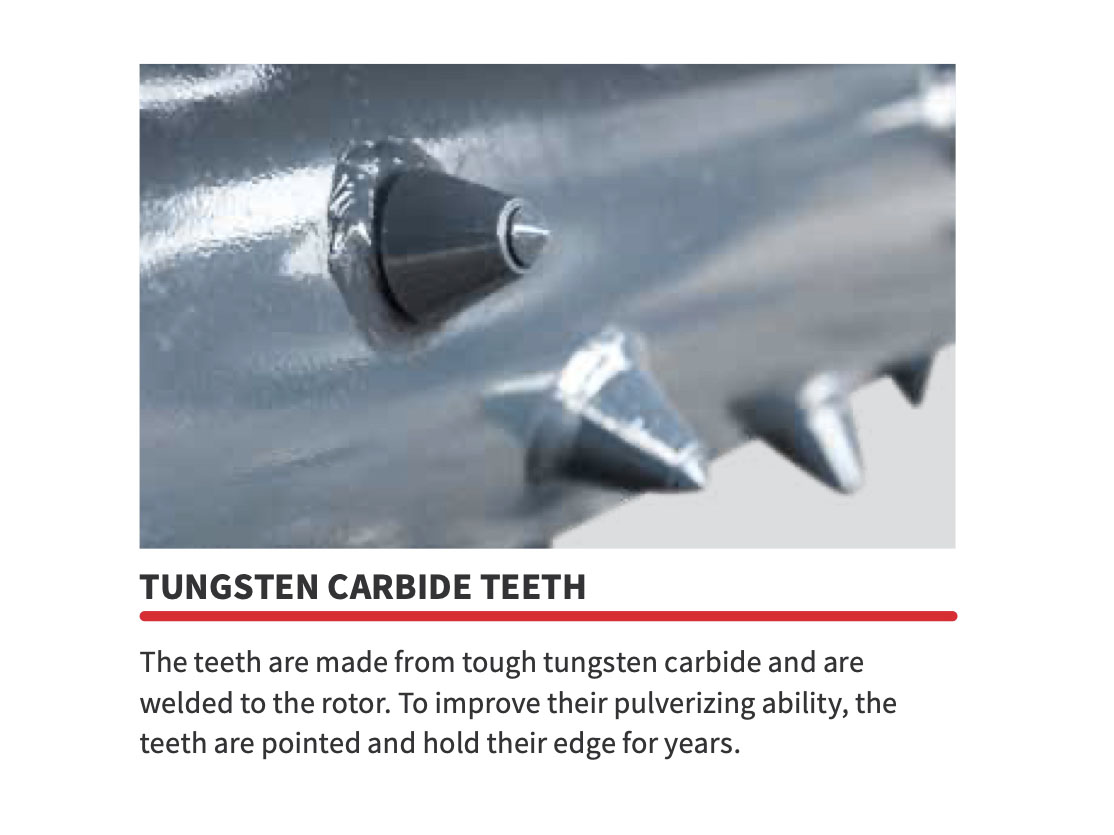

- Welded Tungsten Carbide Teeth Last For Years

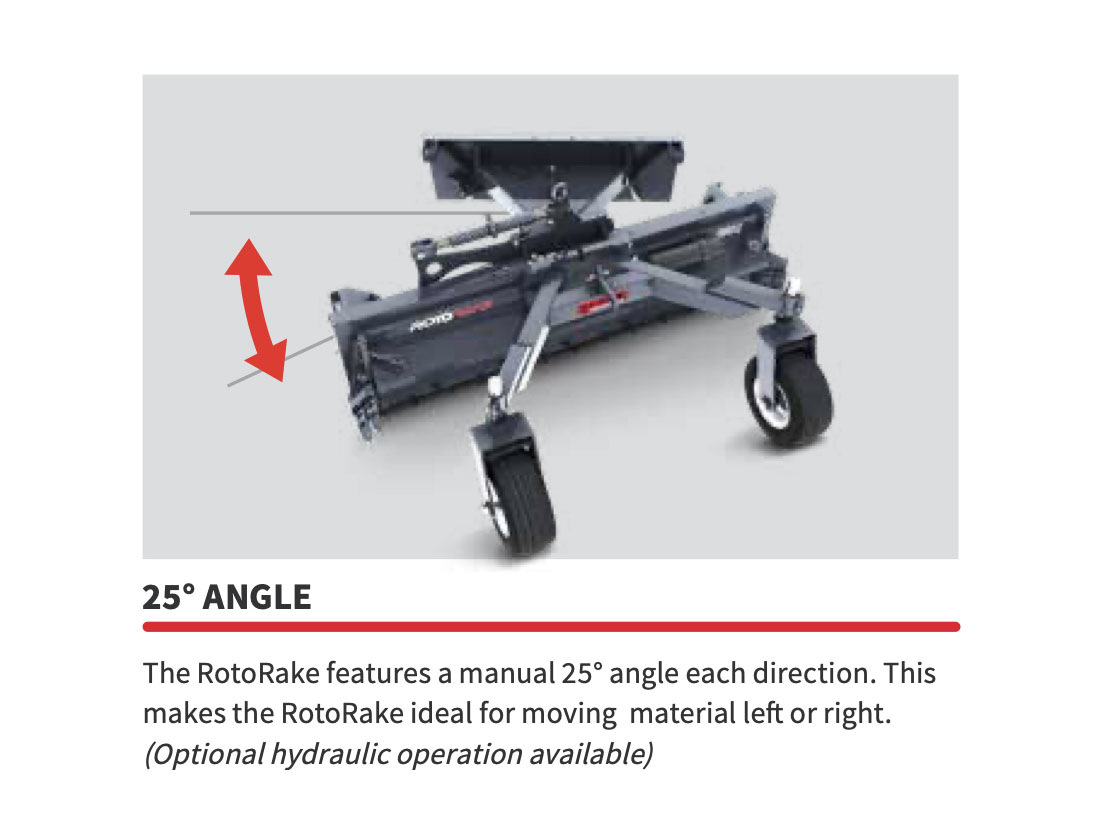

- 25° Angling Side-to-Side
- Manual or Hydraulic

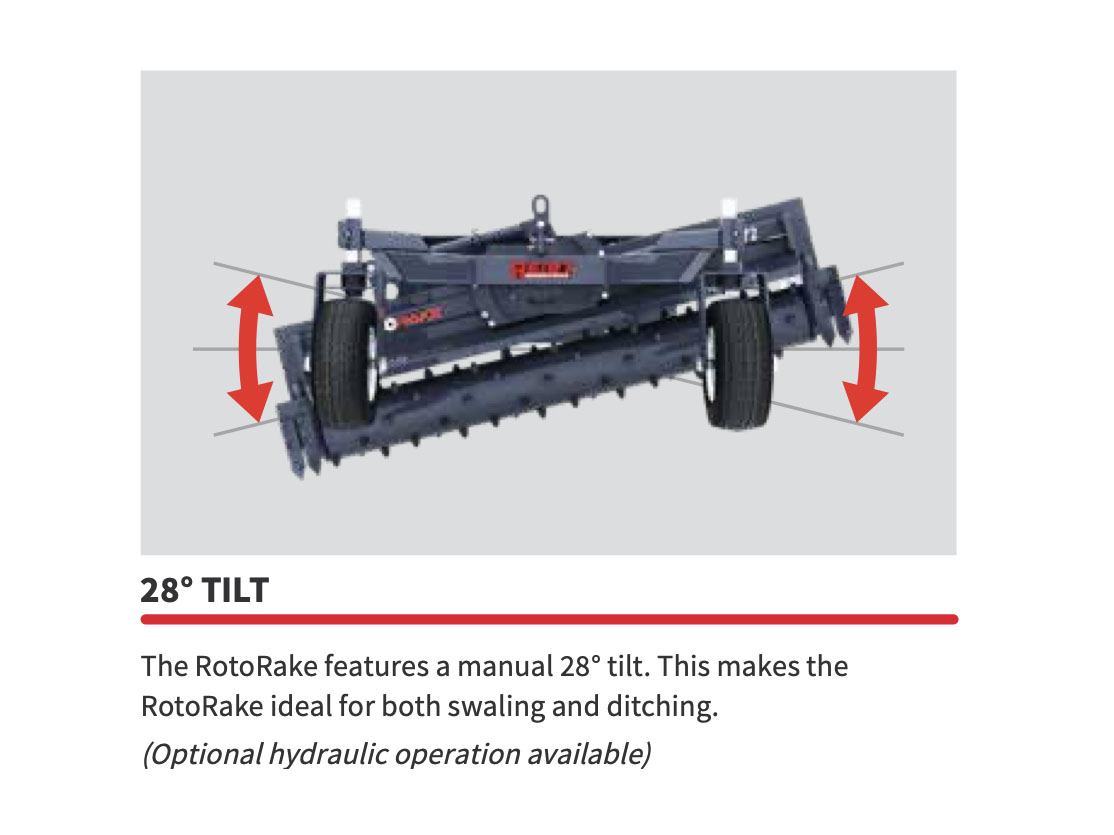

- 28° Tilt (Optional)
- Manual or Hydraulic
- For Swaling and Ditching

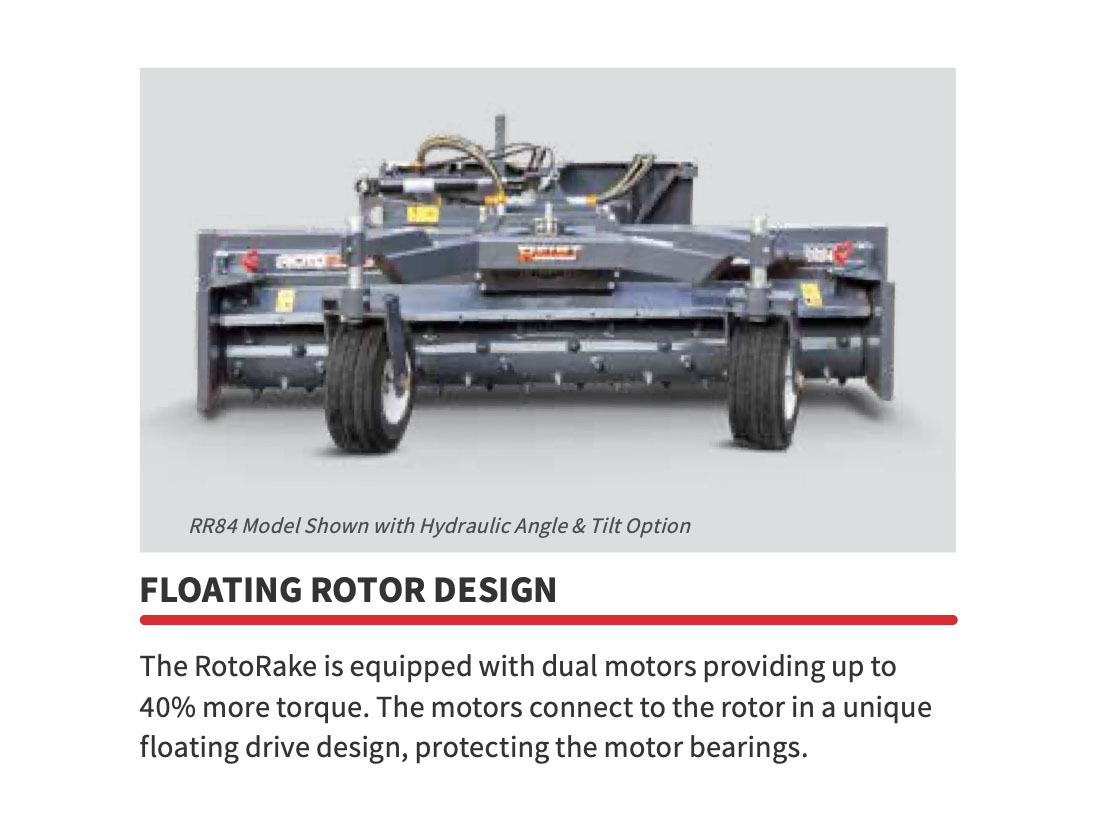

- Dual-Motor Design
- Delivers 40% More Torque and Eliminates Outside Bearings and Chains

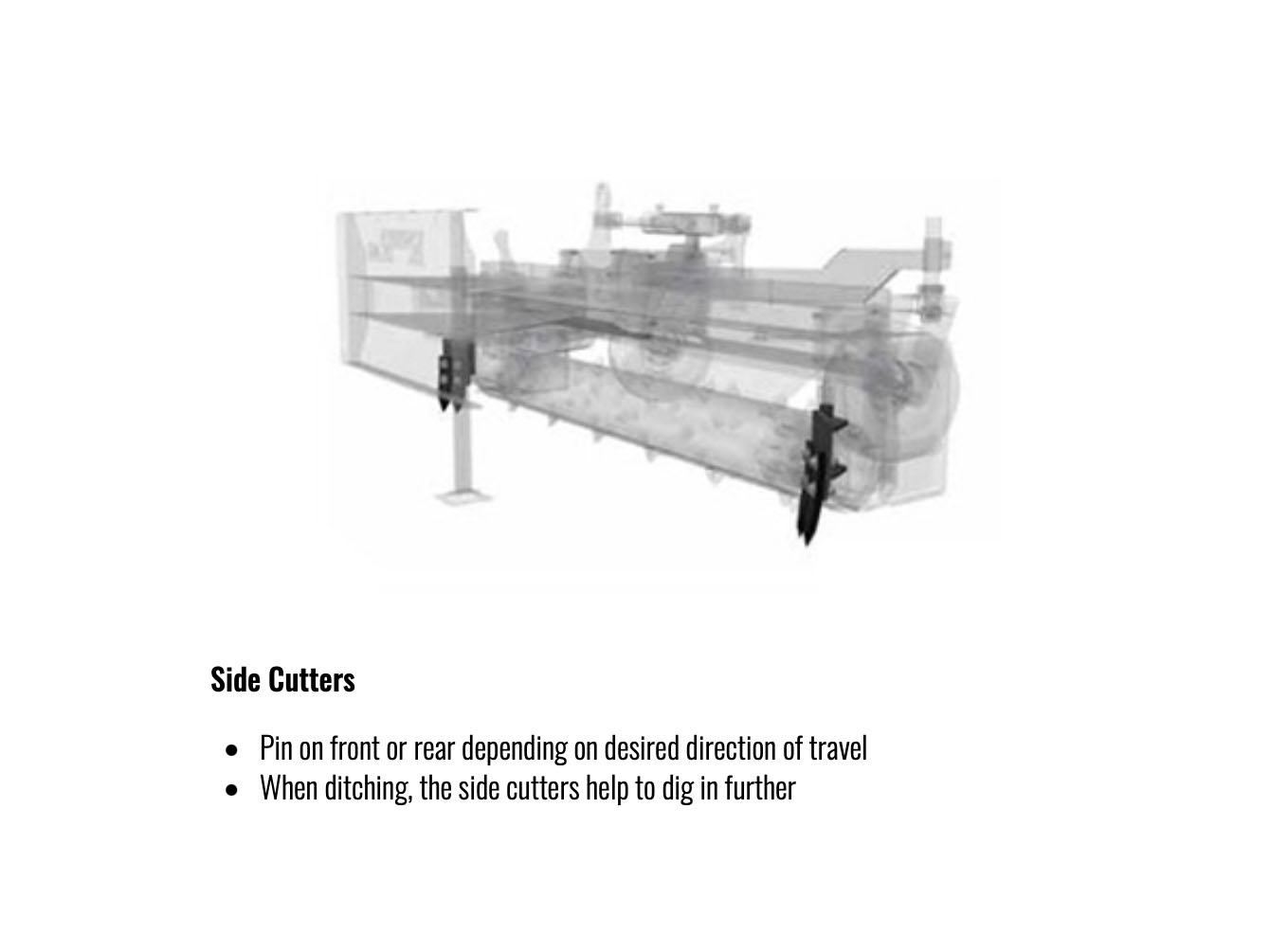

- Optional Side Cutters
- When Ditching, Side Cutters Help Dig In Deeper

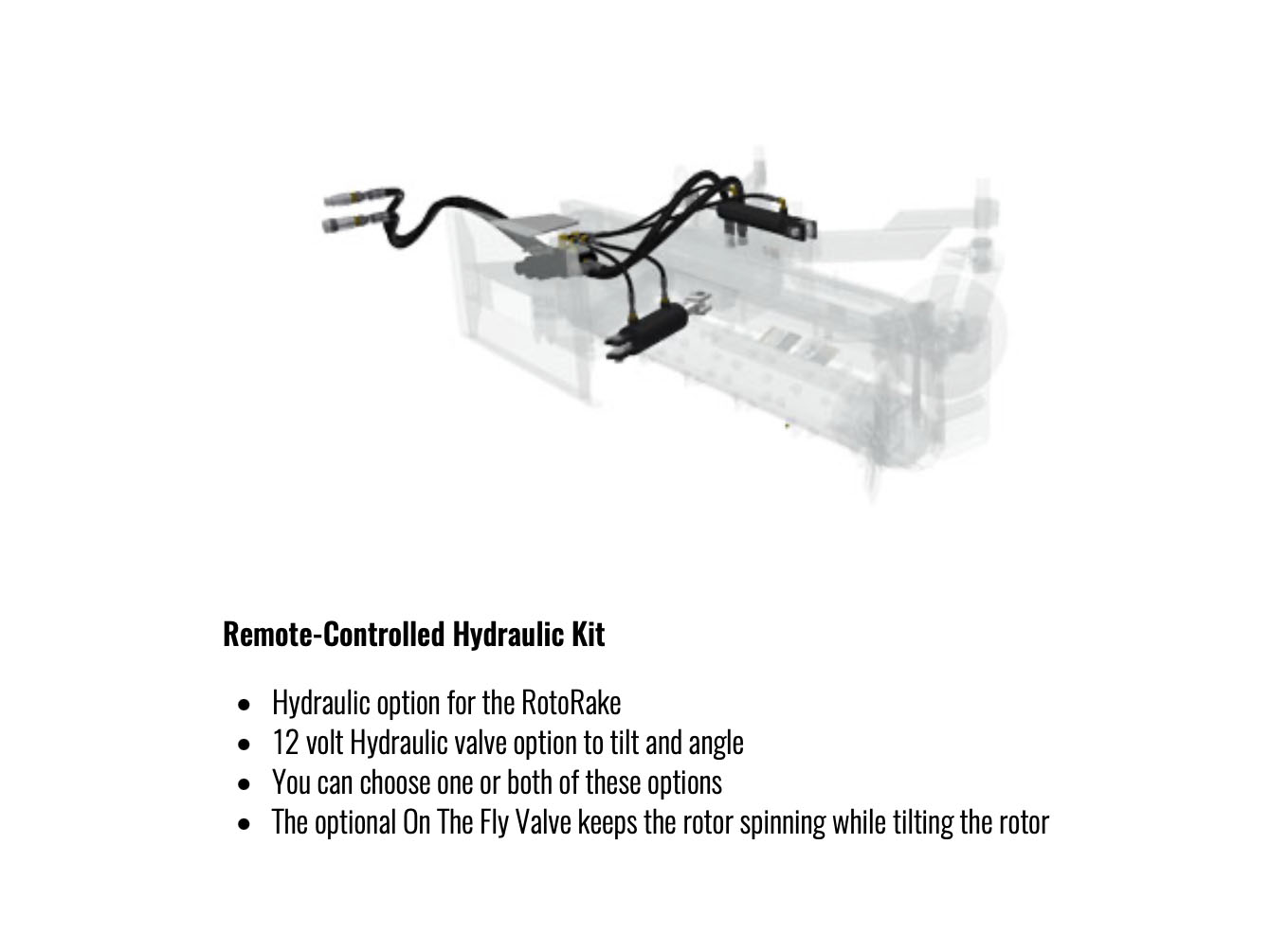

- Hydraulic Control Options

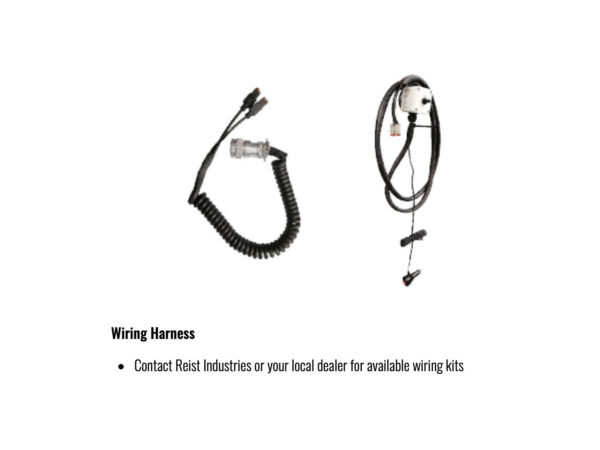

- Manual Control Runs a Toggle Switch From the Attachment to Inside the Cab to your 12v Outlet
- The Rest of the Control Options Allow Direct Functionality From Your Skid Steer Controls
Reist ROTORAKE Specs
| RotoRake | RR60 | RR72 | RR84 | RR96 |
|---|---|---|---|---|
| Dimensions (WLH) | 69 x 63 x 34” | 81 x 63 x 34” | 93 x 63 x 34” | 105 x 63 x 34” |
| Working Width | 60” | 72” | 84” | 96” |
| Working Width (Angled 25°) | 55” | 65” | 76” | 87” |
| Weight (lbs) | 1,150 | 1,220 | 1,280 | 1,380 |
| Cont. PSI | 3,000 MAX | 3,000 MAX | 3,000 MAX | 3,000 MAX |
| PTO Required | N/A | N/A | N/A | N/A |
| Roto Speed | 230-450 RPM | 230-450 RPM | 230-450 RPM | 230-450 RPM |
| Hyd. GPM Range | 18-30 | 18-30 | 18-30 | 18-30 |
| Rotor Torque @ 2500 PSI | 550 ft-lbs | 550 ft-lbs | 550 ft-lbs | 640 ft-lbs |
| Mount Type | Std. Skid. | Std. Skid. | Std. Skid. | Std. Skid. |
| Gauge Wheels Included | 2 | 2 | 2 | 2 |
| Tilt | Manual | Manual | Manual | Manual |
| Angle | Manual | Manual | Manual | Manual |
