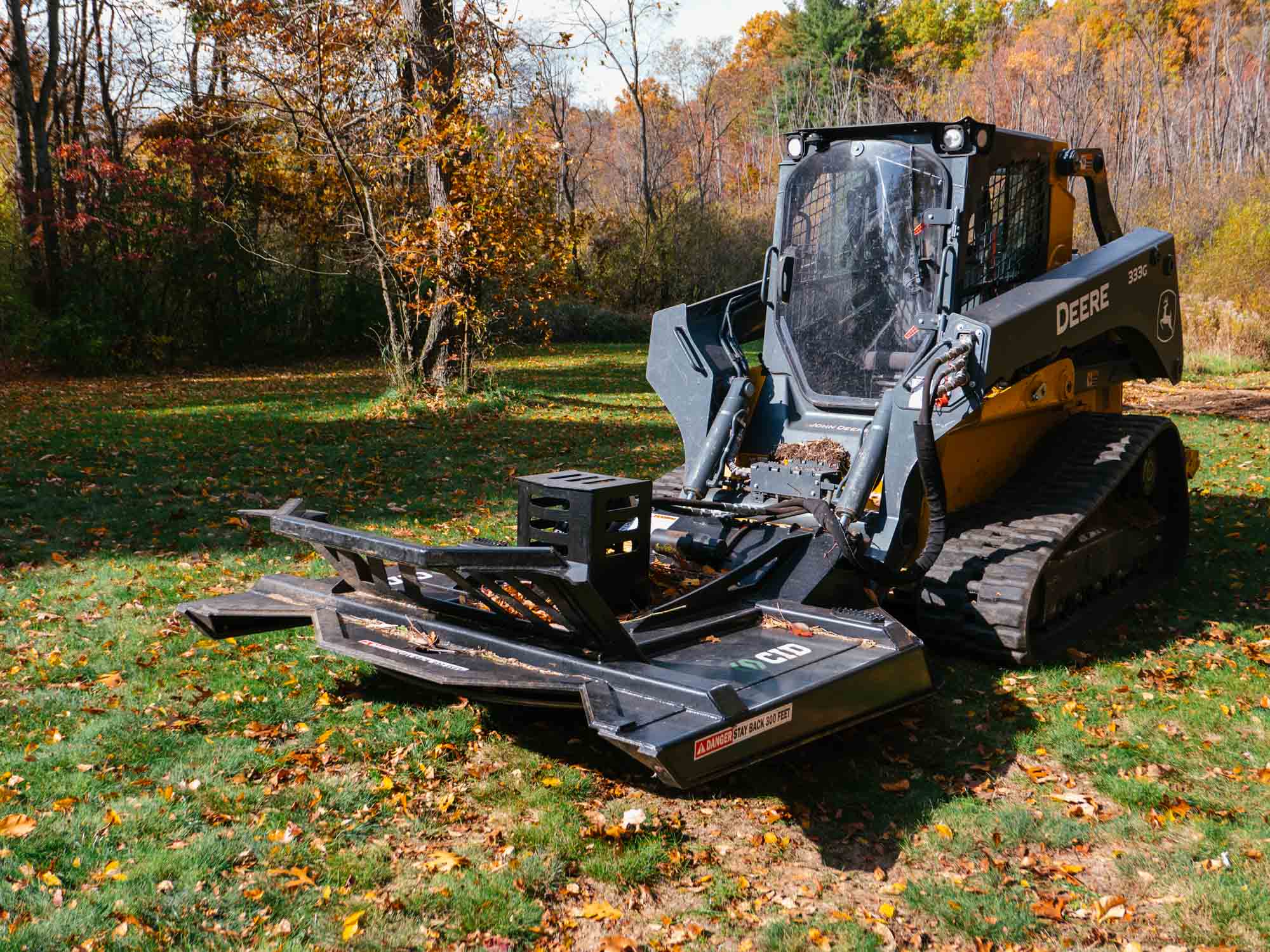

IronCraft Severe Duty Brush Cutter Description
Our Severe Duty Bent Axis Piston Cutter is powered by a Parker bent axis piston motor. With a continuous cutting capacity of 10″, you will be able to make quick work of all brush cutting needs. The Severe Duty Cutter features a round blade holder, complete with four blades and either 16 or 20 mulching teeth depending on the cutter width. This powerful cutter is offered in a 72″ width and a 78″ width, with GPM flow available in a 20-30 motor or a 30-50 motor.
| Product Family | Severe Duty Piston Cutter | Severe Duty Piston Cutter | Severe Duty Piston Cutter |
Severe Duty Piston Cutter
|
| Product | SDBAPC72L | SDBAPC72H | SDBAPC78H | SDBAPC78L |
| Description | SEVERE DUTY BENT AXIS PISTON CUTTER 72” 20-30 GPM | SEVERE DUTY BENT AXIS PISTON CUTTER 72” 30-50 GPM | SEVERE DUTY BENT AXIS PISTON CUTTER 78” 30-50 GPM |
SEVERE DUTY BENT AXIS PISTON CUTTER 78” 20-30 GPM
|
| Motor | Parker Bent Axis Motor | Parker Bent Axis Motor | Parker Bent Axis Motor |
Parker Bent Axis Motor
|
| Case Drain | Required | Required | Required | Required |
| Flow Requirement (GPM) | 20-30 GPM | 30-50 GPM | 30-50 GPM | 20-30 GPM |
| Working Width | 72″ | 72″ | 78″ | 78″ |
| # of Blades | 4 | 4 | 4 | 4 |
| # of Mulching Teeth | 16 | 16 | 20 | 20 |
| Cutting Capacity | 10″ | 10″ | 10″ | 10″ |
| Deck Thickness | 1/4″ deck | 1/4″ deck | 1/4″ deck | 1/4″ deck |
| Skid Shoes | AR400 Replaceable | AR400 Replaceable | AR400 Replaceable |
AR400 Replaceable
|
| Blade Holder | 155,000 PSI round carrier | 155,000 PSI round carrier | 155,000 PSI round carrier |
155,000 PSI round carrier
|
| Blades | 3/4″ AR400 | 3/4″ AR400 | 3/4″ AR400 | 3/4″ AR400 |
