Description
All Dirt Dog Cultipacker Series Specs:
- Greasable Bearings
- Optional Scraper Kits
- Parking Stand
- Cat I & Cat II 3-Pt and Quick Hitch Compatible
- Available in 60, 72, 84, and 96 in widths
- Ships factory direct from Georgia
- Ships in gray if no color is selected

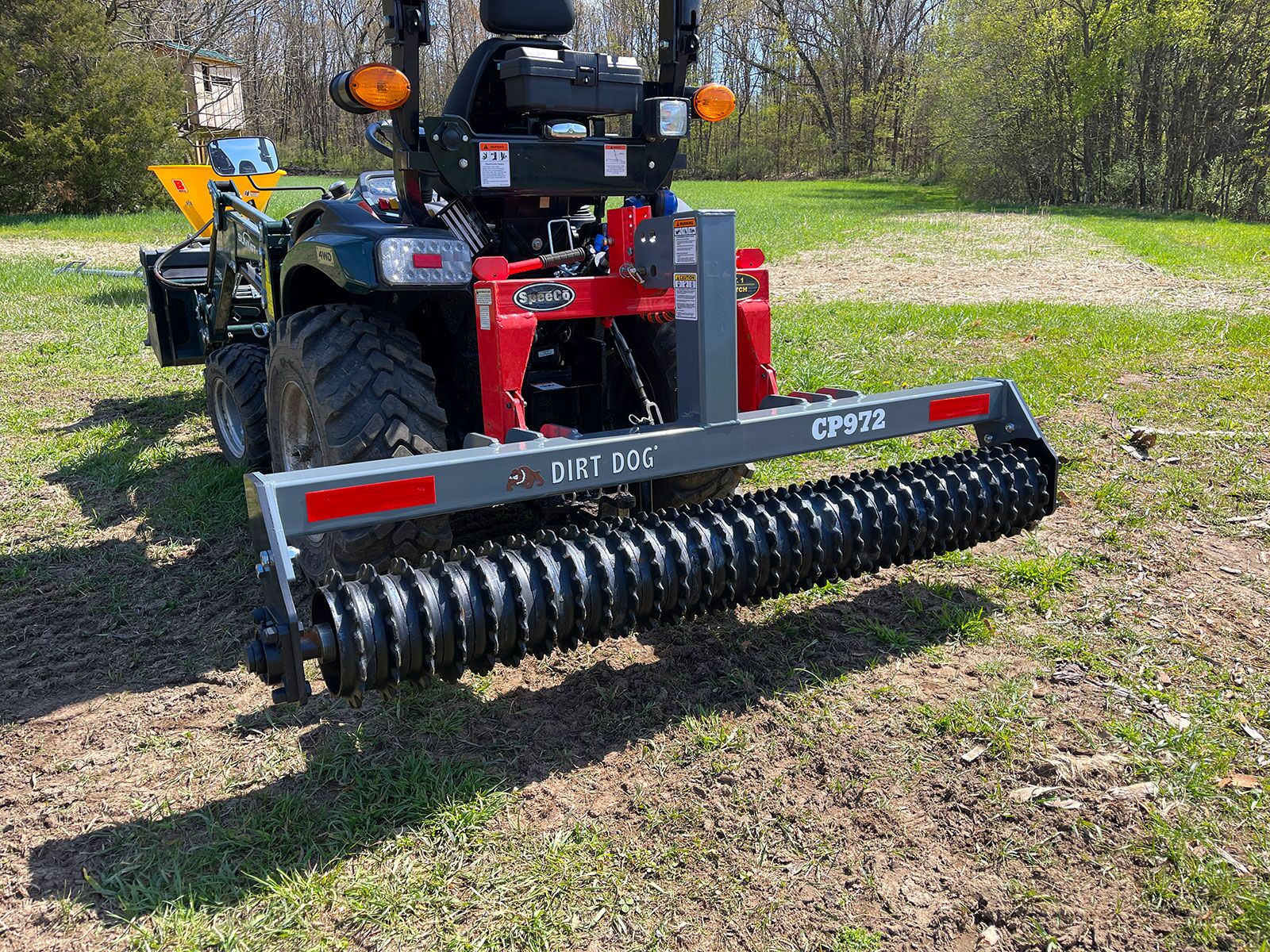

CP9 SERIES Cultipacker Details
- 9.64 in Notched Gray Iron Wheels
- 1 3/4 in Axle
- 60″ is 427 lb, 72″ is 502 lb, 84″ is 564 lb, 96″ is 625 lb
CP15 SERIES Cultipacker Details
- 15 in Smooth Ductile Iron Wheels
- 2 in Axle
- 60 in 712 lb, 72 in 835 lb, 84 in 954 lb, 96 in 1073 lb
CP16 SERIES Cultipacker Details
- 16.3 in Notched Ductile Iron Wheels
- 2 in Axle
- 60 in 901 lb, 72 in 1083 lb, 84 in 1235 lb, 96 in 1387 lb
_
Add-On Options
GWT VERSABRACKET BUNDLE
This Made in USA Cat 1, 3-Point Hitch bracket is made to hold up to 8 suitcase weights, either 41 lb each or 70 lb each. What sets this bracket apart is the chainsaw carrier slot for up to a 20″ bar, as well as a 2″ receiver, two chain hooks, and quick hitch compatibility, making it something to leave on your tractor whenever you aren’t running an attachment.
- Compatible with 3 point hitch receiver Category 1 systems
- 2″ Receiver
- 2 Chain Hooks
- Chainsaw carrier slot for up to 20″ Bar
- Quick Hitch Compatible**
- Room for Eight 41 lb or 70 lb suitcase weights
- Eight 41 lb weights totals about 378 lb including the bracket
- Eight 70 lb weights totals about 610 lb including the bracket
- 1/2″ Flat Bar Stock
- 3/16″ Tube Steel
- Both lower pins included, 3/4″ top pin not included.
- Made in the USA
*Consult your owner’s manual to see recommended ballast weight when operating a loader. Along with increased safety, you will gain an increase in traction which can be especially helpful in snow, ice, and mud.
**Matches most 3 point quick hitch systems built to the ASE Standard S278.5
_____
GWT HITCH HANGER BUNDLE
The Hitch Hanger is a weight bracket that attaches with a simple strap connection to your quick hitch, allowing you to hang three suitcase weights (41or 70 lb) off to the side, while still keeping the connection to your quick hitch and your three-point attachment. Fits the SpeeCo E-Hitch and John Deere iMatch.
HOW MUCH COUNTERWEIGHT DO YOU NEED?
The answer to this is tractor specific, but your manual should indicate the recommended rear ballast or counterweight to balance against your front-end loader. This can be in the form of liquid ballast in you wheels, wheel weights, and the weight of the rear attachment itself. But often this is not enough weight to hit the manufacturer recommended total. Enter the hitch hanger, which provides a solution to gain that additional weight without increasing your footprint.
WHAT 3-PT ATTACHMENTS NEED MORE WEIGHT?
A 3-Pt Hitch does not product any down-pressure, so if you are running a ground engaging attachment you’re reliant upon the weight of that attachment for all of its digging power. This includes plows, discs, pluggers, aerators, tillers, and box-blades or graders. Some times the attachment will have a shelf for adding weight, but many do not. Using our Hitch Hangers is a great way to gain downward force for that attachment, providing better, faster results.
Priced per pair (1 left, 1 right) w/ 6 suitcase weights of your choosing.
Hitch Hanger HIGHLIGHTS
- Fits Category 1 Speeco E-Hitch and similar Cat 1 square tube hitches
- Made In The USA using American steel and manpower!
- Powdercoated black
- Great for additional ballast weight
- Free up your quick hitch for an attachment instead of dead weight!
- Some 3 point attachments need more down pressure, these can help!
- Simple strap and nylon nut connection is included for secured fastening
- Always carry weight as low to the ground as possible to lower your center of gravity
- Patent Pending
- Each Hanger weights 15 lb
- Includes 6 Suitcase weights of either 41 or 70 lb (up to 420 lb total!)
Watch a video on the Hitch Hanger here.
___
SPEECO CATEGORY 1 E-HITCH
Hooking up rear attachments to a 3-Pt Hitch can be a real pain. But it doesn’t have to be. A quick hitch will typically reduce your effort by 90%, and best case scenario you don’t even need to leave your seat. The more you change attachments or the heavier attachments you use, the more you’ll benefit from a quick hitch.
The unique design of the SpeeCo E-Hitch will not just save you time, but money too compared to other quick hitches.
Save Money!
This quick hitch doesn’t require bushings for your attachments! The John Deere iMatch and all others require you to buy and install a $40+ set of bushings on each 3 point attachment. You can completely avoid that expense with this quick hitch. The lower two hooks are sized to be a direct fit to a Category 1 pin size!
