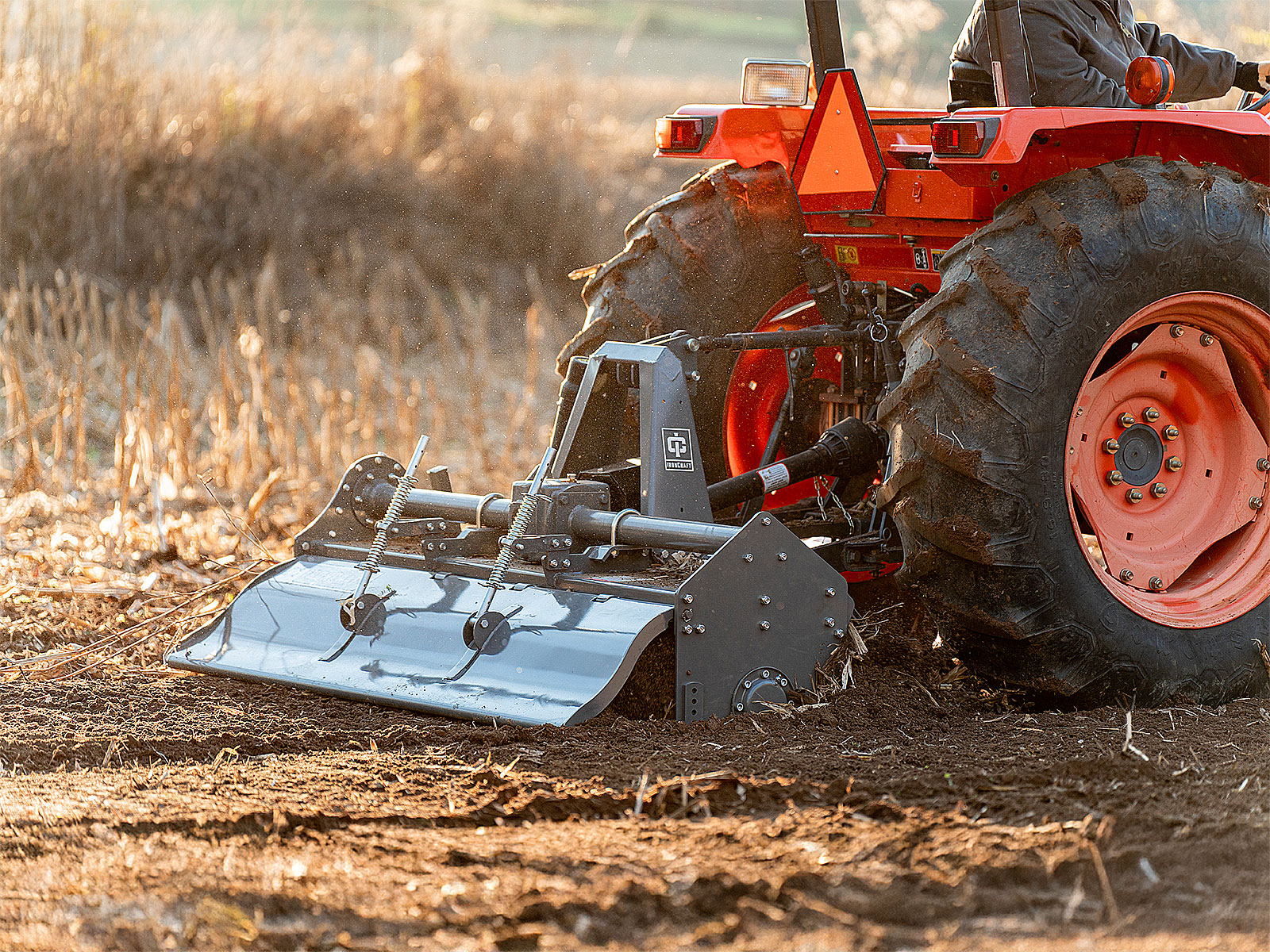

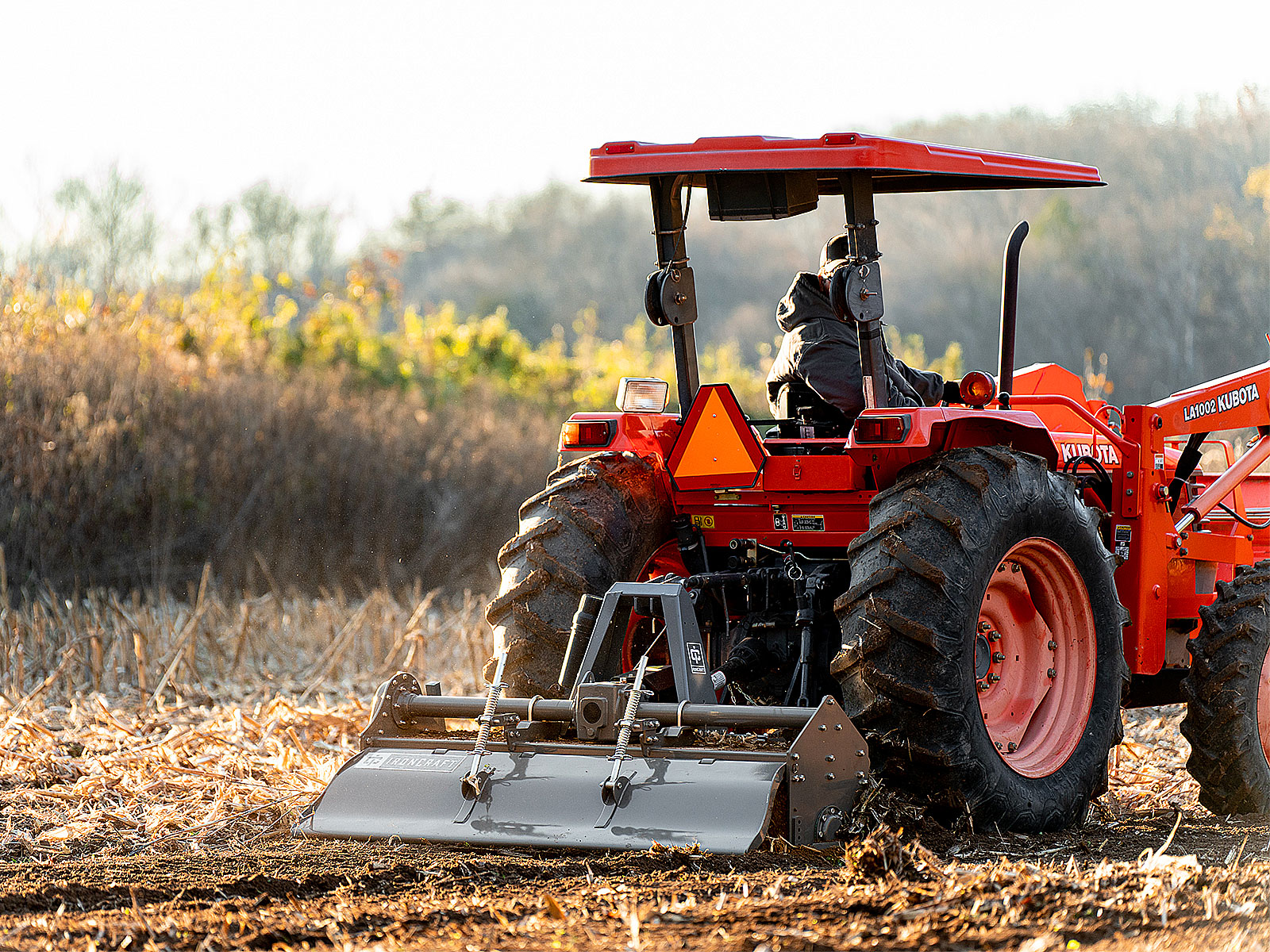

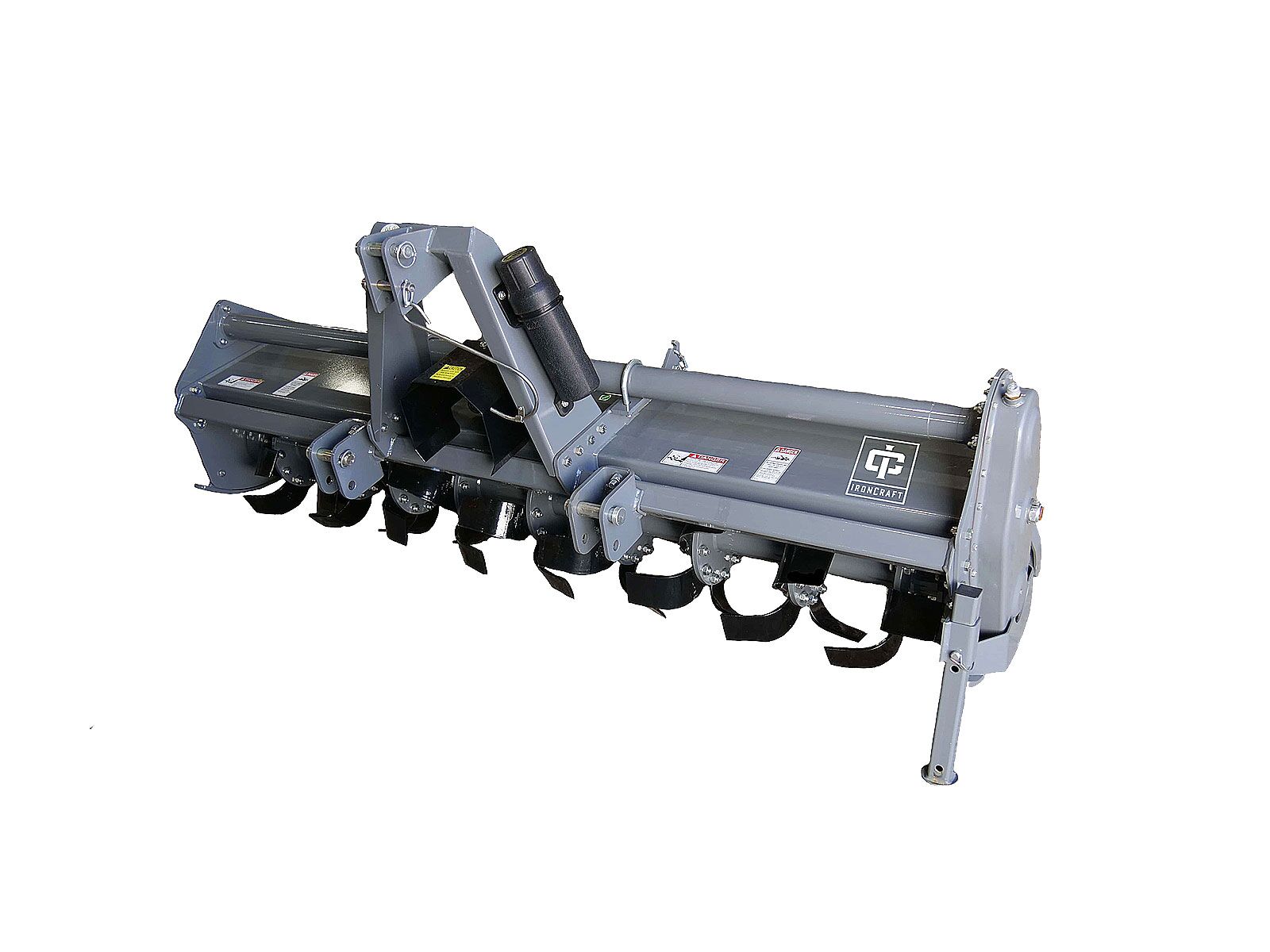

IronCraft UH HEavy Duty Gear-Drive Rotary Tiller Highlights
The IronCraft UH line are Heavy-Duty 3-Point tillers meant for tractors with 50-65 PTO horsepower.
With 65, 72, or 85 inch working widths, you’re best not to use a tiller much narrower than the footprint of your tractor (while not exceeding the required hp), so that you don’t compact freshly tilled soil as you drive.
The UH Series tills to a very respectable 7.5 inch depth with the smaller of the two models, and 8 inches with the largest.
The 65 and 72 inch models use reverse rotation, while the 85 inch model uses forward rotation. And the smaller two models are Cat I 3-Point compatible, while the largest 85 inch model is Category II compatible.
The 65 and 72 Reverse Rotation models use telescoping rods to set the tailgate height. The 84″ Forward Rotation model uses chains.
All specs are below for all three widths of the tiller.
Available in IronCraft Gray only.
Specs
| Product Family | UH Series | UH Series | UH Series |
|---|---|---|---|
| Product | UH-60-R | UH-72-R | UH-84 |
| Description | 60″ Heavy Duty Reverse Rotation Gear Drive Tiller | 72″ Heavy Duty Reverse Rotation Gear Drive Tiller |
84″ Heavy Duty Gear Drive Tiller
|
| Rotation | Reverse | Reverse | Forward |
| RPM | 540 | 540 | 540 |
| HP Required | 40 – 55 | 45 – 60 | 50 – 65 |
| Working Width | 65″ | 72″ | 85″ |
| Max Working Depth | 7-1/2″ | 7-1/2″ | 8″ |
| # of Flanges on Rotor | 7 | 8 | 9 |
| # of Tines per Flange | 6 | 6 | 6 |
| Total # of Tines | 42 | 48 | 54 |
| Rotor Thickness or Diameter | 3-1/2″ | 3-1/2″ | 4″ |
| Rotor Swing Diameter | 19″ | 19″ | 19″ |
| Overall Width | 90″ | ||
| Weight (lbs) | 860 lbs | 926 lbs | 993 lbs |
| Hitch | Cat 1 & 2 | Cat 1 & 2 | Cat 2 |
Lifetime Warranty
Increase the standard manufacturer’s warranty to GWT’s Lifetime Warranty.
What is covered
Your GWT Lifetime Warranty covers issues stemming from the craftsmanship of the product, like broken welds, torn steel, or improper fit. Tractor attachments are generally designed to be used in harsh environments, so normal wear-and-tear is not covered (things like lost paint or chipped paint, scratches, dents, or bent teeth).
We will repair or replace, at our discretion, your attachment/product under the Lifetime Warranty, if purchased.
What isn’t covered
Any shipping necessary for repair or replacement, as well as transportation costs are not covered under the factory warranty. Lost time and down time are not covered. Replacement parts are covered, but not labor costs.
If damage occurs from improper use (a use other than what the product is marketed for), the warranty is void. Damage caused to your tractor while using an attachment will not be covered.
Your warranty is non-transferable, meaning it exists as long as you’re the owner and operator of the product.
