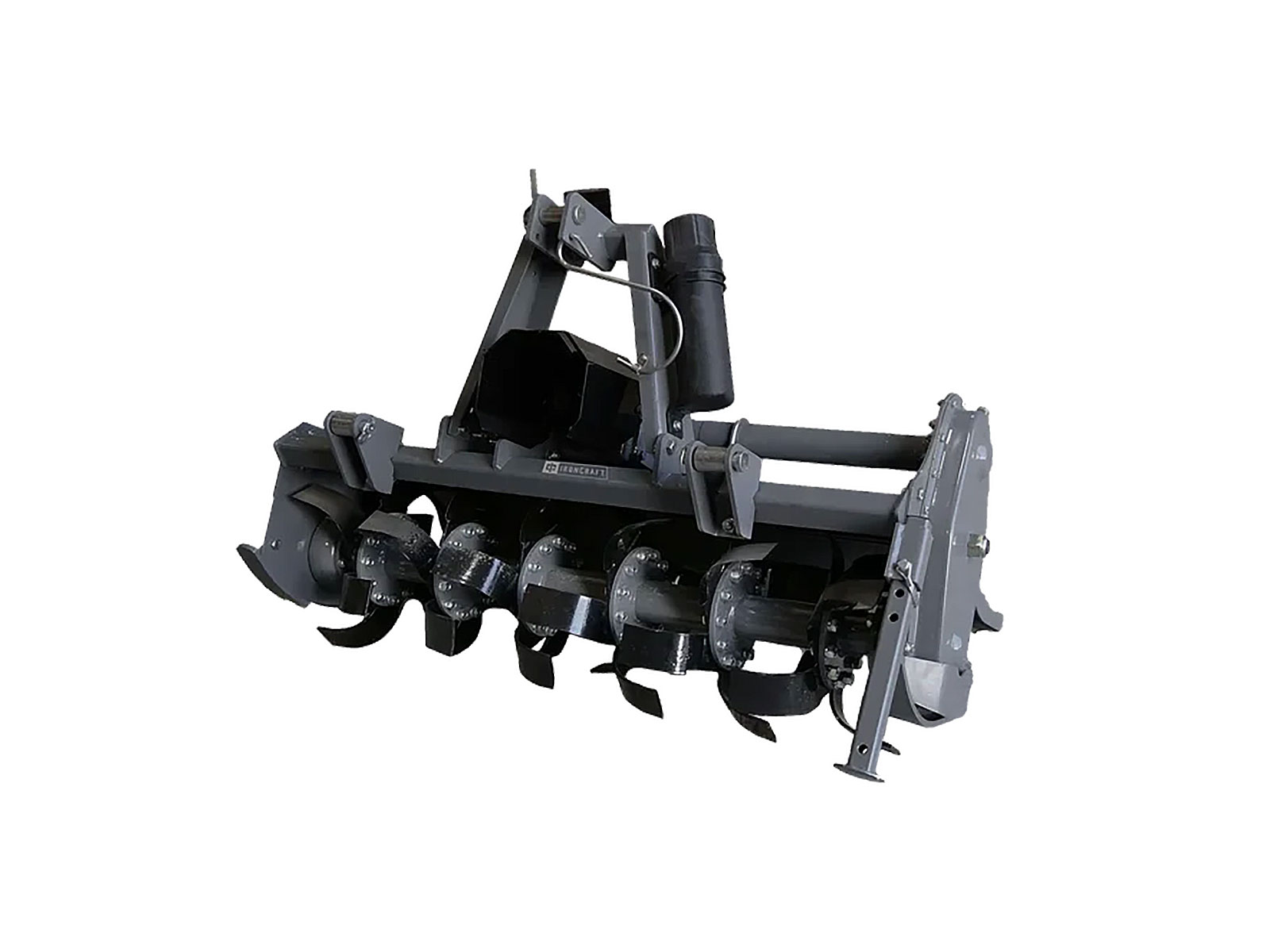

IronCraft UL Light Duty Gear-Drive Rotary Tiller Highlights
Stepping up from the Chain-Drive FMA Light-Duty Tiller, IronCraft gives u the UL Gear-Drive 3-Point Tiller. This is still meant for smaller tractors, those with 20–40 PTO horsepower.
With a 48″ or 60″ working width, you can imagine you’ll want to try to set the width of the tiller to the footprint of your tractor, while not exceeding the required hp. You can till to a very respectable 7 inch depth with either model (compared to a 4.75 in depth on the chain-driven FMA Tiller).
While the UL Tillers are compatible with Cat I 3-Point hitches.
All specs are below for both widths of the tiller.
Available in IronCraft Gray only.
Specs
| Product Family | UL Series | UL Series |
|---|---|---|
| Product | UL-48 | UL-60 |
| Description | 48″ Light Duty Gear Drive Tiller |
60″ Light Duty Gear Drive Tiller
|
| Rotation | Forward | Forward |
| RPM | 540 | 540 |
| HP Required | 20 – 25 | 25 – 40 |
| Working Width | 48″ | 60″ |
| Max Working Depth | 7″ | 7″ |
| # of Flanges on Rotor | 6 | 7 |
| # of Tines per Flange | 6 | 6 |
| Total # of Tines | 36 | 42 |
| Rotor Thickness or Diameter | 3″ | 3″ |
| Rotor Swing Diameter | 15″ | 15″ |
| Overall Width | 53″ | 65″ |
| Weight (lbs) | 397 lbs | 441 lbs |
| Hitch | Cat 1 | Cat 1 |
Lifetime Warranty
Increase the standard manufacturer’s warranty to GWT’s Lifetime Warranty.
What is covered
Your GWT Lifetime Warranty covers issues stemming from the craftsmanship of the product, like broken welds, torn steel, or improper fit. Tractor attachments are generally designed to be used in harsh environments, so normal wear-and-tear is not covered (things like lost paint or chipped paint, scratches, dents, or bent teeth).
We will repair or replace, at our discretion, your attachment/product under the Lifetime Warranty, if purchased.
What isn’t covered
Any shipping necessary for repair or replacement, as well as transportation costs are not covered under the factory warranty. Lost time and down time are not covered. Replacement parts are covered, but not labor costs.
If damage occurs from improper use (a use other than what the product is marketed for), the warranty is void. Damage caused to your tractor while using an attachment will not be covered.
Your warranty is non-transferable, meaning it exists as long as you’re the owner and operator of the product.
