PTO Link® DETAILS

Imagine taking seconds to connect the PTO shaft of your attachment to your tractor, instead of frustrating, sweaty, sometimes bloody minutes.

The PTO Link^® system is designed to quickly and safely connect and disconnect tractors and implements at the PTO, reducing the work required.

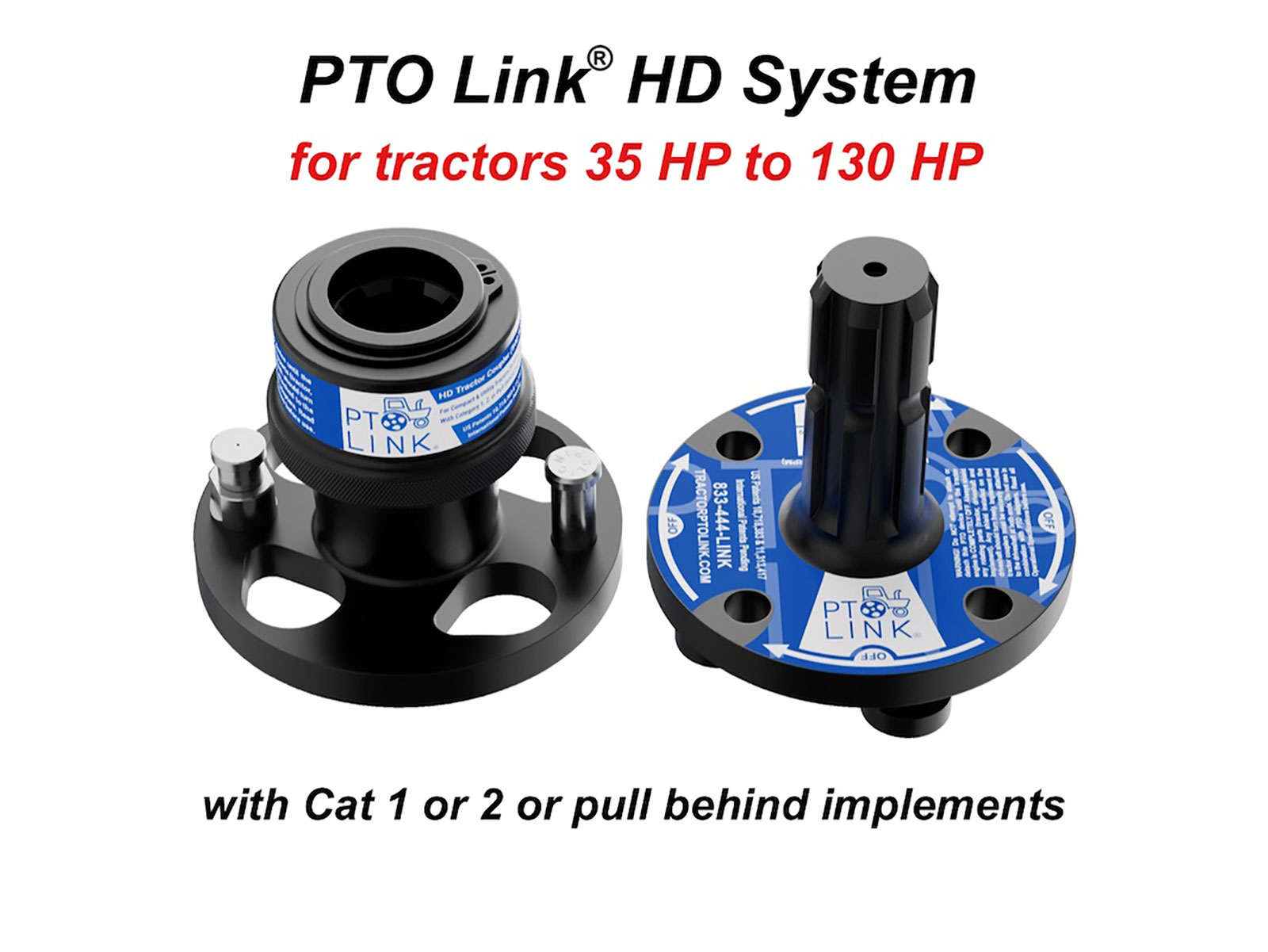

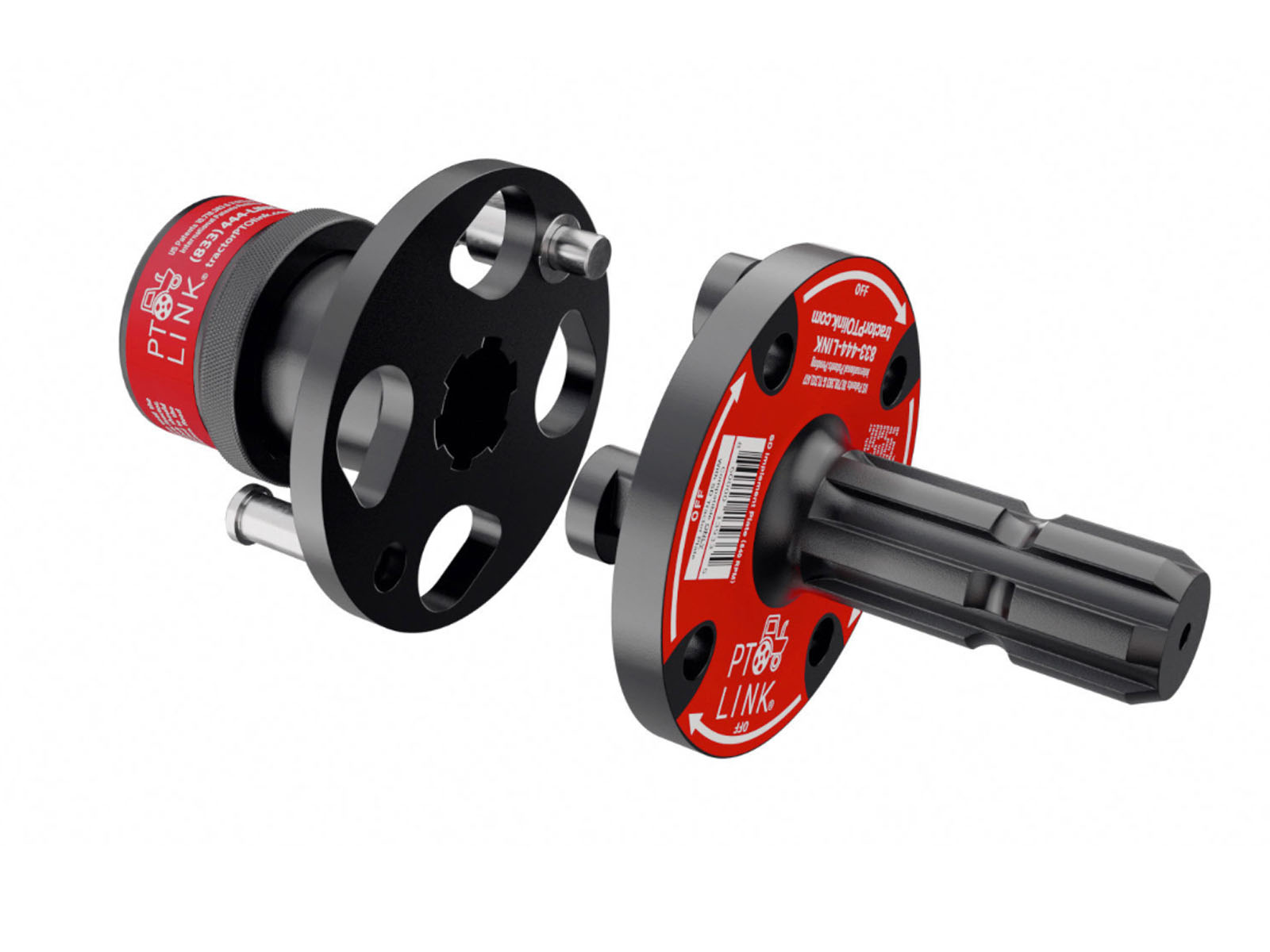

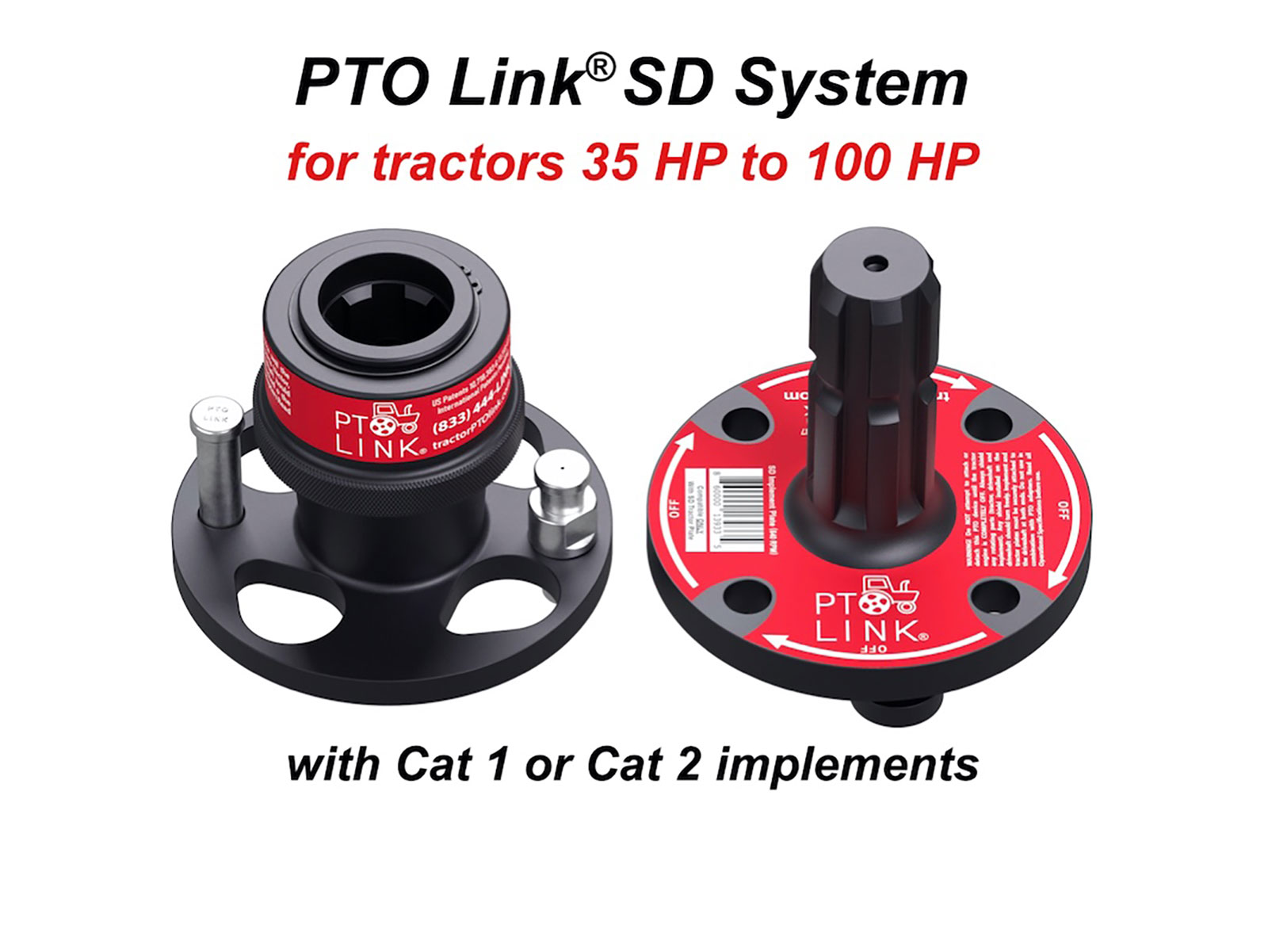

The PTO Link^® is the original, universal, tool-less quick-connect system for your tractor’s PTO. There are two interconnecting plates, (female and male), one attaches to the output shaft on your tractor, the other to the shaft on your attachment.

For best results, every tractor should have the Tractor Plate (Female) installed and every implement with a PTO driveline should have an Implement Plate (Male) installed.

Highlights:

• Compatible with rear 6-spline 540 rpm PTO for most tractors up to *130 HP
• Easily connect your mower, shredder, tiller or any PTO driven implement in seconds
• Simple one-step installation for each plate and easy removal
  • No special tools or installation hardware required
• Built To Last!
  • AISI 4140 hardened alloy steel with QPQsm finish
• Safety Plunger Pin included with every tractor plate
  • Extras can be ordered separately
• When fully installed, the PTO Link^® system adds approximately 5 inches to the overall length of the driveline
  • This is helpful if you use a 3-Point Quick Hitch and need to lengthen your PTO shafts
• The PTO Link™ is NOT an adapter. Do not use in combination with PTO adapters.
• Compliant with ASABE standards
• One year warranty

• Made in the USA!

Specs

• Dimensions
  • Tractor (Female) Plate (4.75” W x 3.75” H)
  • Implement (Male) Plate (4.75”W x 4.75”H)
• Weight
  • Female/Tractor Plate: 3 lb, 14.8 oz
  • Male/Implement plate: 4 lb, 1.2 oz
• Duo System (one Female Plate, one Male Plate combined): 8 lbs
• Duo shipping weight: 9 lbs

*Compatibility notice (for tractors rated below 35 HP): The “smaller” PTO Link® Compact System is the REQUIRED system for tractors w/a PTO clearance length of 3 inches (or shorter). Known tractor models that fit this description include: Kubota BX, B & LX Series, Kioti CS & DK Series(cat-1), Yanmar SA Series, John Deere 2520 (2005-2011), New Holland Workmaster 25S, Cub Cadet 6284D, Bad Boy 3026, LS MT122, MT125 & MT 225, Mahindra 1526, 1626 & 2126 and Massey Ferguson 25, 1010, 1020, 1030 & 1035, therefore, the above listed models are not compatible with the “larger” HD or SD Systems.

*Safety Notice: As an important safety precaution, be sure to turn off tractor’s engine during installation, shield any rotating parts and do not wear any loose clothing that could become entangled and pulled into the machine. PTO safety is extremely important and every precaution should be taken.
