Dirt Dog Heavy Duty Subsoiler

Hardpan or compacted soil has two negative effects you can prevent: plant roots can’t penetrate into lower levels of the soil to tap additional nutrients, and excess water can’t drain which can lead to root rot. The new HDSS model subsoilers from Dirt Dog are available with a single or double ripper shank, and each ripper is available in a short or long style so that you can rip up soil that was impenetrable to water and roots and make it penetrable. You can also use a subsoiler to lay wire, waterlines or other pipe.

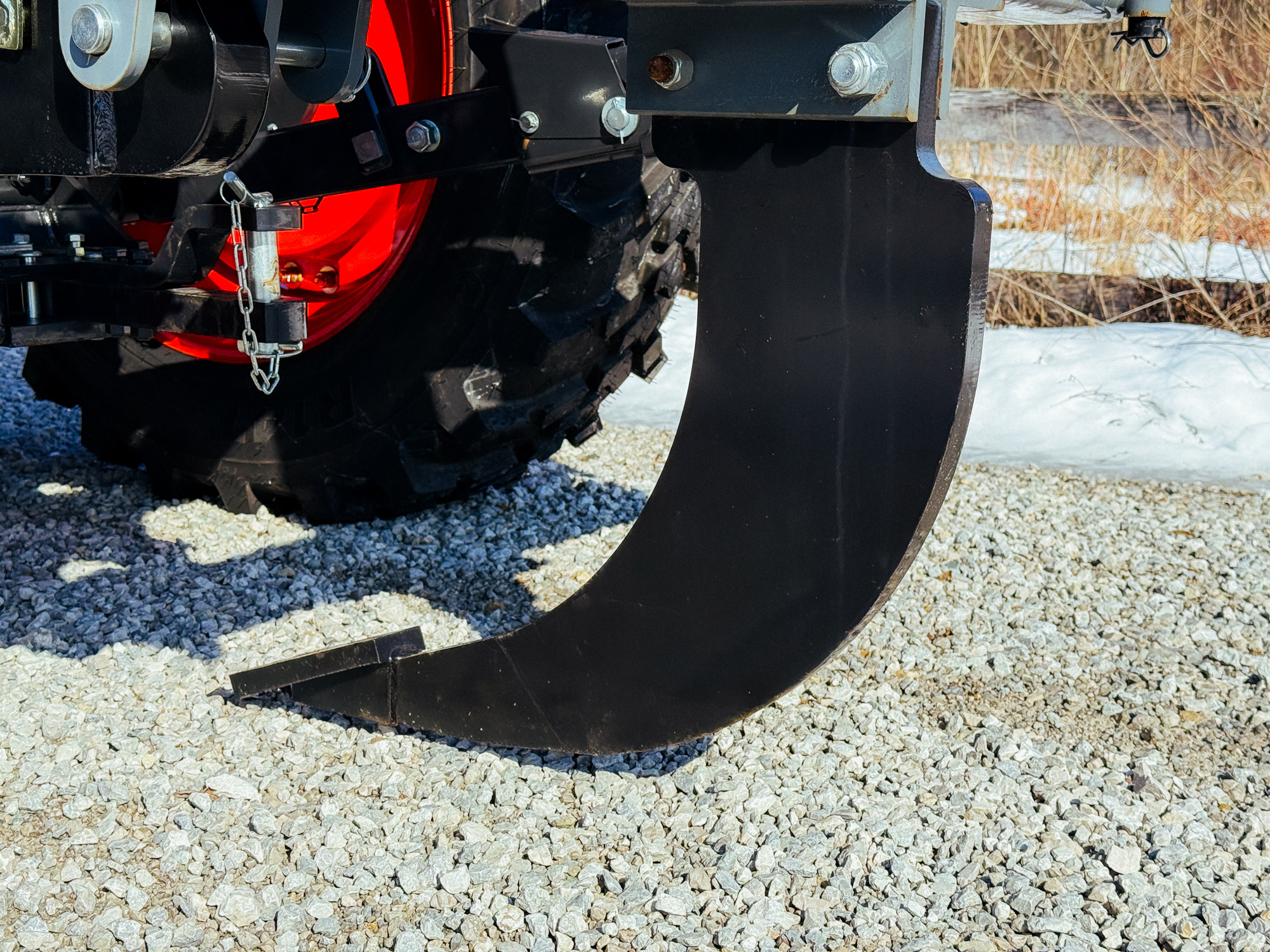

The high-carbon steel shank is capped with a heat-treated plow point so you can cut through the soil with minimal ground disturbance. Your tractor and subsoiler are protected with a shear pin.

DIRT DOG Heavy duty subsoiler HIGHLIGHTS

• Cat. 1 & 2 Quick Hitch compatible
• Replicable heat treated plow points
• Triple lug hitch
• Parabolic shank for easy penetration
• 4″ × 4″ × 1/4″ Main Tube
• Available in Single or Double Shank Configurations
• Parking Stand Included
• Shear Bolt protection

HDSS1S (Heavy Duty Subsoiler, 1 Shank, Short)

• Width: 41″
• Height: 43 1/2″
• Weight: 261lb
• 1 Ripper Shank, 1.25″ thick steel
• Max cutting depth: 19″
• 35–85HP

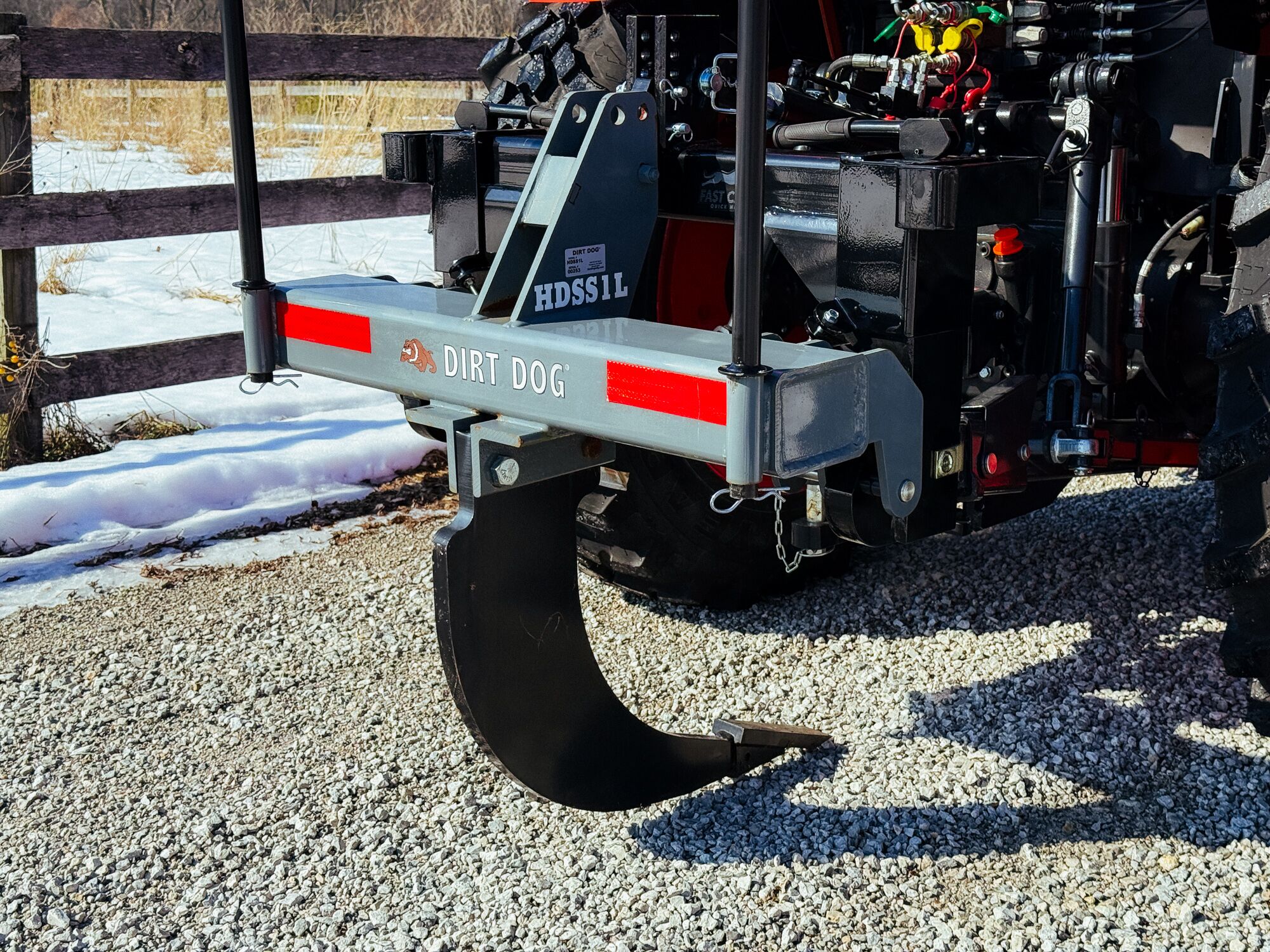

HDSS1L (Heavy Duty Subsoiler, 1 Shank, Long)

• Width: 41″
• Height: 43 1/2″
• Weight: 440lb
• 1 Ripper Shank, 1.25″ thick steel
• Max cutting depth: 23″
• 35–85HP

HDSS2S (Heavy Duty Subsoiler, 2 Shanks, Short)

• Width: 49″
• Height: 43 1/2″
• Weight: 450lb
• 2 Ripper Shanks, 1.25″ thick steel
• Max cutting depth: 19″
• 35HP per shank, up to 85HP
• Dual Ripper Shanks are bolt-on/adjustable

HDSS2L (Heavy Duty Subsoiler, 2 Shanks, Long)

• Width: 49″
• Height: 43 1/2″
• Weight: 490lb
• 2 Ripper Shanks, 1.25″ thick steel
• Max cutting depth: 23″
• 35HP per shank, up to 85HP
• Dual Ripper Shanks are bolt-on/adjustable
