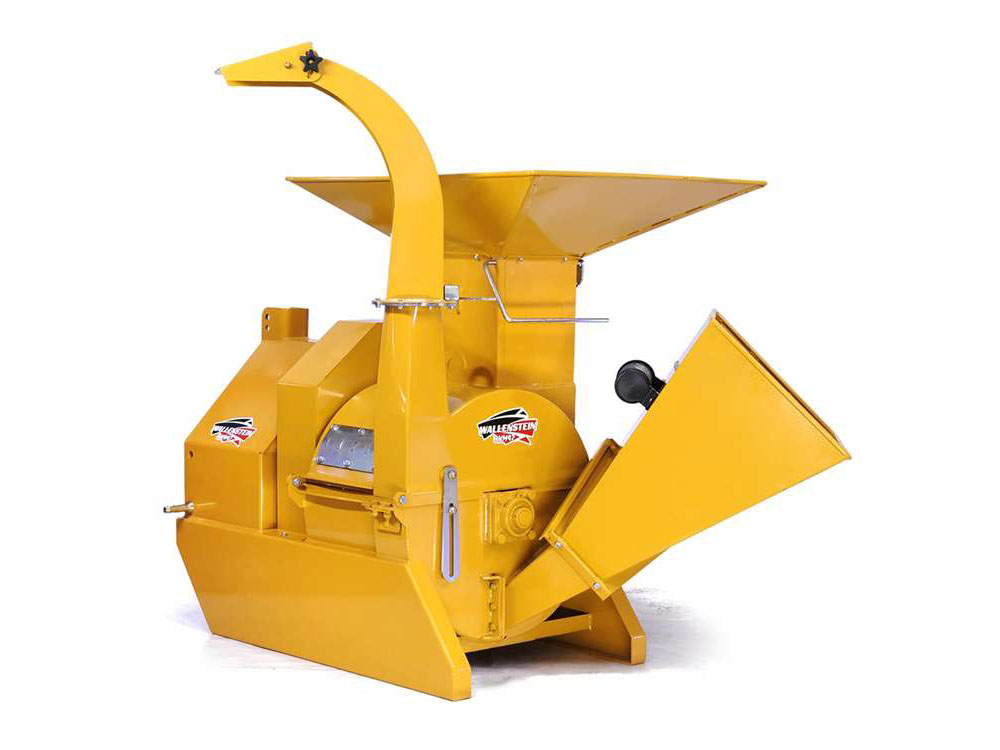

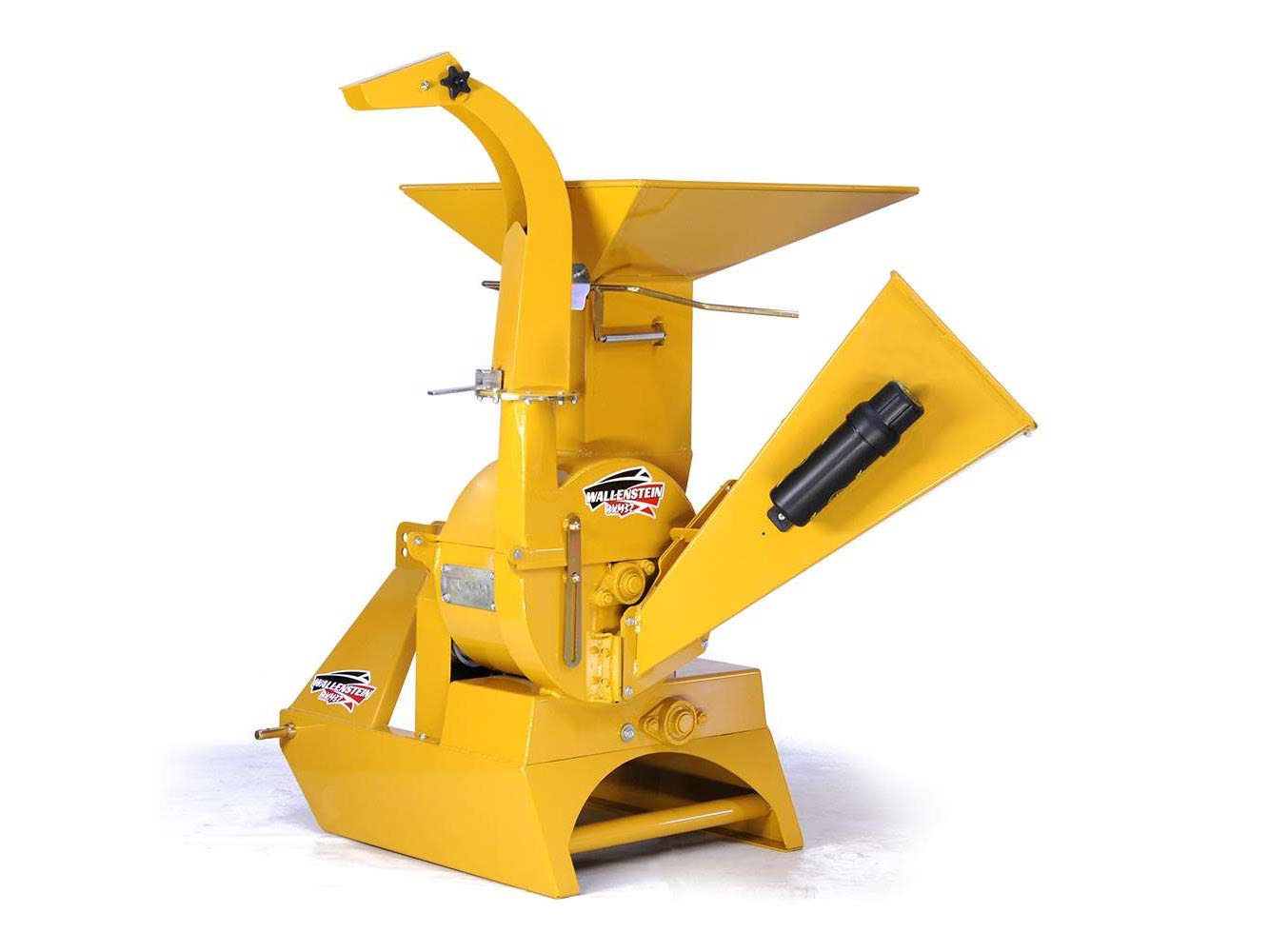

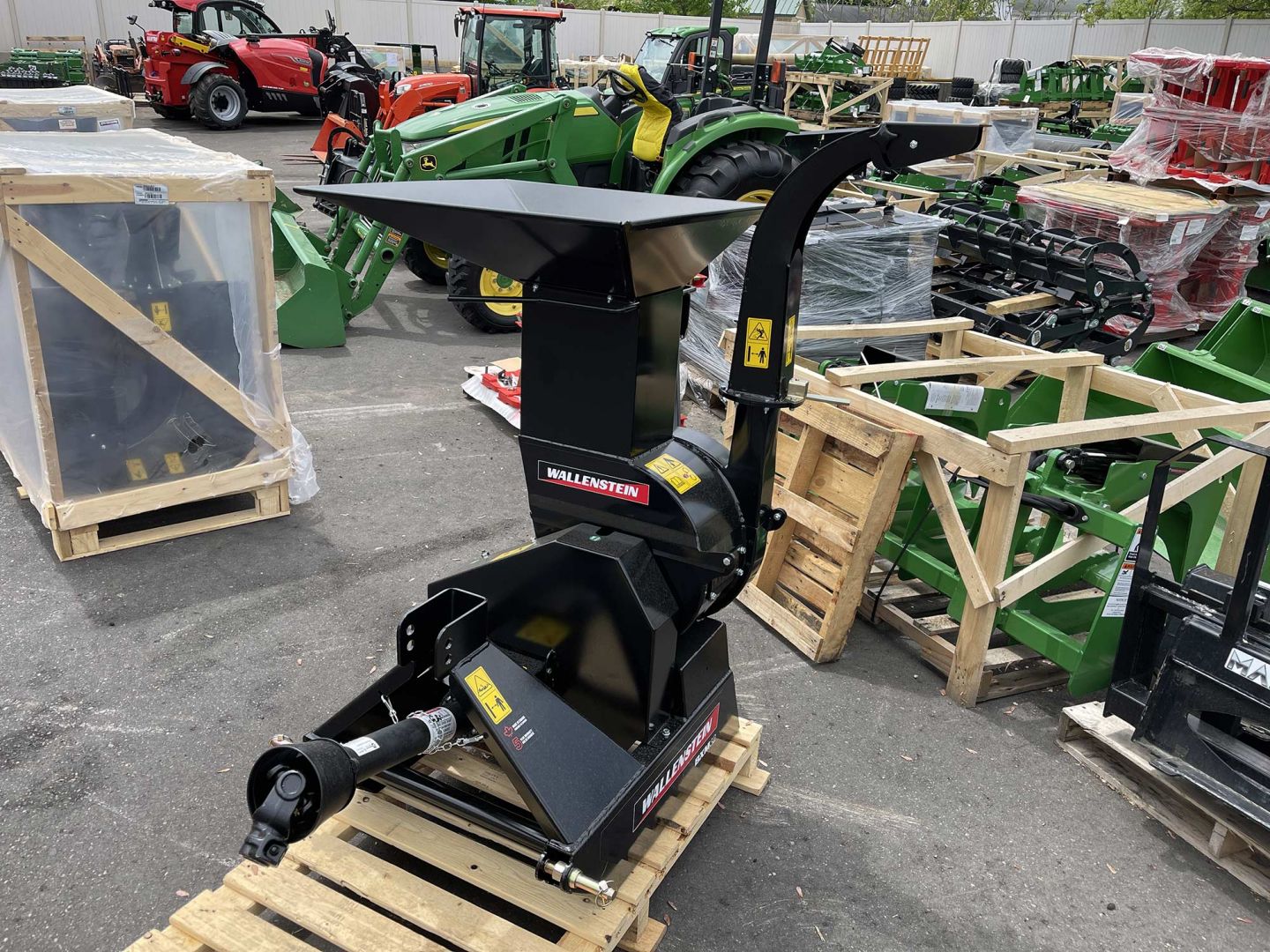

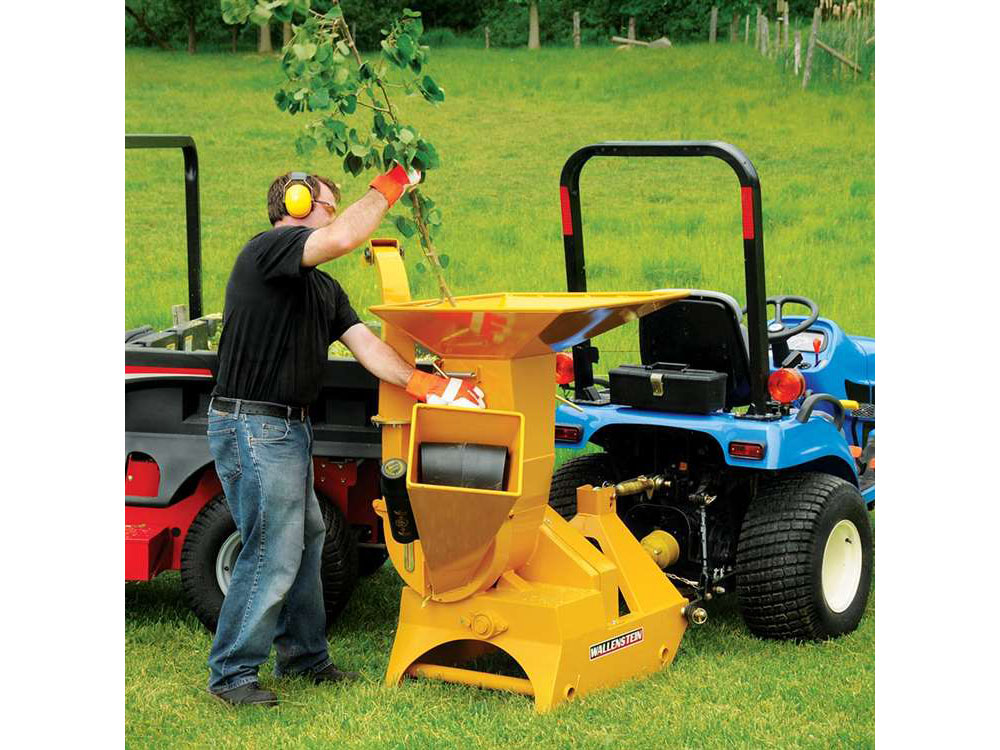

Wallenstein Chipper/Shredder BXM32/BXM42

Wallenstein Chipper/Shredder Overview

5 year factory warranty, available in 8 colors including camo!

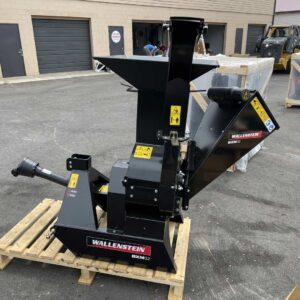

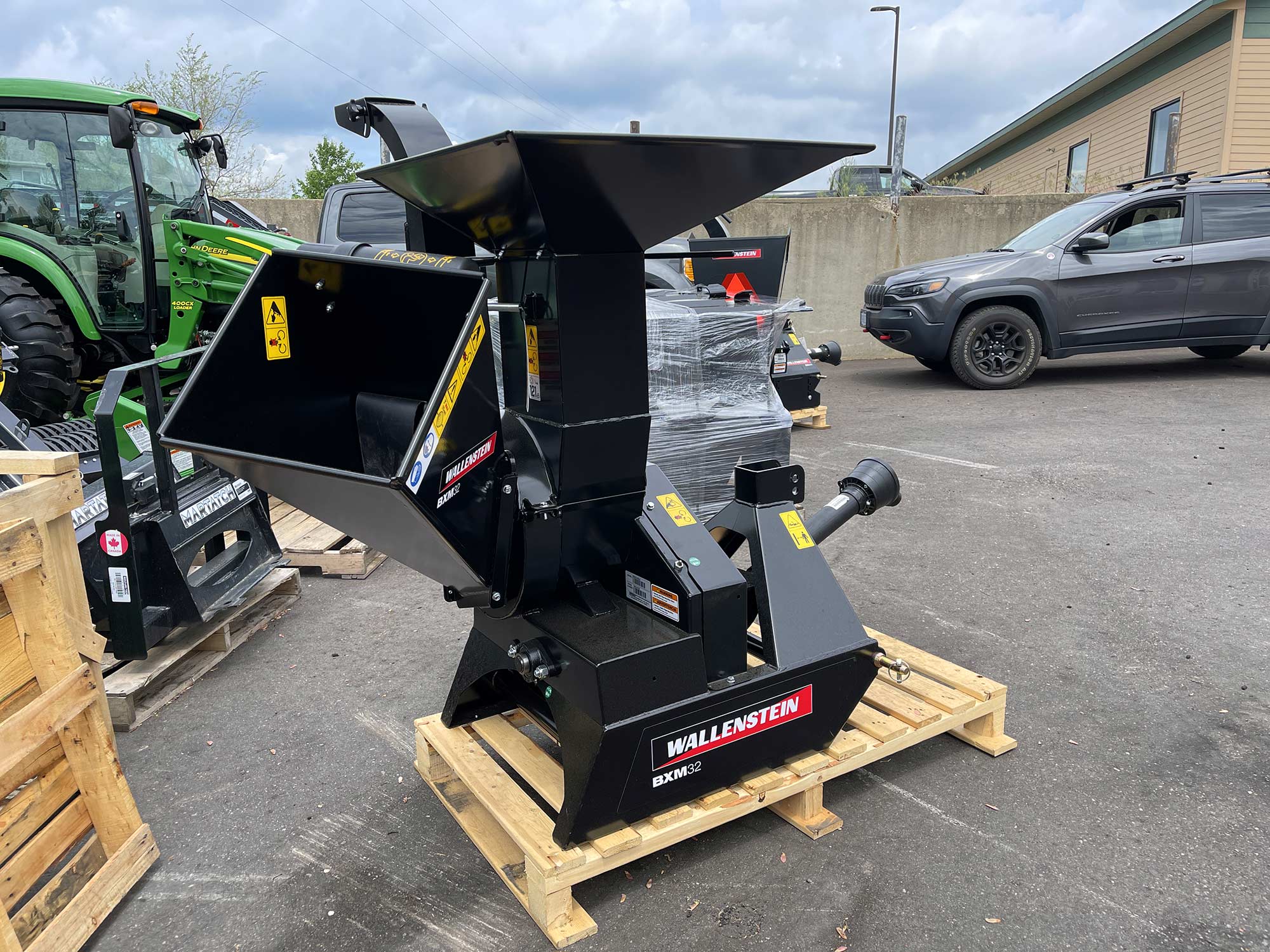

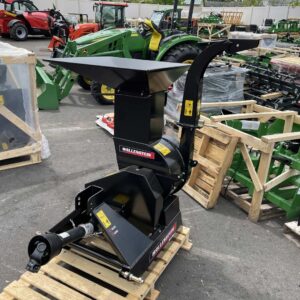

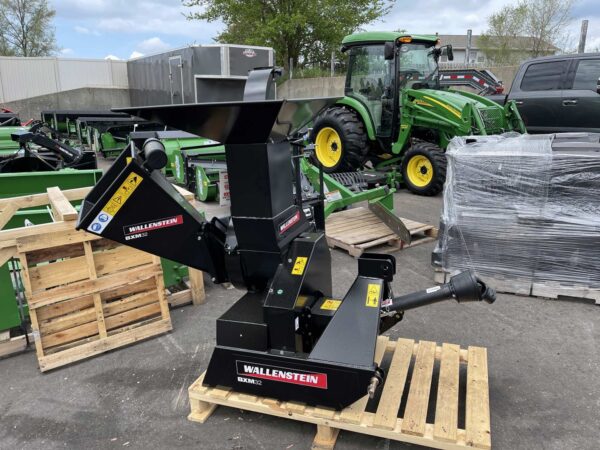

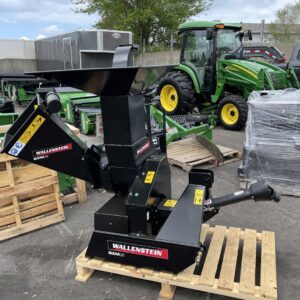

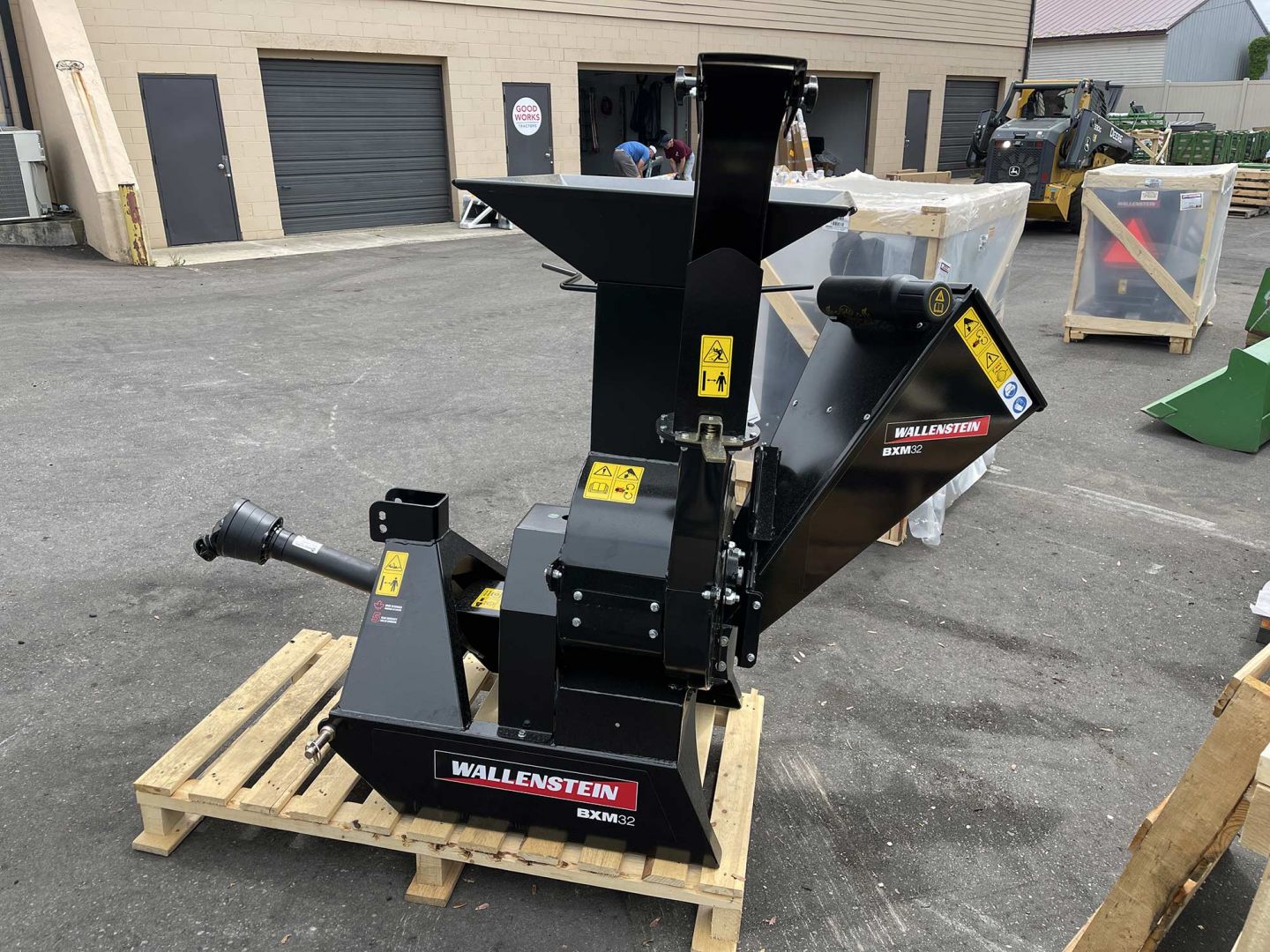

BXM32 Specs

• Chipping Capacity: 3″ (8 cm)
• Shredding Capacity: 1″ (3 cm)
• Chipper Type: Disc
• Feed System: Gravity
• Shredder Type: Hammer Mill
• Engine HP Range: 12 – 35

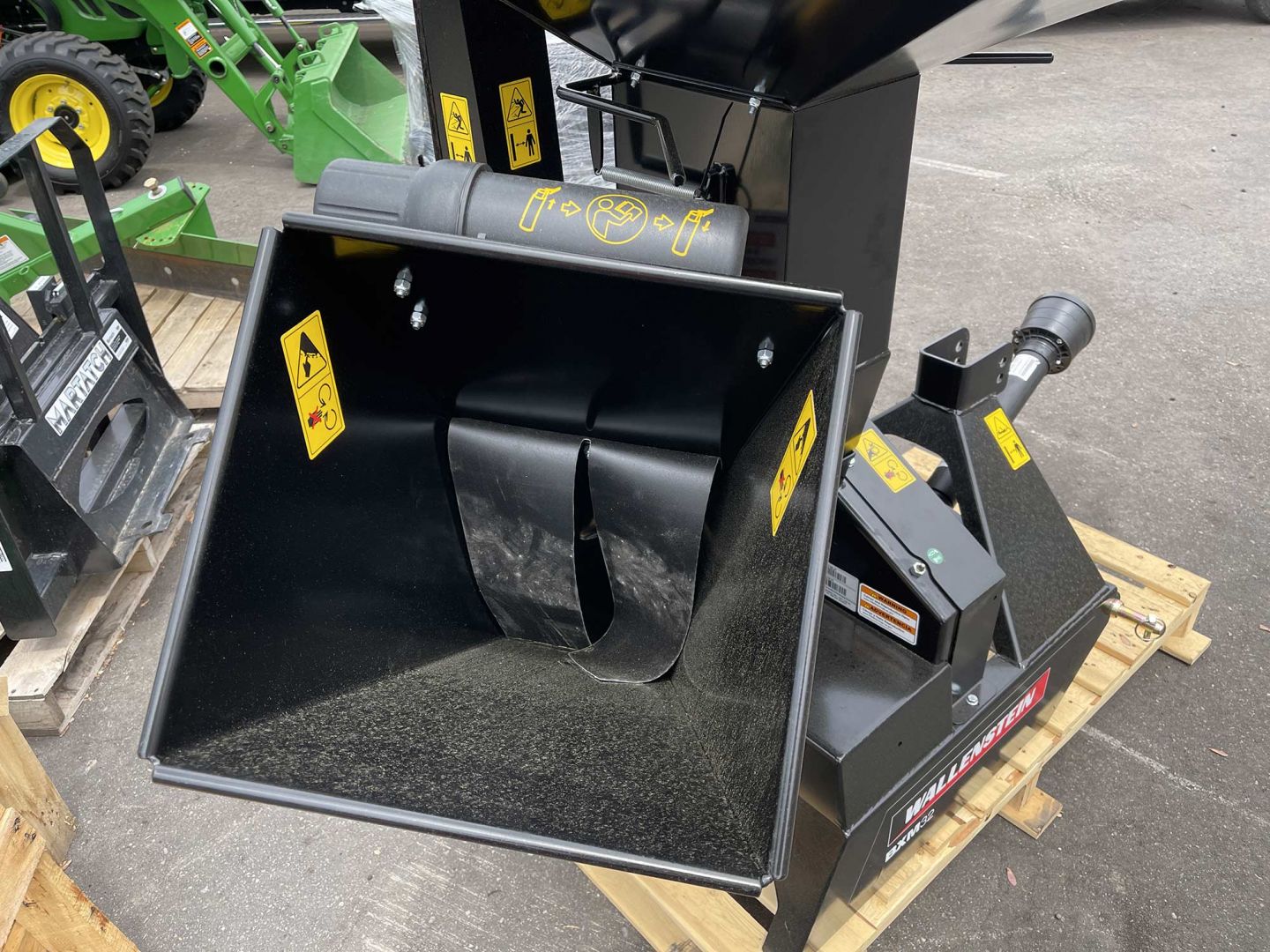

• Chipper Hopper Opening: 10″ x 13″ (25 cm x 33 cm)
• Chipper Rotor Opening: 3″ x 6″ (8 cm x 15 cm)

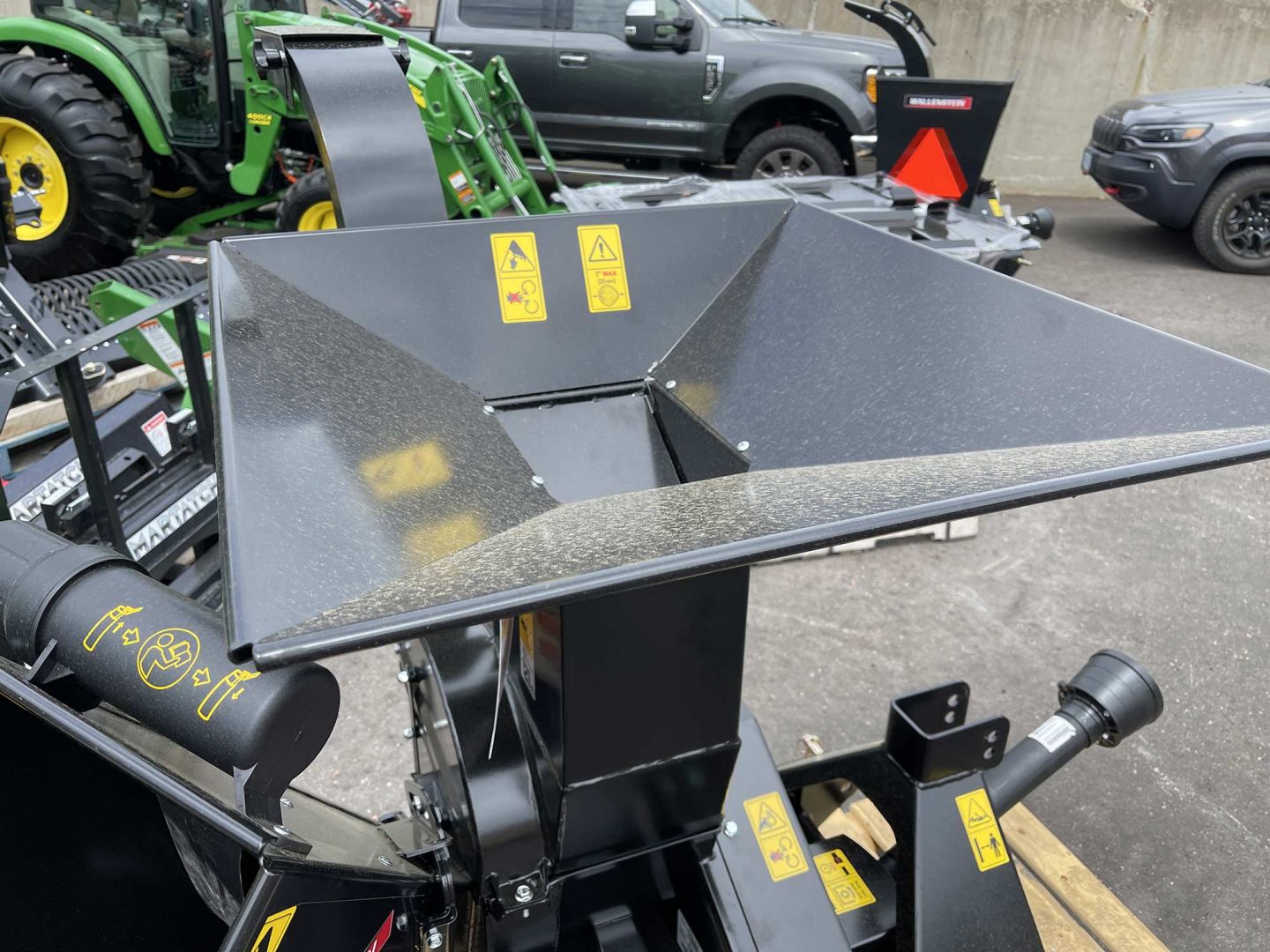

• Shredder Hopper Opening: 28″ x 30″ (71 cm x 76 cm)
• Shredder Housing Opening: 10″ x 10″ (25 cm x 25 cm)
• Number Of Chipper Knives: 2
• Number Of Shredder Knives: 27
• Rotor Diameter: 18″ (45 cm)
• Rotor Weight: 70 lbs (32 kg)
• Discharge Chute Height: 58″ (147 cm)

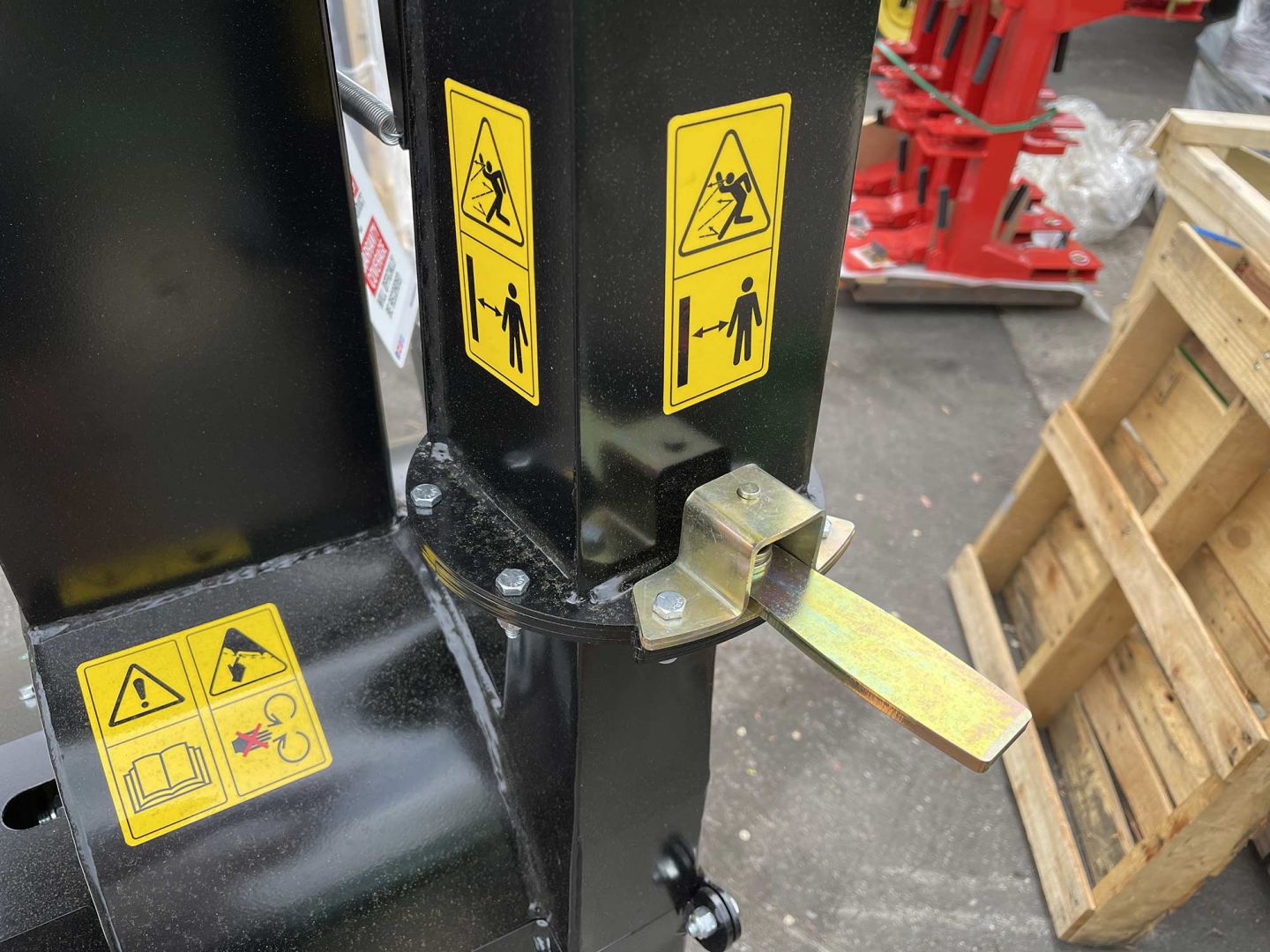

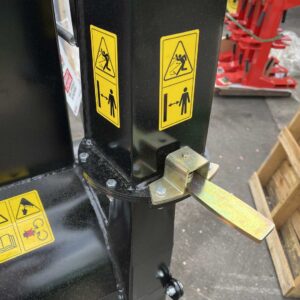

• Discharge Chute Rotation: 360°
• Drive System: PTO Belt Drive
• PTO Input Speed: 540
• Rotor RPM: 1600
• PTO Height: 11″ (27 cm)
• Total Weight: 445 lbs (202 kg)
• Dimensions (LxWxH): 54″ x 36″ x 60″ (137 cm x 91 cm x 152 cm)
• Mounting System: Cat I, iMatch™ & Quick Hitch Compatible

Get full details on the BXM32 by clicking here!

BXM42 Specs

• Chipping Capacity: 4″ (10 cm)
• Shredding Capacity: 2″ (5 cm)
• Chipper Type: Disc
• Feed System: Gravity
• Shredder Type: Hammer Mill
• Engine HP Range: 30 – 85
• Chipper Hopper Opening: 18″ x 18″ (45 cm x 45 cm)
• Chipper Rotor Opening: 4″ x 10″ (10 cm x 25 cm)
• Shredder Hopper Opening: 33″ x 40″ (84 cm x 102 cm)
• Shredder Housing Opening: 11″ x 11″ (27 cm x 27 cm)
• Number Of Chipper Knives: 2
• Number Of Shredder Knives: 30
• Rotor Diameter: 25″ (64 cm)
• Rotor Weight: 170 lbs (77 kg)

• Discharge Chute Height: 62″ (158 cm)

• Discharge Chute Rotation: 360°

• Drive System: PTO Belt Drive

• PTO Input Speed: 540

• Rotor RPM: 1200

• PTO Height: 27″ (69 cm)

• Total Weight: 800 lbs (363 kg)

• Dimensions (LxWxH): 72″ x 44″ x 62″ (183 cm x 112 cm x 158 cm)

• Mounting System: Cat I, iMatch™ & Quick Hitch Compatible

Get full details on the BXM42 by clicking here!
