Description

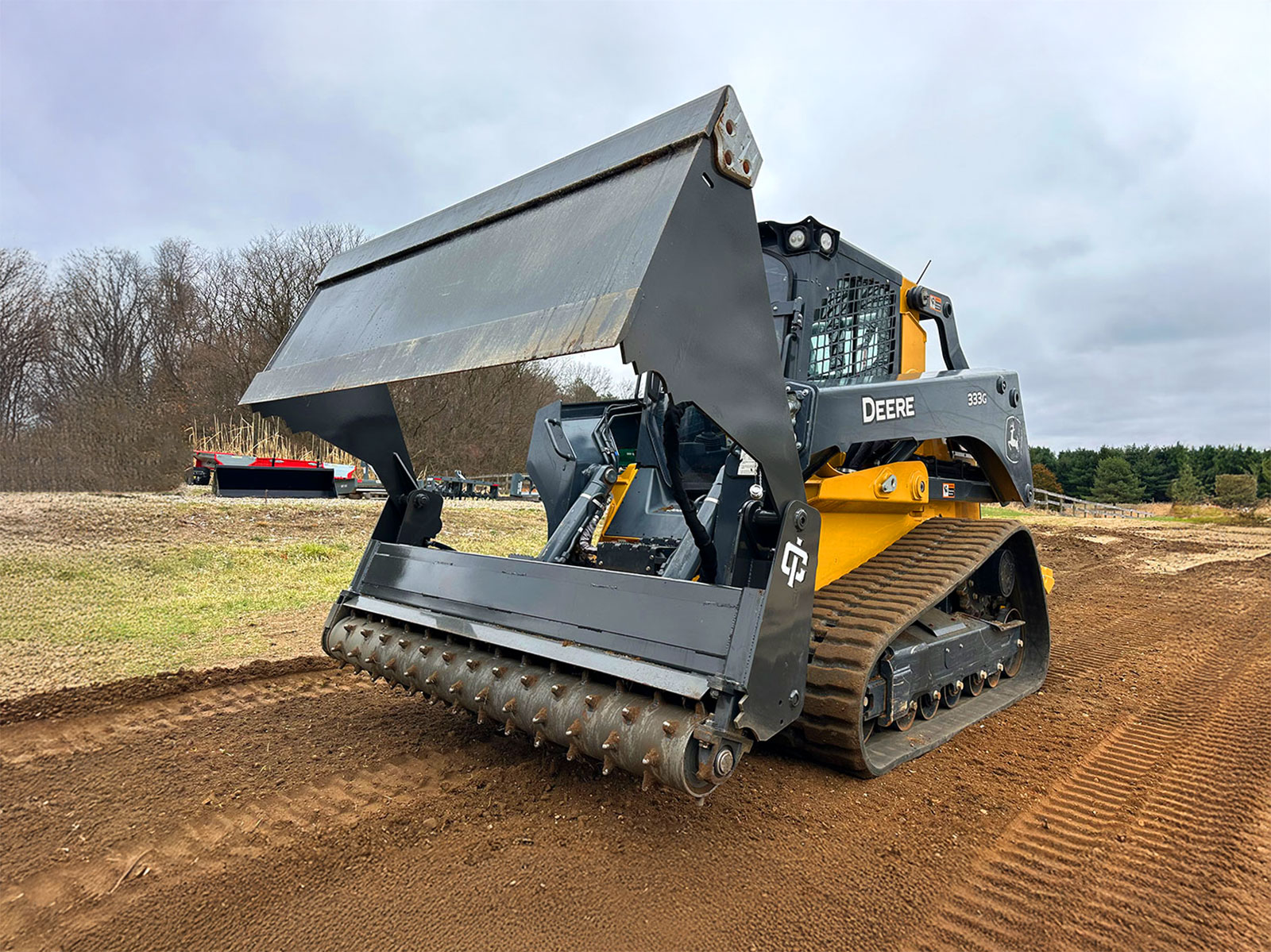

Ironcraft 6-In-1 Power Rake Highlights

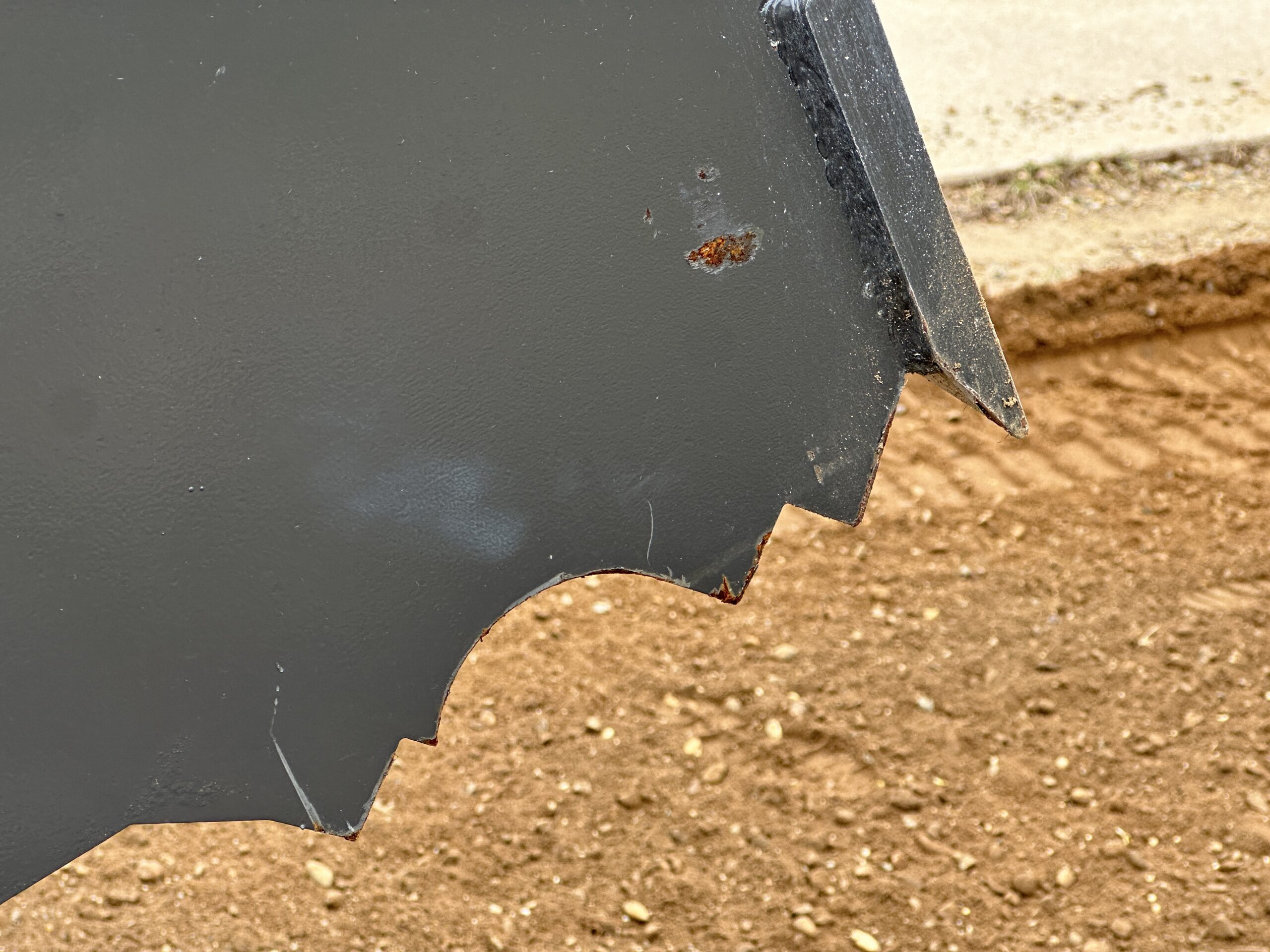

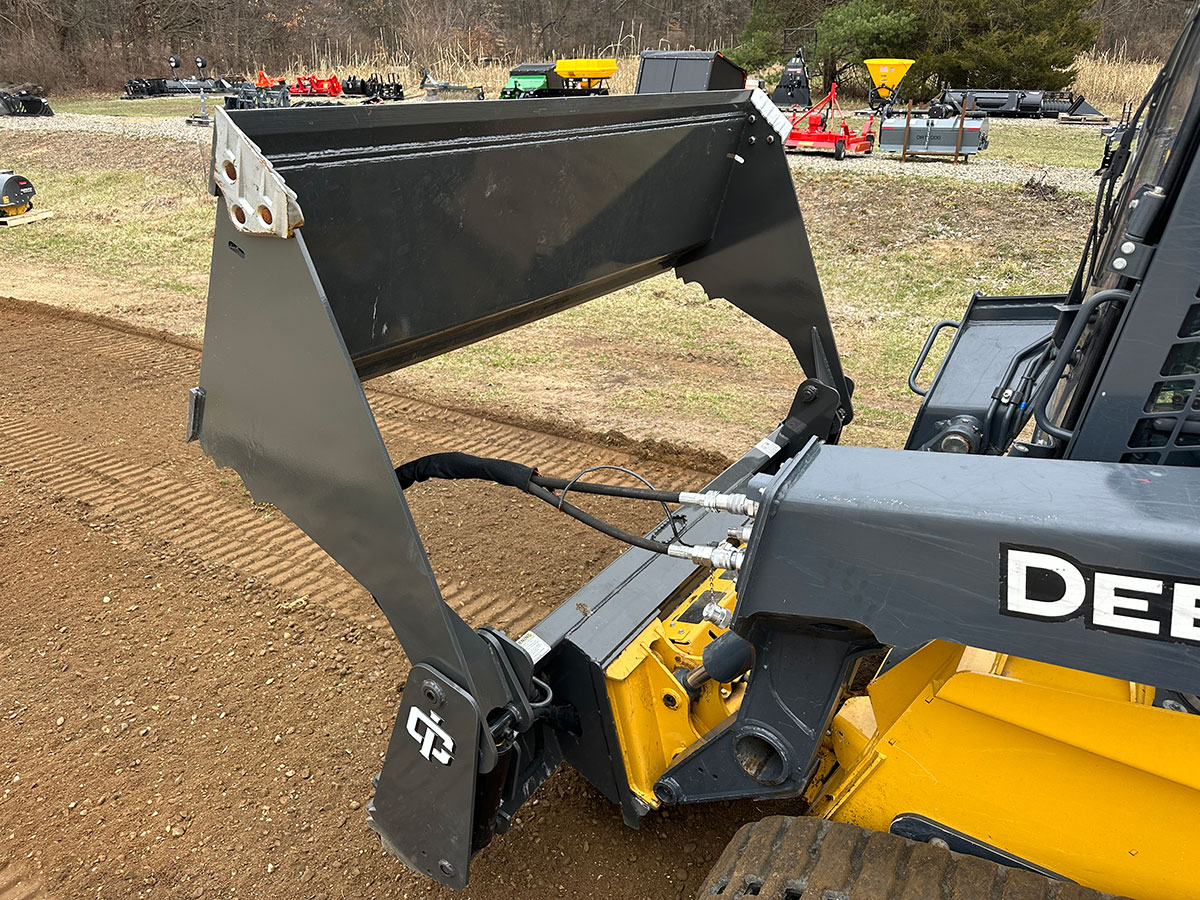

A 4-N-1 Bucket does more than just dig: the first function is digging, using the traditional bucket form. The second is as a grapple, with the side wall jaws able to clamp onto logs, limbs, and brush. Or clamp onto a rock with the middle of your open bucket. The third function is dozing, lifting the front of the bucket all the way, and pushing material around as needed. The fourth function is grading, as you can open the bucket slightly, and as you push material it will self-level and the bucket will act like a spill-over hopper. Or you can backdrag to grade as well. Alternatively, you can lay new material controlling your discharge rate by how wide you open the bucket. Now the fifth function is a power rake, which is a hydraulic drum that rotates and pulverizes your topsoil with its carbide roller tips. The 6th function is pretty amazing. Scoop up a bucket full of material and engage the power rake. Now you’ve got a sifter to slowly feed out dirt, stone, or mulch as needed with even dispersal!

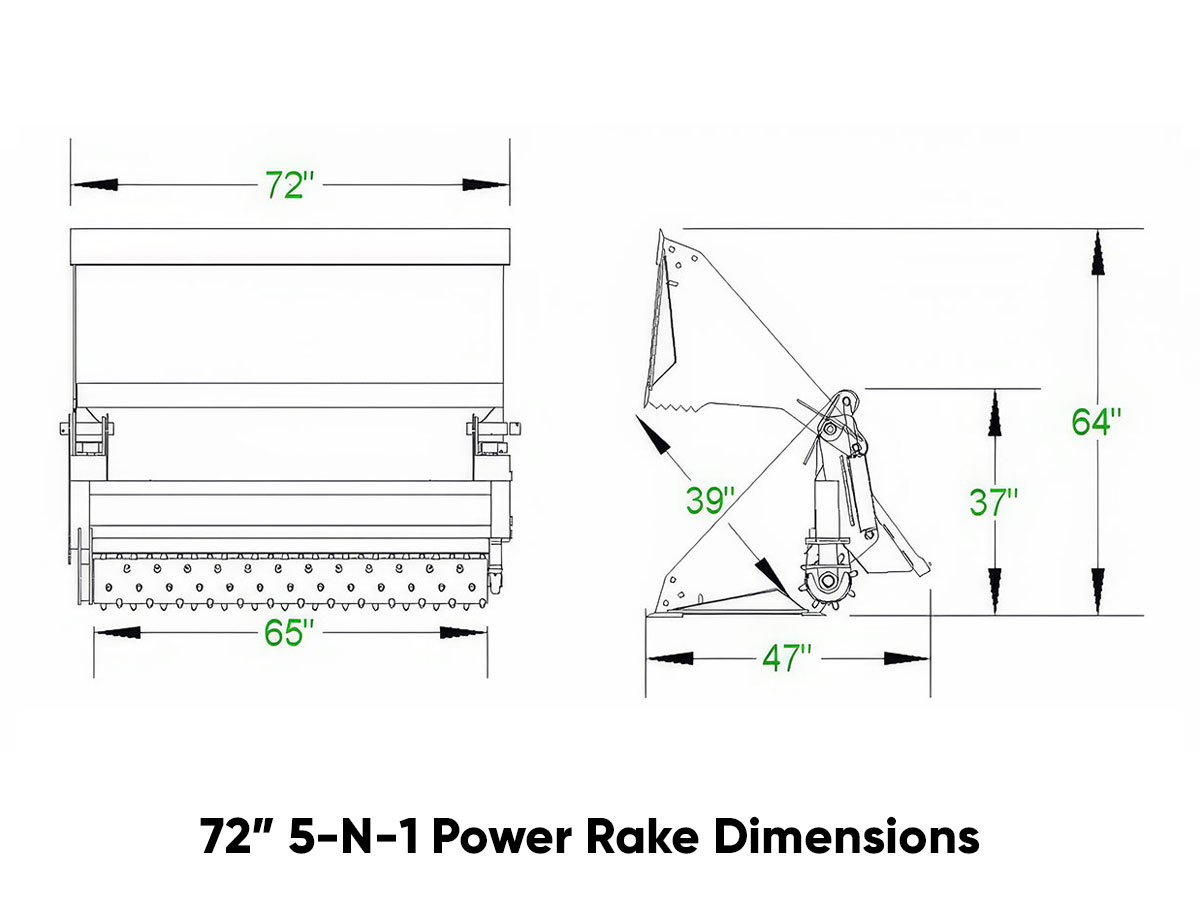

- Available Widths: 66”, 72”, 78”, 84″
- Weight: 1329 lb, 1393 lb, 1485 lb, 1522 lb

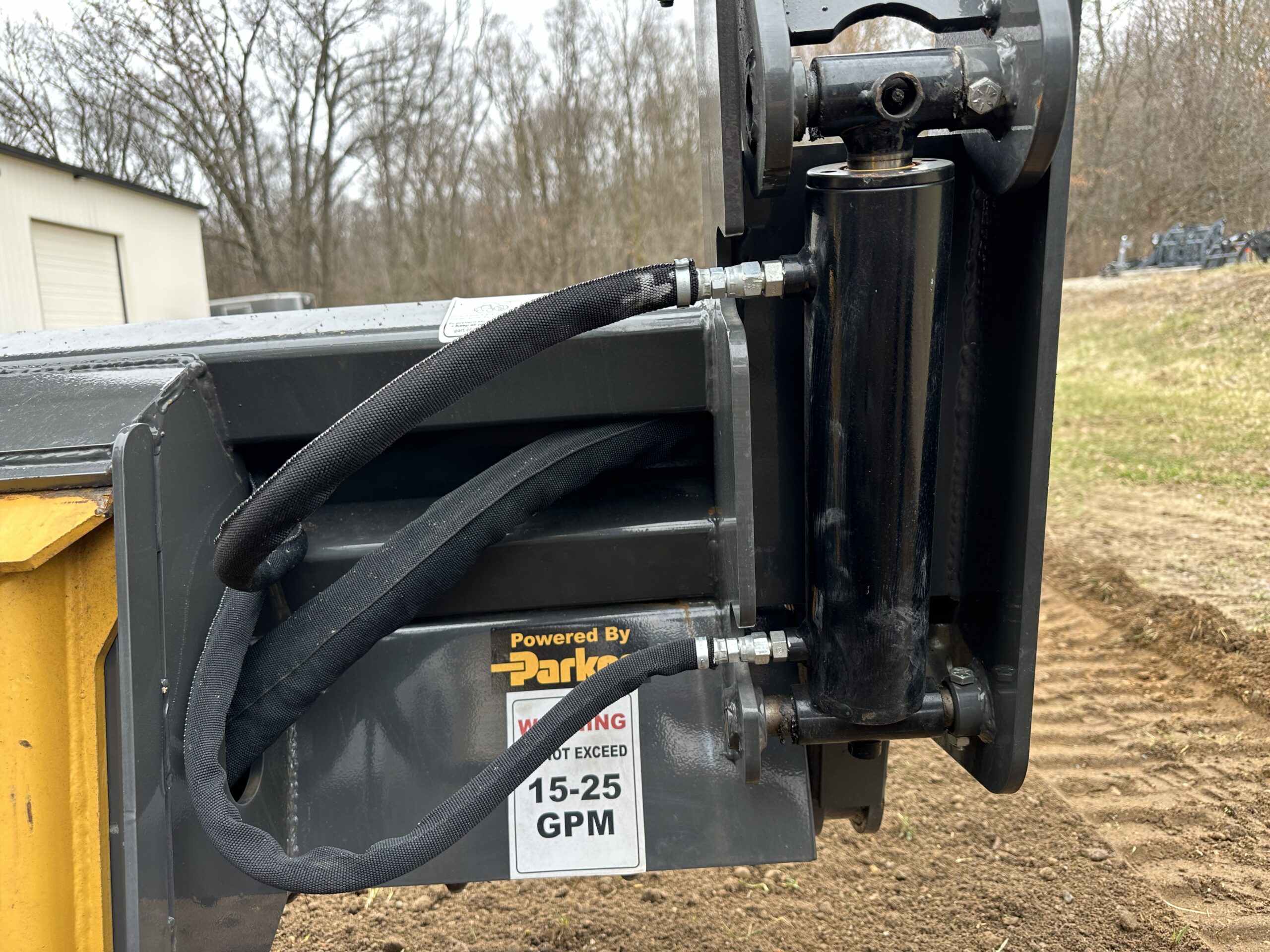

- Flow Rate of 15–25 gpm Required

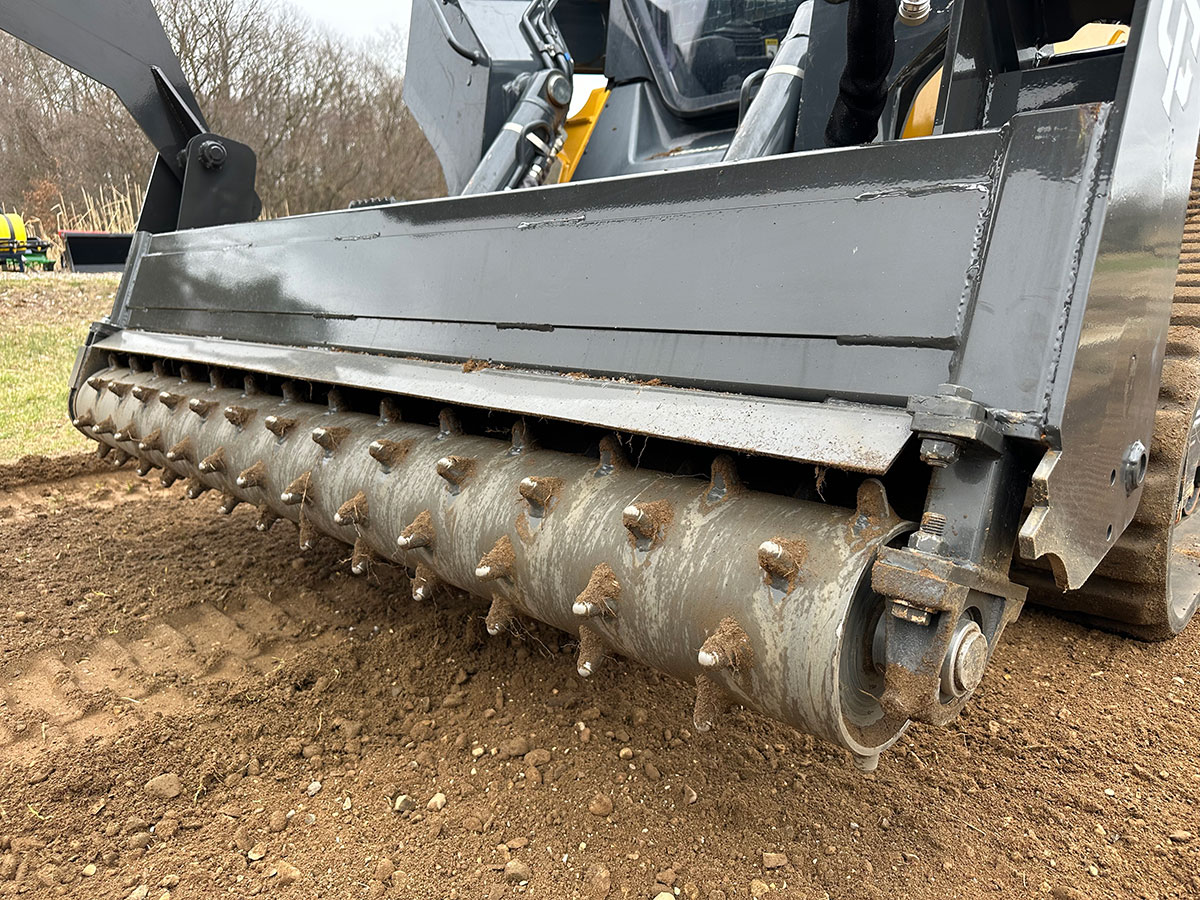

- 7 1/2″ Diameter Drum (10 1/4″ tip to tip)
- Carbide Roller Tips

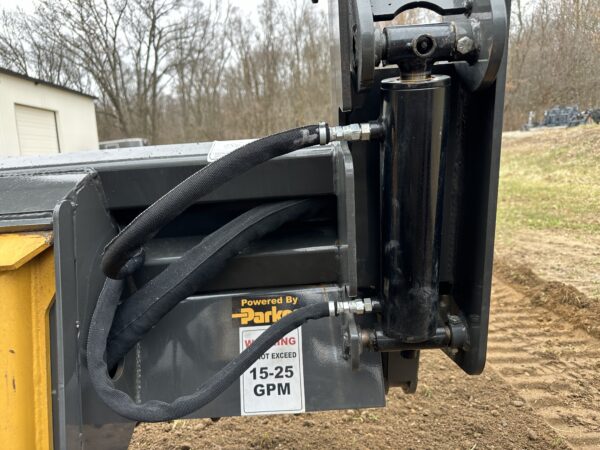

- Dual 2 1/2 x 8″ Cylinders
- 1 1/4″ Pivot Pins

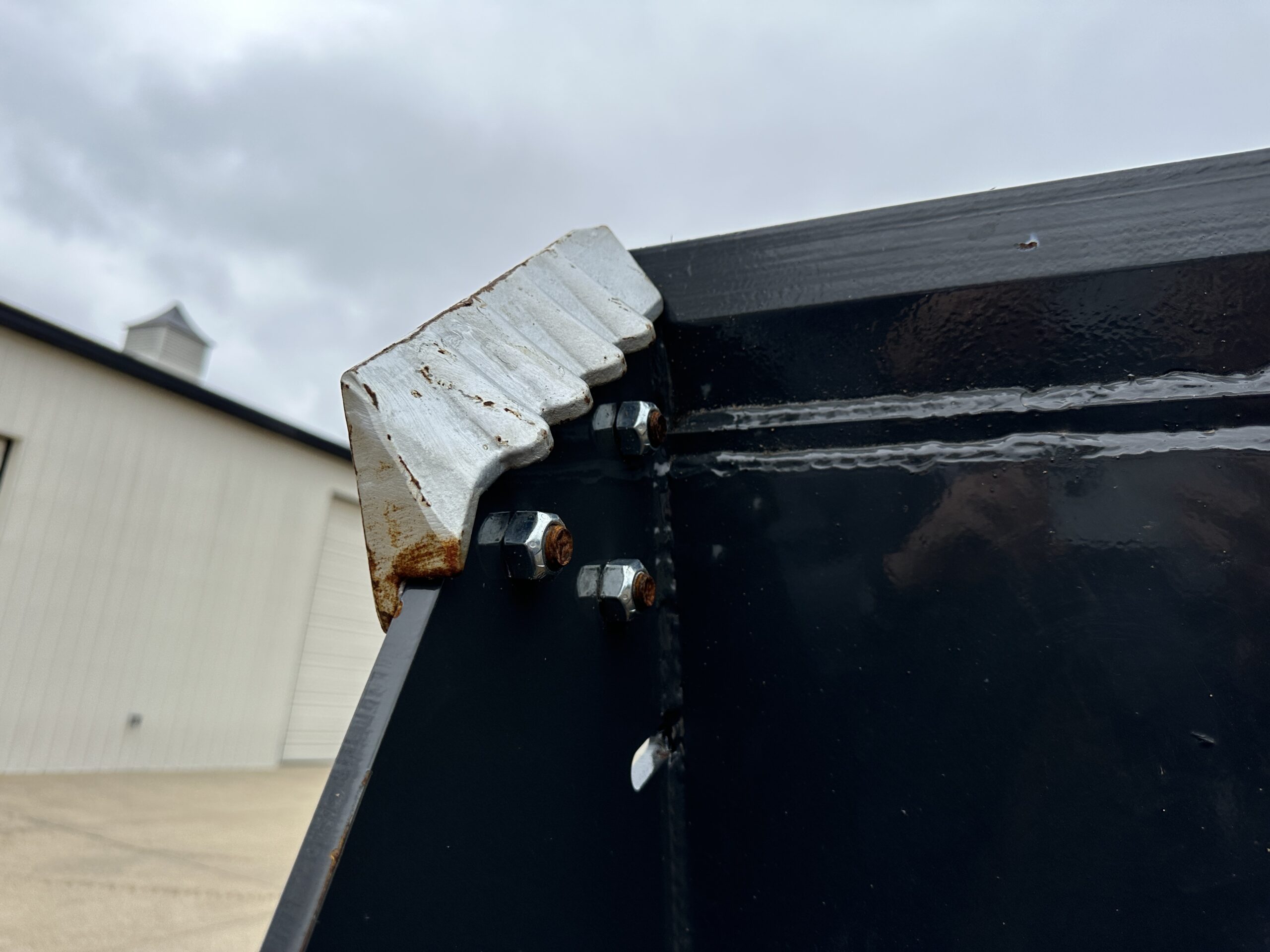

- Side Cutters standard

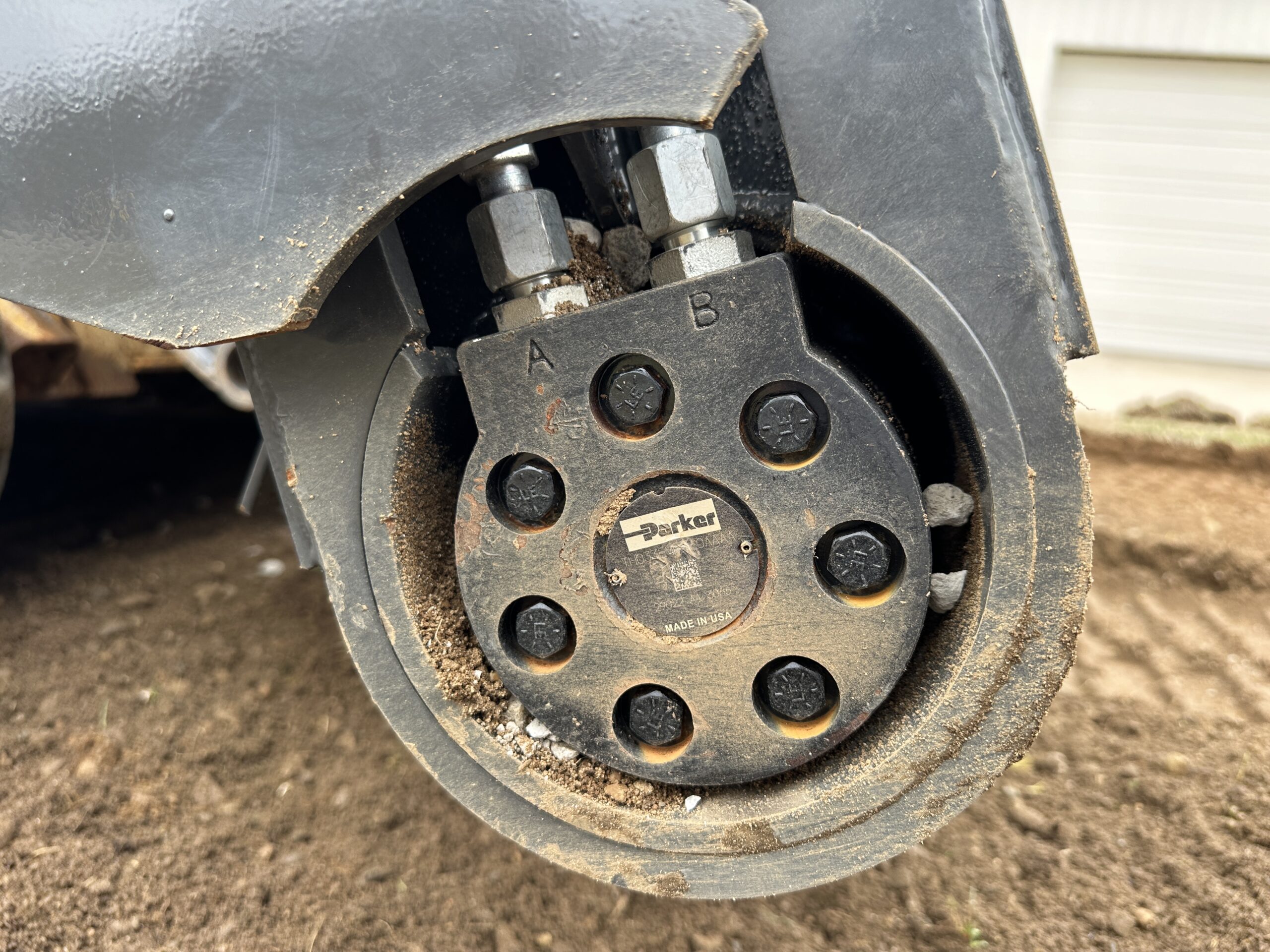

- Direct Drive Motor

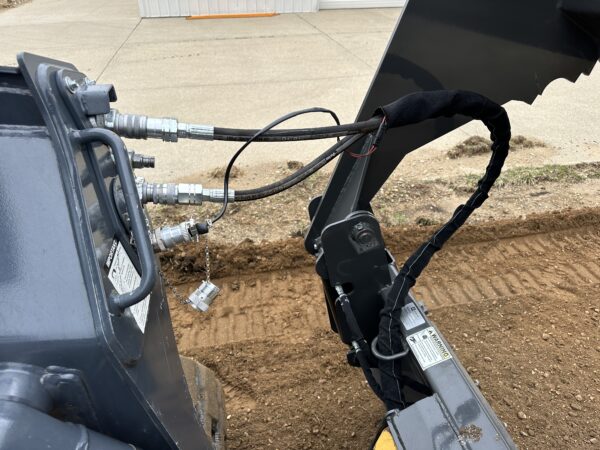

- Electric Over Hydraulic Controls (one hydraulic port needed, one electric-pin connection needed)
- SSQA Only
*Contact us to let us know your machine’s electric connection type (8-Pin, 7-Pin, 14-Pin, etc…)
